Installation Procedure

  1. Install the DRL module.
  2. Connect the DRL module electrical connectors.

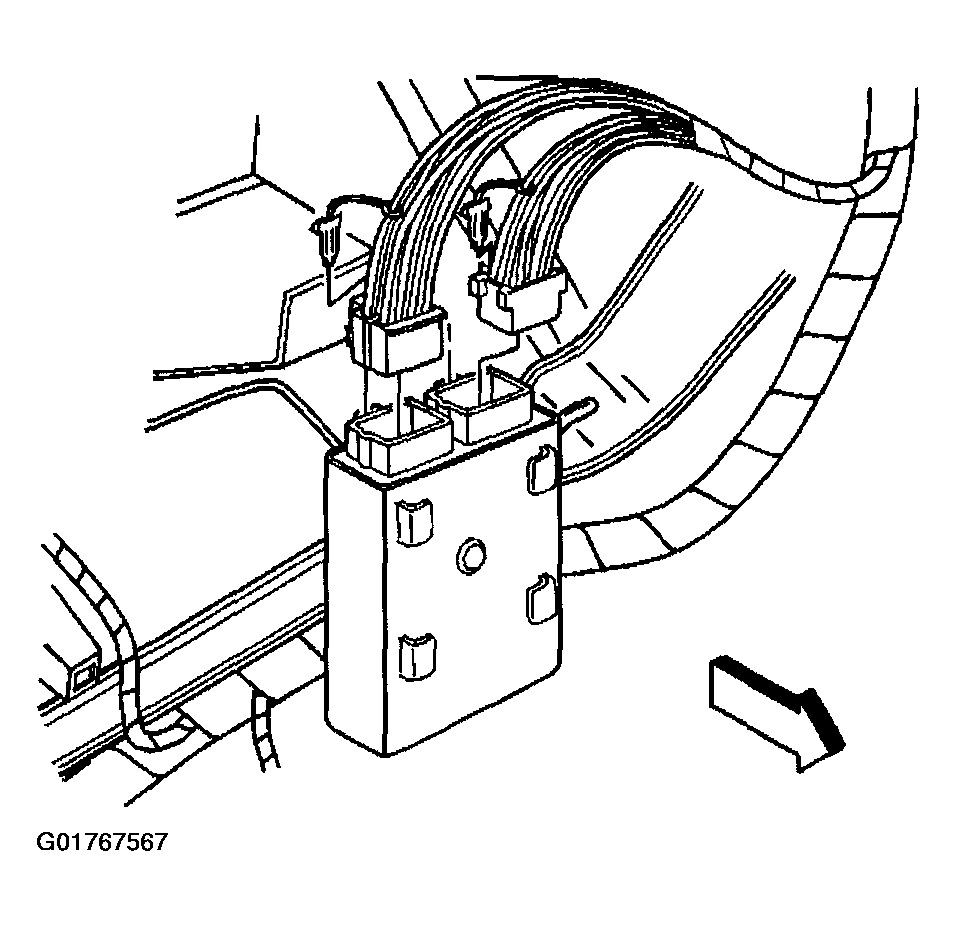

    Fig 1: Connecting DRL Module Electrical Connectors
    G01767567Courtesy of GENERAL MOTORS CORP.
  3. Slide the module onto the HVAC duct retainers.
  4. Install the radio.

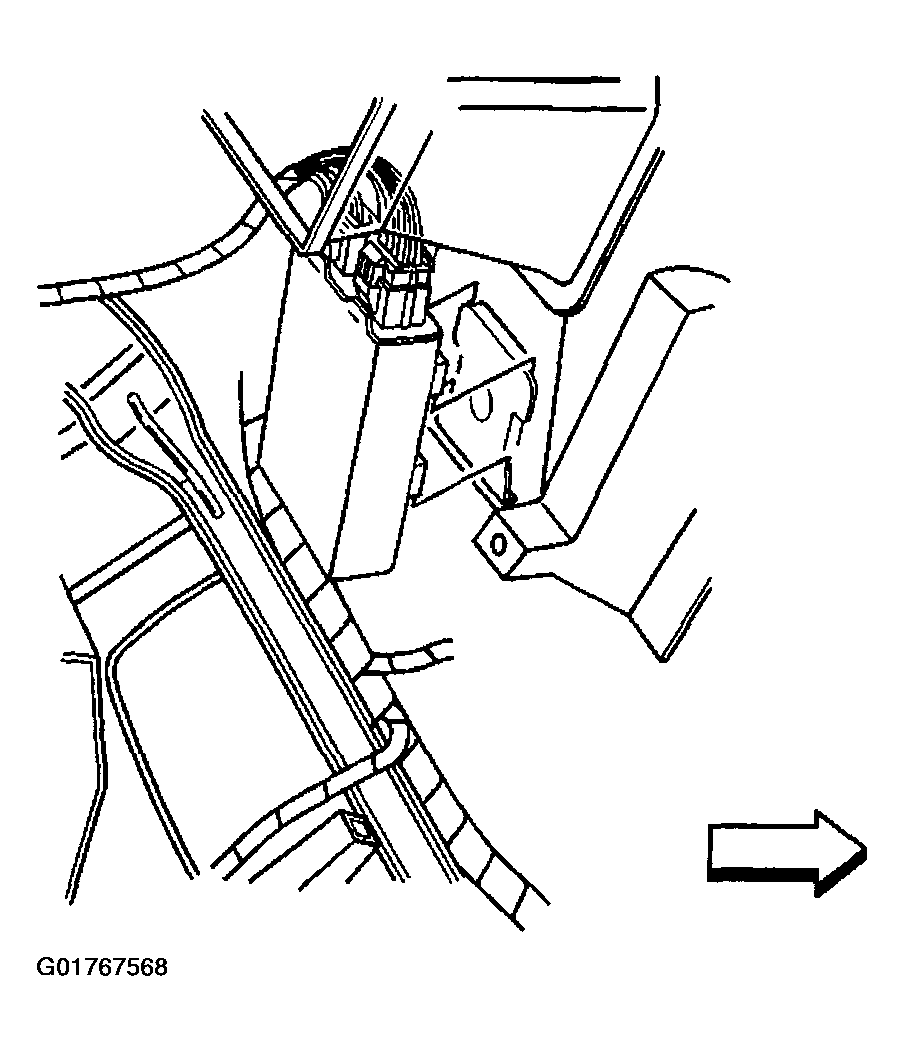

    Fig 2: Installing DRL Module
    G01767568Courtesy of GENERAL MOTORS CORP.
