System Specifications

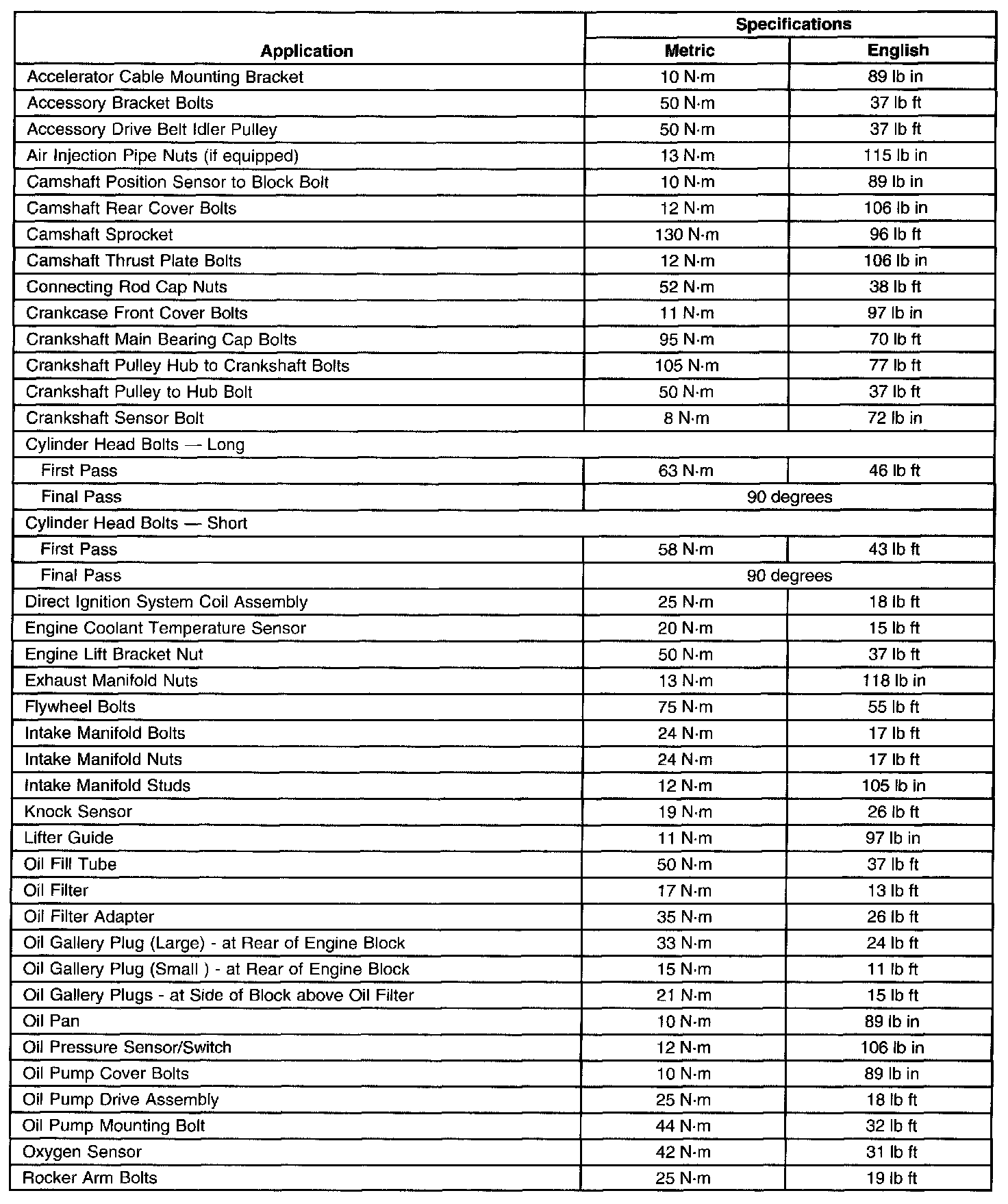

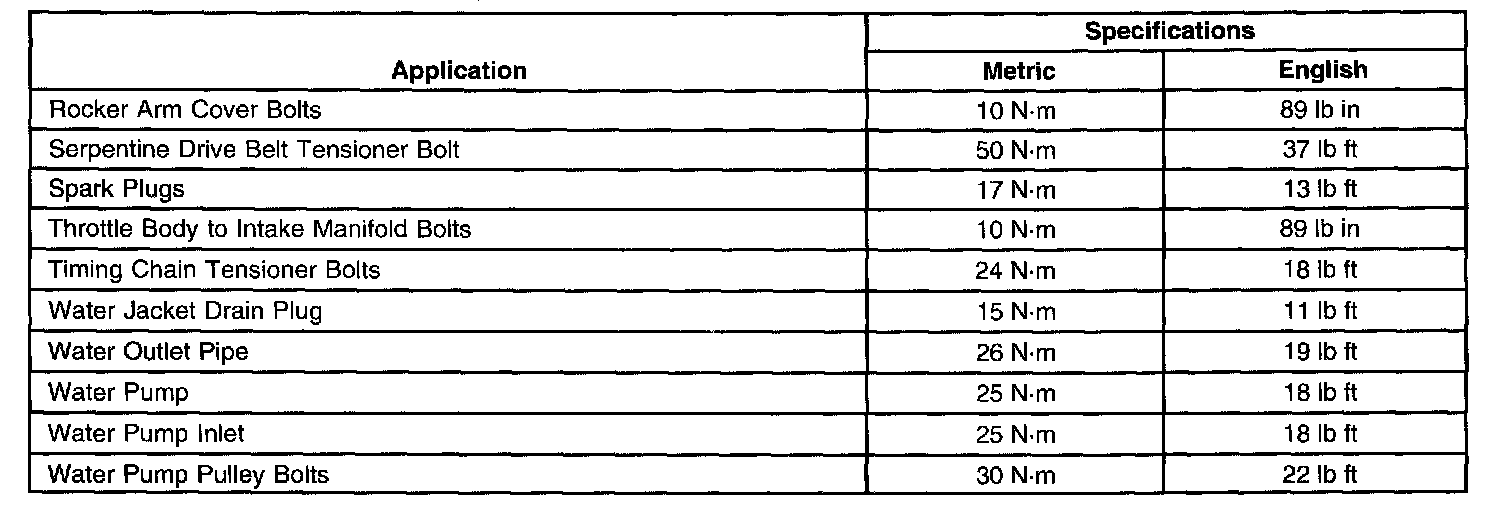

Fastener Tightening Specifications





General








Overhaul

Engine Mechanical Specifications





General











Overhaul

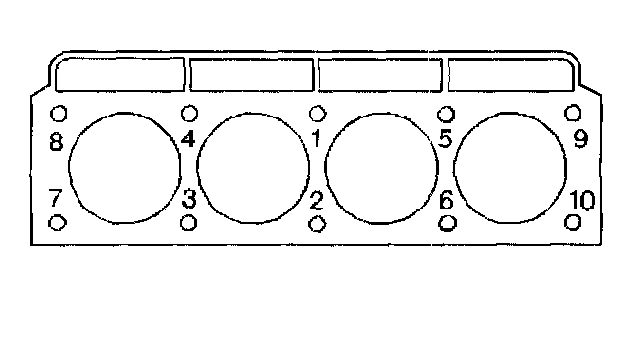

Tightening Sequence





Cylinder Head
Refer to the procedure Service and Repair





Intake Manifold
