Amplifier, Sound System

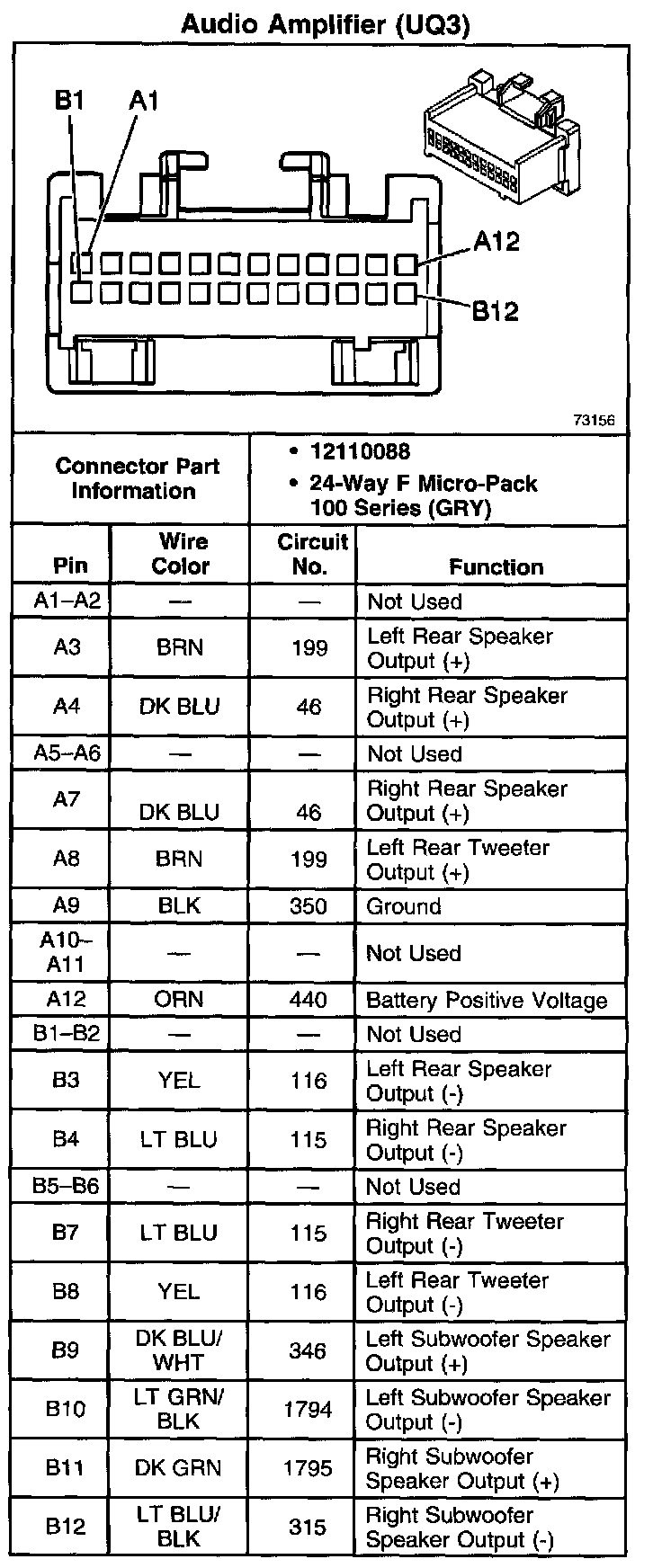

Audio Amplifier (UQ3):

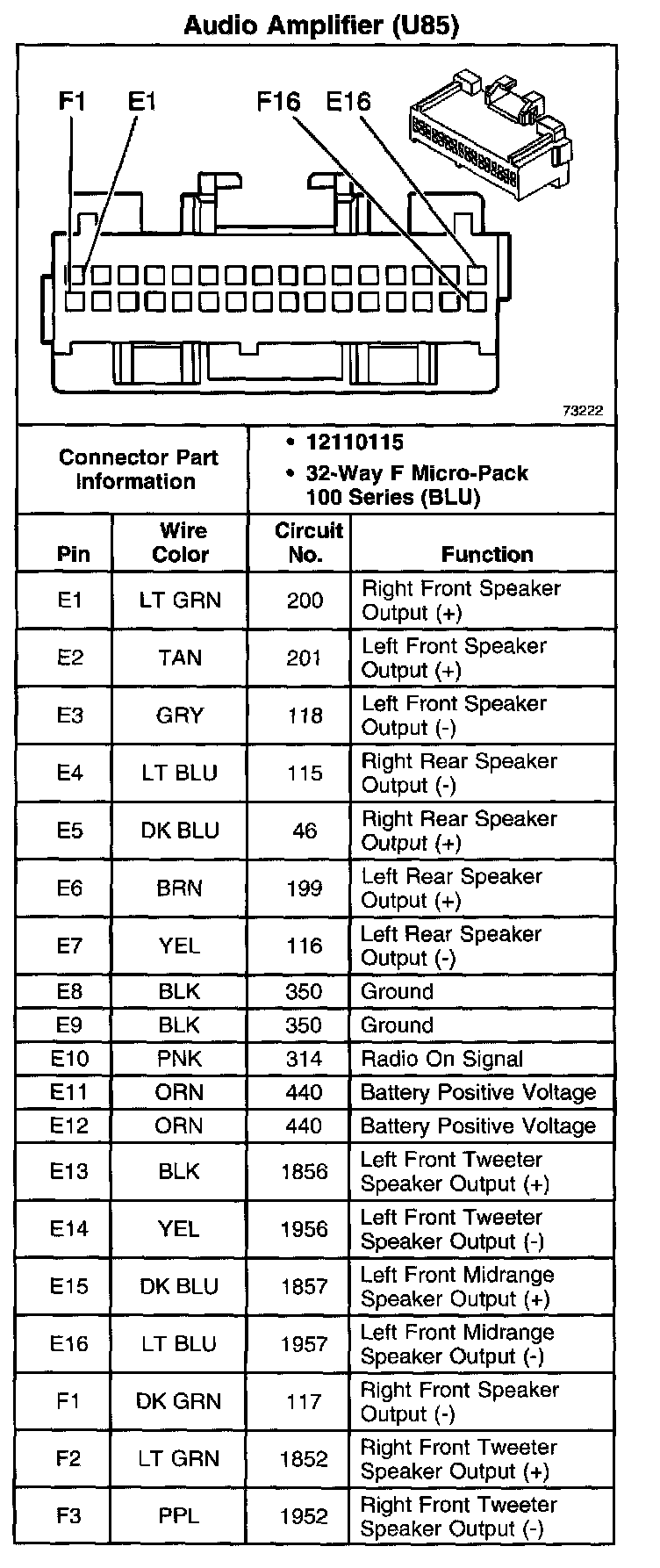

Audio Amplifier (U85) Part 1:

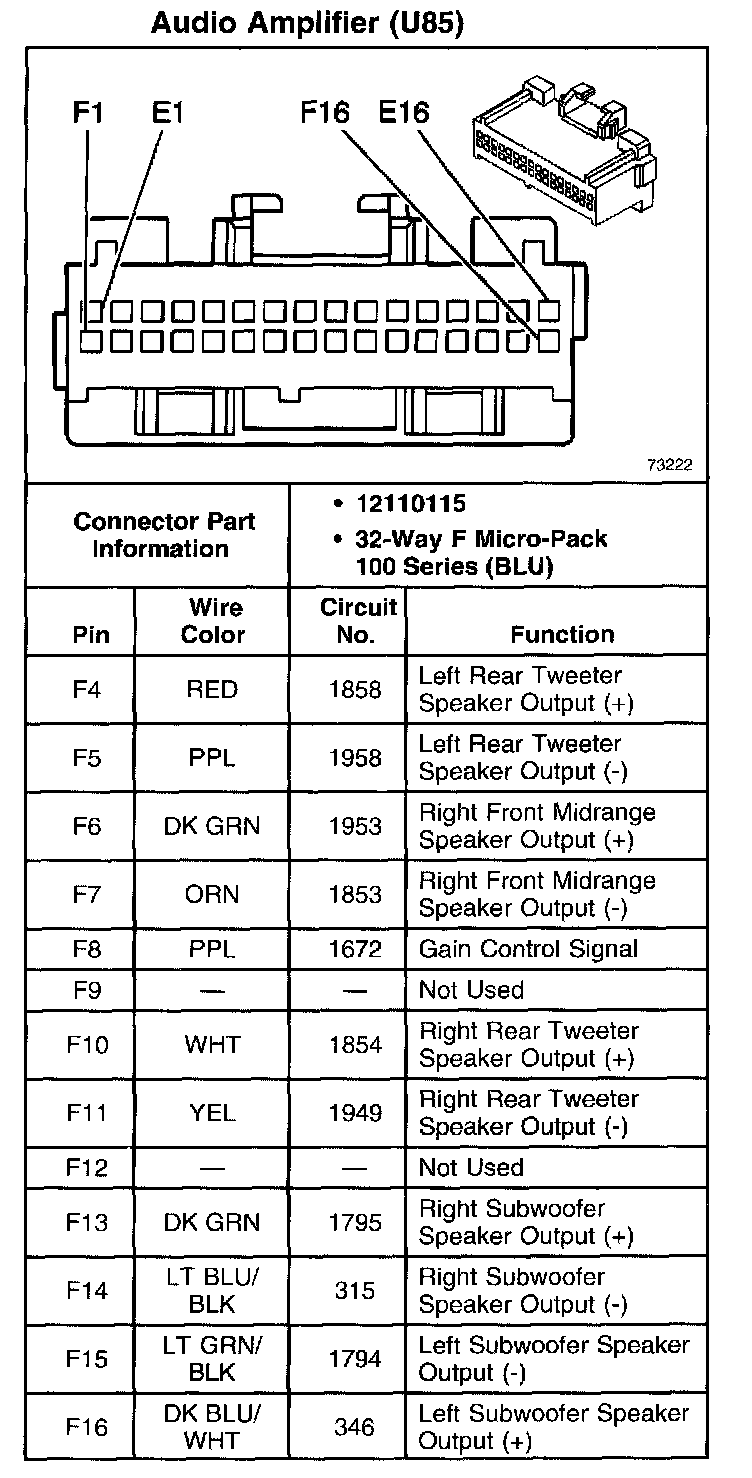

Audio Amplifier (U85) Part 2:





For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application. RPO Codes
