Power, Ground and Serial Data

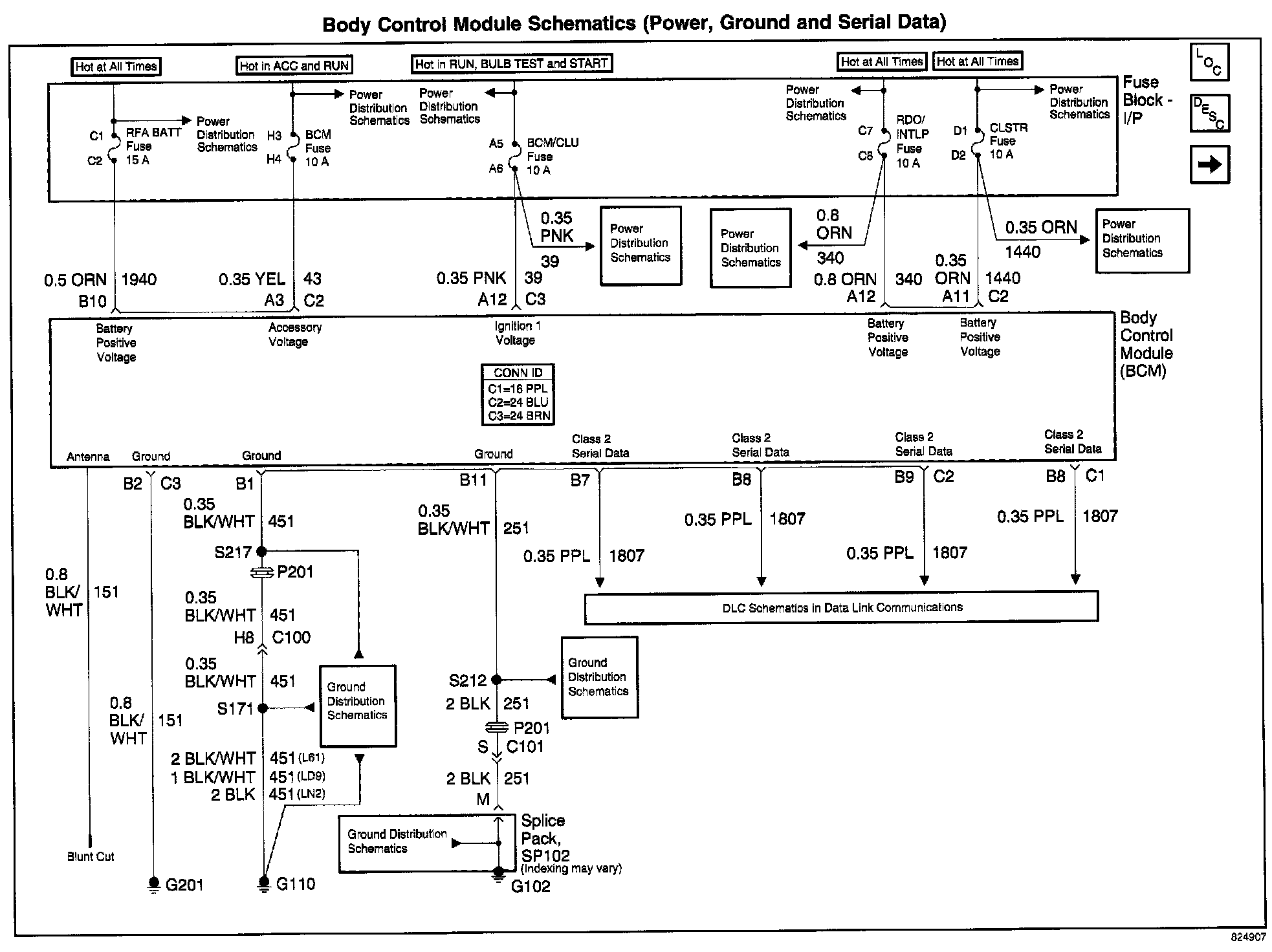

Body Control Module Schematics: Power, Ground And Serial Data:

For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application. RPO Codes
