Axle Shaft Assembly

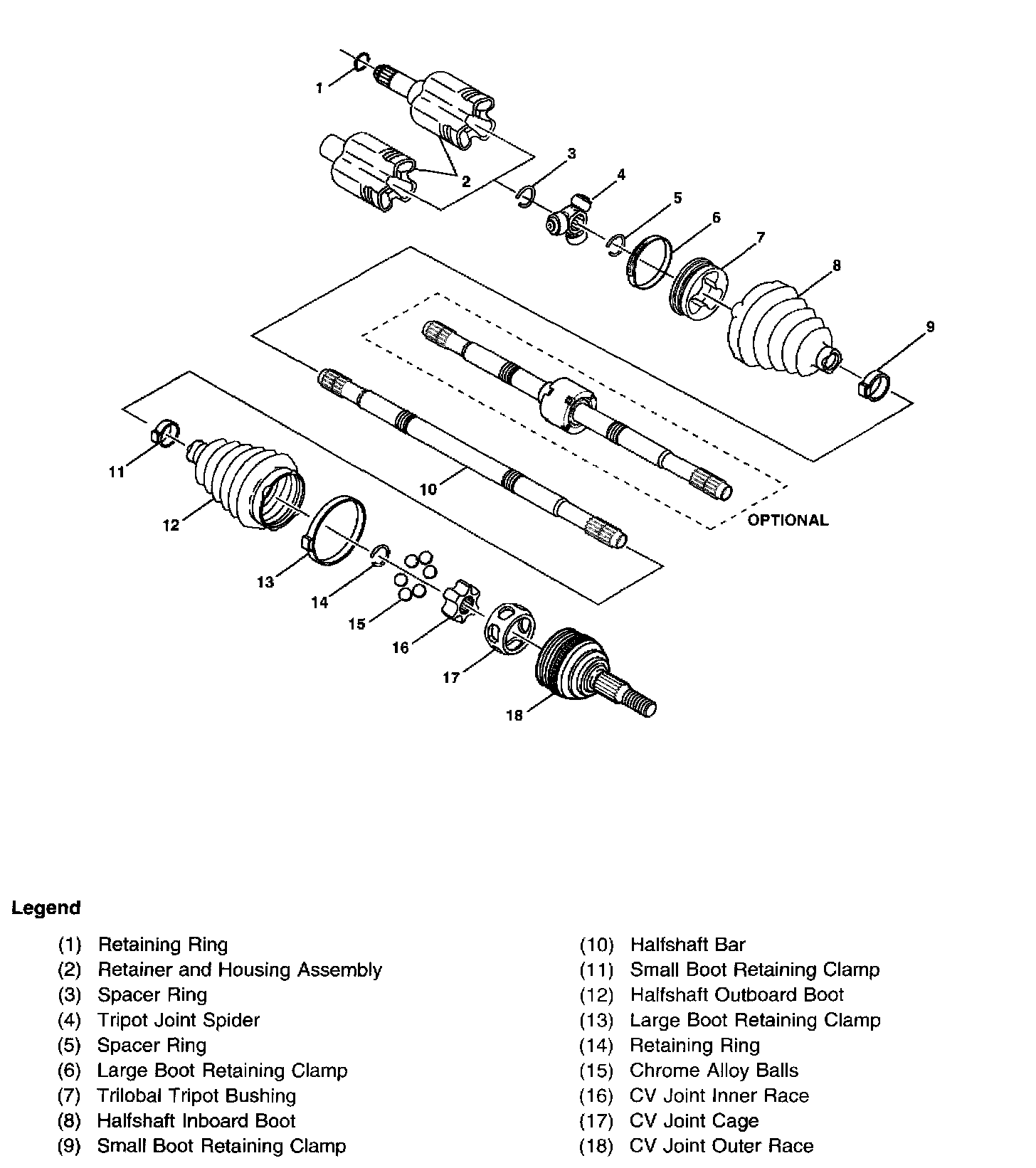

Wheel Drive Shafts Disassembled Views (Halfshaft Assembly)





Trilobal Design-Halfshaft
