Ignition Control Module: Service and Repair

REMOVAL PROCEDURE




1. Turn OFF the ignition.
2. Disconnect the ignition control module (ICM) harness connector.

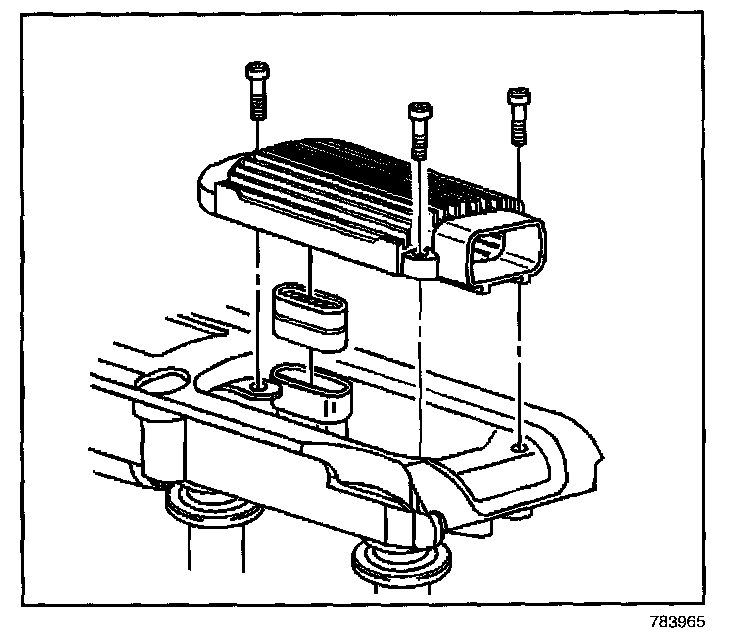

3. Remove the ICM retaining screws.
4. Remove the ICM from the ignition coil housing.

INSTALLATION PROCEDURE

IMPORTANT: Make sure the interconnect and seal are lined up before module installation.




1. Install the ignition control module in the ignition coil housing.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the ICM retaining screws.

Tighten
Tighten the retaining screws to 1.5 N.m (13 lb in).

3. Connect the ICM harness connector.
