Connector Views

AUTOMATIC TRANSMISSION INLINE HARNESS CONNECTOR END VIEW

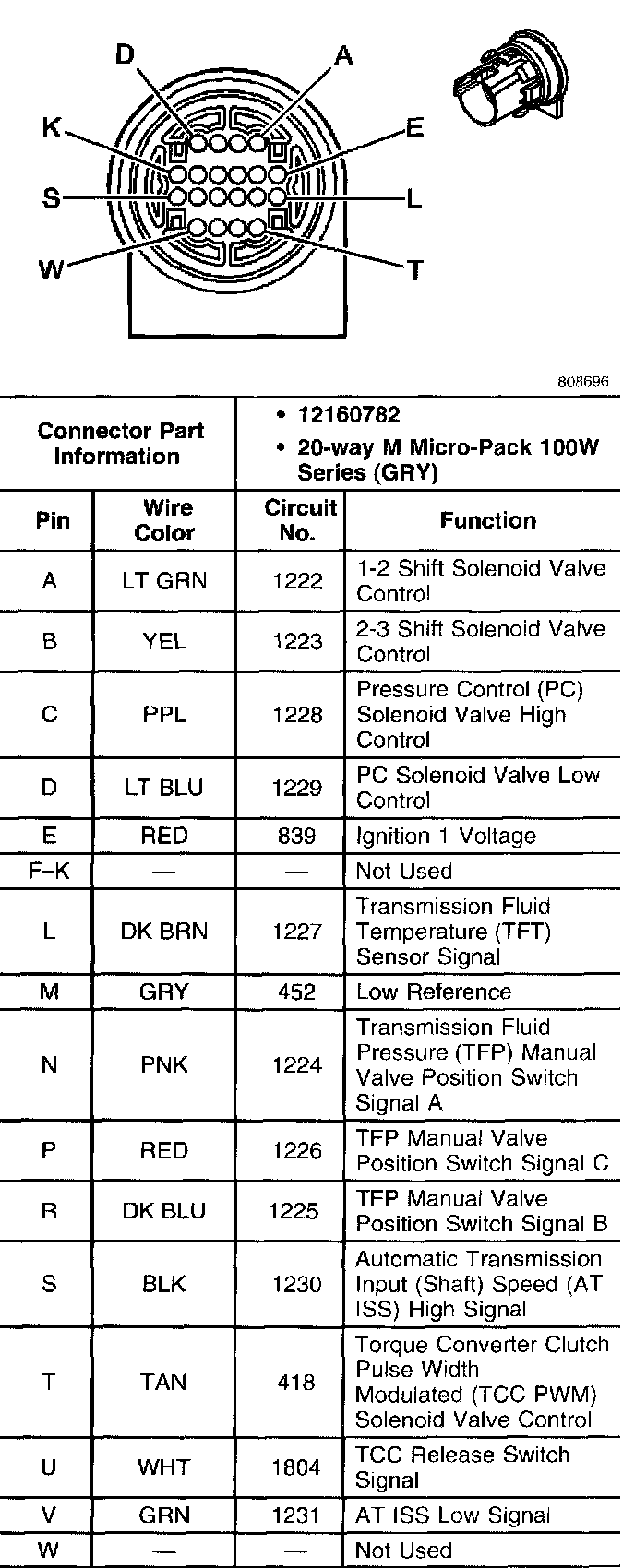

Engine Side

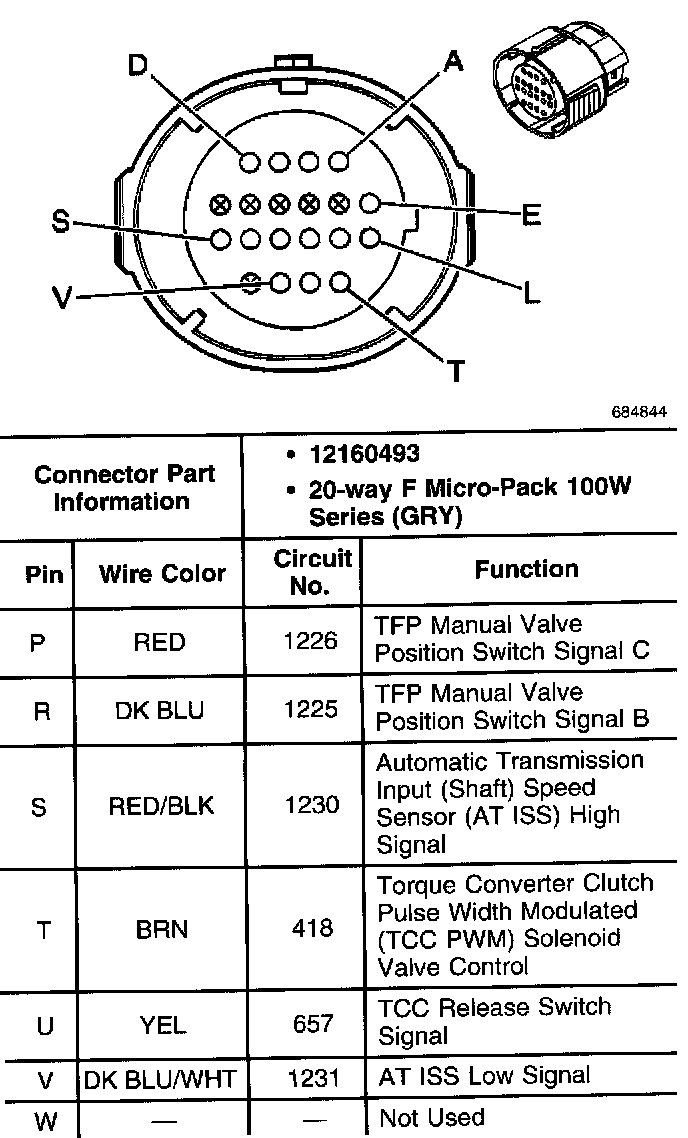

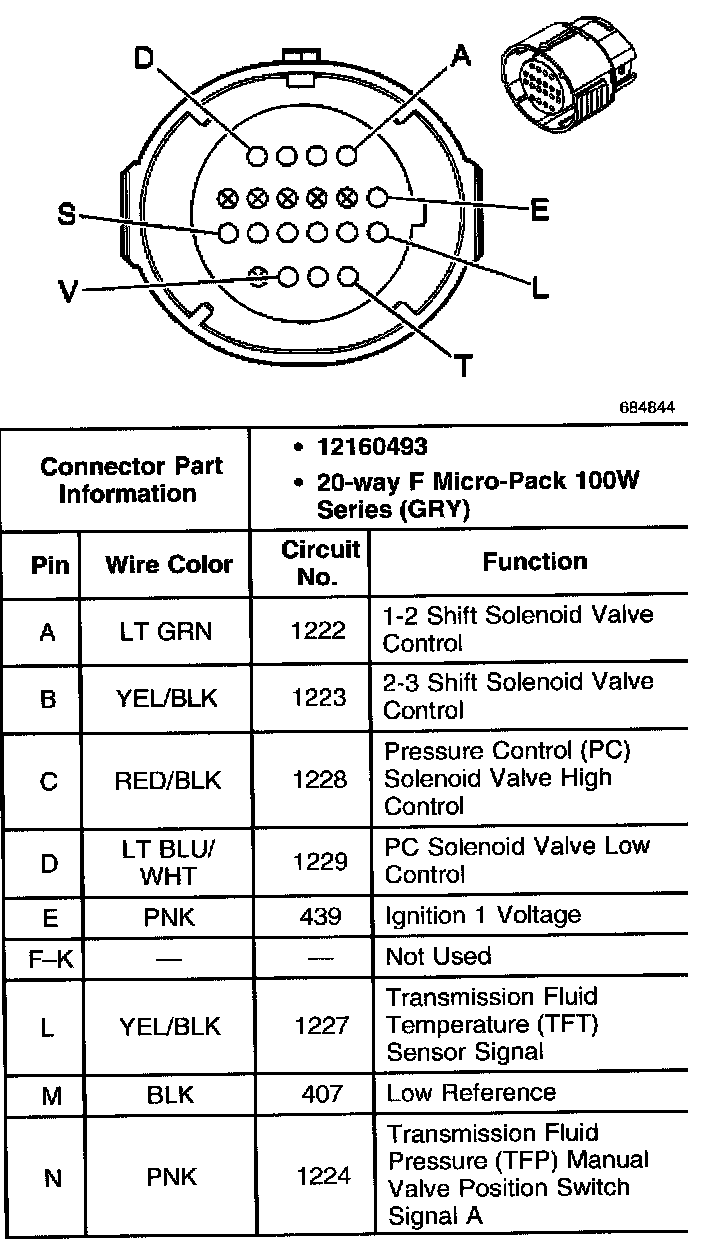

Transmission Side

AUTOMATIC TRANSMISSION INTERNAL CONNECTOR END VIEWS

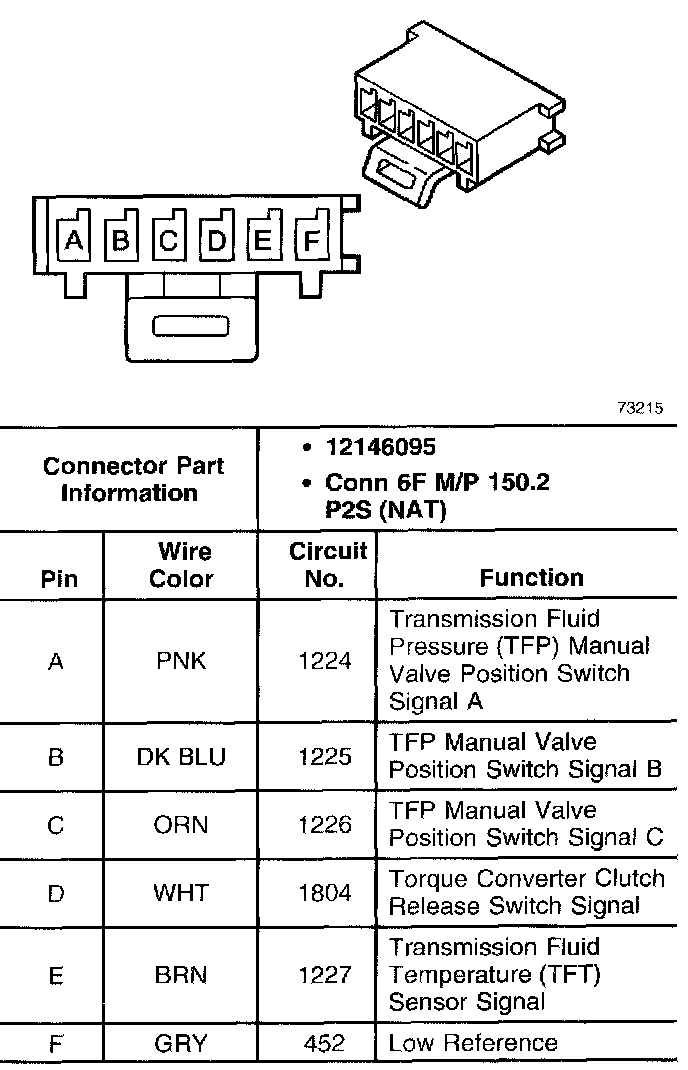

Automatic Transmission Fluid Pressure Manual Valve Position Switch Connector, Wiring Harness Side

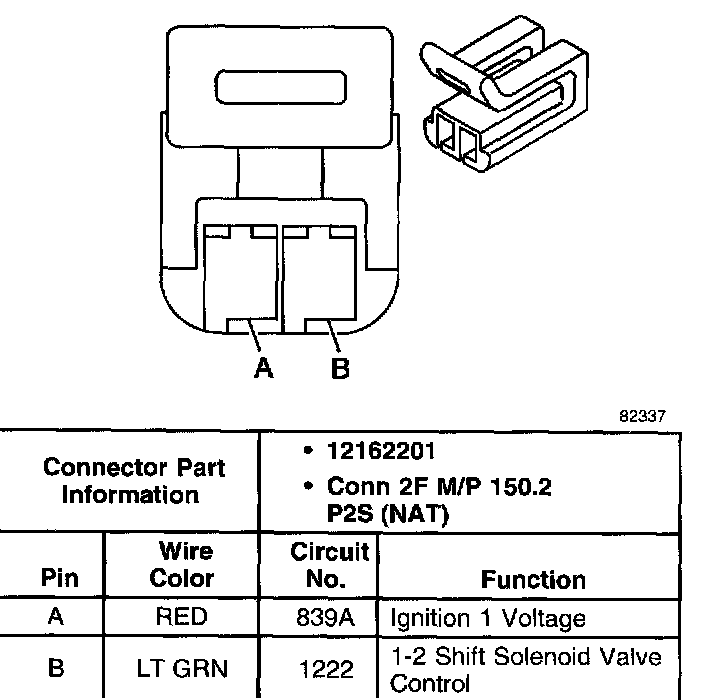

1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

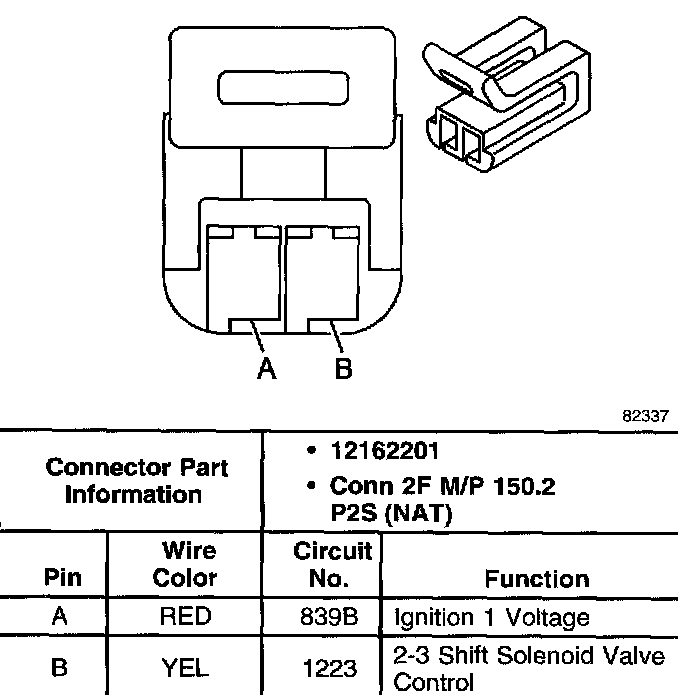

2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side





Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side

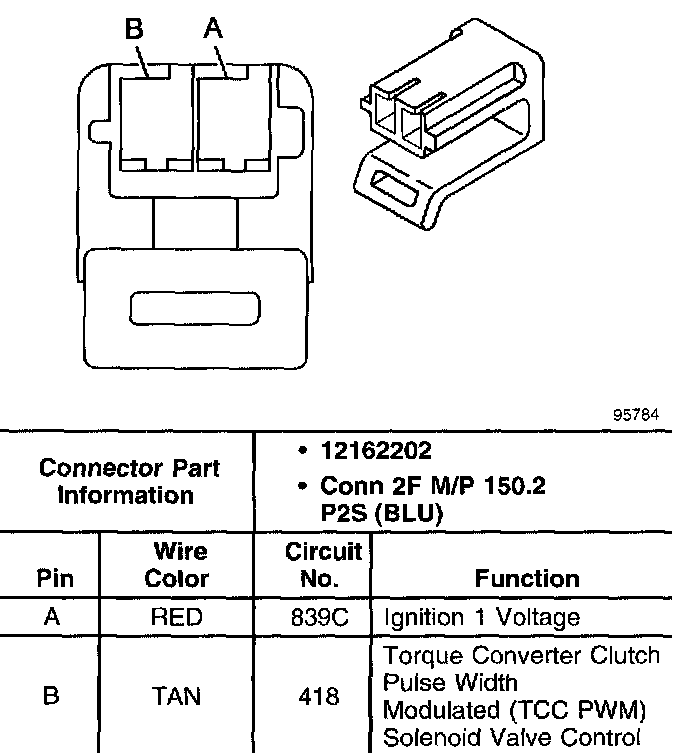

Pressure Control Solenoid Valve Connector, Wiring Harness Side

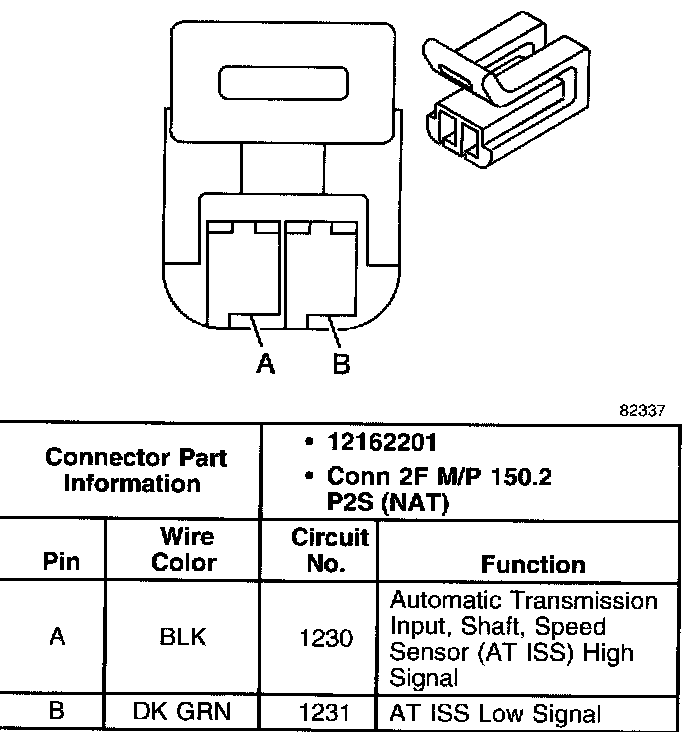

Input Speed Sensor Connector, Wiring Harness Side
