Wiper Control Module: Service and Repair

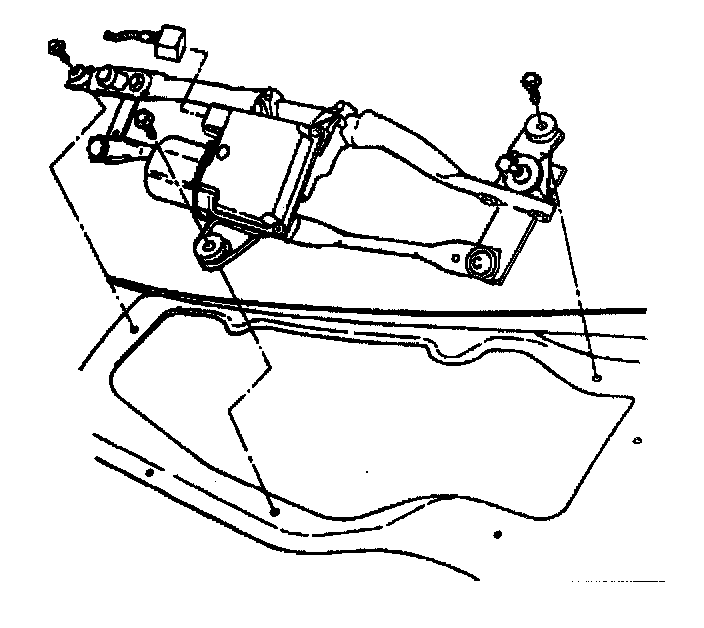

WIPER DRIVE SYSTEM MODULE REPLACEMENTREMOVAL PROCEDURE
1. Remove the air inlet grille panel.
2. Disconnect the wiper motor electrical connector.
3. Remove the wiper drive system module screws.
4. Remove the wiper drive system module from the vehicle.
INSTALLATION PROCEDURE
1. Position the wiper drive system module to the vehicle.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the wiper drive system module screws.
Tighten
Tighten the screws to 10 N.m (89 lb in).
3. Connect the wiper motor electrical connector.
4. Install the air inlet grille panel.
5. Inspect the wipers for proper operation.
