Component Locations

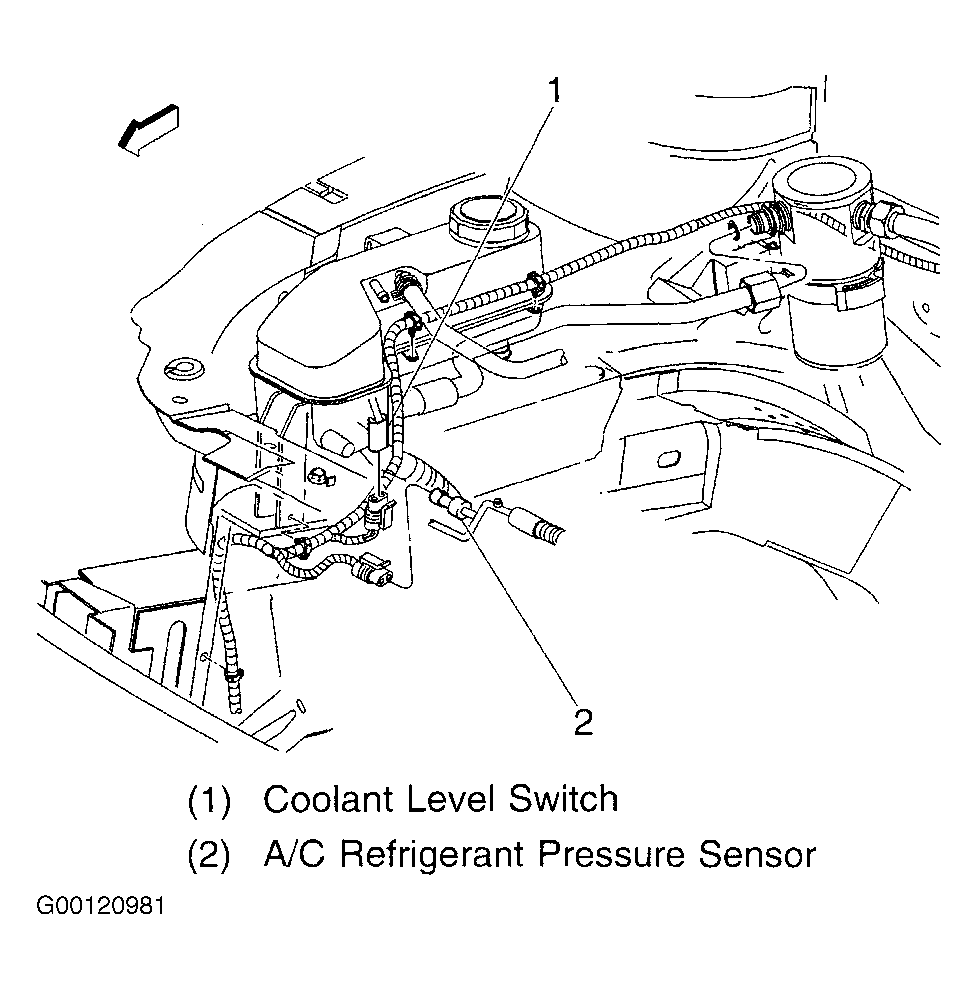

Fig 1: Locating A/C Pressure Sensor & Coolant Level Switch

Courtesy of GENERAL MOTORS CORP.

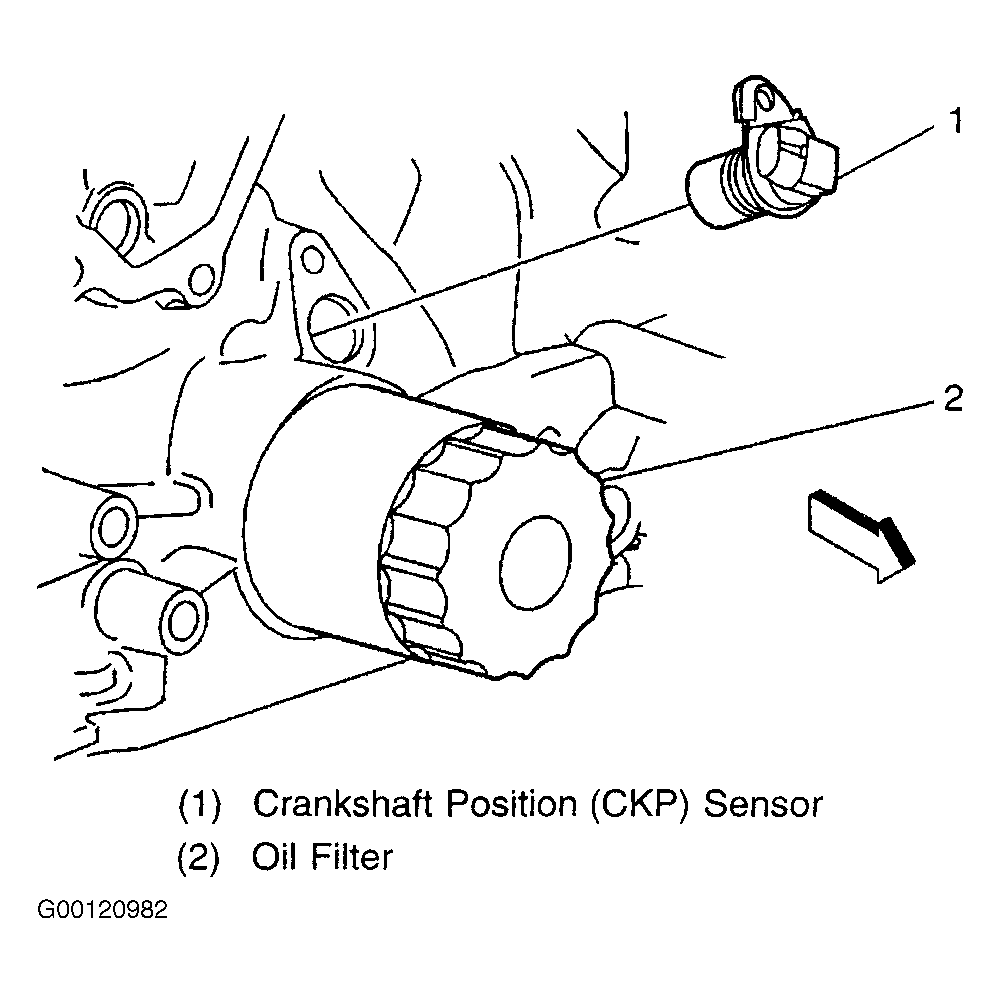

Fig 2: Locating Crankshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

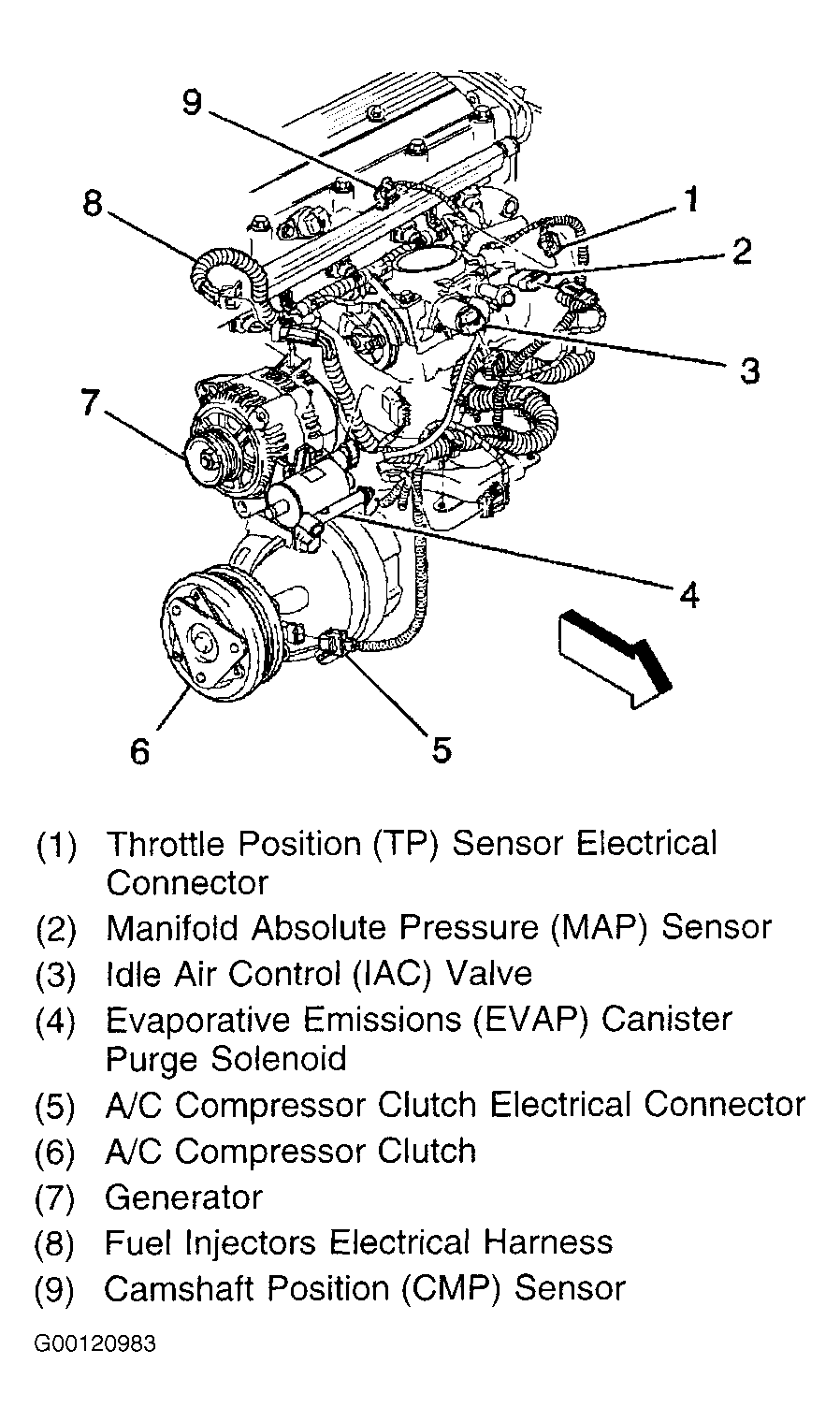

Fig 3: Locating Engine Control Components (Left Side Of Engine)

Courtesy of GENERAL MOTORS CORP.

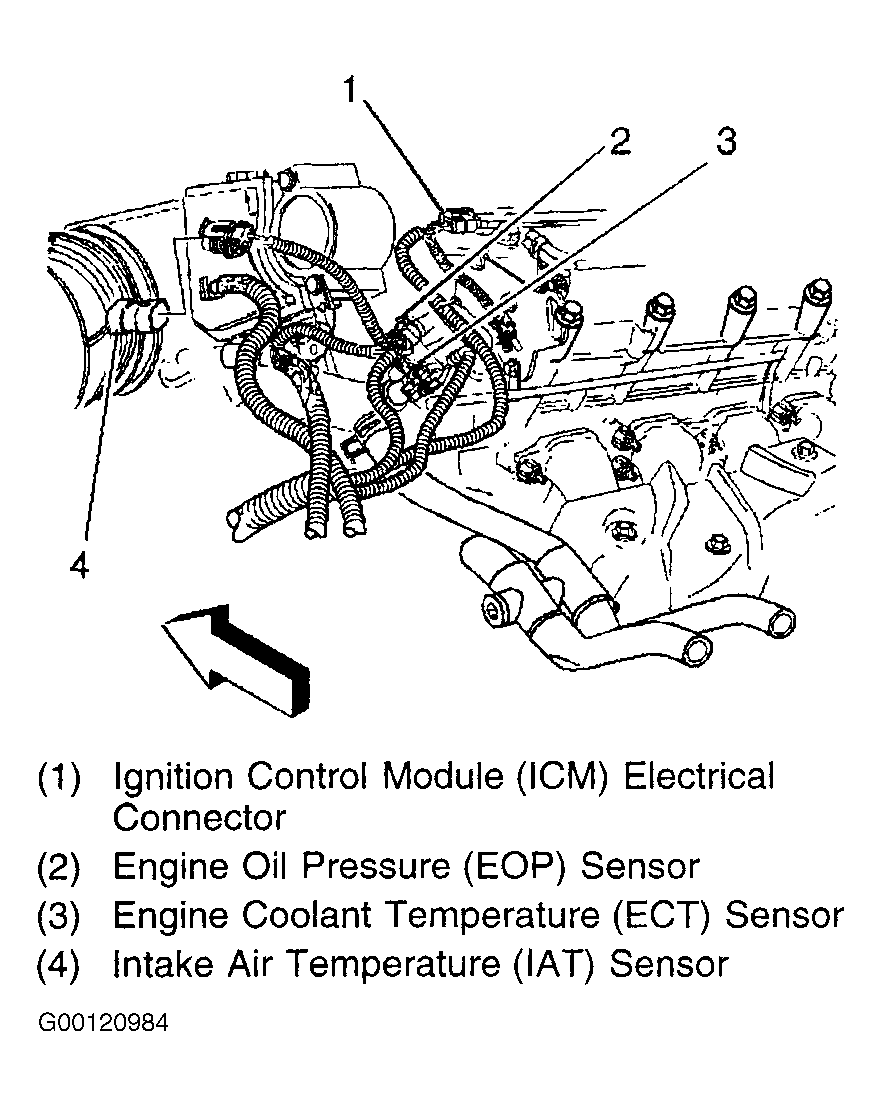

Fig 4: Locating Engine Control Components (Left Rear Of Engine)

Courtesy of GENERAL MOTORS CORP.

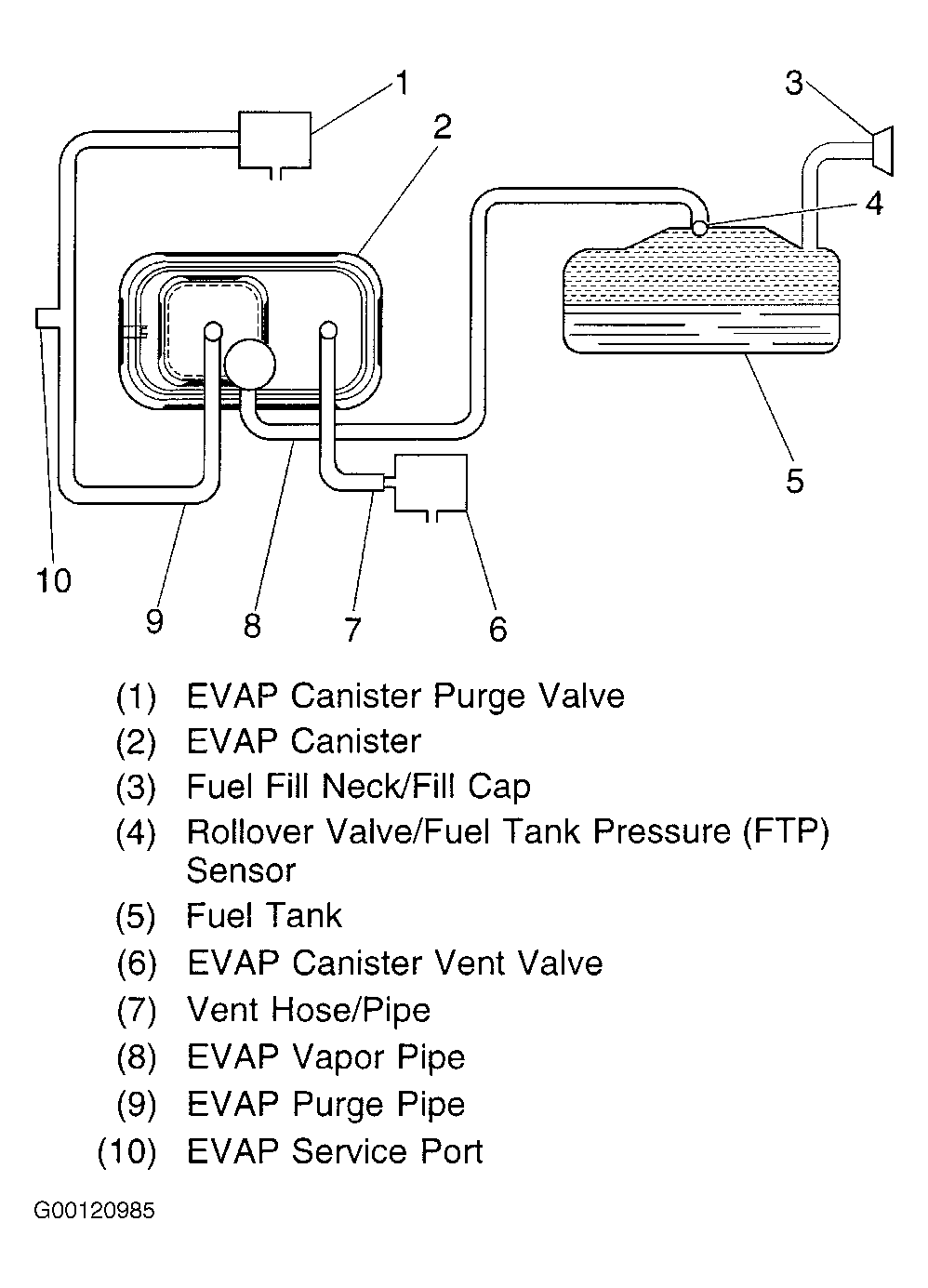

Fig 5: Identifying EVAP Components & Hose Routing

Courtesy of GENERAL MOTORS CORP.

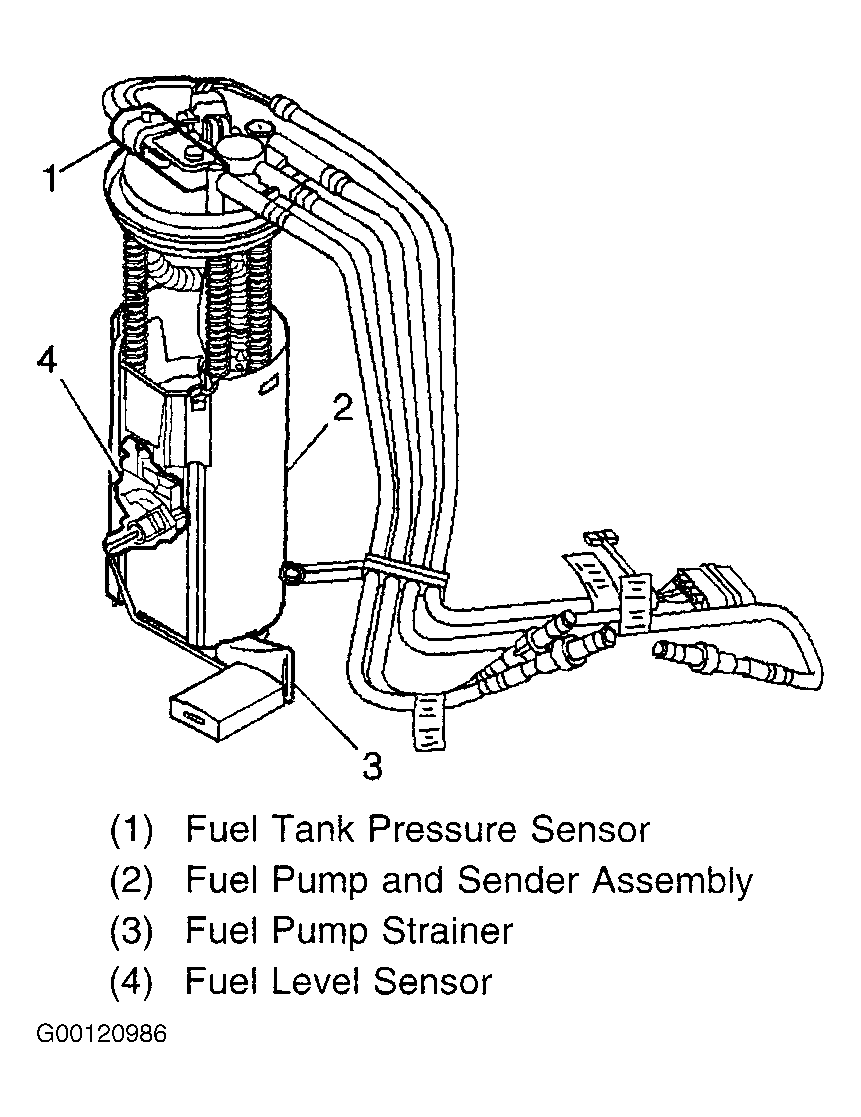

Fig 6: Identifying Fuel Pump & Sender Assembly

Courtesy of GENERAL MOTORS CORP.

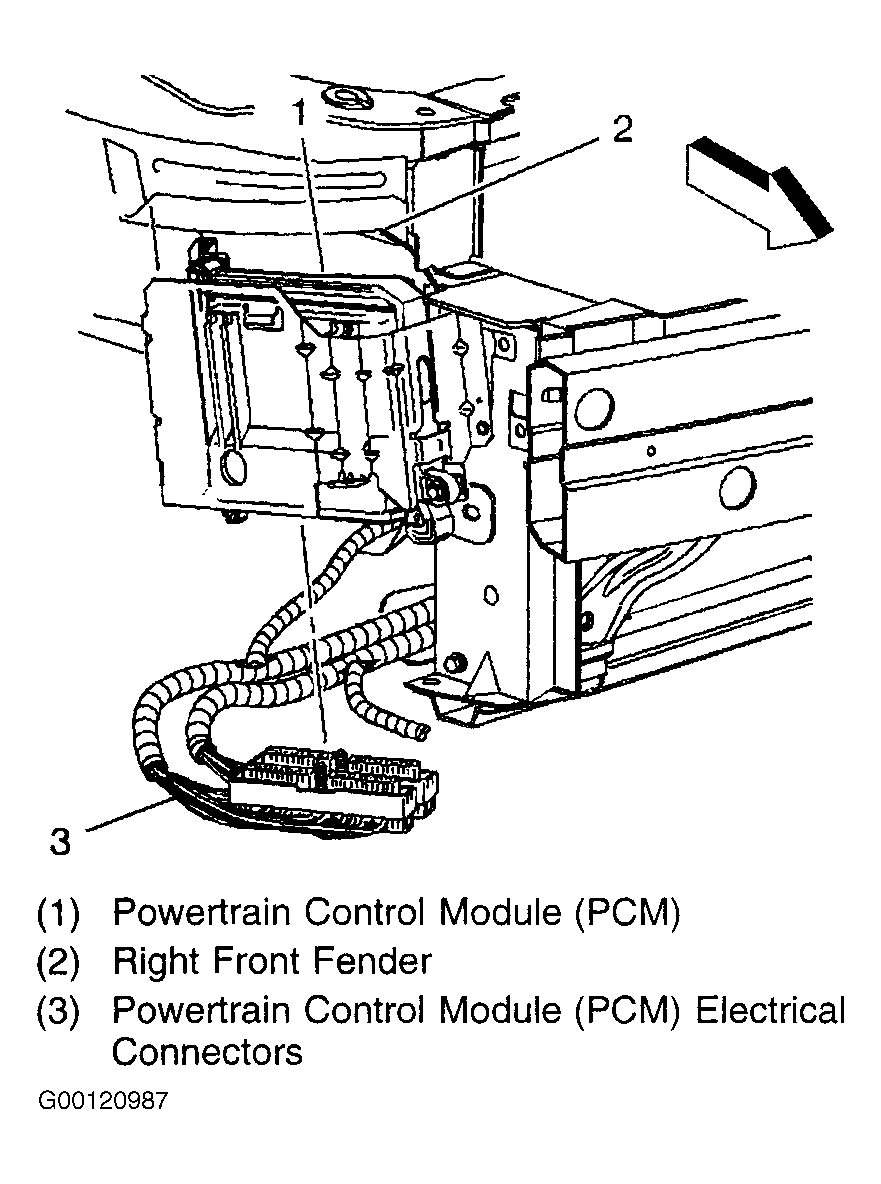

Fig 7: Locating PCM Assembly

Courtesy of GENERAL MOTORS CORP.

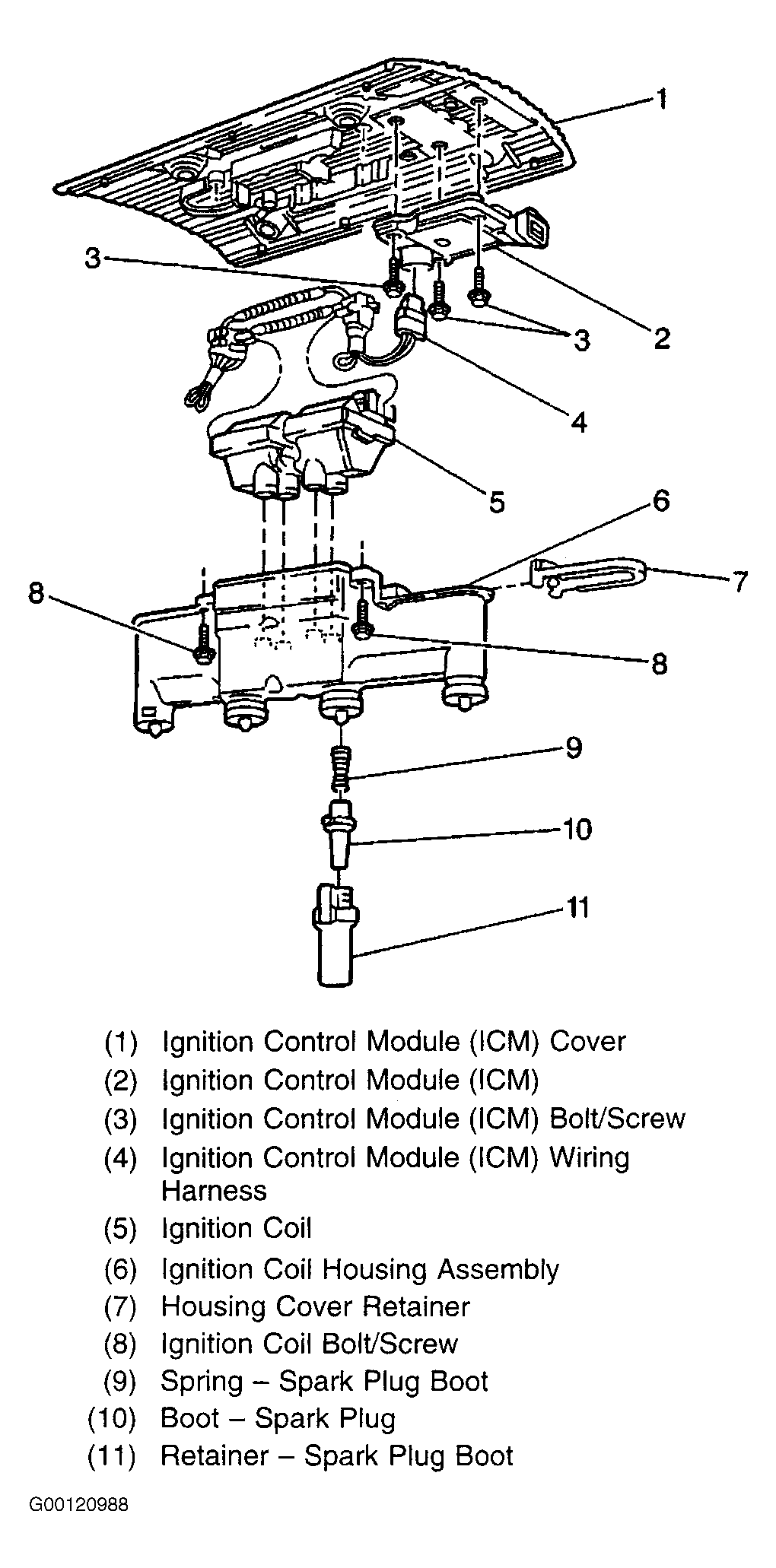

Fig 8: Identifying Ignition Coil & Ignition Control Module Assembly Components

Courtesy of GENERAL MOTORS CORP.

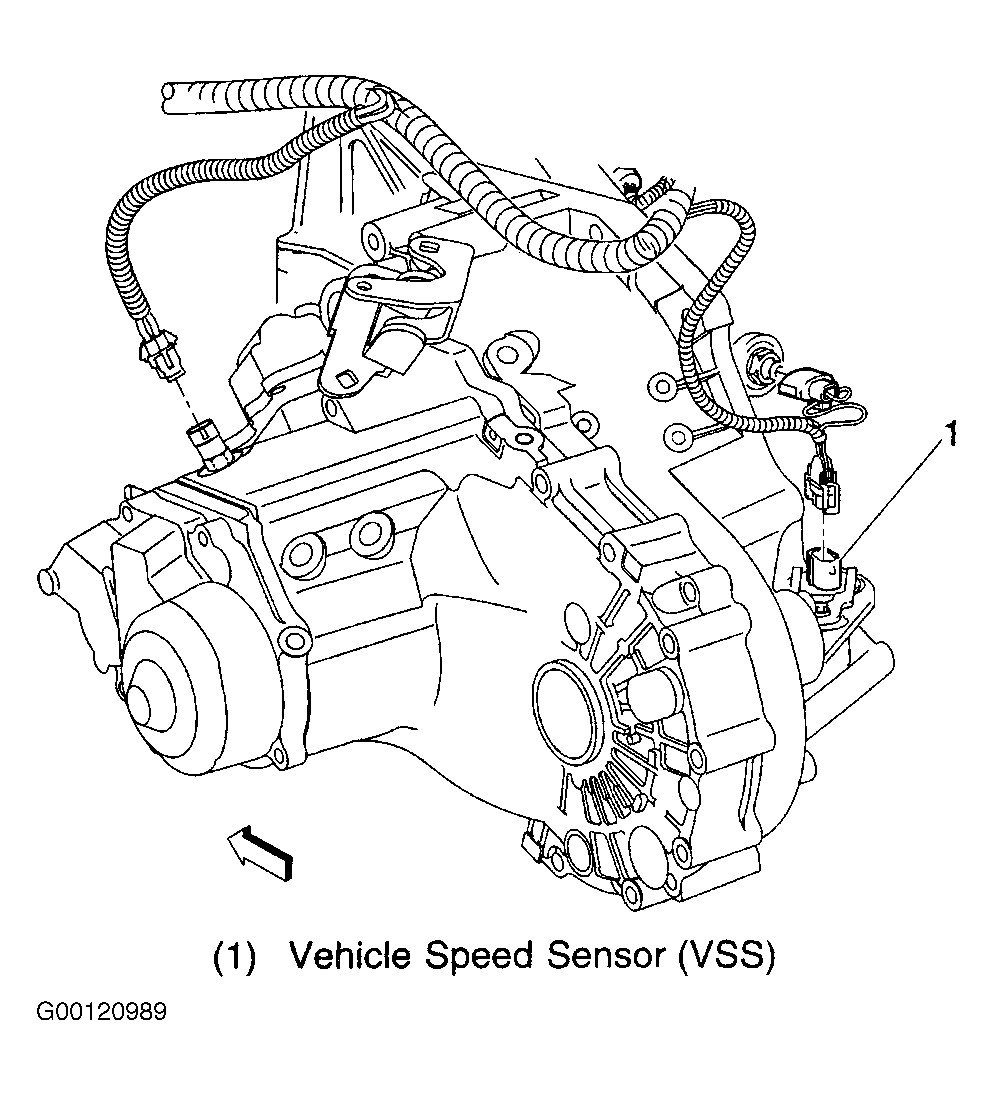

Fig 9: Locating Vehicle Speed Sensor Assembly

Courtesy of GENERAL MOTORS CORP.
