Connector Identification

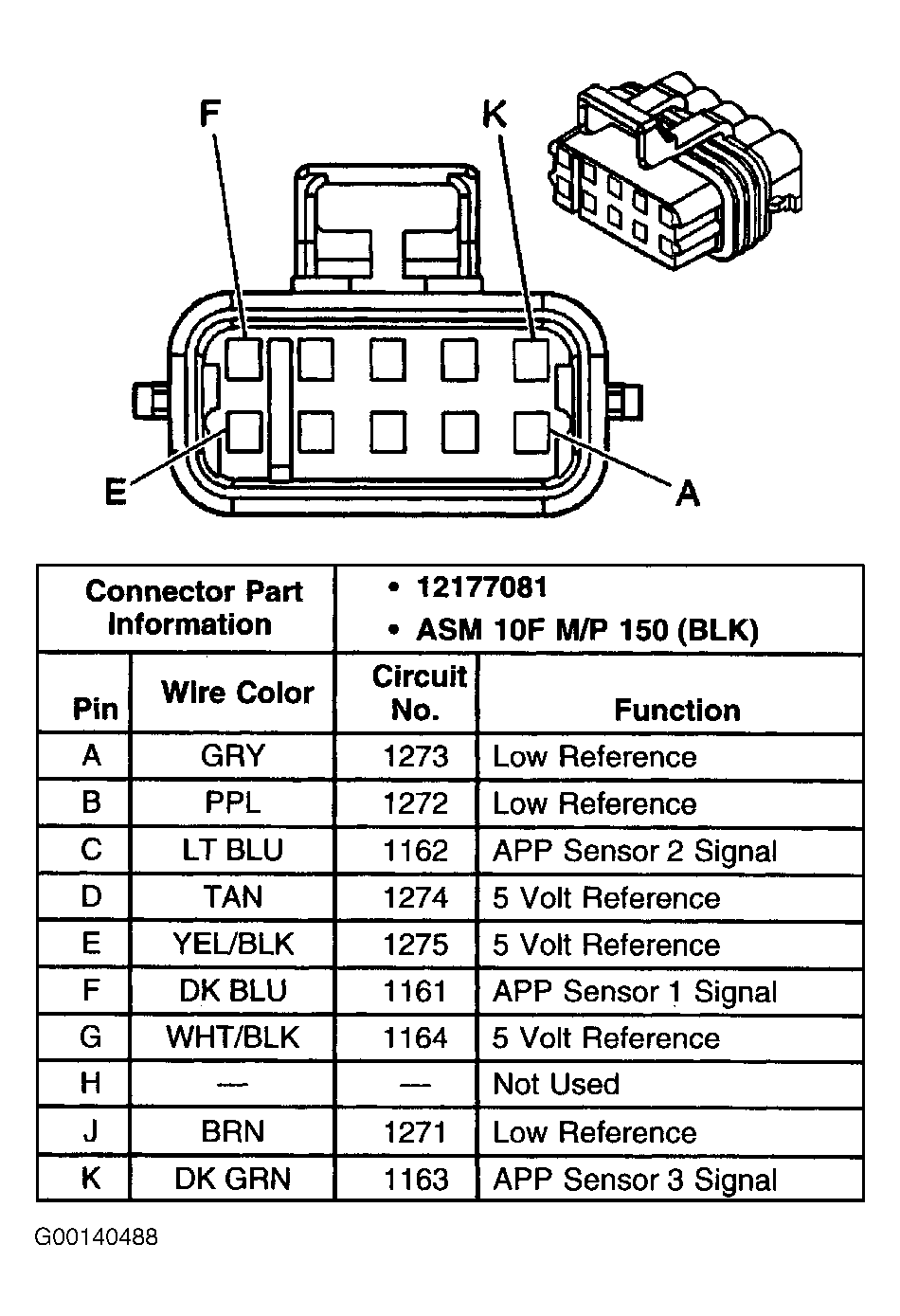

Fig 1: Identifying Accelerator Pedal Position Sensor Connector Terminals

G00140488

Courtesy of GENERAL MOTORS CORP.

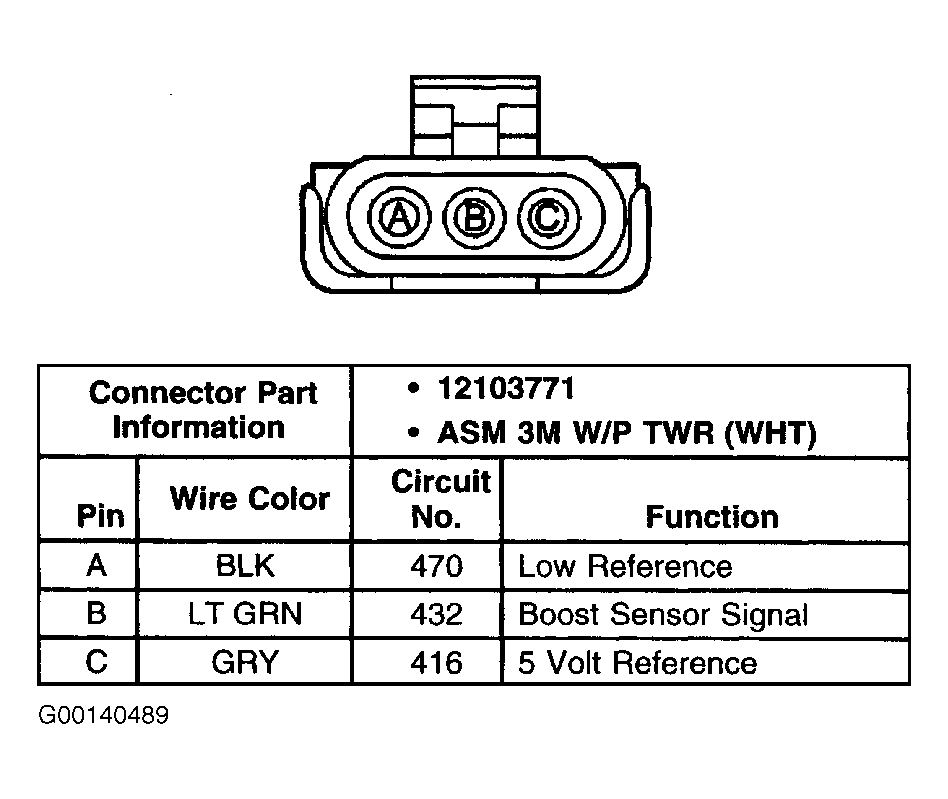

Fig 2: Identifying Boost Pressure Sensor Connector Terminals

G00140489

Courtesy of GENERAL MOTORS CORP.

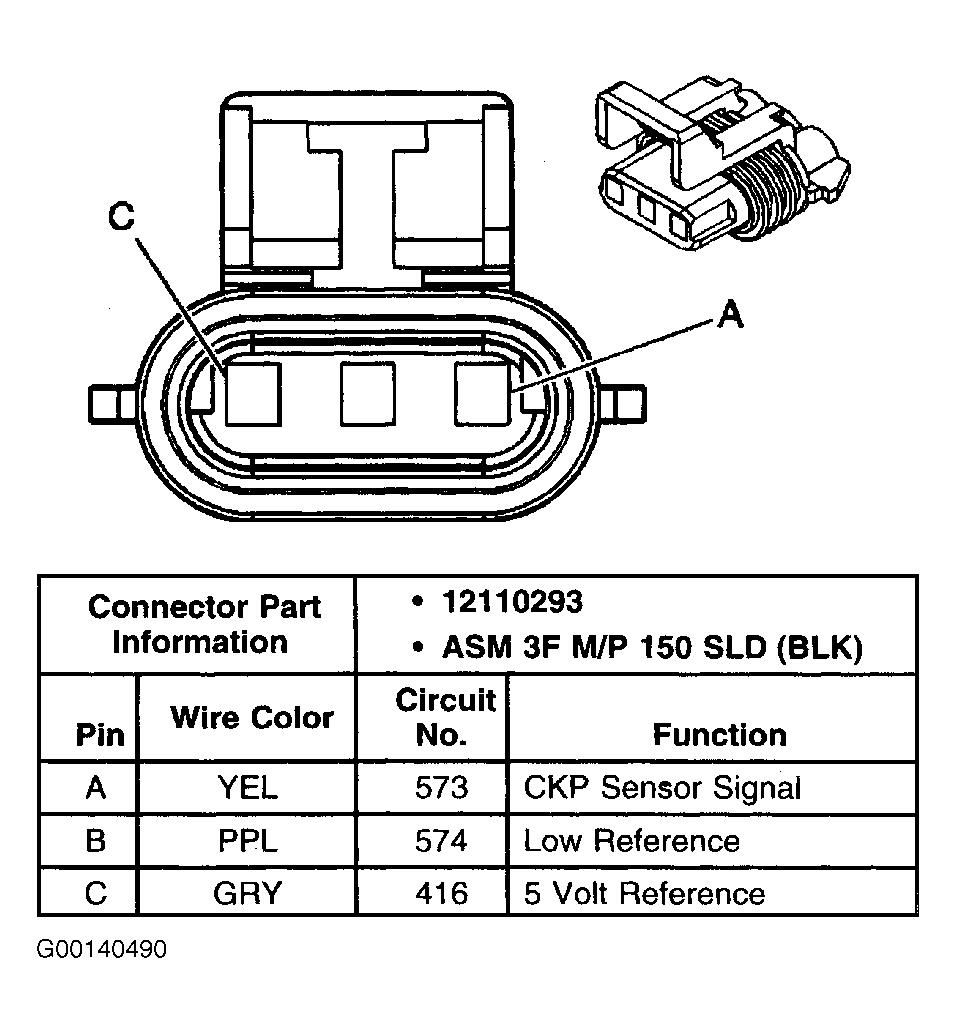

Fig 3: Identifying CKP Sensor Connector Terminals

G00140490

Courtesy of GENERAL MOTORS CORP.

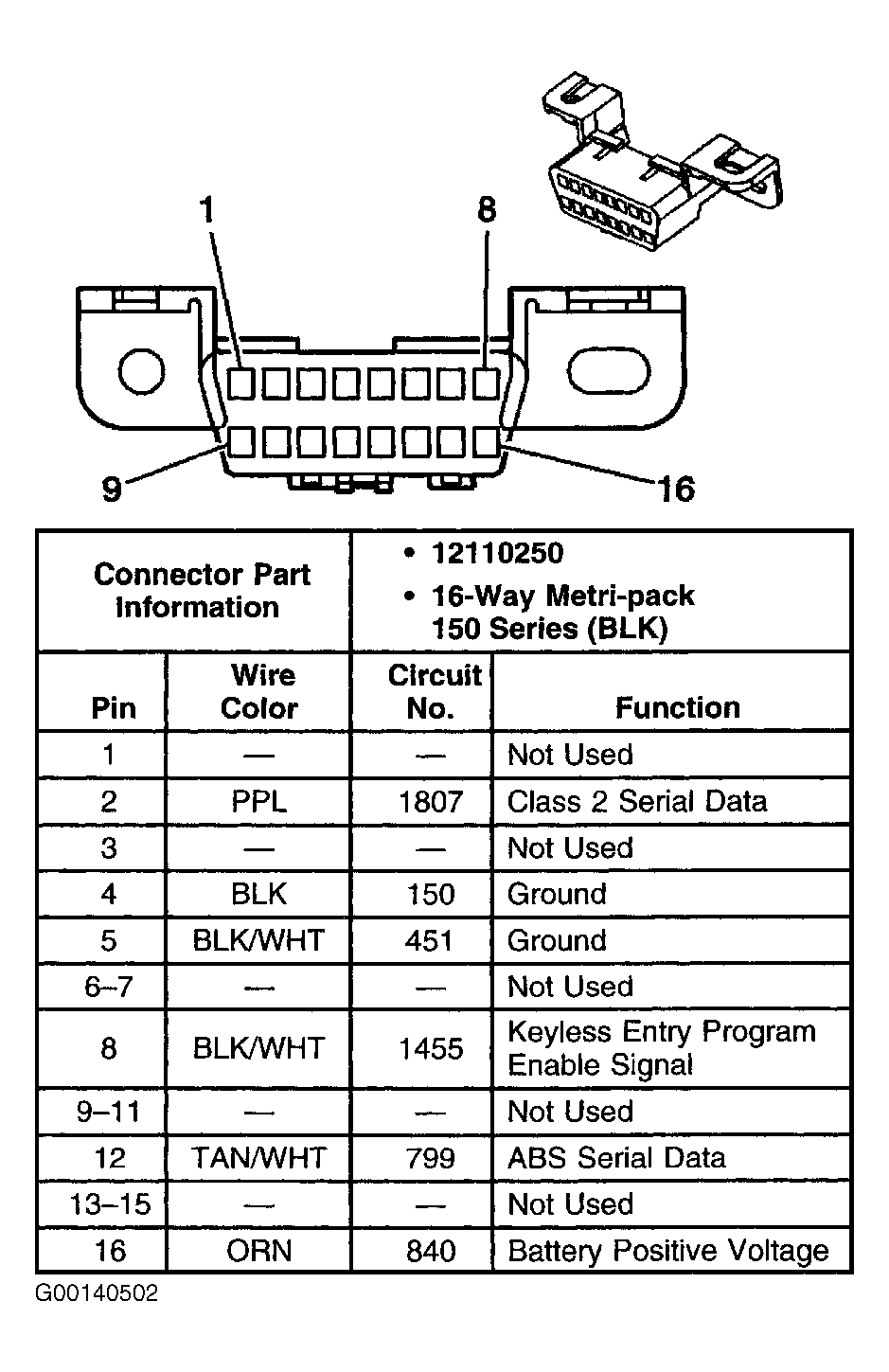

Fig 4: Identifying DLC Terminals

G00140502

Courtesy of GENERAL MOTORS CORP.

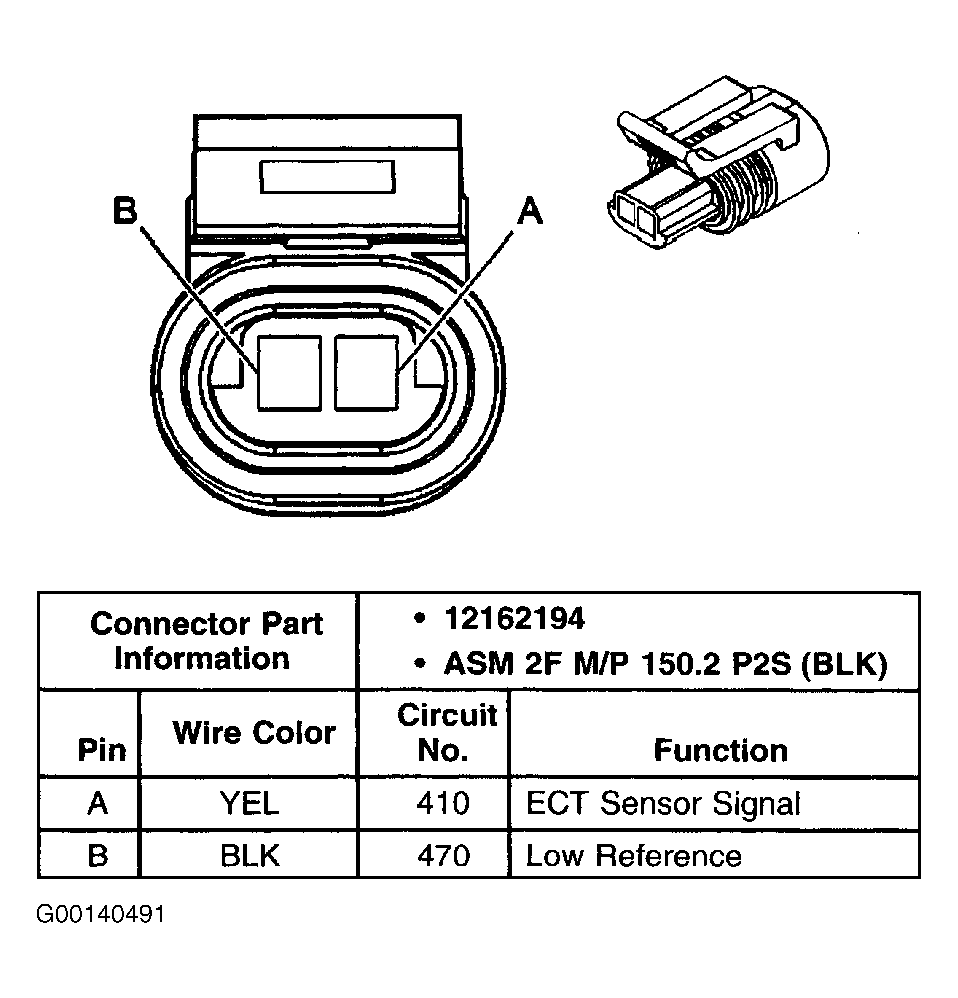

Fig 5: Identifying ECT Sensor Connector Terminals

G00140491

Courtesy of GENERAL MOTORS CORP.

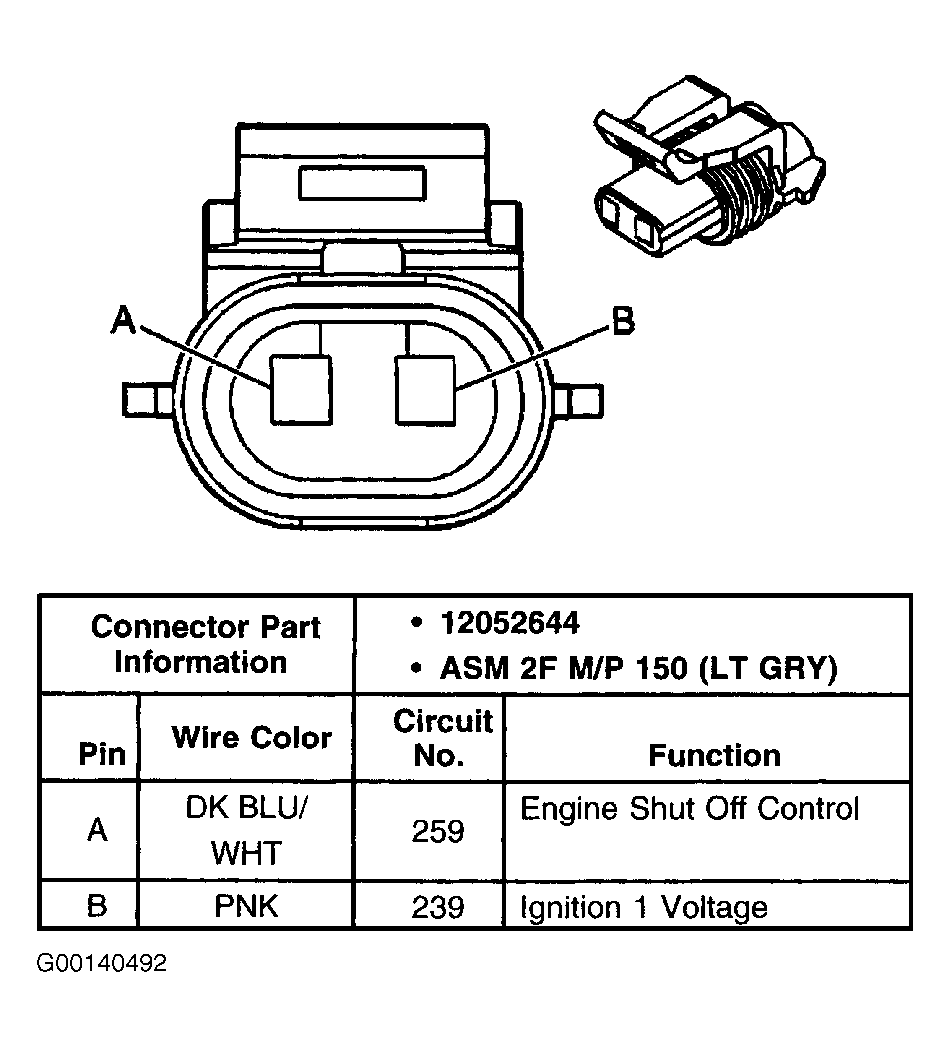

Fig 6: Identifying Engine Shut Off Solenoid Connector Terminals

G00140492

Courtesy of GENERAL MOTORS CORP.

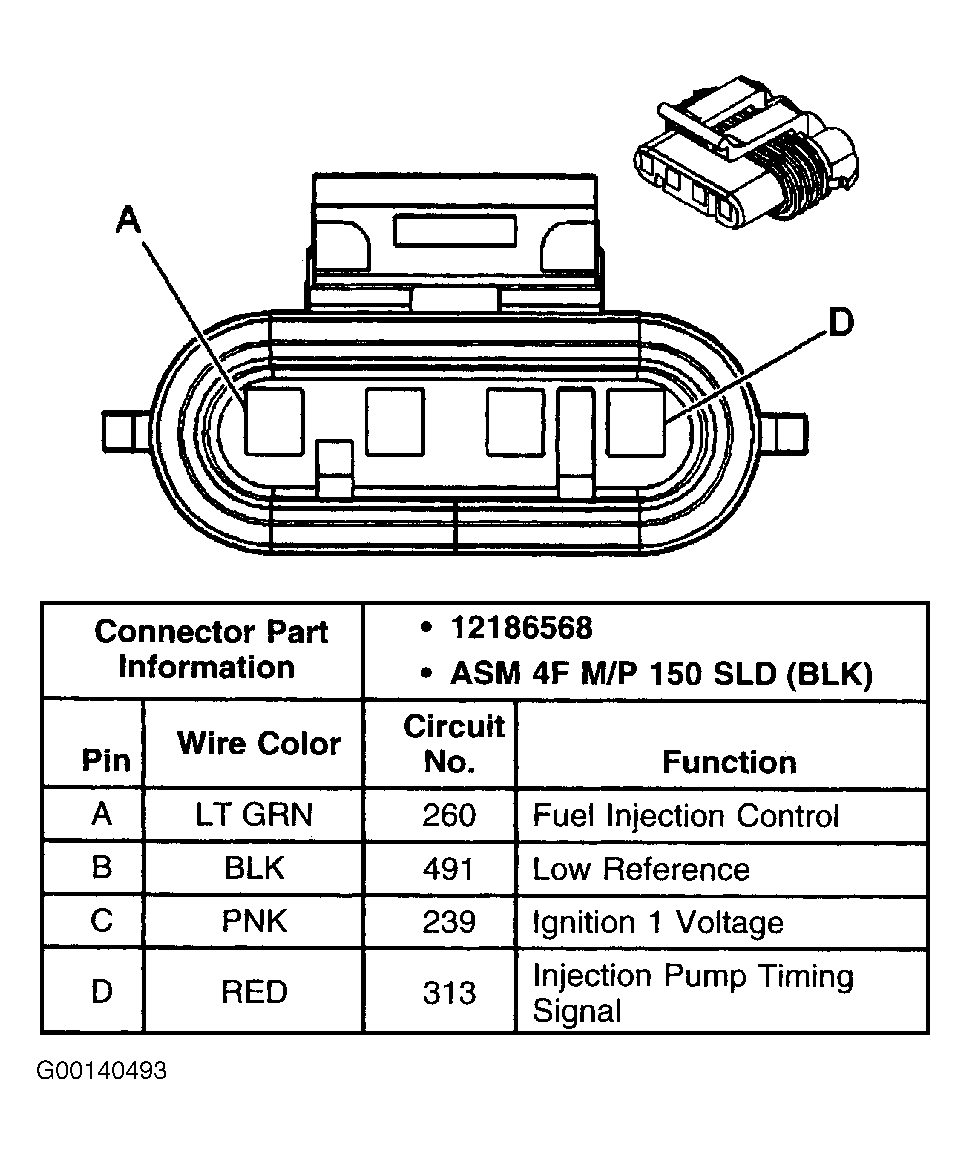

Fig 7: Identifying Fuel Solenoid Driver Connector Terminals

G00140493

Courtesy of GENERAL MOTORS CORP.

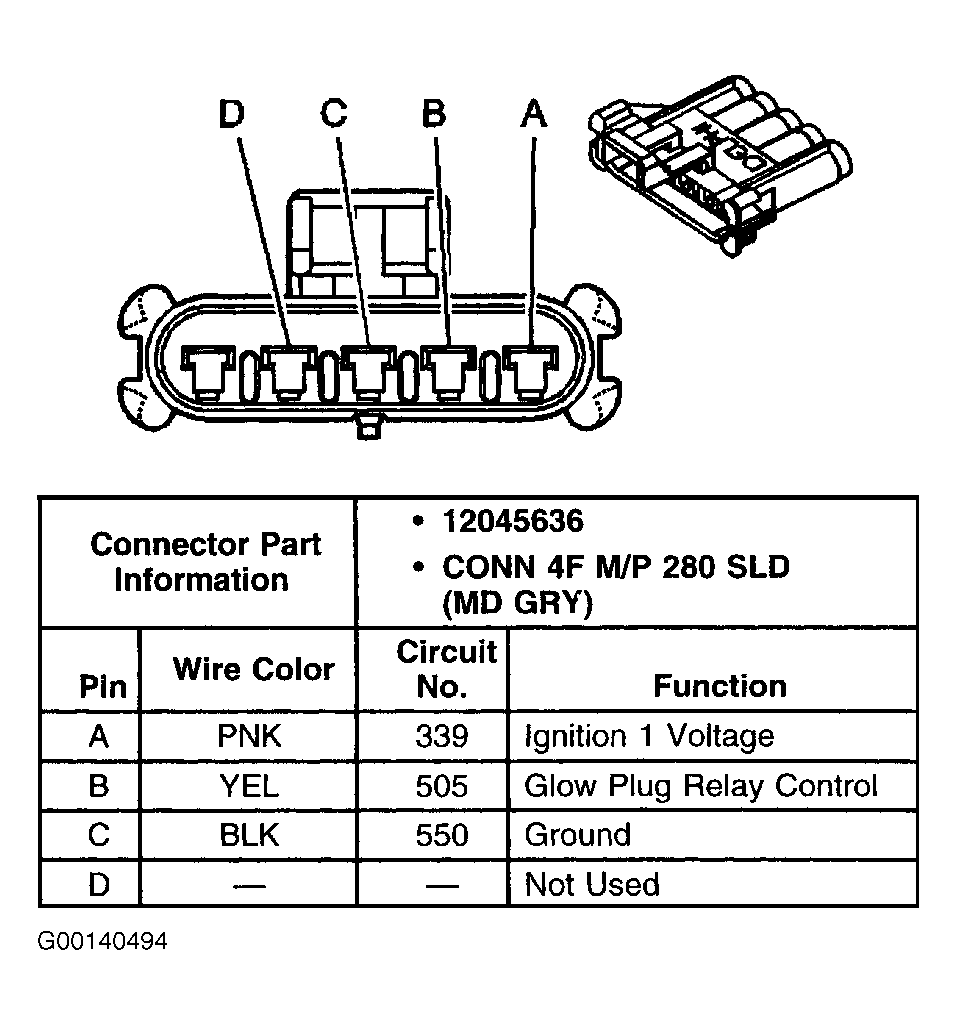

Fig 8: Identifying Glow Plug Relay Connector Terminals (Fed.)

G00140494

Courtesy of GENERAL MOTORS CORP.

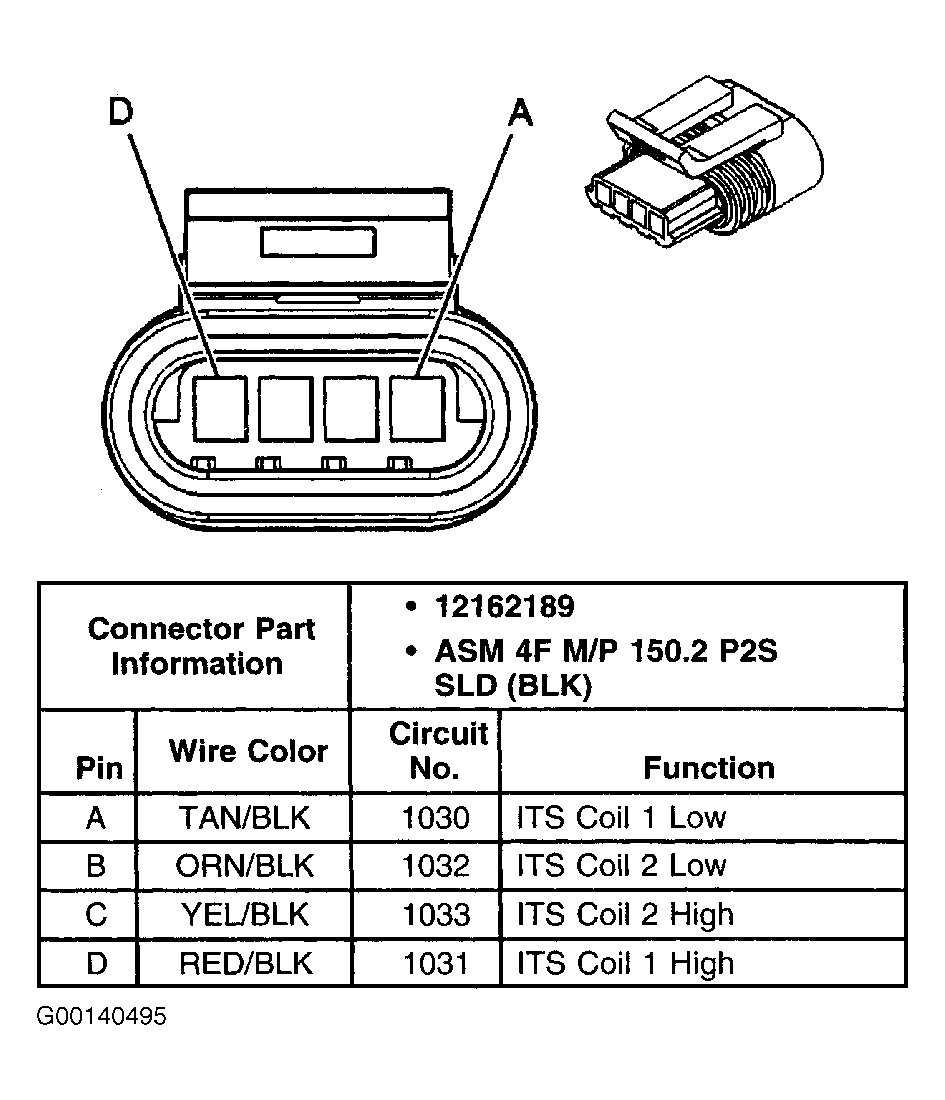

Fig 9: Identifying Ignition Timing Stepper Motor Connector Terminals

G00140495

Courtesy of GENERAL MOTORS CORP.

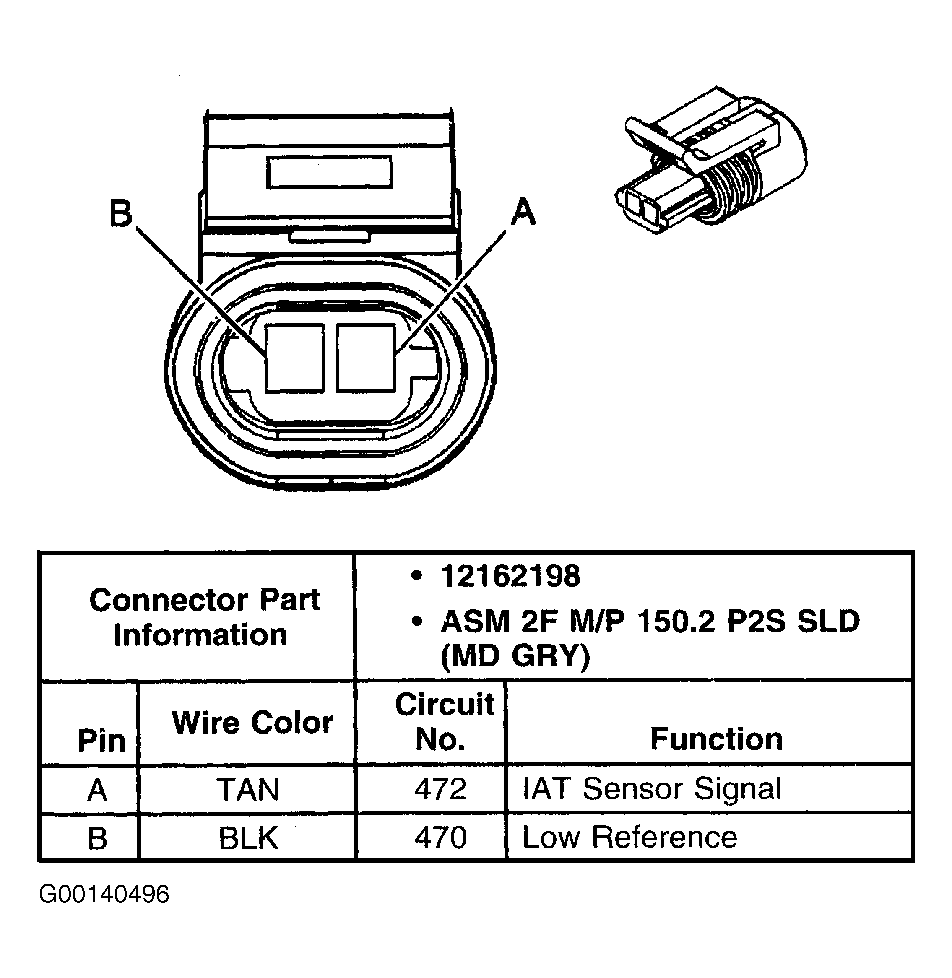

Fig 10: Identifying IAT Sensor Connector Terminals

G00140496

Courtesy of GENERAL MOTORS CORP.

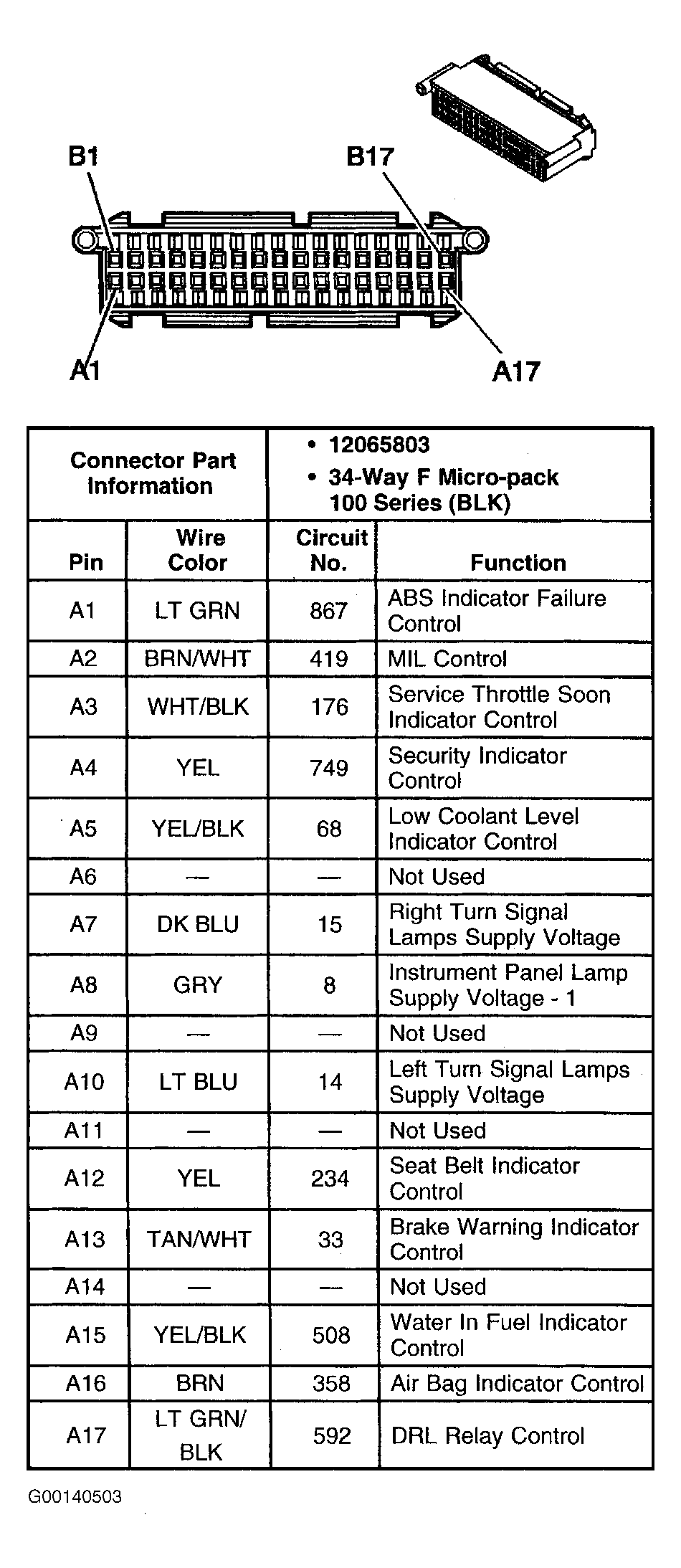

Fig 11: Identifying Instrument Panel Cluster Connector Terminals (1 Of 2)

G00140503

Courtesy of GENERAL MOTORS CORP.

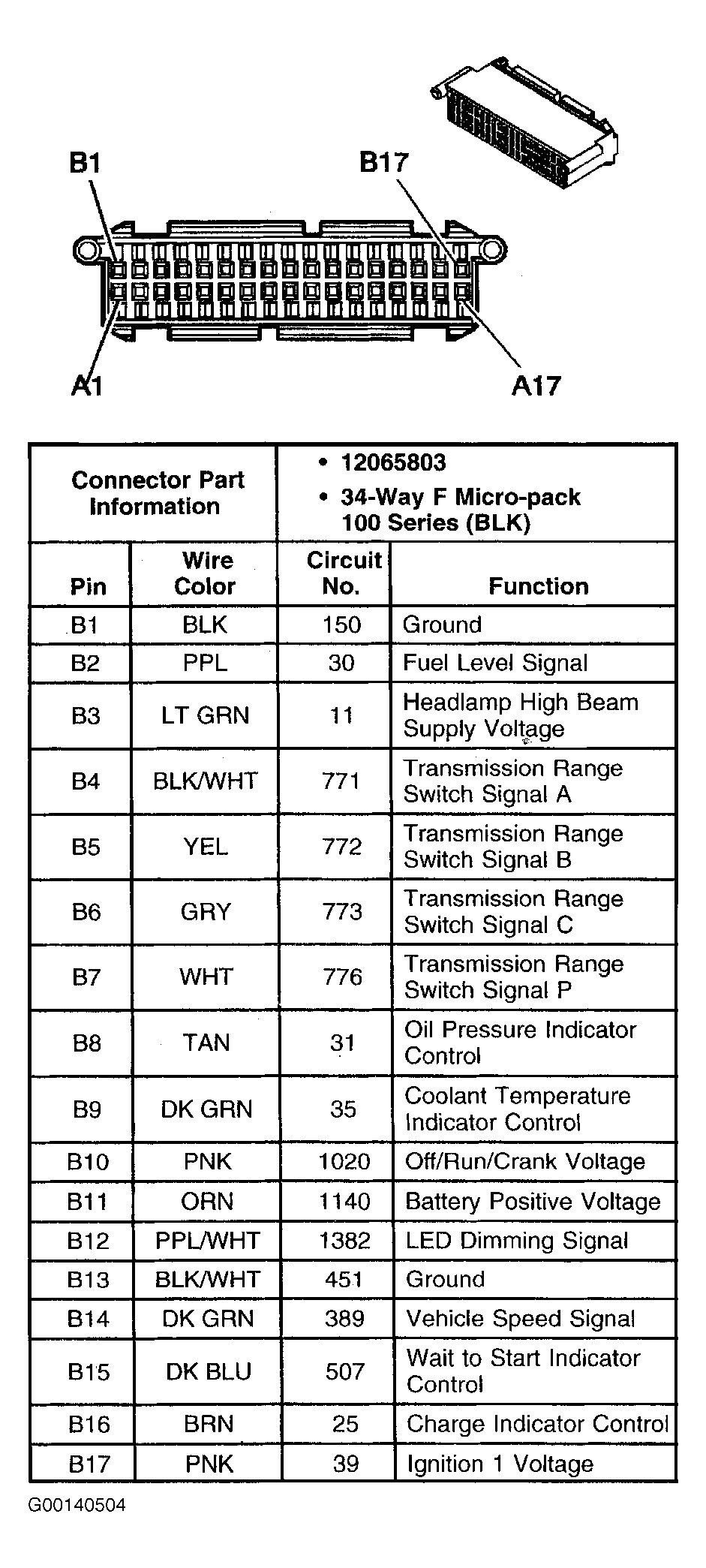

Fig 12: Identifying Instrument Panel Cluster Connector Terminals (2 Of 2)

G00140504

Courtesy of GENERAL MOTORS CORP.

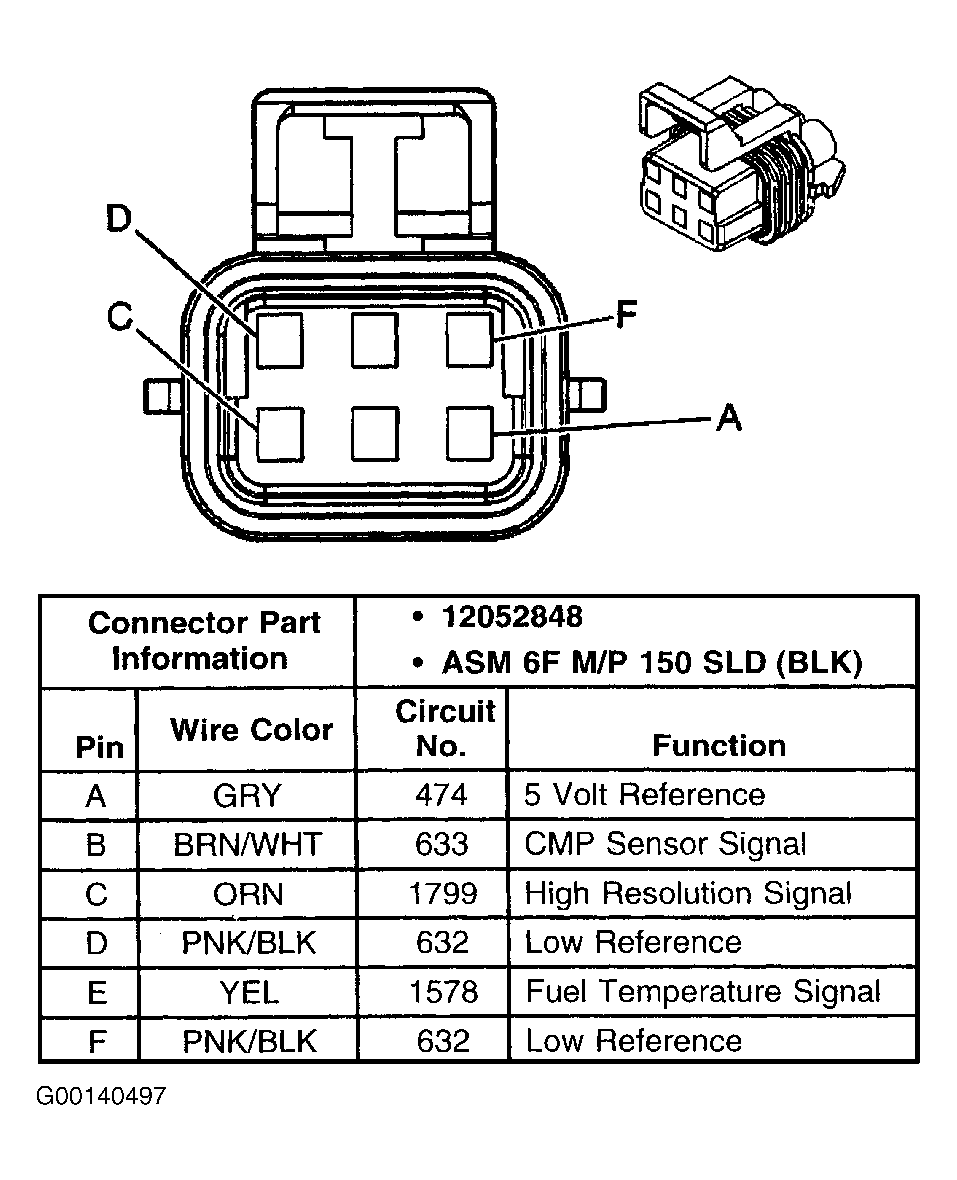

Fig 13: Identifying Optical Fuel Temperature Sensor Connector Terminals

G00140497

Courtesy of GENERAL MOTORS CORP.

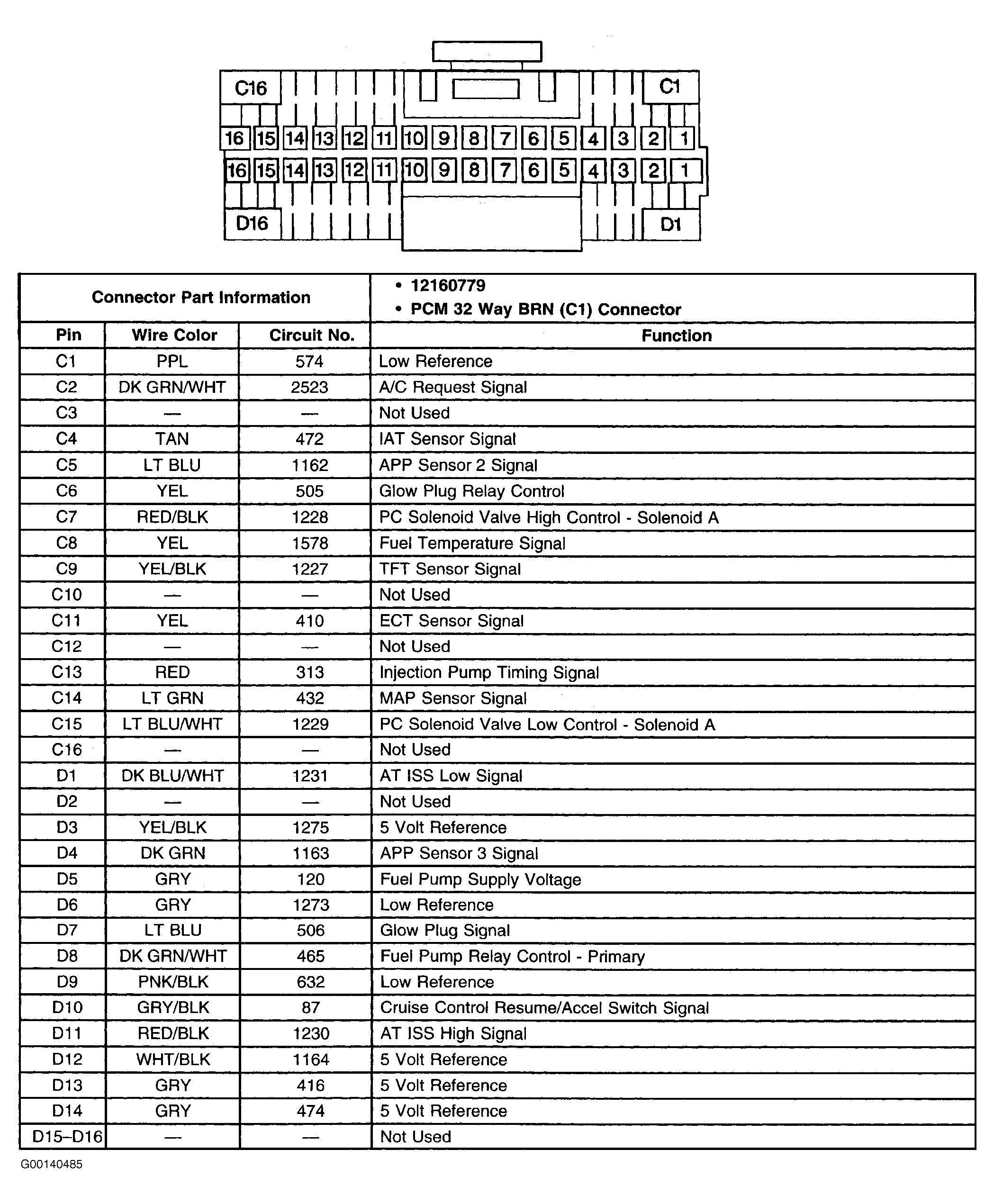

Fig 14: Identifying PCM Connector C1 Terminals

G00140485

Courtesy of GENERAL MOTORS CORP.

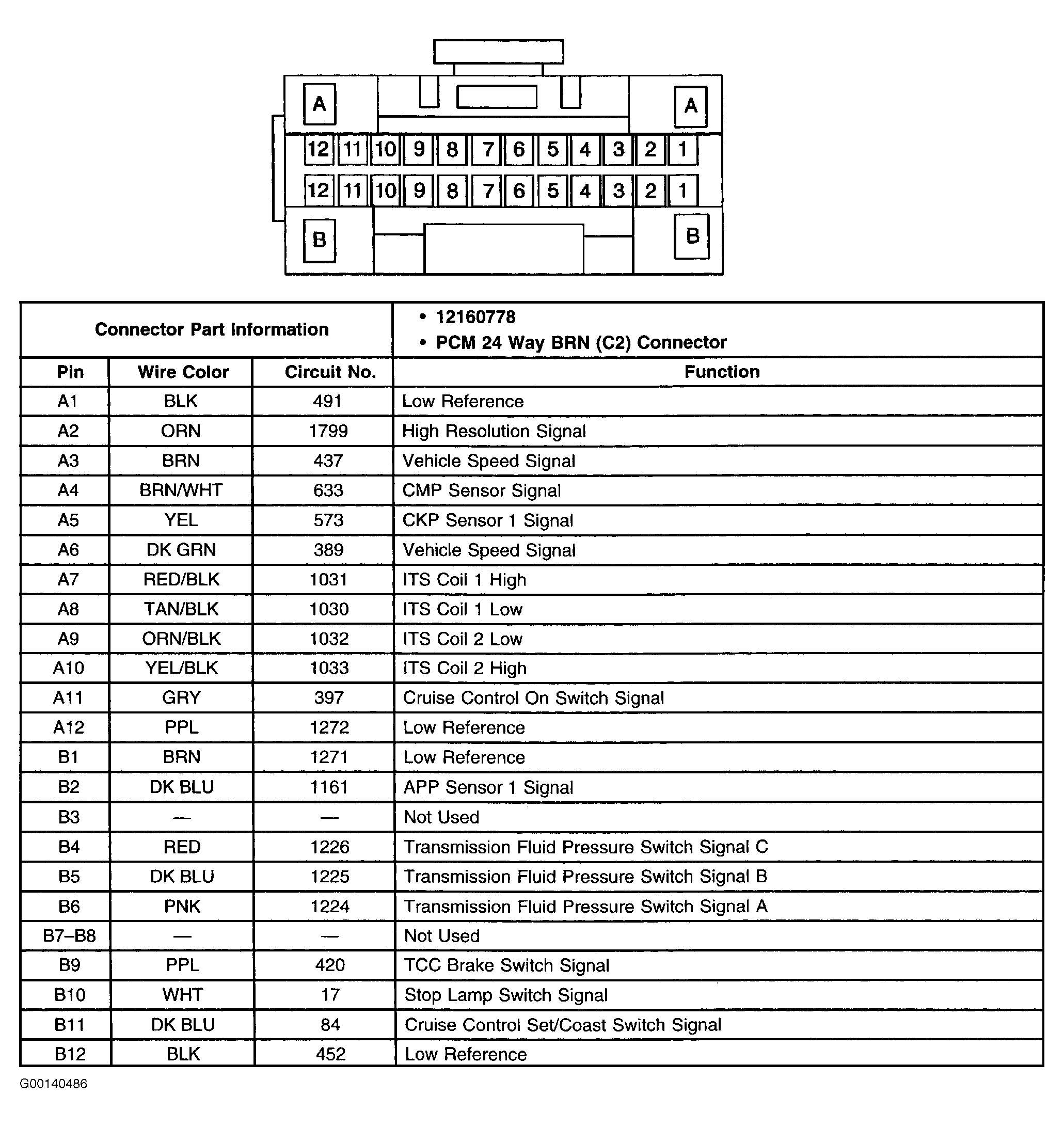

Fig 15: Identifying PCM Connector C2 Terminals

G00140486

Courtesy of GENERAL MOTORS CORP.

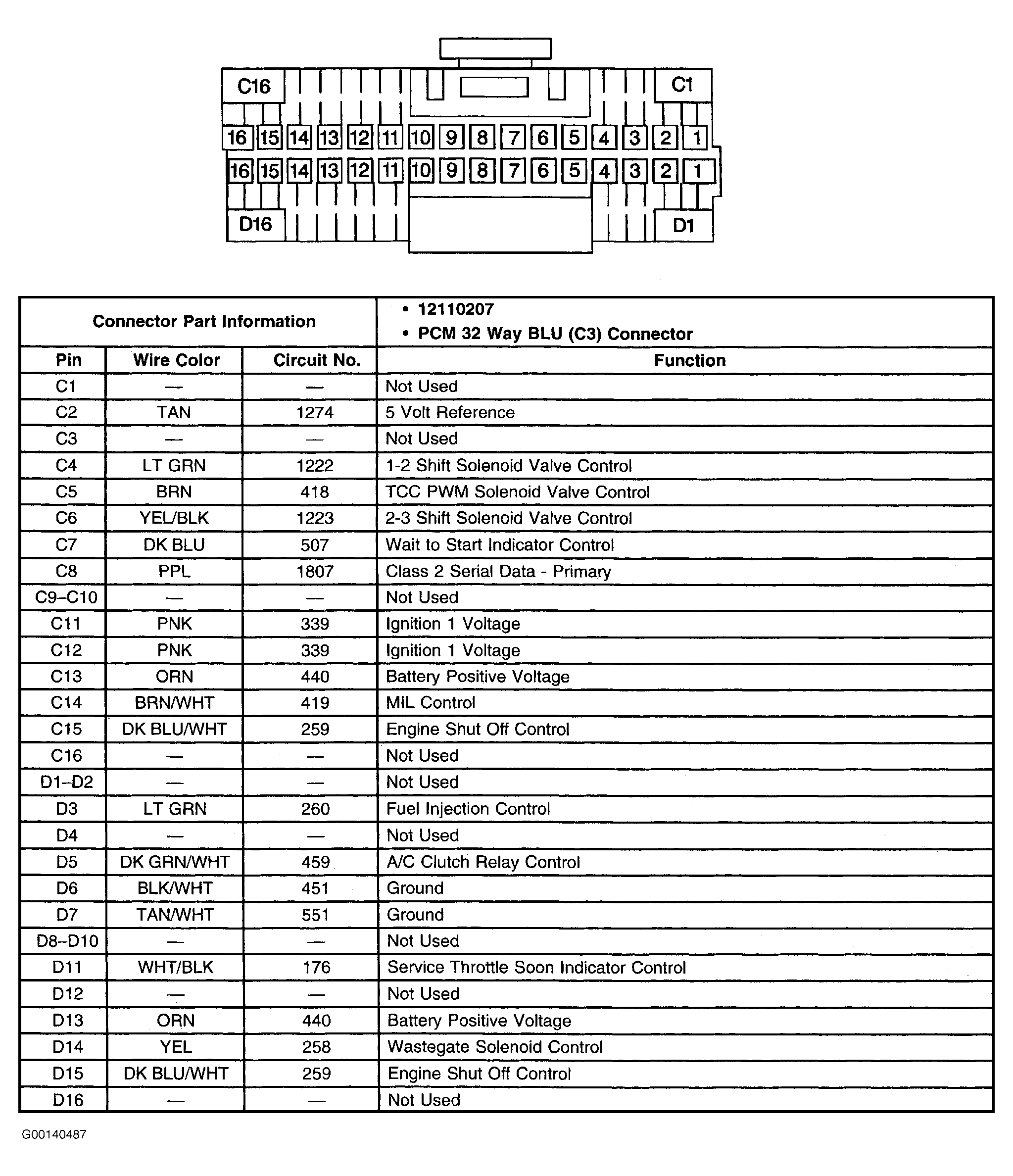

Fig 16: Identifying PCM Connector C3 Terminals

G00140487

Courtesy of GENERAL MOTORS CORP.

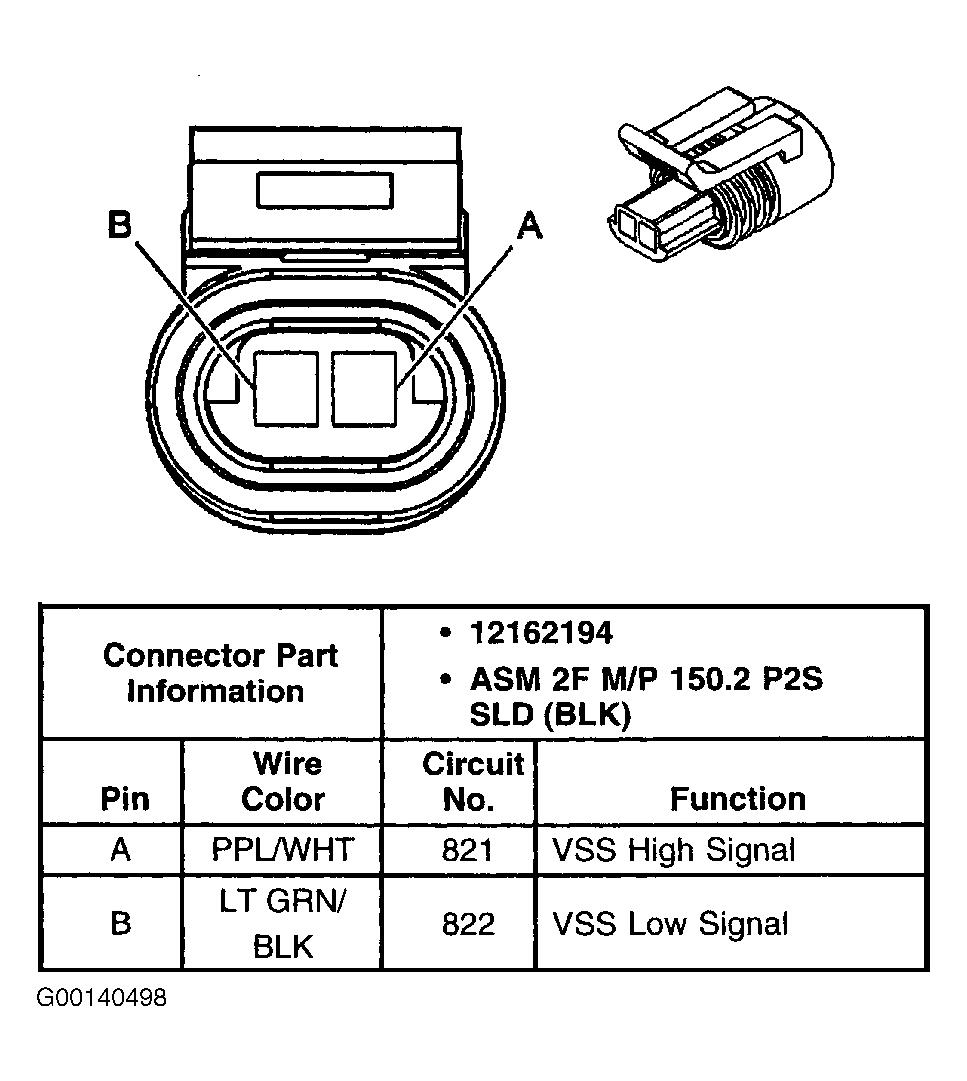

Fig 17: Identifying VSS Connector Terminals

G00140498

Courtesy of GENERAL MOTORS CORP.

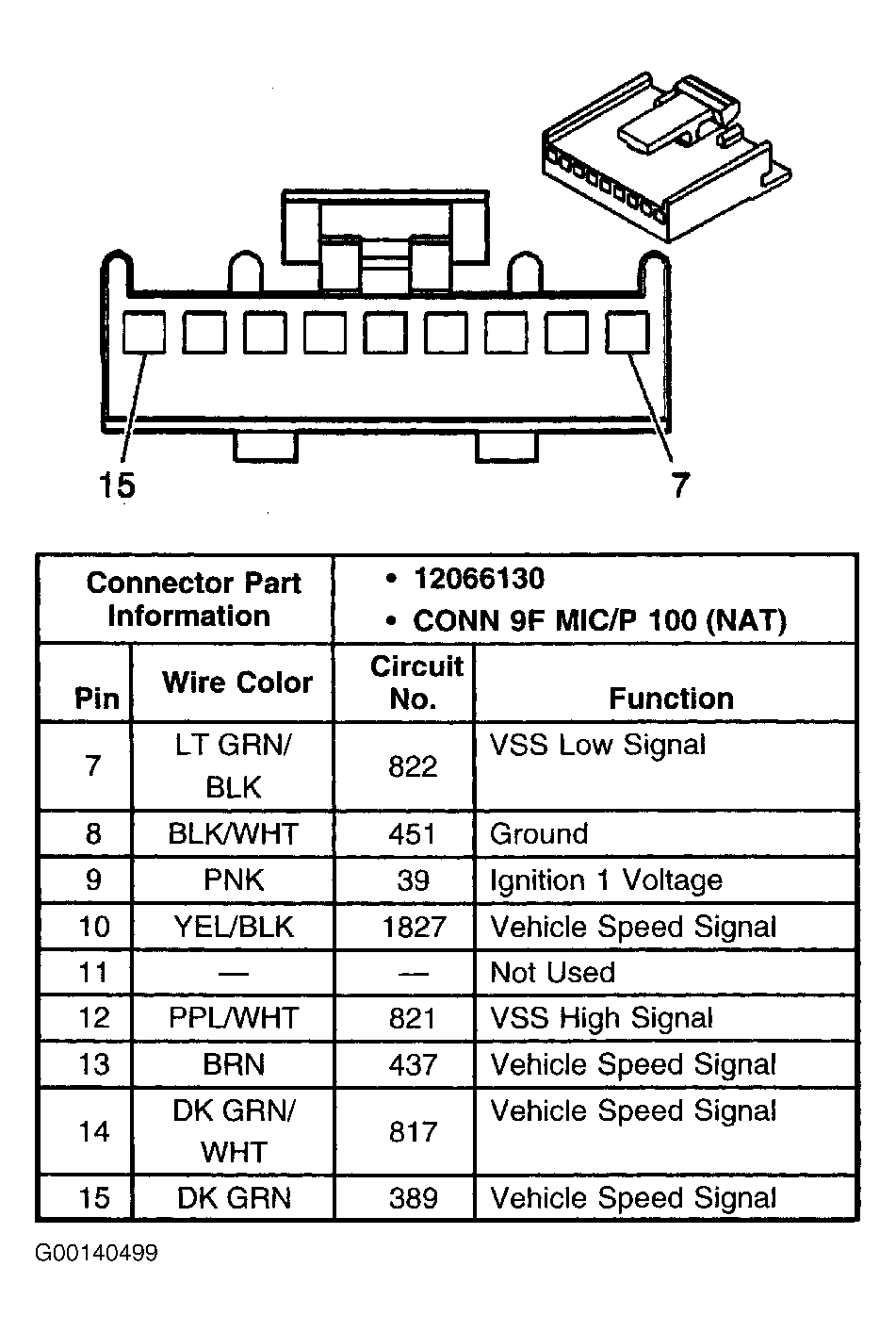

Fig 18: Identifying Vehicle Speed Sensor Buffer Connector Terminals

G00140499

Courtesy of GENERAL MOTORS CORP.

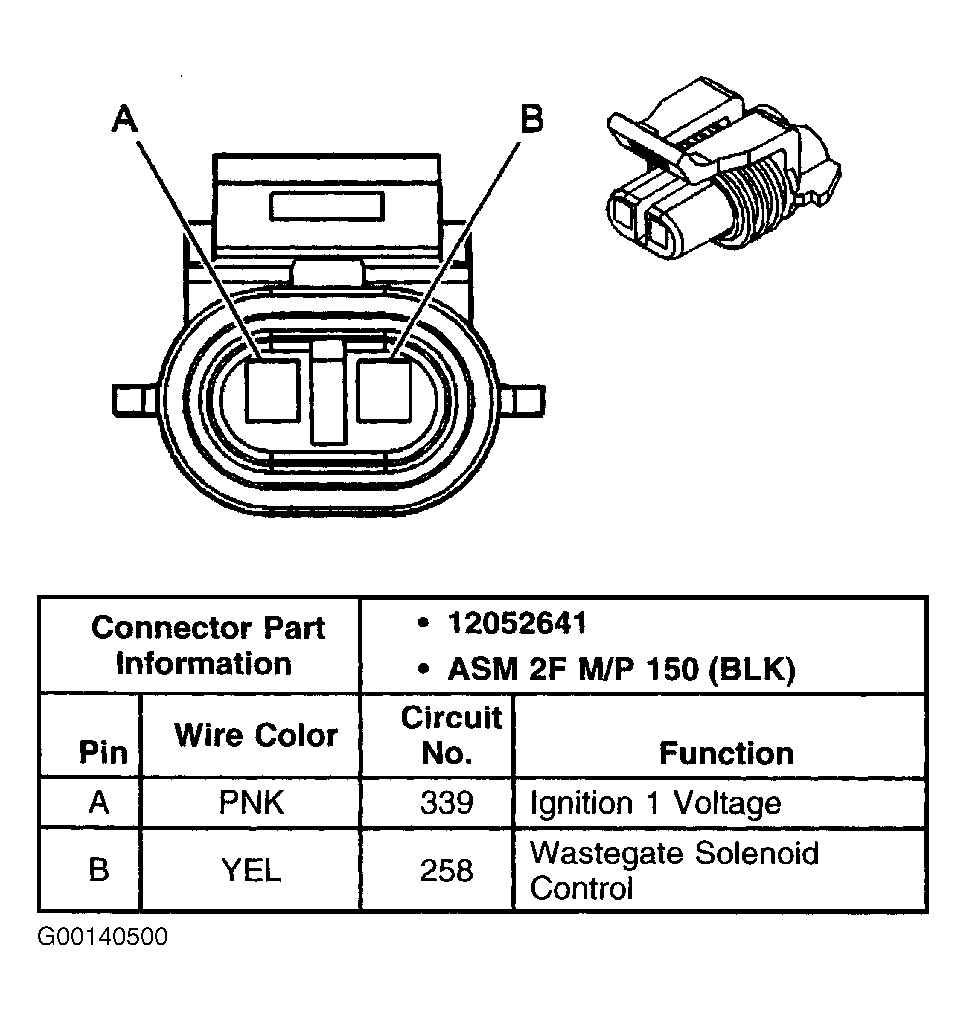

Fig 19: Identifying Wastegate Solenoid Connector Terminals

G00140500

Courtesy of GENERAL MOTORS CORP.

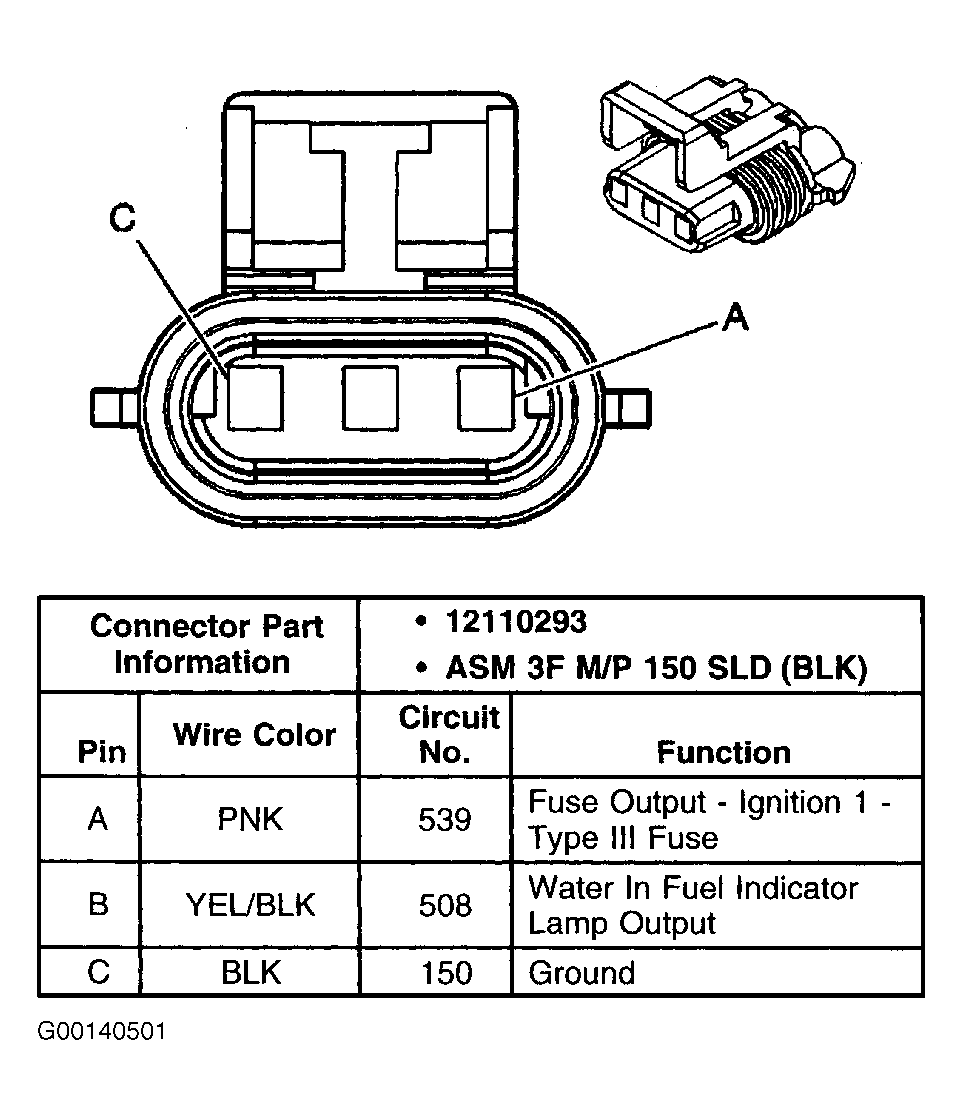

Fig 20: Identifying Water In Fuel Sensor Connector Terminals

G00140501

Courtesy of GENERAL MOTORS CORP.
