Data Link Communications Component Views

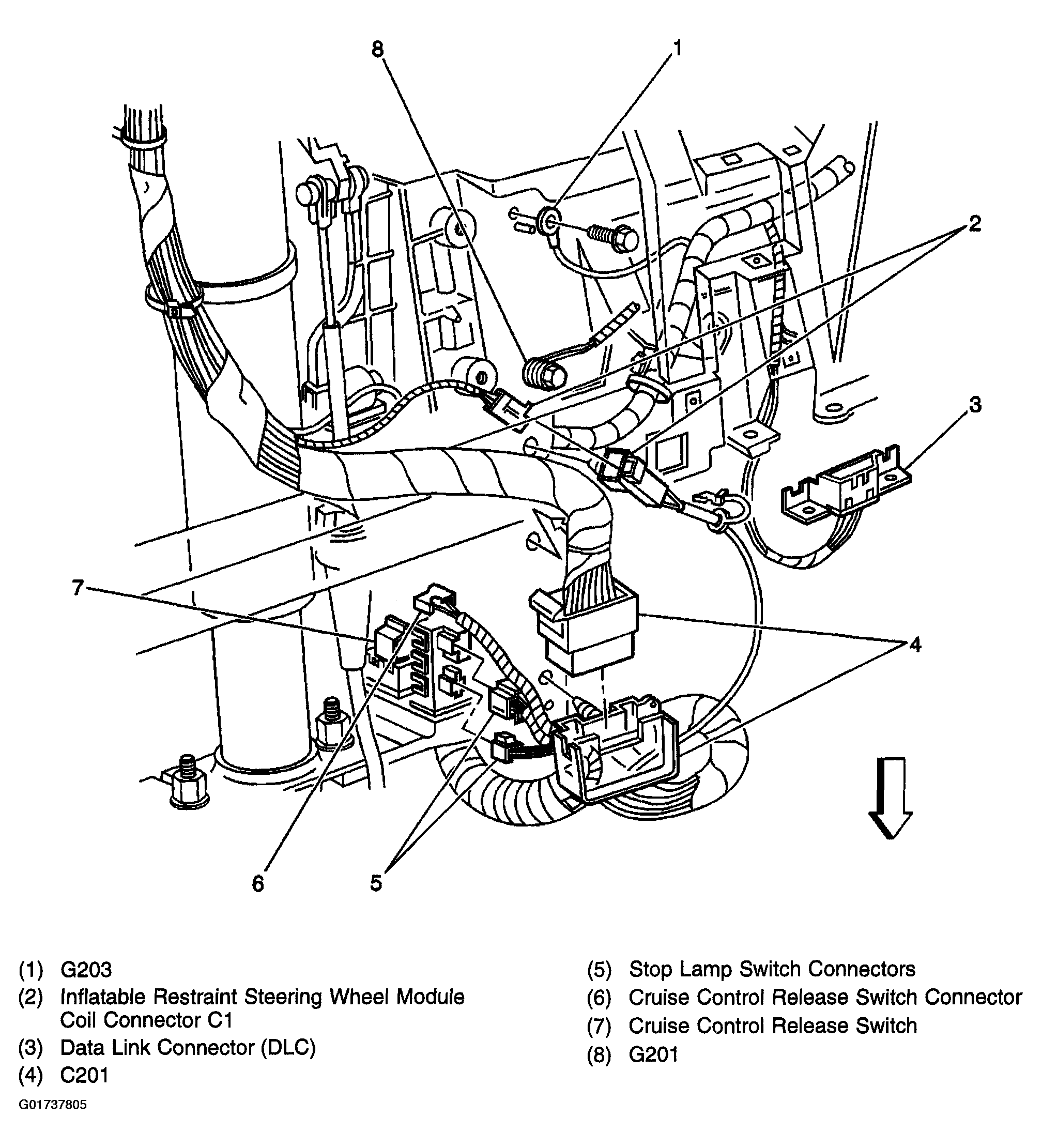

Fig 1: Locating DLC
G01737805Courtesy of GENERAL MOTORS CORP.

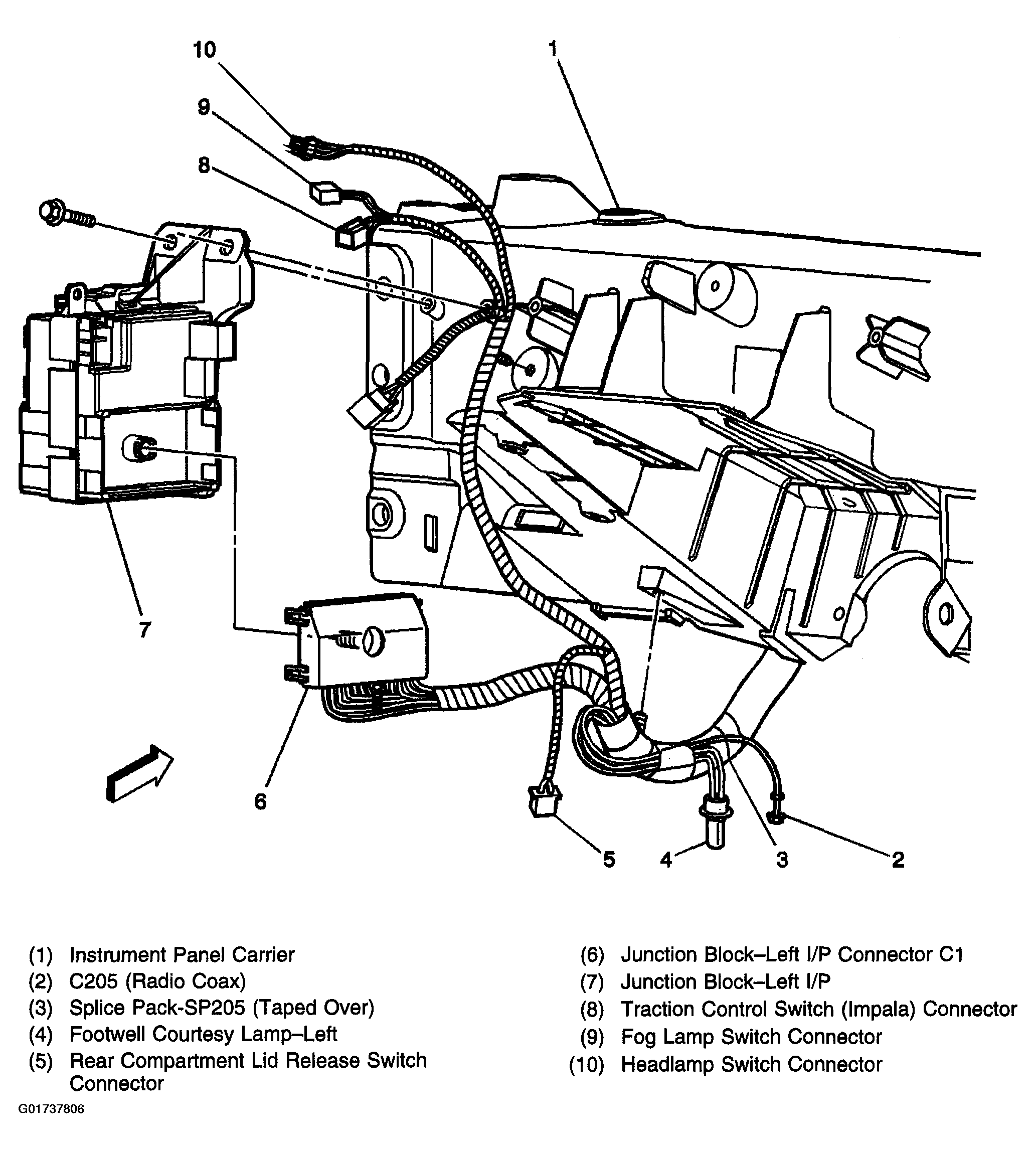

Fig 2: Locating Junction Block (Left Side Of Instrument Panel Support)
G01737806Courtesy of GENERAL MOTORS CORP.
