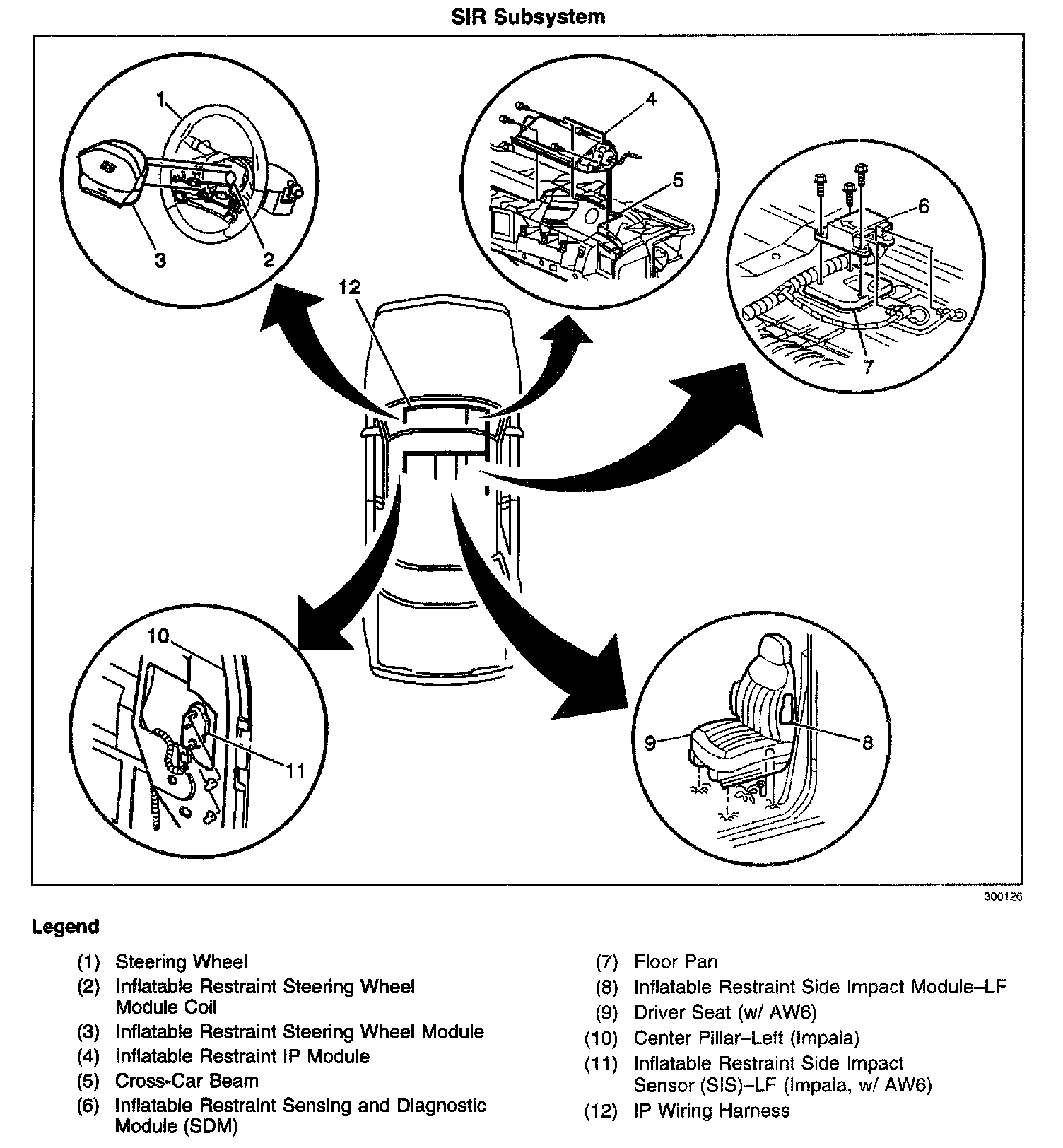

Air Bag Control Module: Locations

Locations View:





For a description of the RPO Code(s) shown in this article/image, refer to the RPO Code List found at Vehicle/Application ID RPO Codes
