Wiper/Washer System Component Views

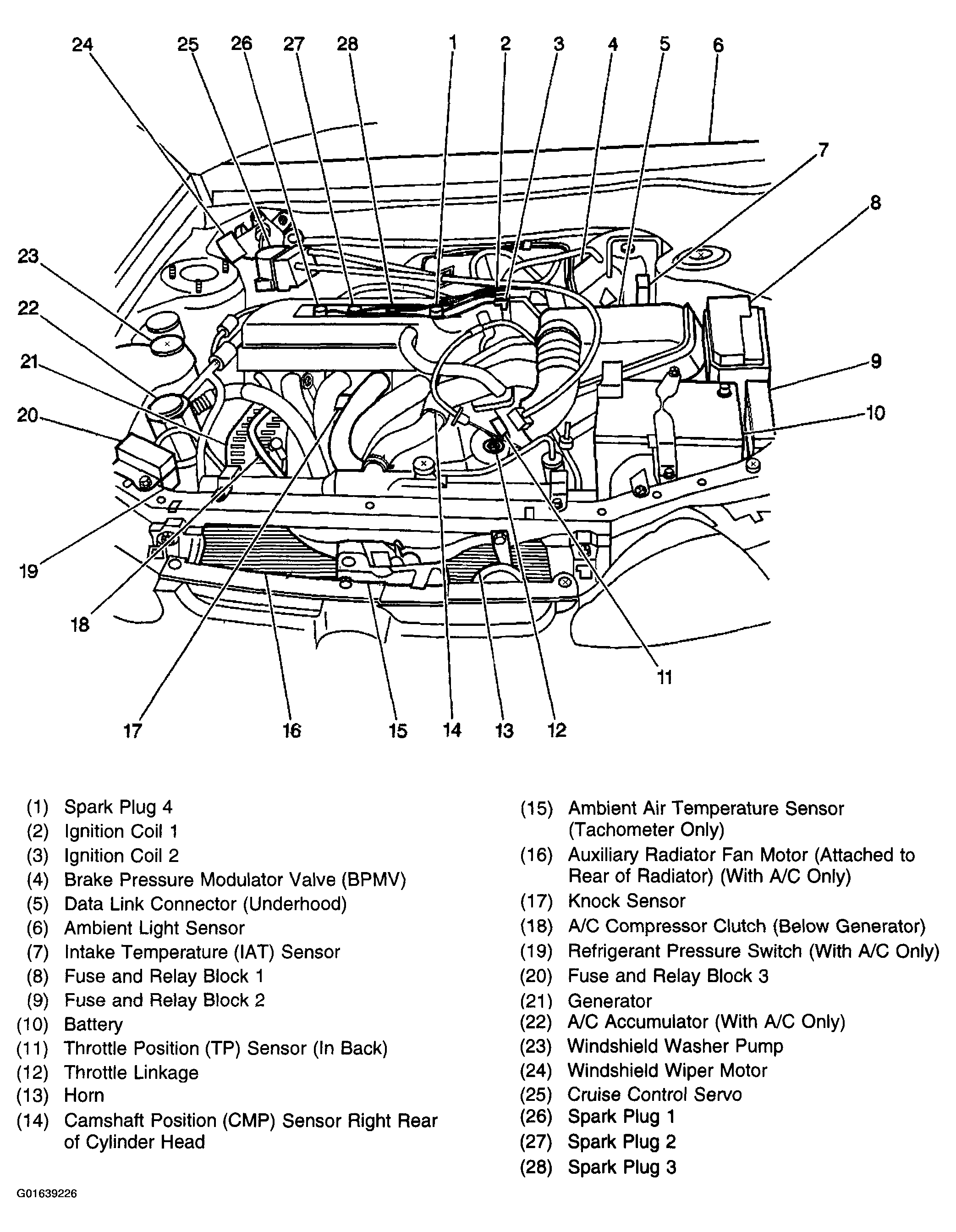

Fig 1: Engine Compartment Component Views
G01639226Courtesy of GENERAL MOTORS CORP.

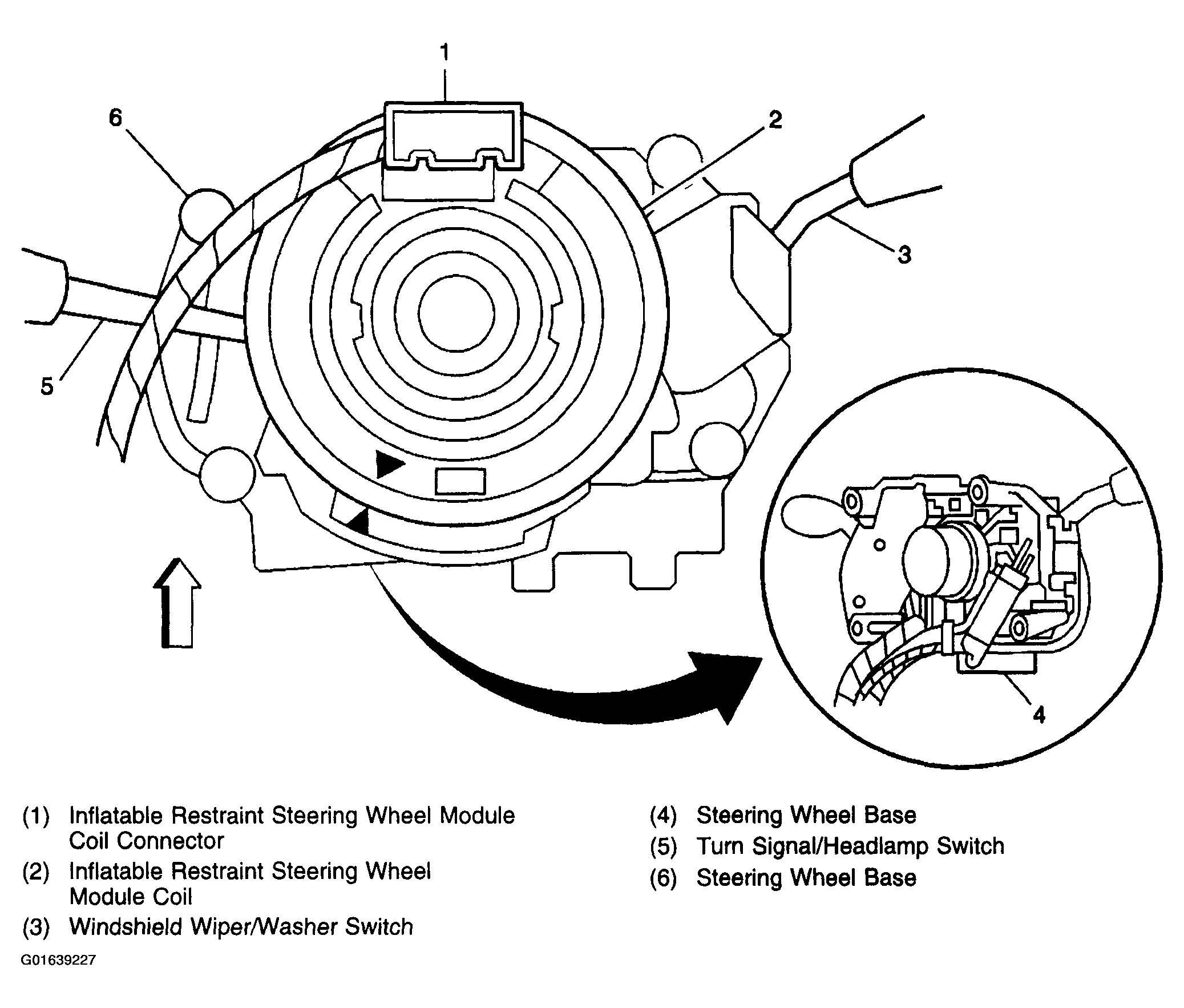

Fig 2: Identifying Combination Switch Components
G01639227Courtesy of GENERAL MOTORS CORP.

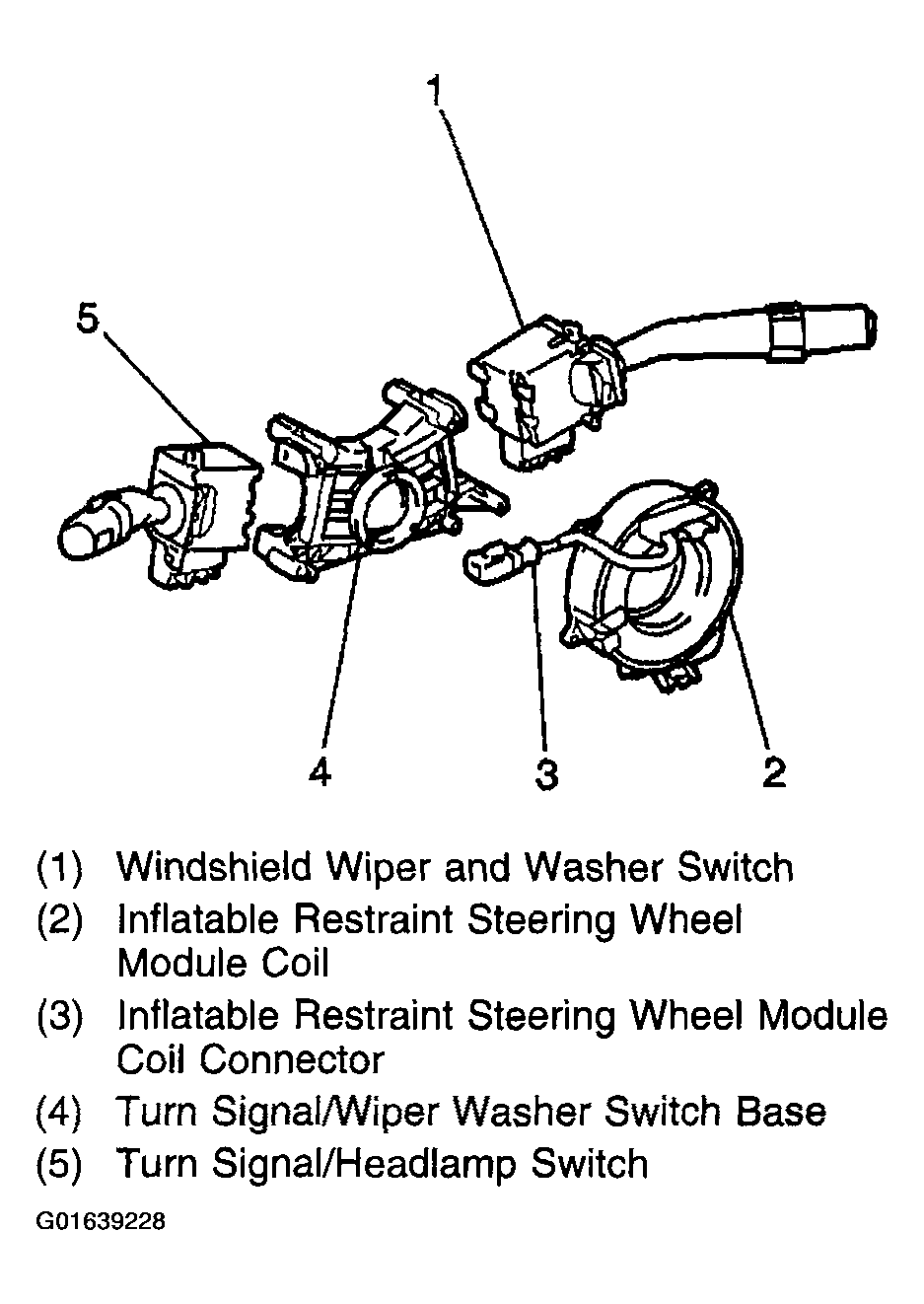

Fig 3: Exploded View Of Combination Switch Components
G01639228Courtesy of GENERAL MOTORS CORP.
