Wiper/Washer System Connector End Views

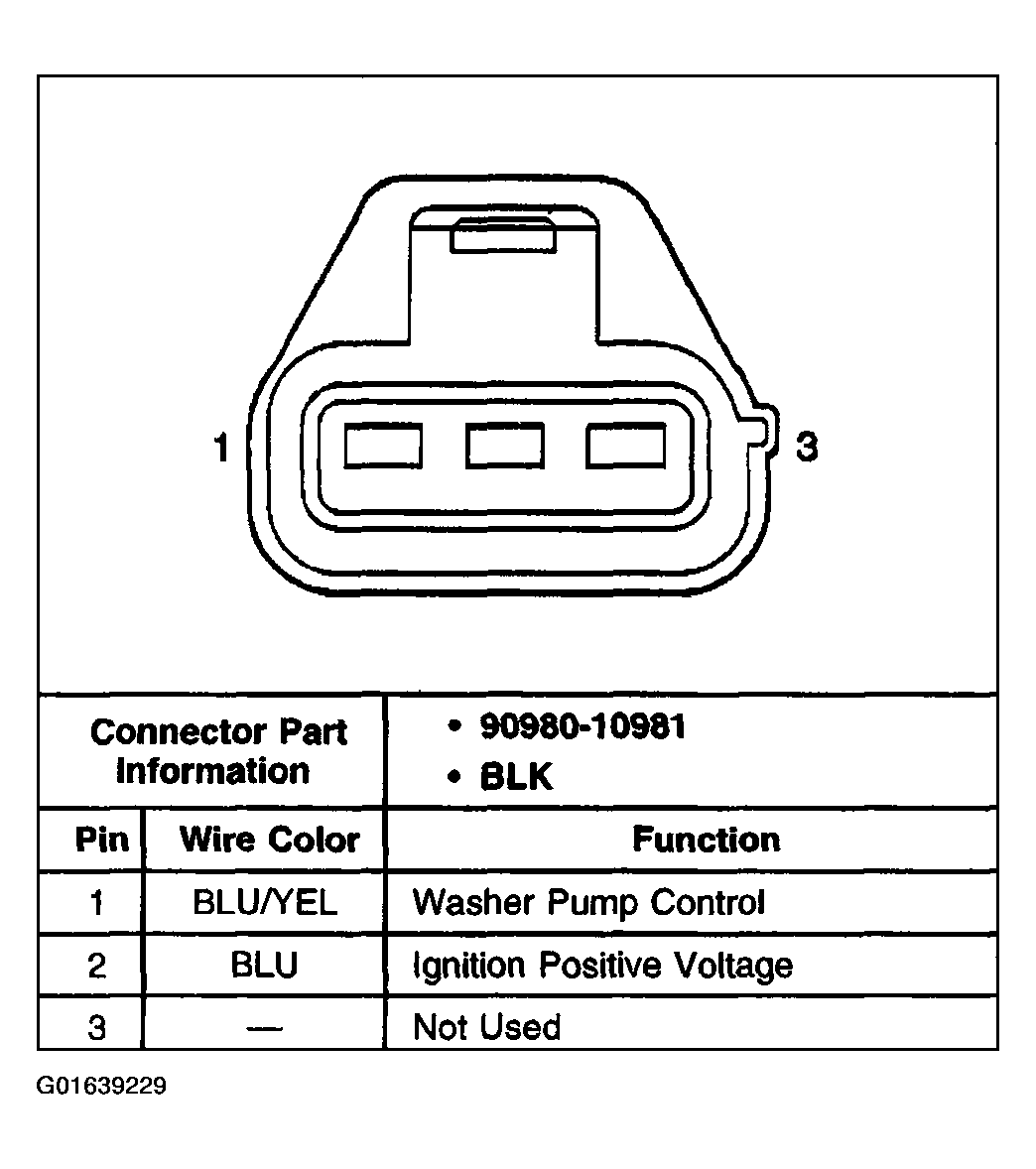

Fig 1: Windshield Washer Pump Connector End View
G01639229Courtesy of GENERAL MOTORS CORP.

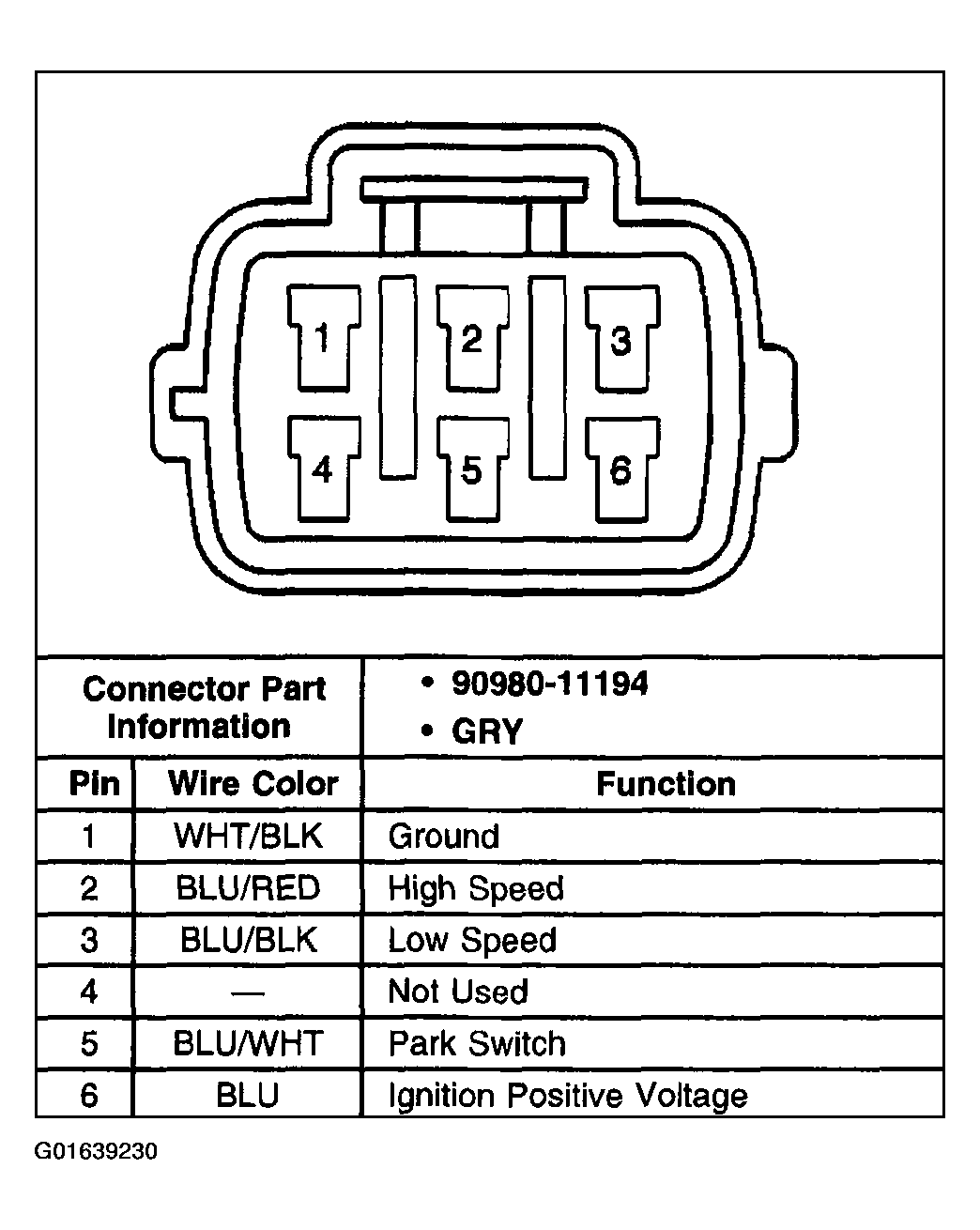

Fig 2: Windshield Wiper Motor Connector End View
G01639230Courtesy of GENERAL MOTORS CORP.

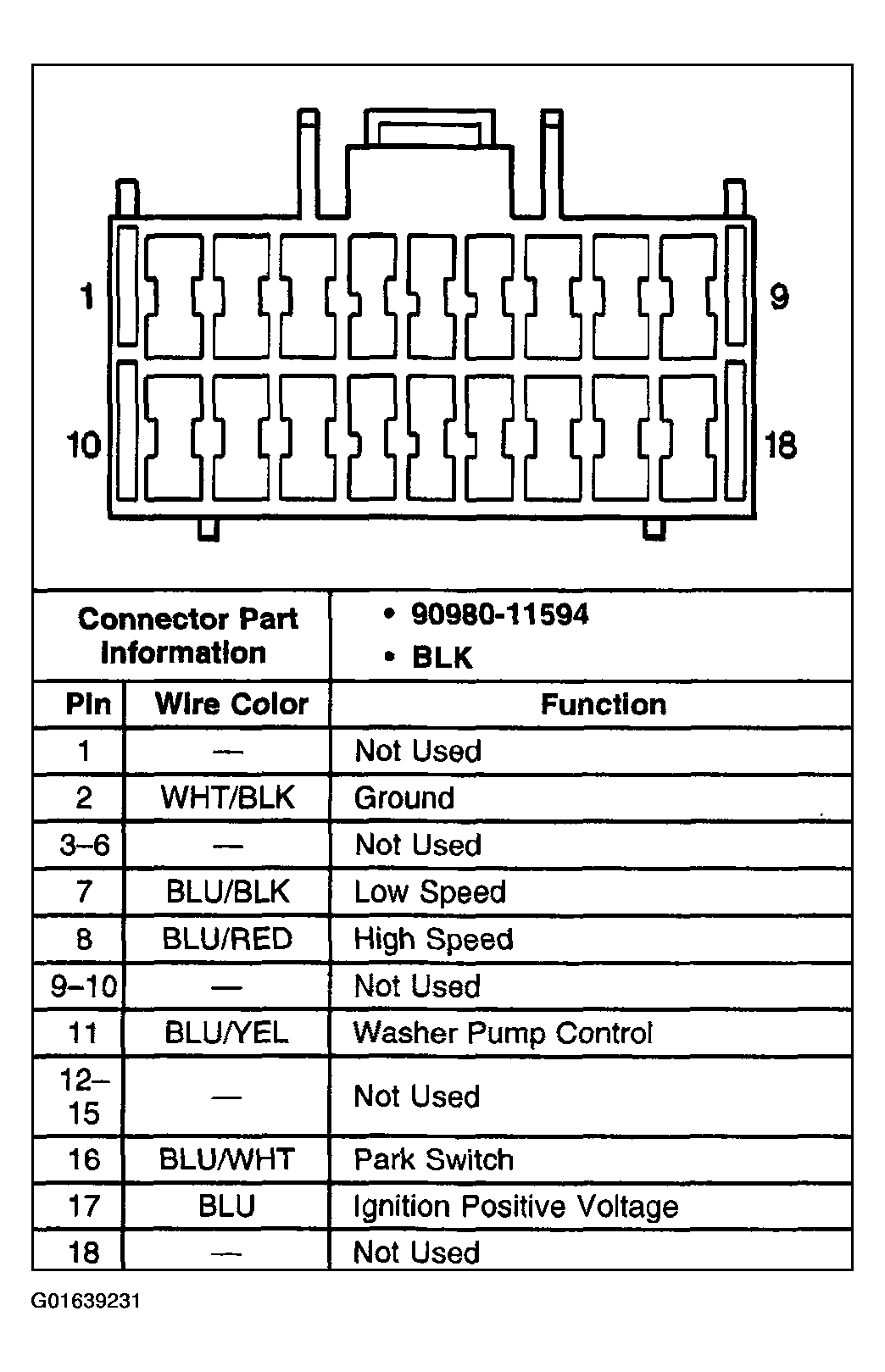

Fig 3: Windshield Wiper/Washer Switch Connector End View
G01639231Courtesy of GENERAL MOTORS CORP.
