Washer System Description

The windshield washer system includes the following components:

• The washer solvent container (1)

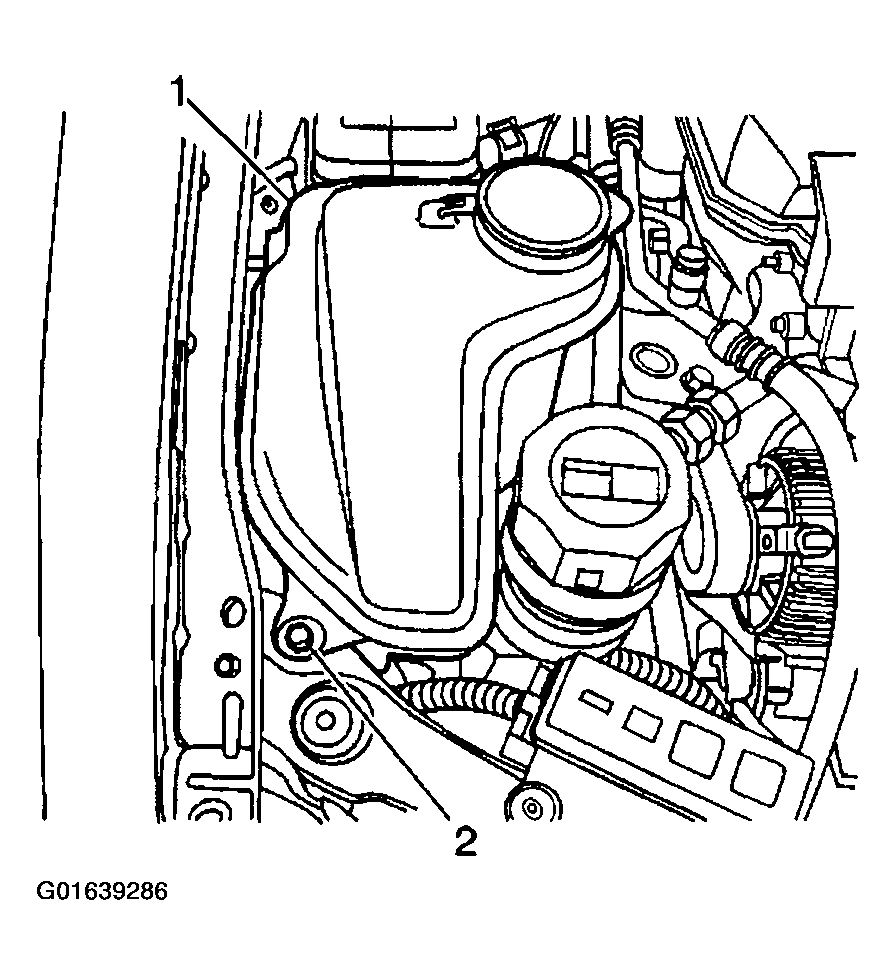

Fig 1: Locating Washer Solvent Container
Courtesy of GENERAL MOTORS CORP.
• The washer pump (1) attached to the container

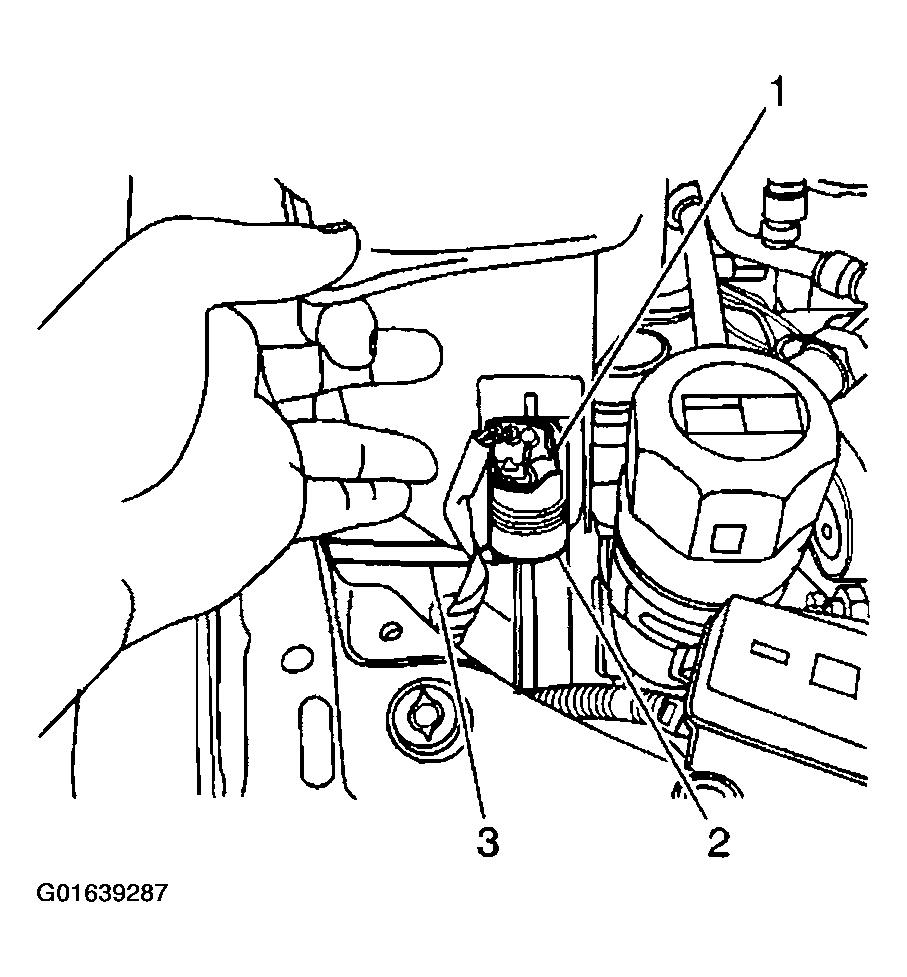

Fig 2: Locating Washer Pump
Courtesy of GENERAL MOTORS CORP.
• The hoses
• The nozzles
• The washer switch

The washer solvent container is mounted on the right fender, behind the headlamp.
