Steering Column Disassembled View (Standard Column)

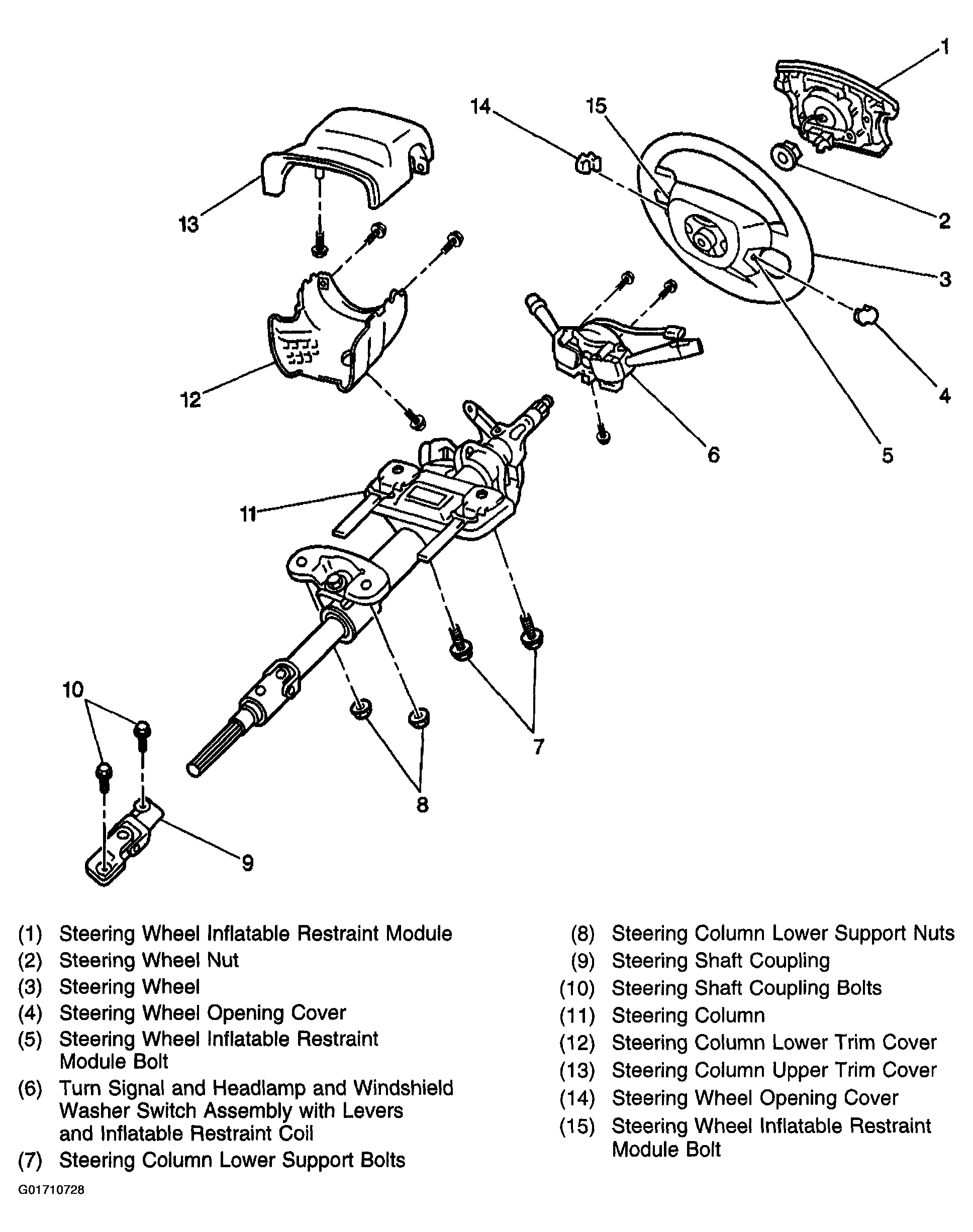

Fig 1: Standard Steering Wheel and Column Disassembled View
G01710728Courtesy of GENERAL MOTORS CORP.
