Installation Procedure

  1. Install the LDM (2) to the printed circuit.
  2. Install the Instrument Cluster Assembly (1). Refer to INSTRUMENT PANEL CLUSTER .
  3. Perform Diagnostic System Check - ABS (Figure).

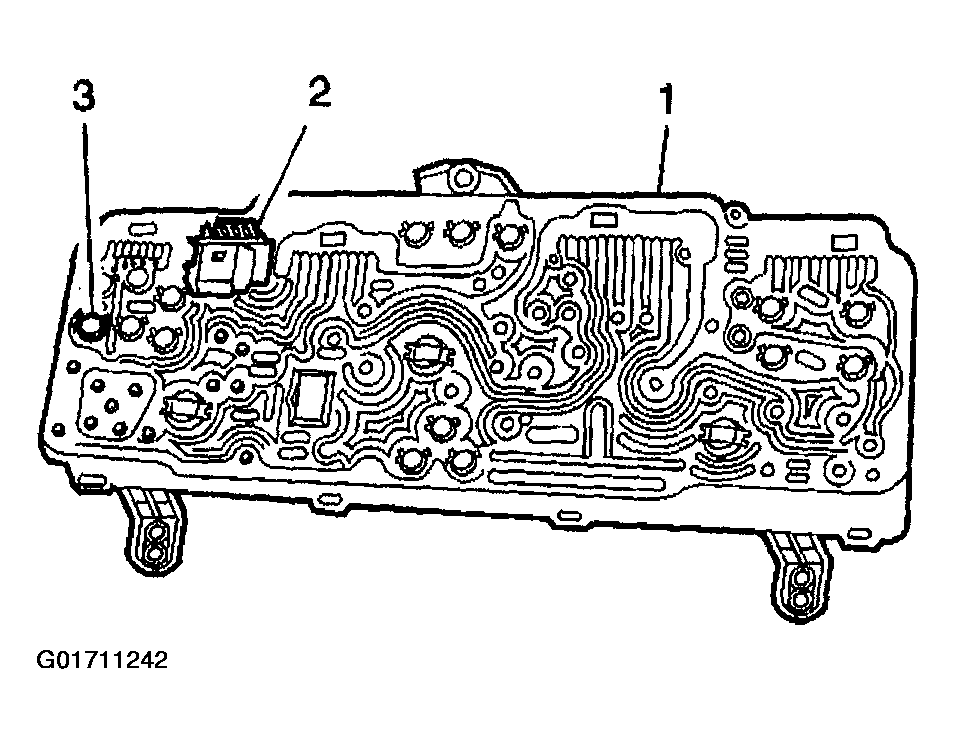

    Fig 1: Installing Lamp Driver Module
    G01711242Courtesy of GENERAL MOTORS CORP.
