Removal Procedure

Disconnect the negative battery cable.
Remove the I/P drivers knee bolster reinforcement. Refer to KNEE BOLSTER REPLACEMENT .
Remove the following components from the vehicle:
- The plastic retainer (1)
- The left I/P outer air outlet duct (2)

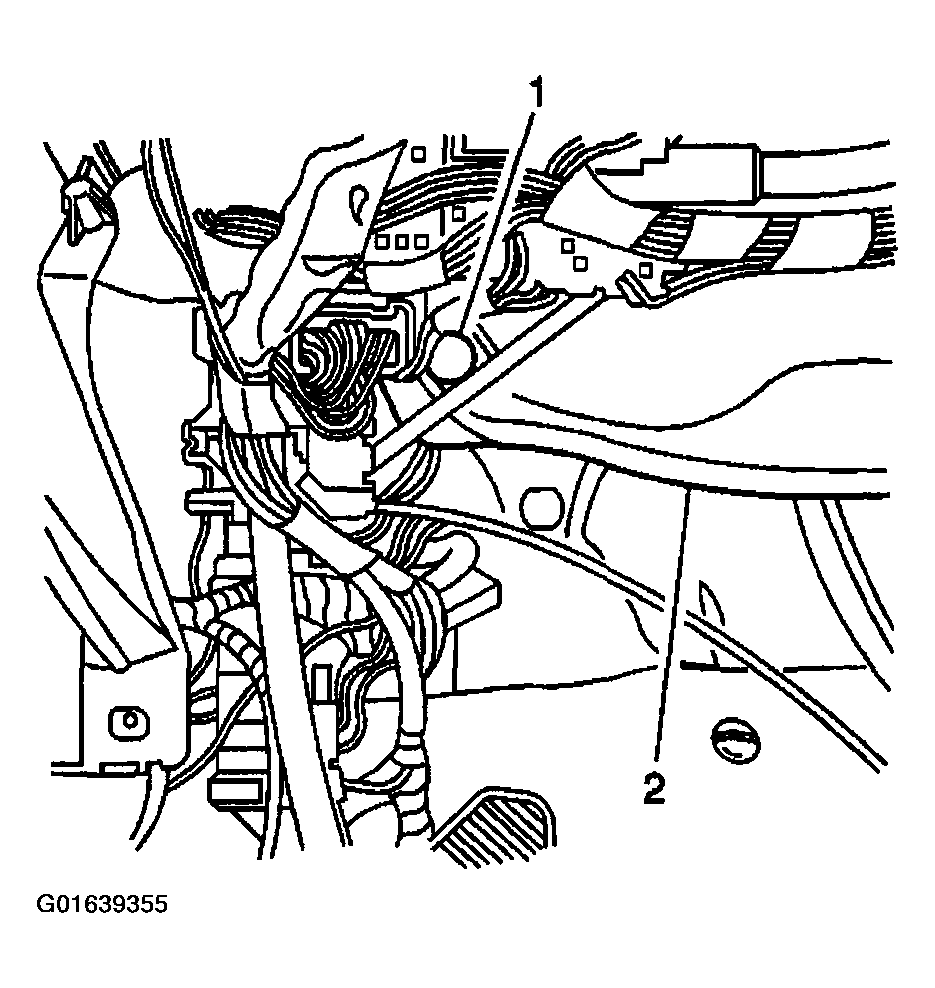

  Fig 1: Removing Plastic Retainer And Left I/P Outer Air Outlet Duct
  Courtesy of GENERAL MOTORS CORP.
Remove the screw (2) which secures Junction Block #2 (1) and position aside in order to gain the necessary clearance to remove the left I/P outer air outlet.

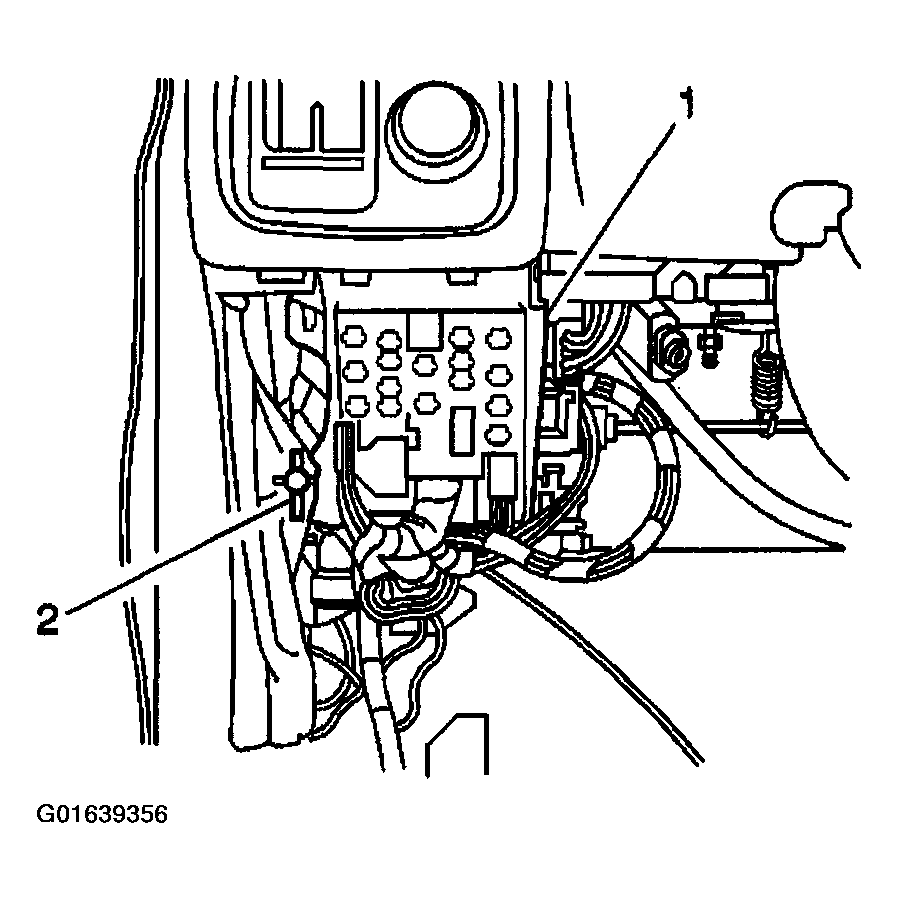

Fig 2: Removing Screw Which Secures Junction Block #2
Courtesy of GENERAL MOTORS CORP.
Remove the following components from the vehicle:
- The screw
- The left I/P outer air outlet (1)

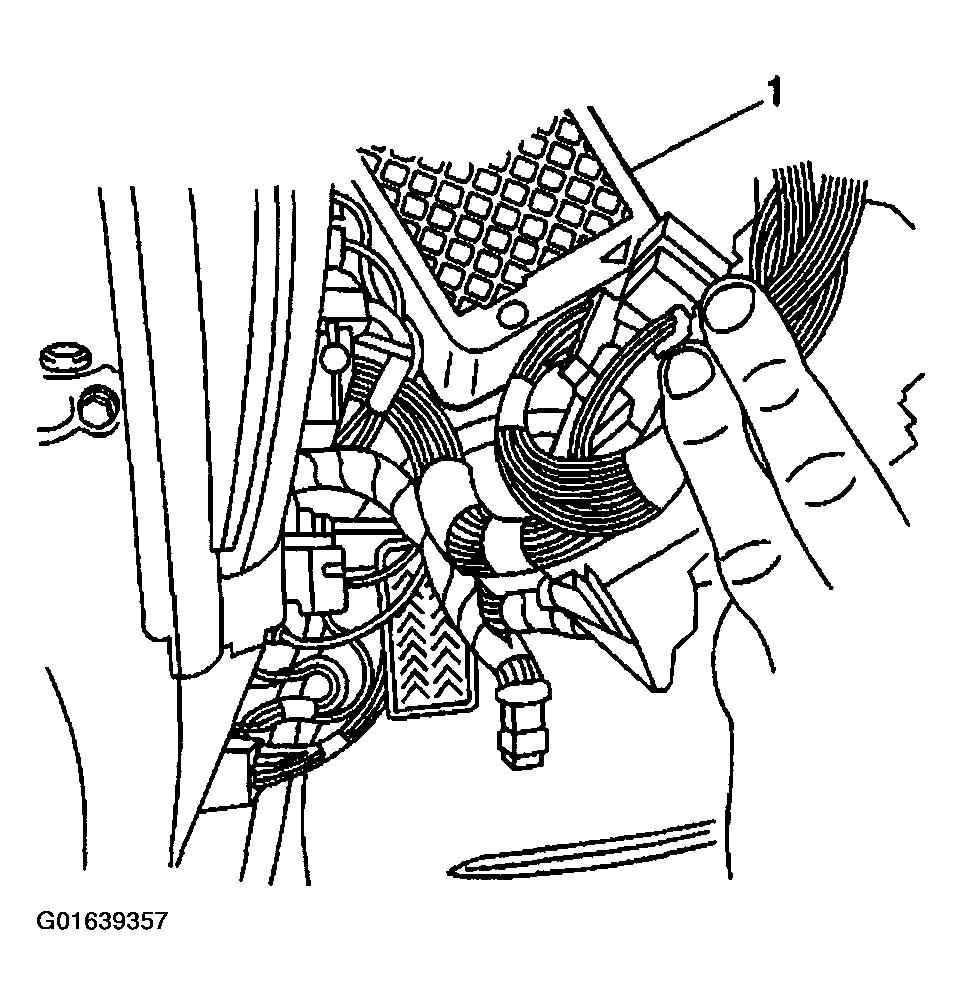

  Fig 3: Removing Left I/P Outer Air Outlet
  Courtesy of GENERAL MOTORS CORP.
Disconnect the remote control door lock receiver electrical connector.
Remove the following components from the vehicle:
- The remote control door lock retaining nut
- The remote control door lock receiver (1) with the mounting bracket attached

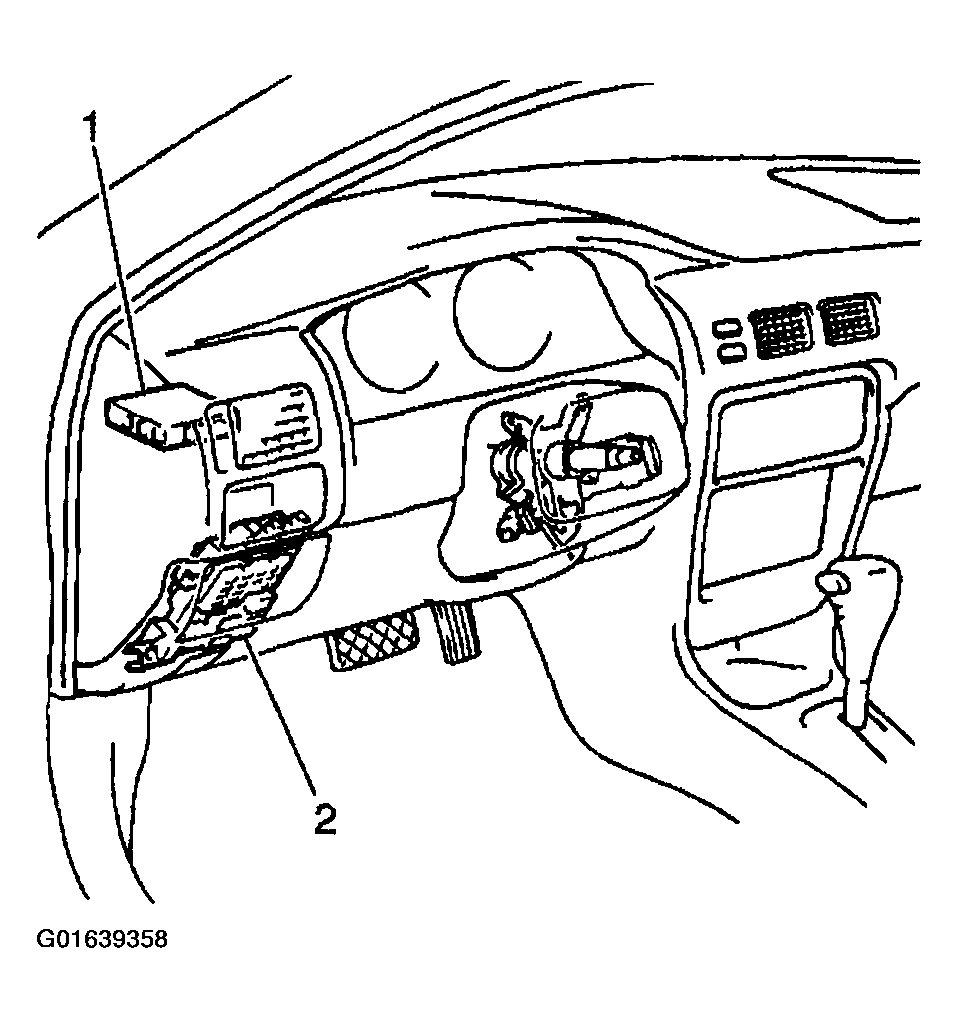

Fig 4: Removal Remote Control Door Lock Receiver
Courtesy of GENERAL MOTORS CORP.
Depress the retaining tab and remove the mounting bracket from the receiver, if necessary.
