Removal Procedure

  1. Remove the inside door handle screw (1).

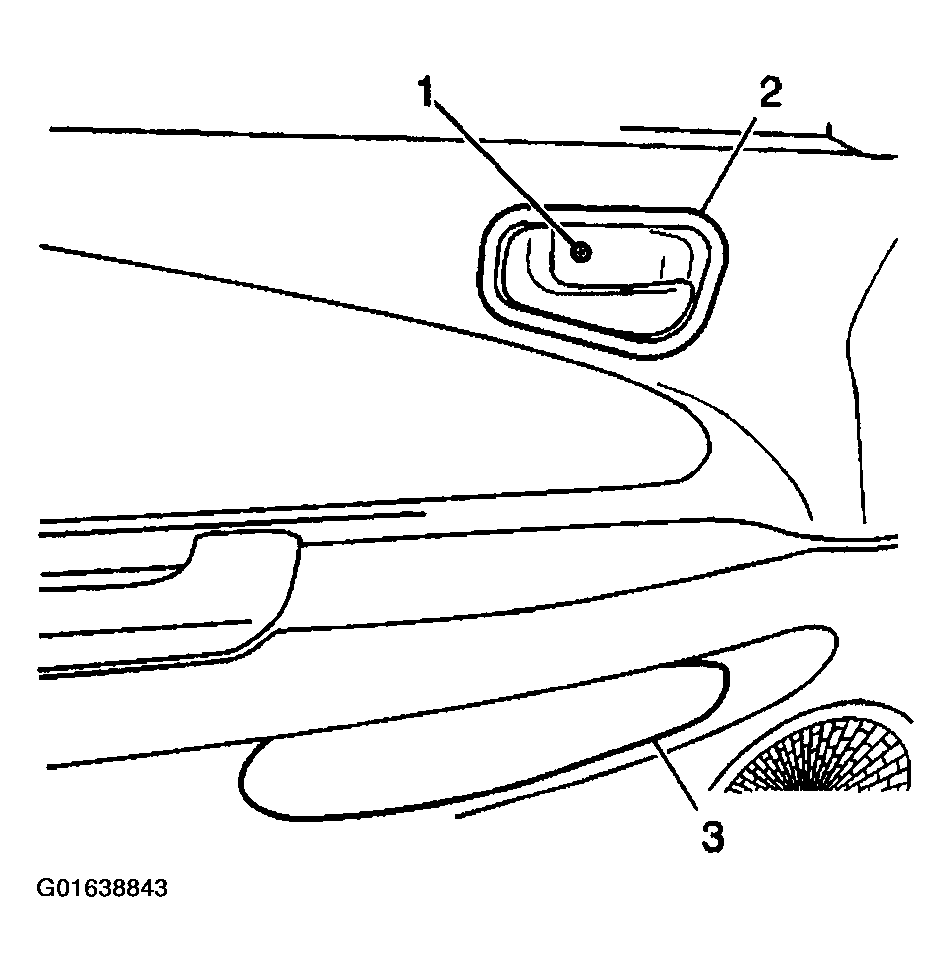

    Fig 1: Removing Inside Door Handle Screw
    G01638843Courtesy of GENERAL MOTORS CORP.
  2. Slide the handle (2) forward and pull it away from the front side door trim (1).

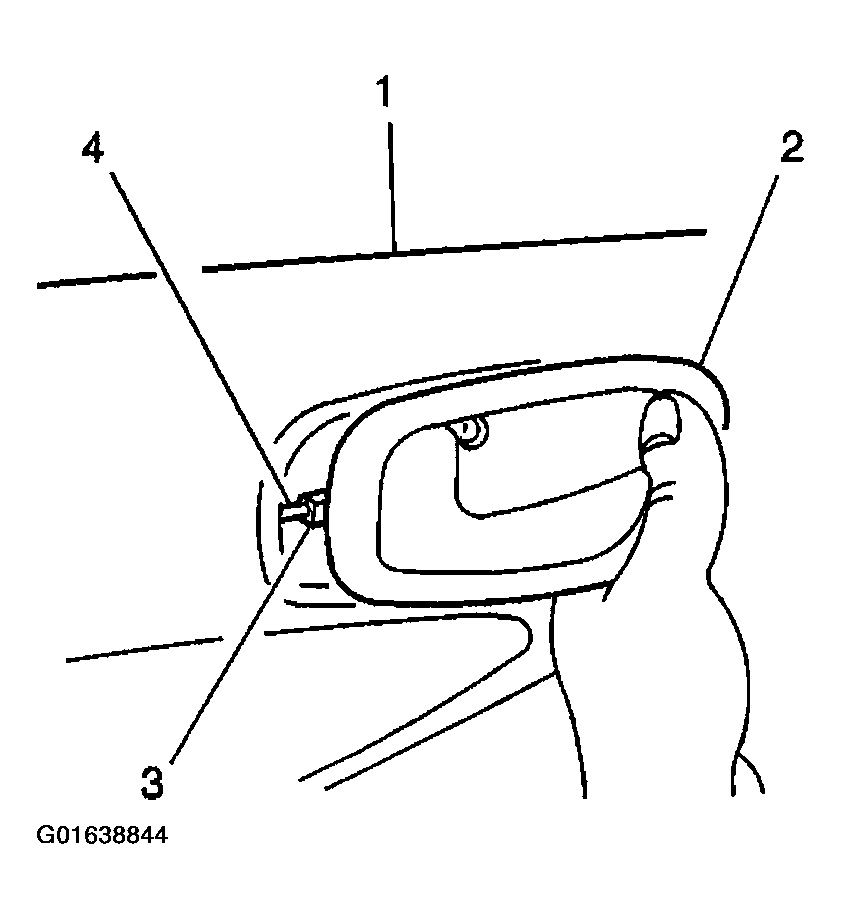

    Fig 2: Sliding Handle Forward
    G01638844Courtesy of GENERAL MOTORS CORP.
  3. Open the rod retainer (3) and remove the inside handle rod (4) from the inside door handle (2).
  4. Remove the handle (2) from the vehicle.
