Removal Procedure

  1. Remove the front side door trim. Refer to TRIM PANEL REPLACEMENT - Side Front Door .
  2. Starting at the top, pull downward on the front side door water deflector (3) in order to remove from the door edges (4).
  3. Unroute any electrical connectors (2) and the front side door inside handle rod (1) from the water deflector (3), while removing the deflector from the vehicle.

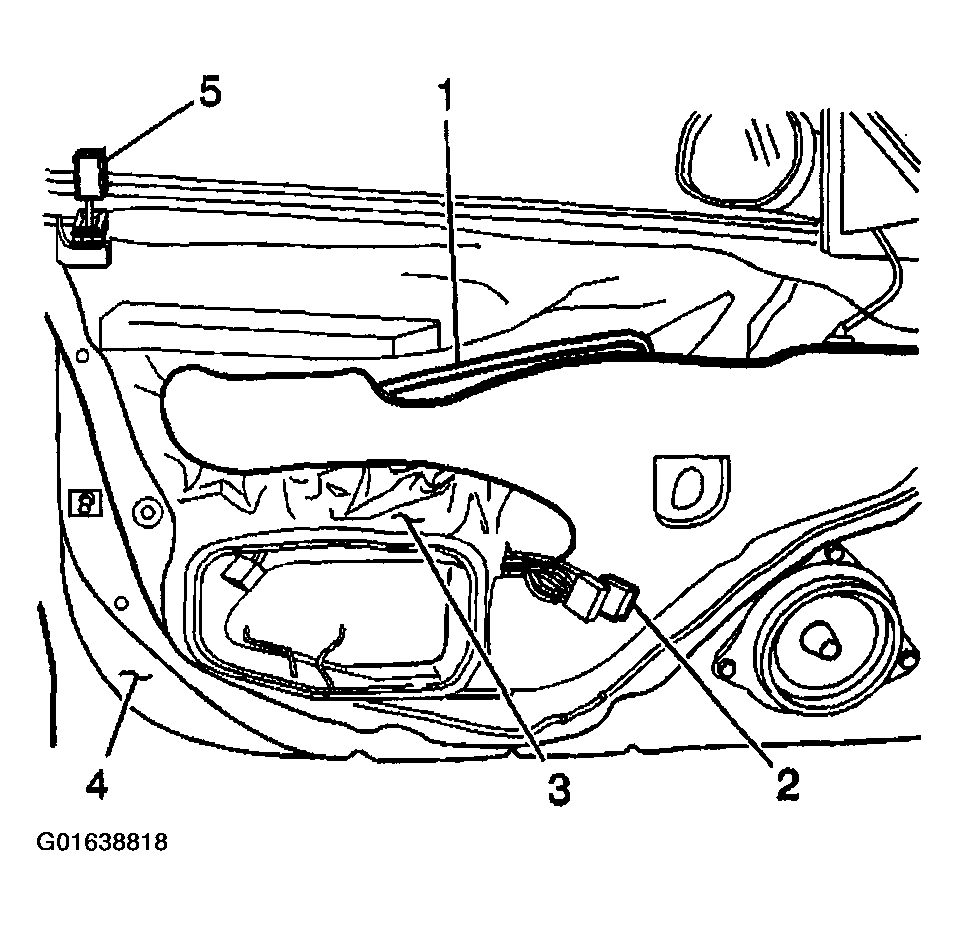

    4. Fig 1: Removing Deflector
    G01638818Courtesy of GENERAL MOTORS CORP.
