Transfer Case Shift Control Module - C2 Connector End View

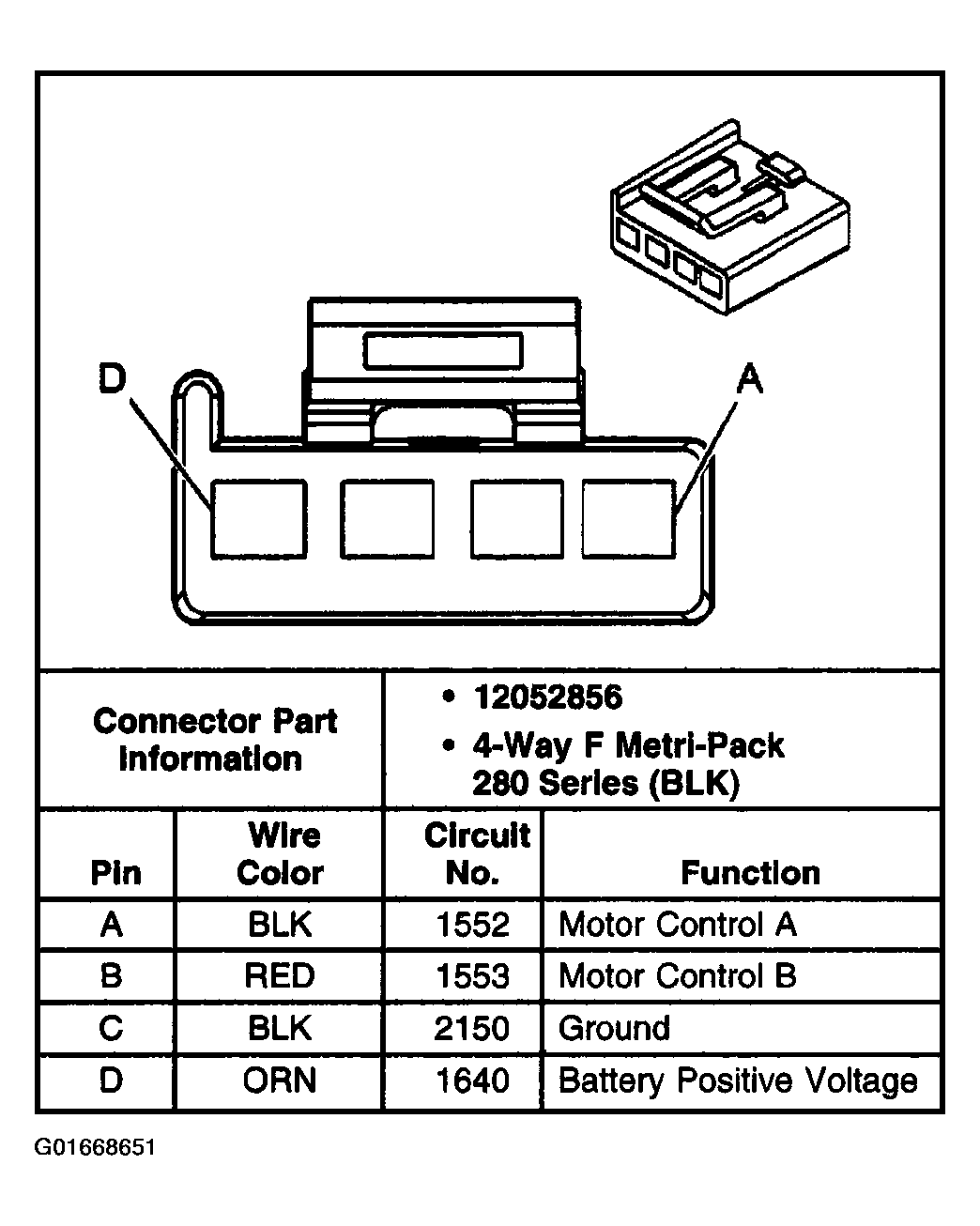

Fig 1: Transfer Case Shift Control Module - C2 Connector End View
G01668651Courtesy of GENERAL MOTORS CORP.

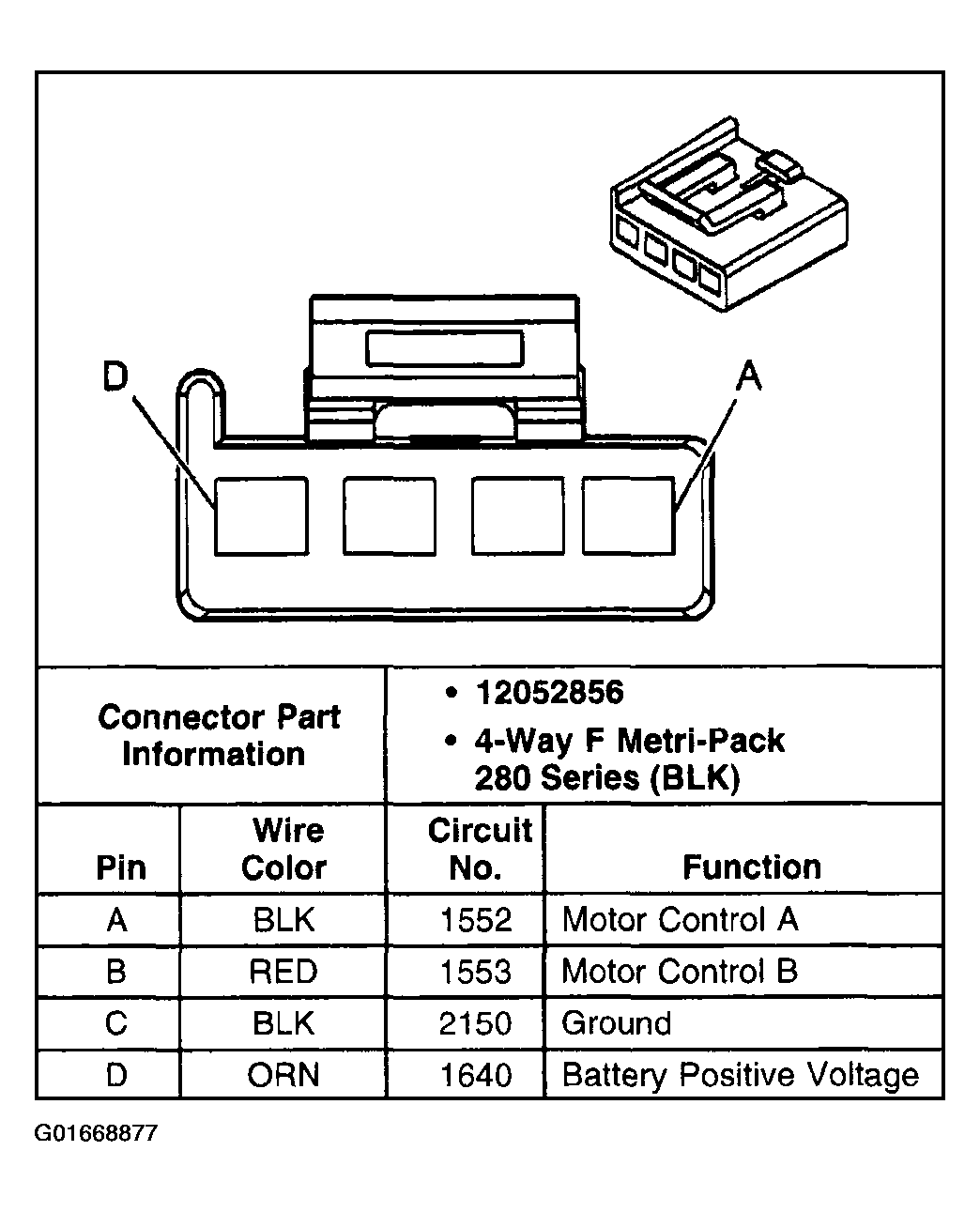

Fig 1: Transfer Case Shift Control Module - C2 Connector End View
G01668877Courtesy of GENERAL MOTORS CORP.
