Activating System

WARNING: This page is about a different car, the 2000 Chevrolet Tracker and 1999 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.

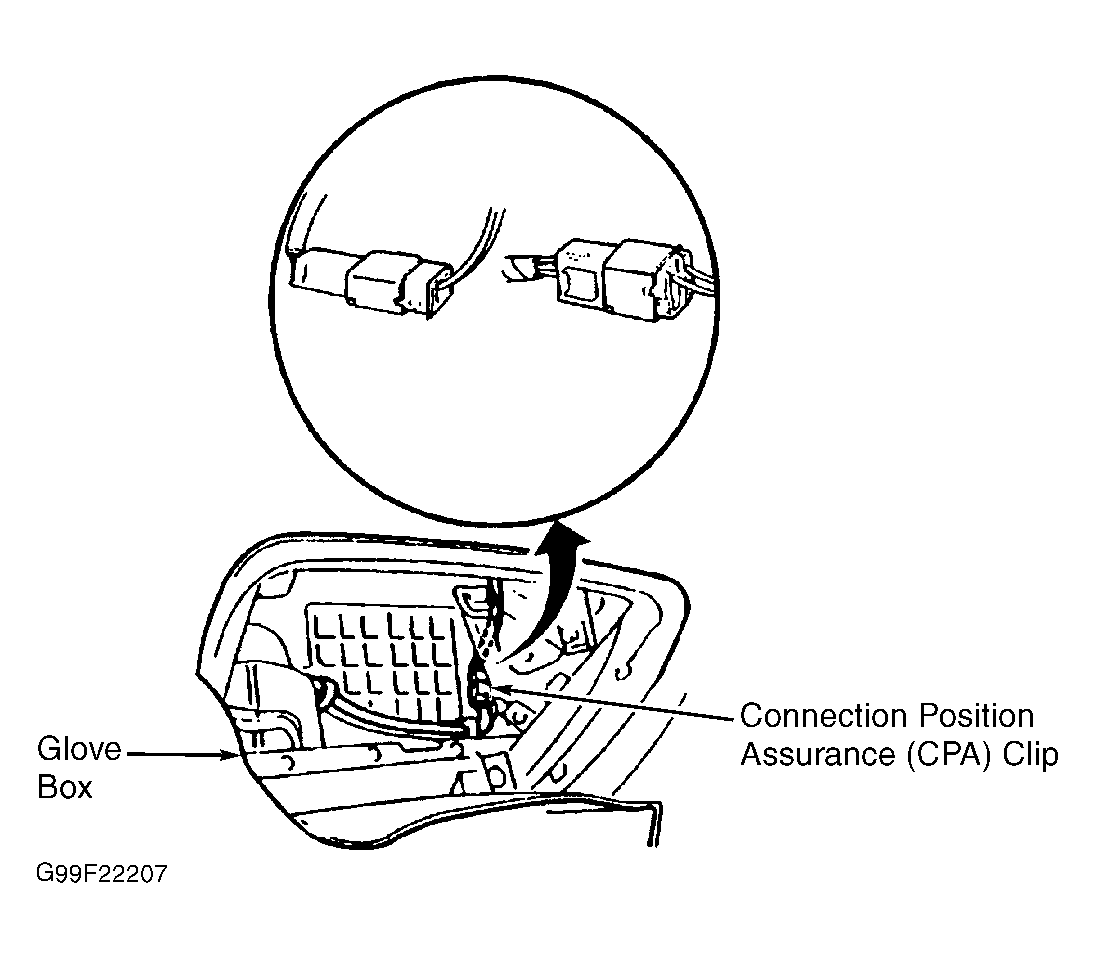

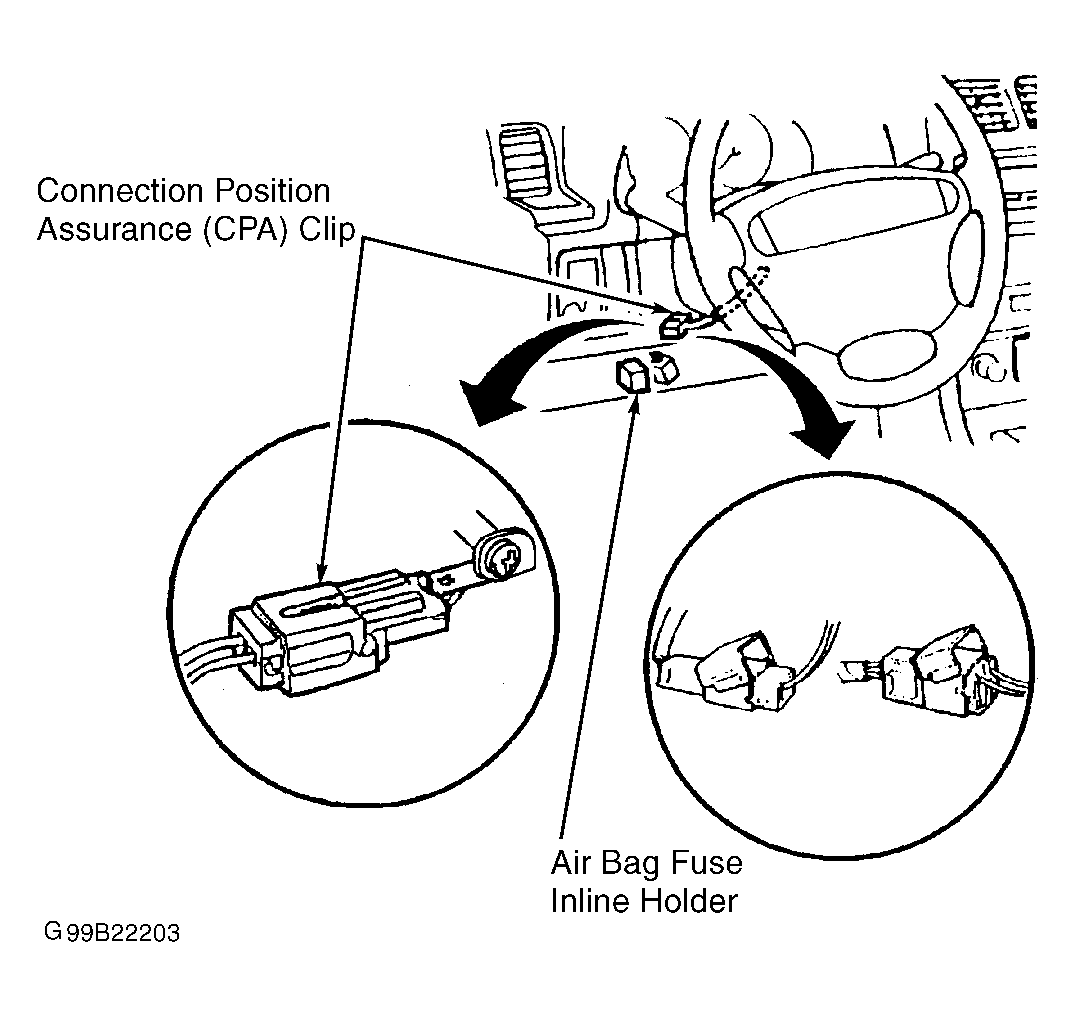

Ensure ignition switch is in LOCK position. Connect driver-side air bag Yellow 2-pin connector at base of steering column, and passenger-side air bag Yellow 2-pin connector above glove box opening. See Figure & Figure . Install CPA clips. Reinstall steering column opening trim plate and glove box. Install AIR BAG fuse. Check system for proper operation. See SYSTEM OPERATION CHECK .
