Stop Lamp Switch Adjustment

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull up the brake pedal and hold the pedal in this position.
  2. Adjust the stop lamp switch (2).

    Measurement

    1. The clearance between the end of the thread and the brake pedal stopper (3) should be 1.5-2.0 mm (0.06-0.08 in).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices
  3. Tighten the lock nut.

    Tighten

    1. Tighten the lock nut to 7.5 N.m (66.4 lb in).

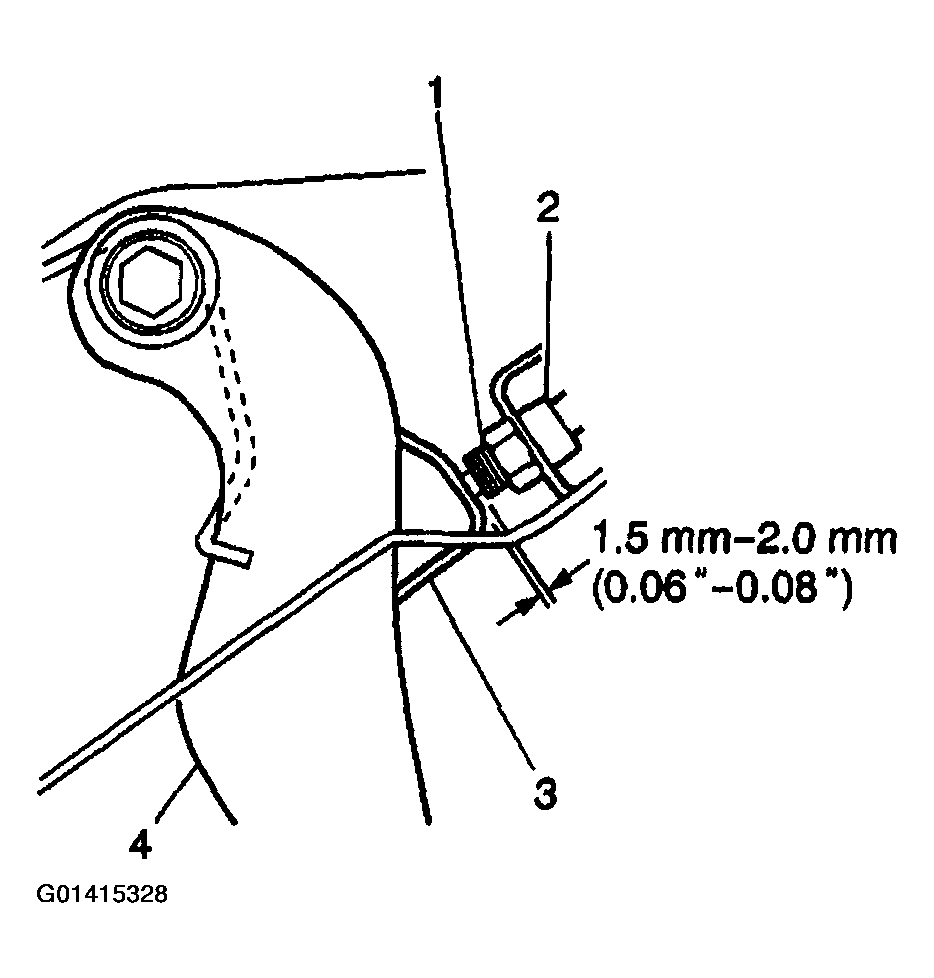

    Fig 1: Measuring Clearance Between End Of Thread & Brake Pedal Stopper
    G01415328Courtesy of GENERAL MOTORS CORP.
