Installation Procedure

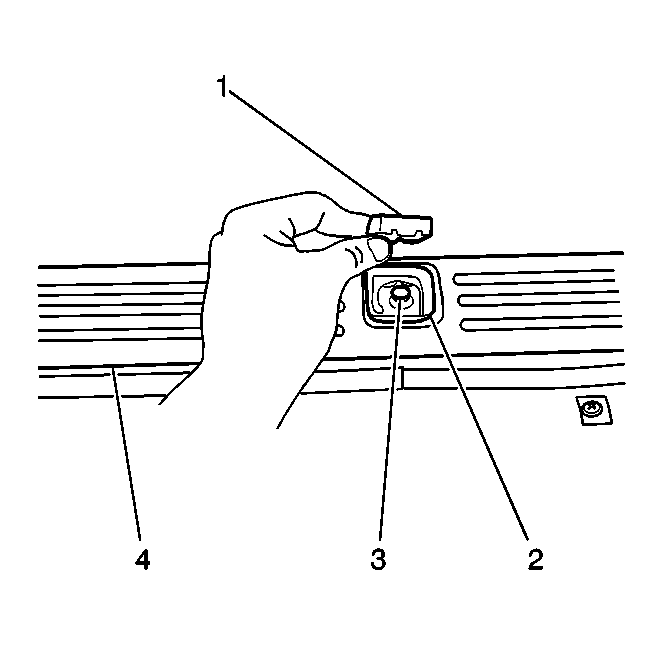

Fig 1: Installing Child Seat Anchor Bracket

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

Install the child seat anchor bracket (2) to the vehicle. Secure the bracket with the bolt (3).
Tighten: Tighten the child seat anchor bracket bolt to 35 N.m (25 lb ft).
Install the child seat anchor bracket trim cover (1) to the bracket (2).
