General Specifications

Engine Mechanical -1.6L

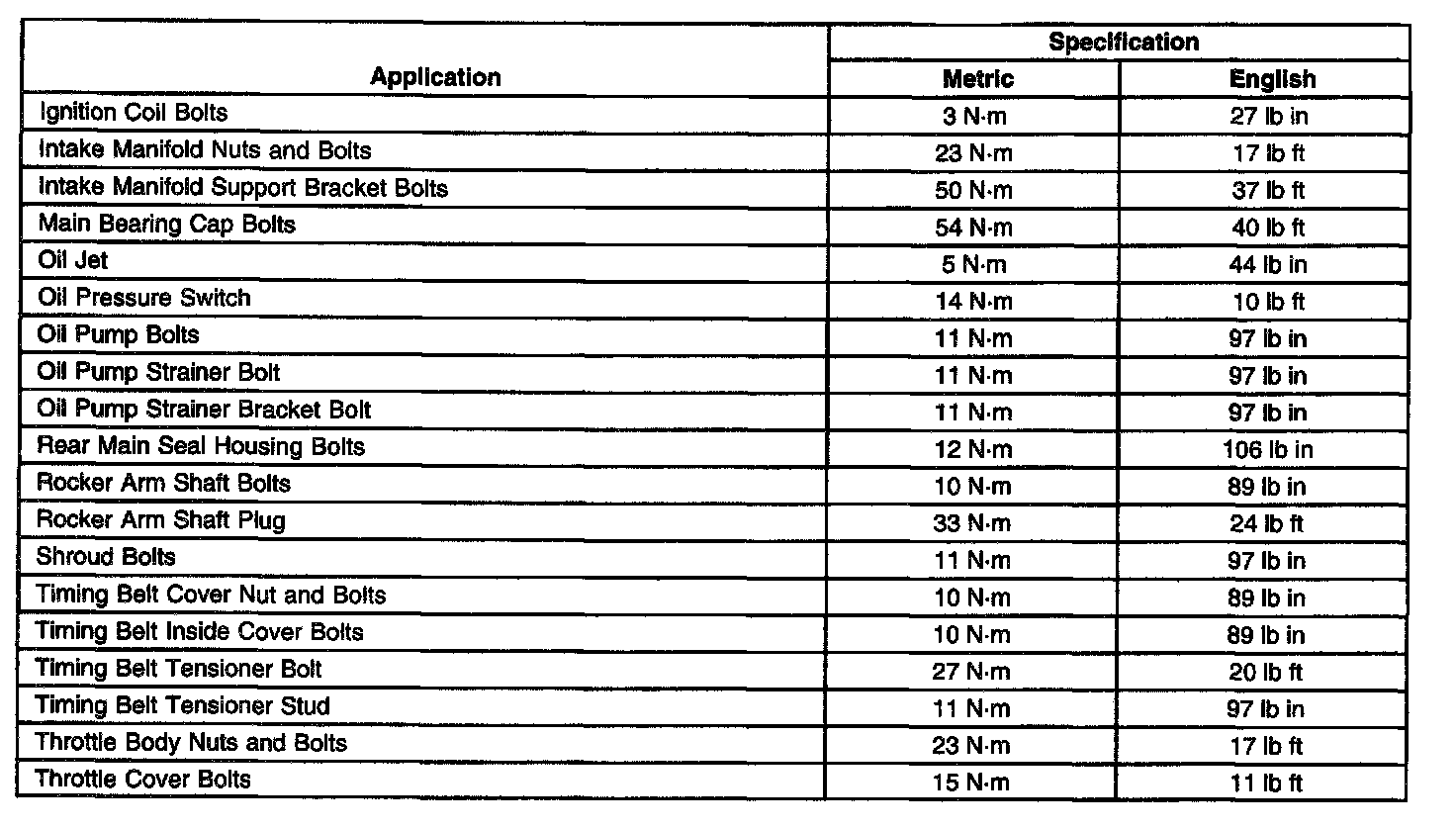

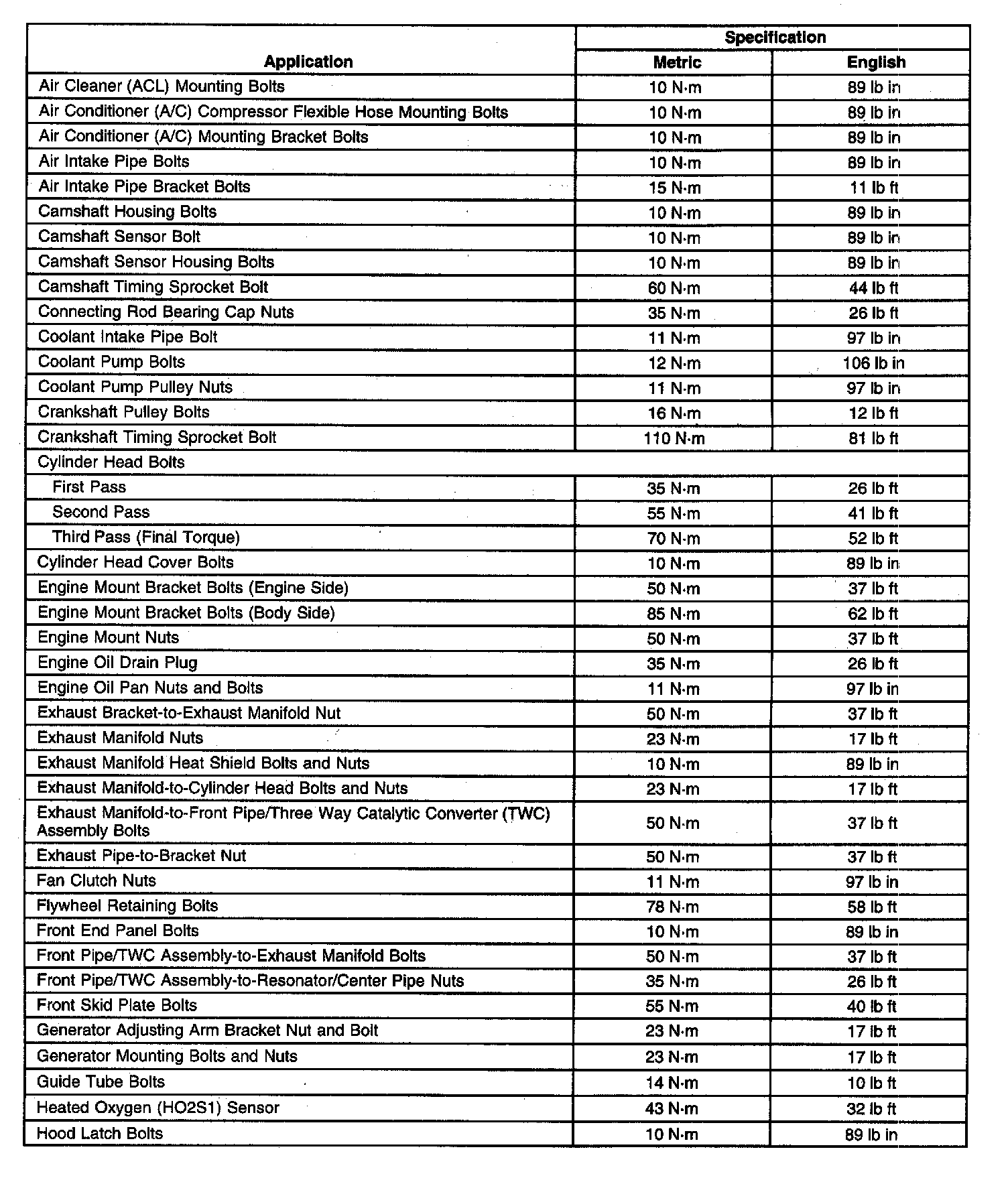

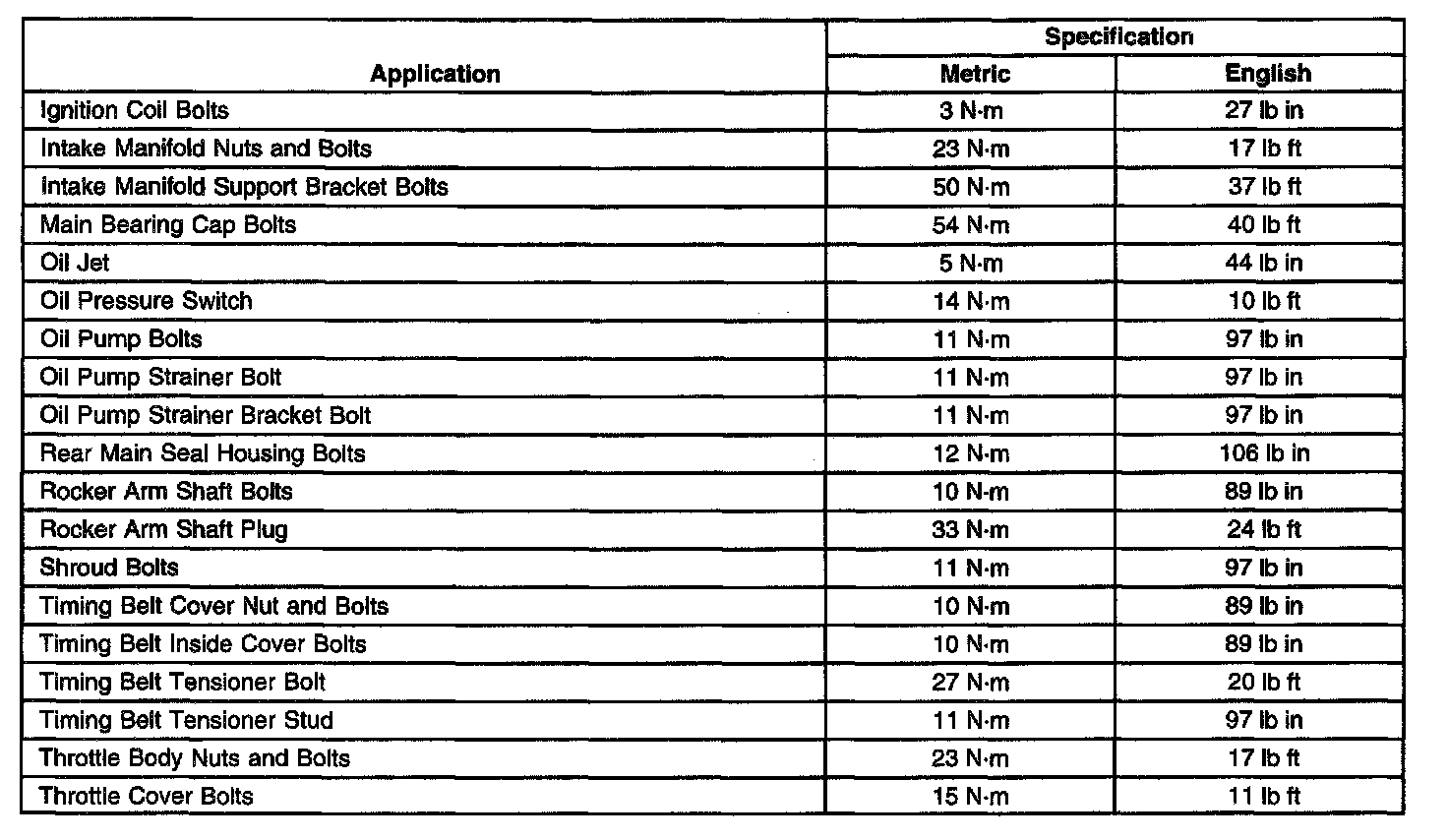

Fastener Tightening Specifications


Engine Mechanical (Unit Repair)

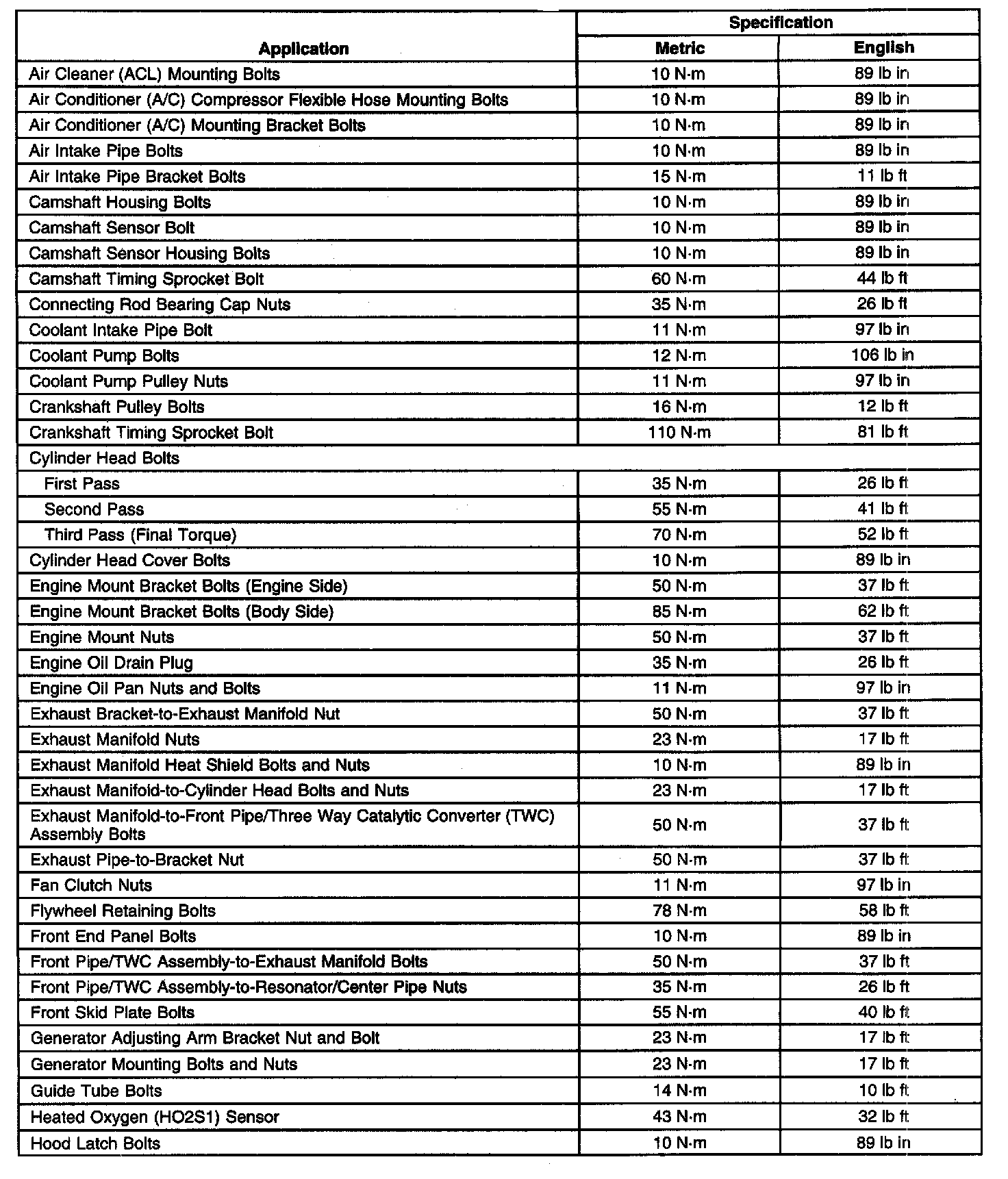

Fastener Tightening Specifications

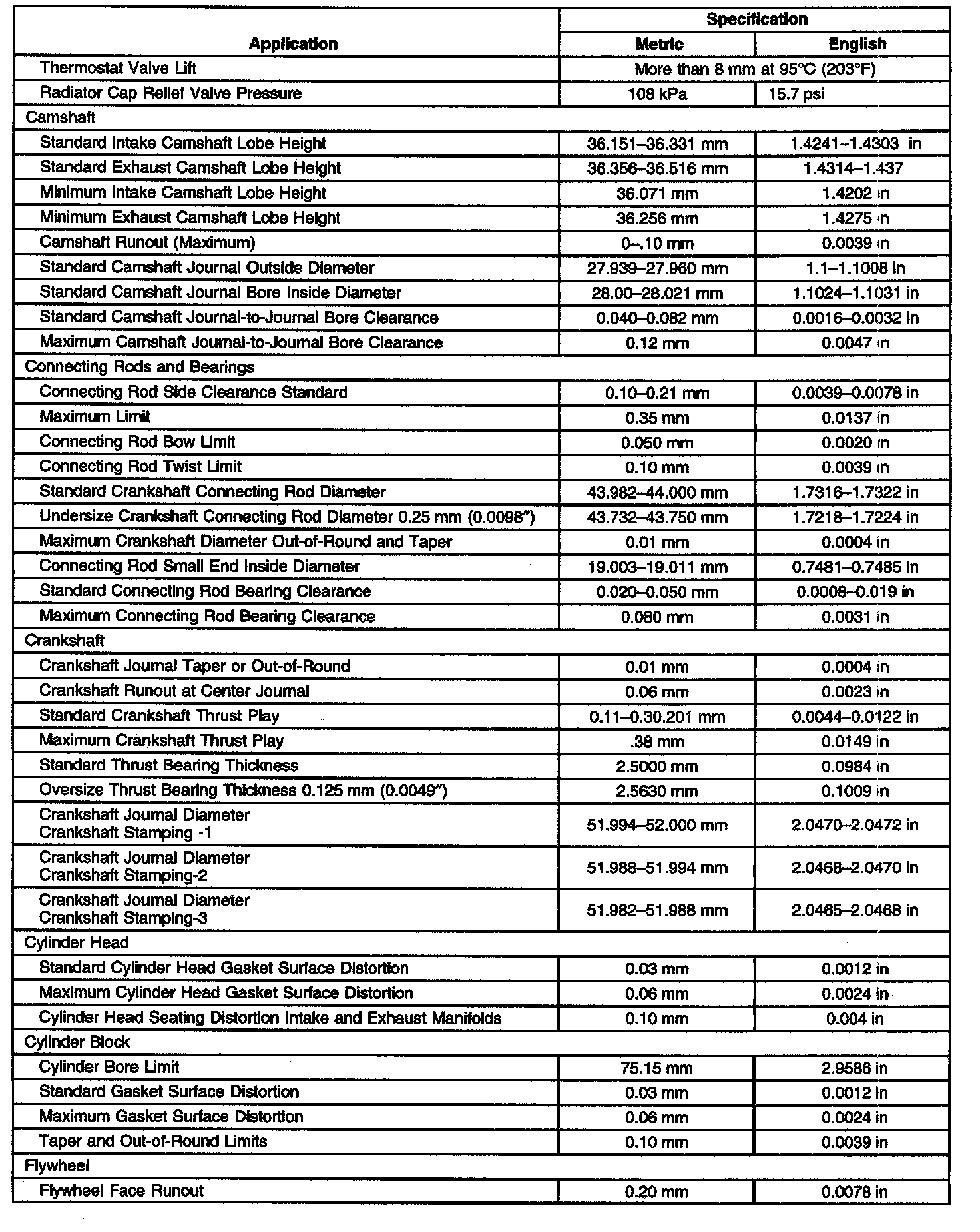

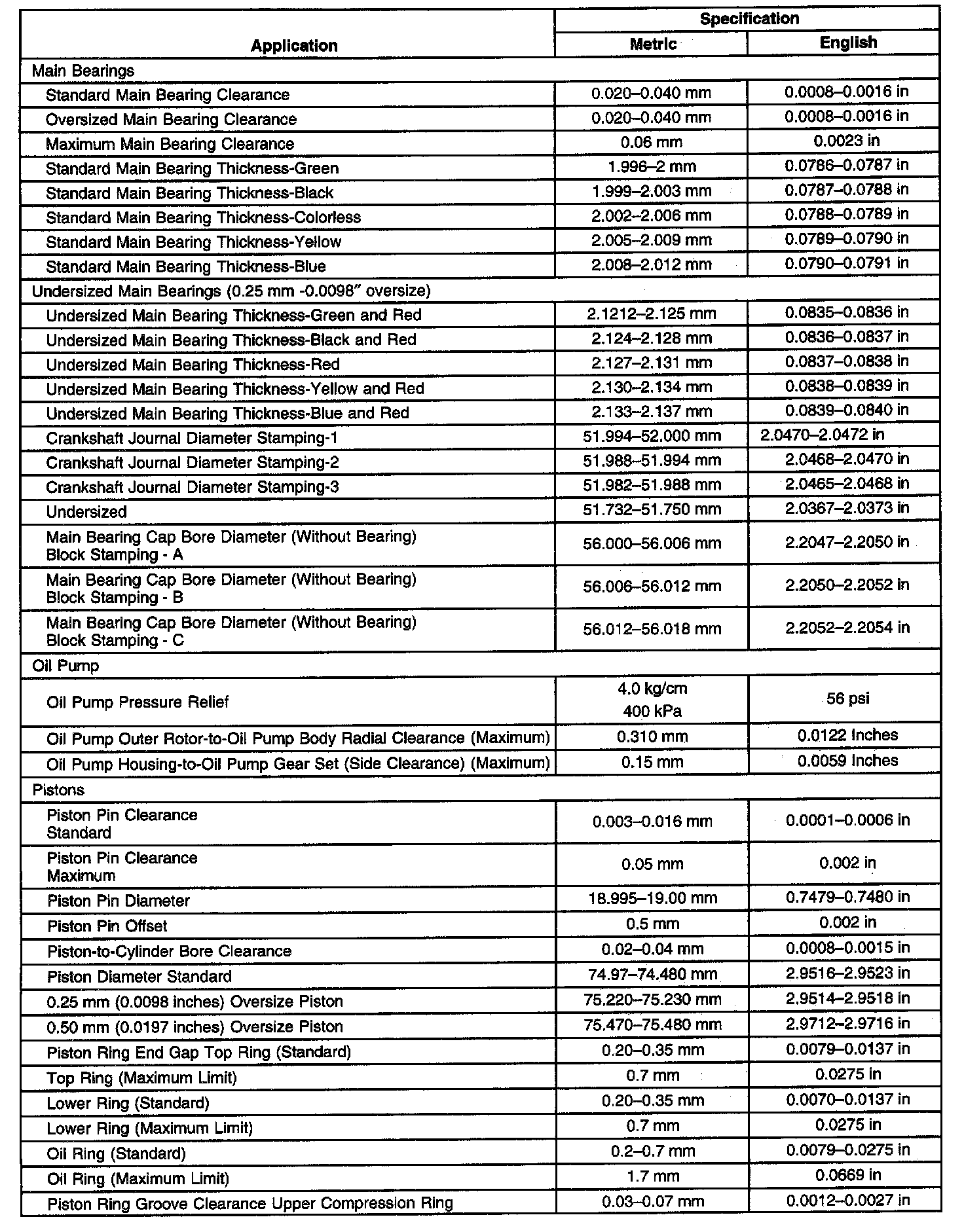

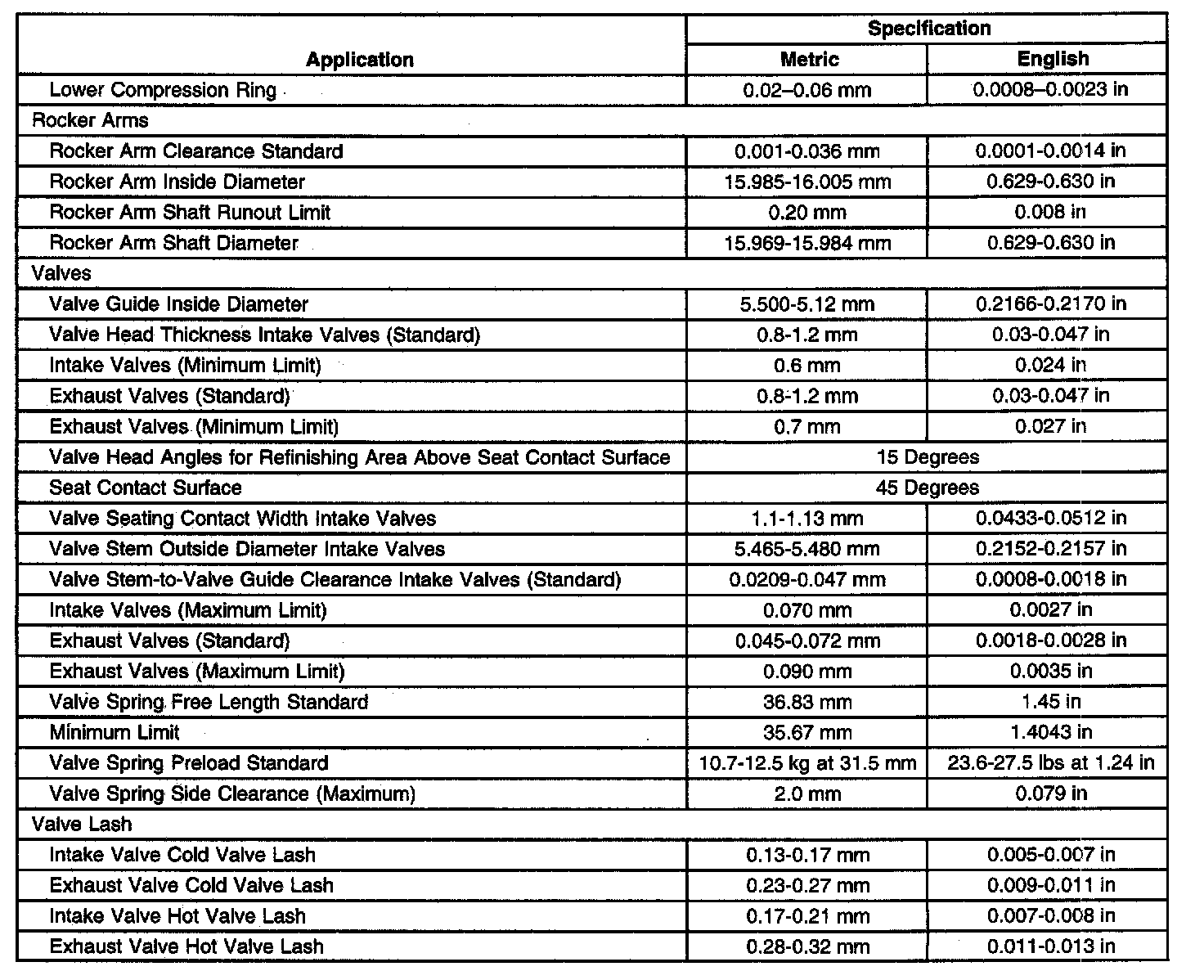

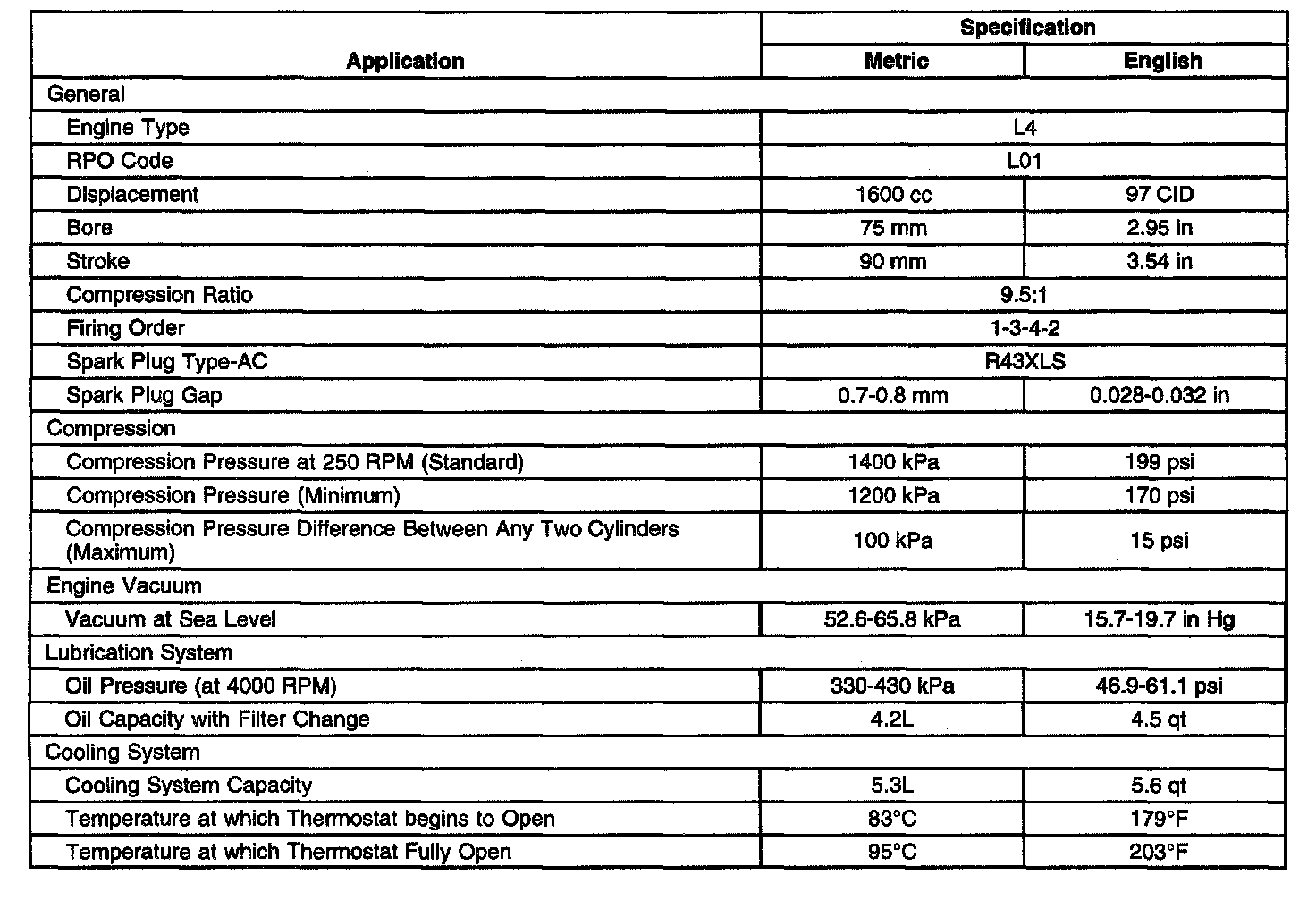

Engine Mechanical Specifications

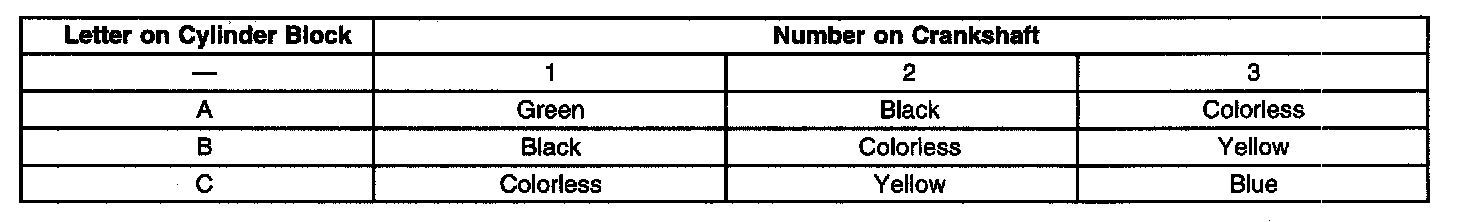

Standard Main Bearing Selection

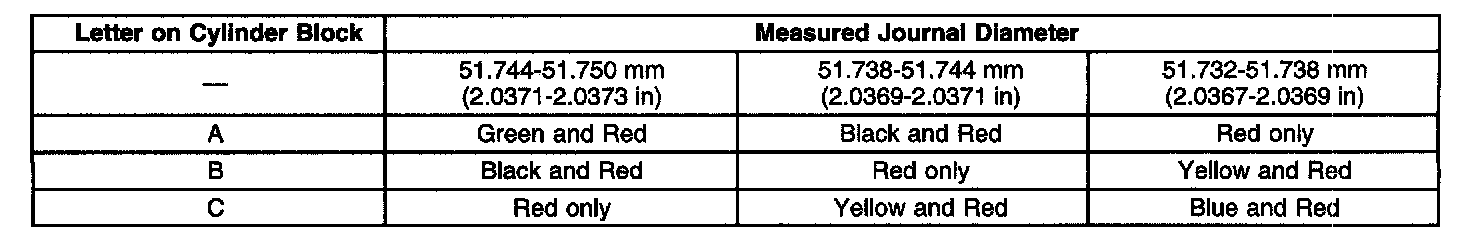

Undersize Main Bearing Selection

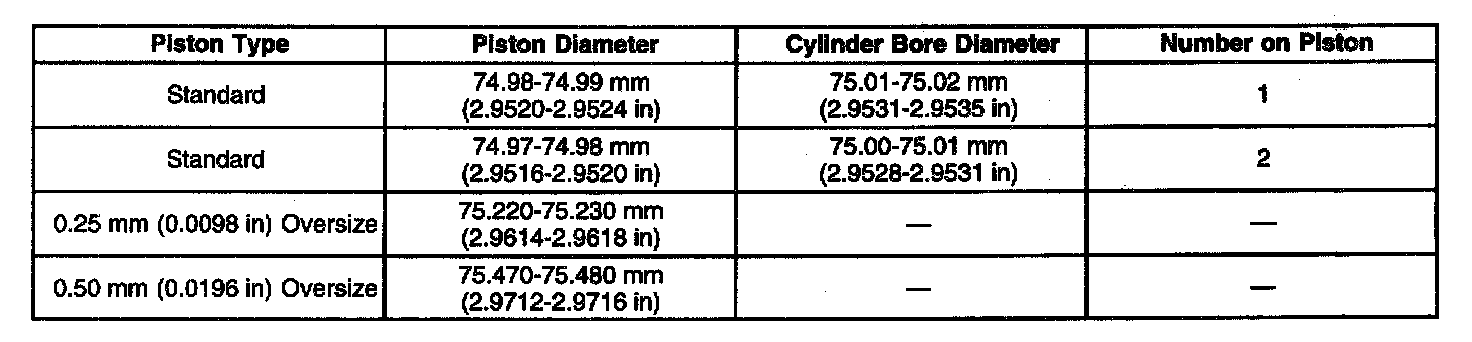

Piston Selection

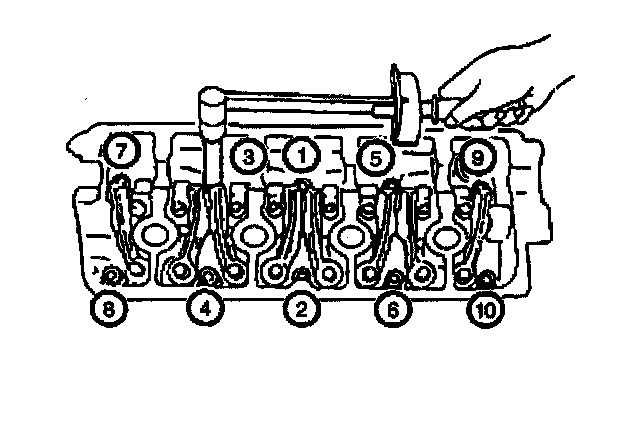

Cylinder Head Tightening Sequence

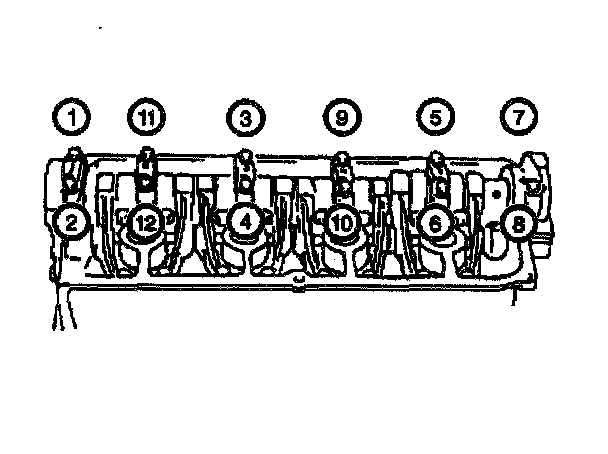

Camshaft Cap Tightening Sequence
