General Specifications

Engine Mechanical - 2.5L

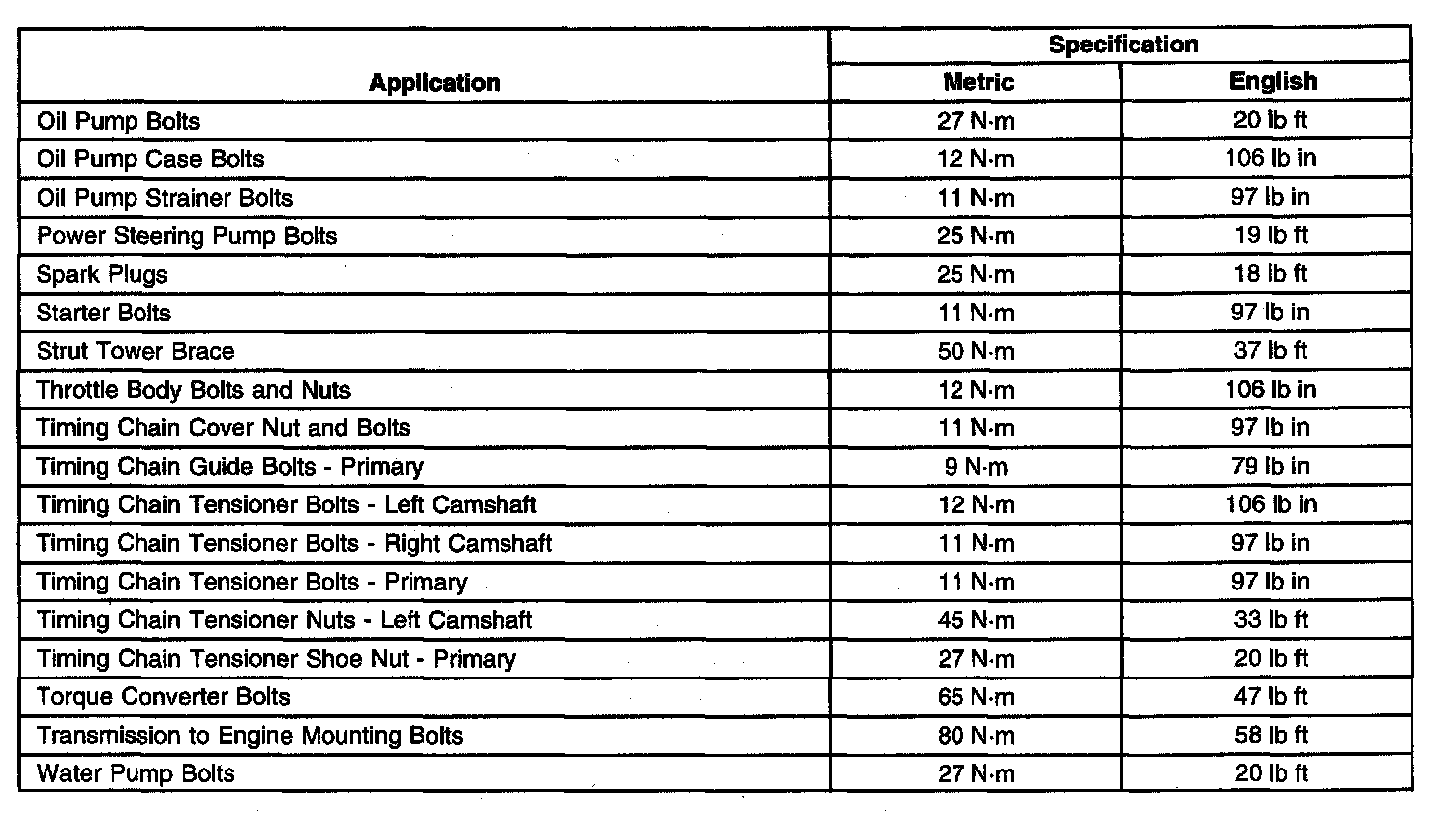

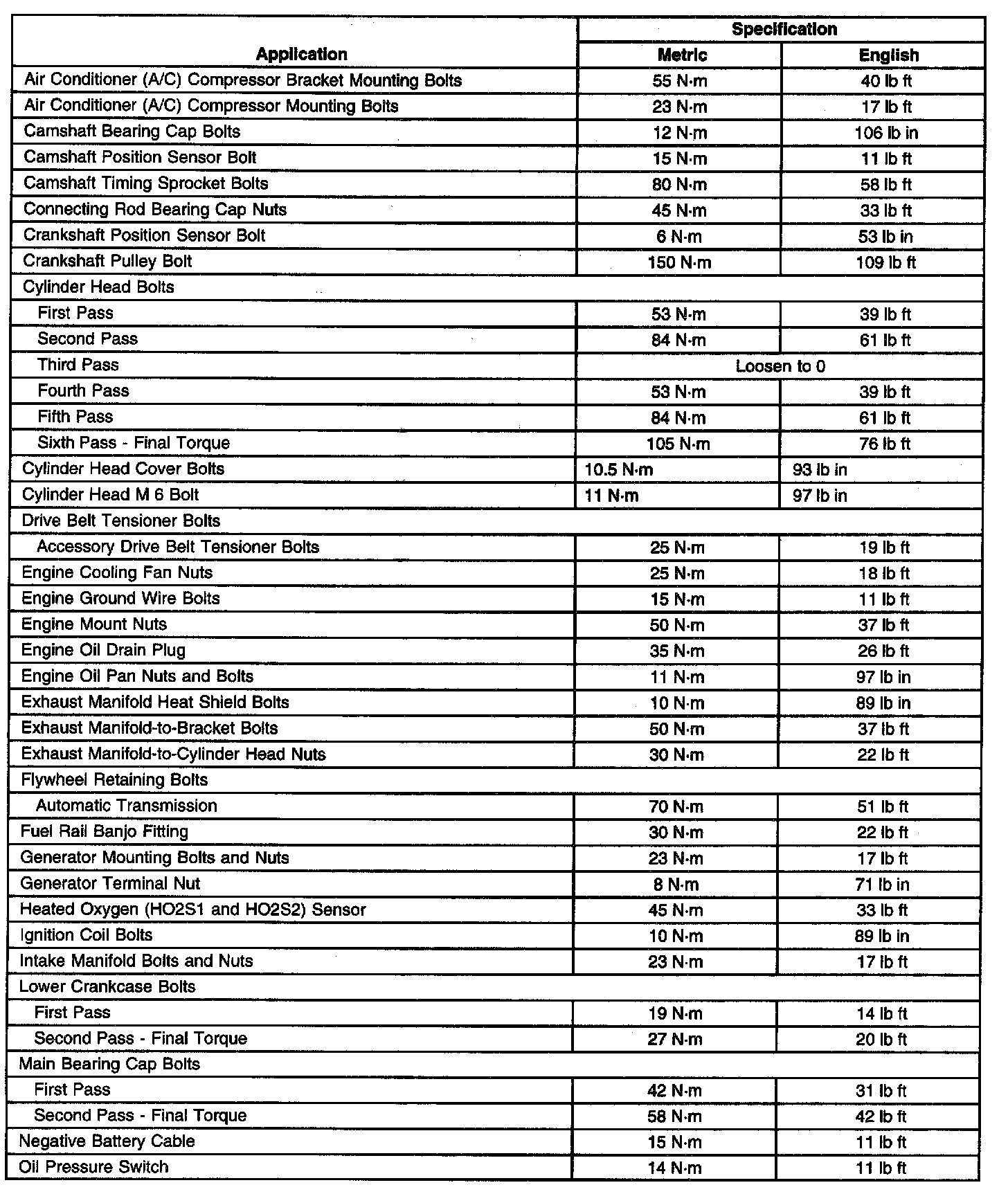

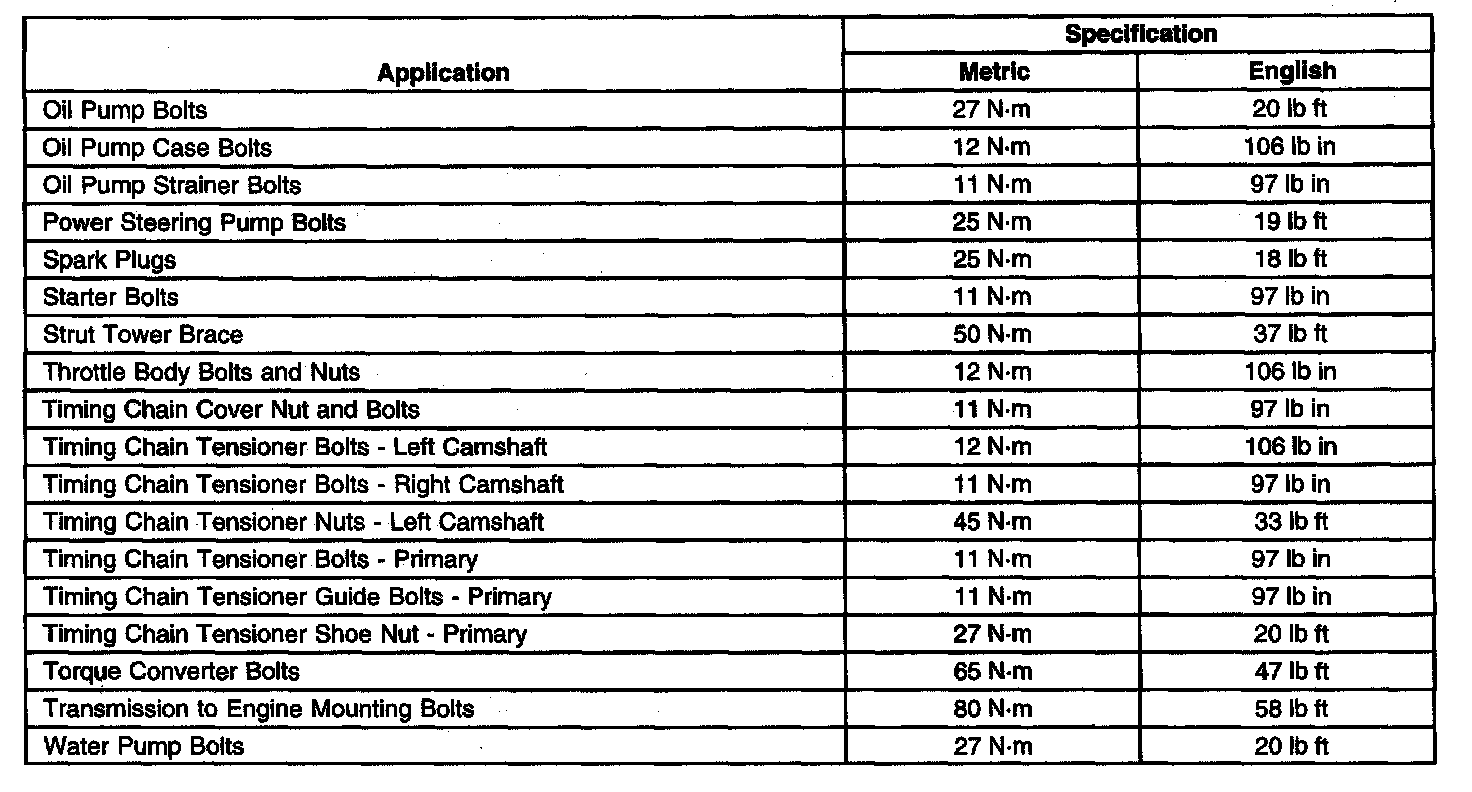

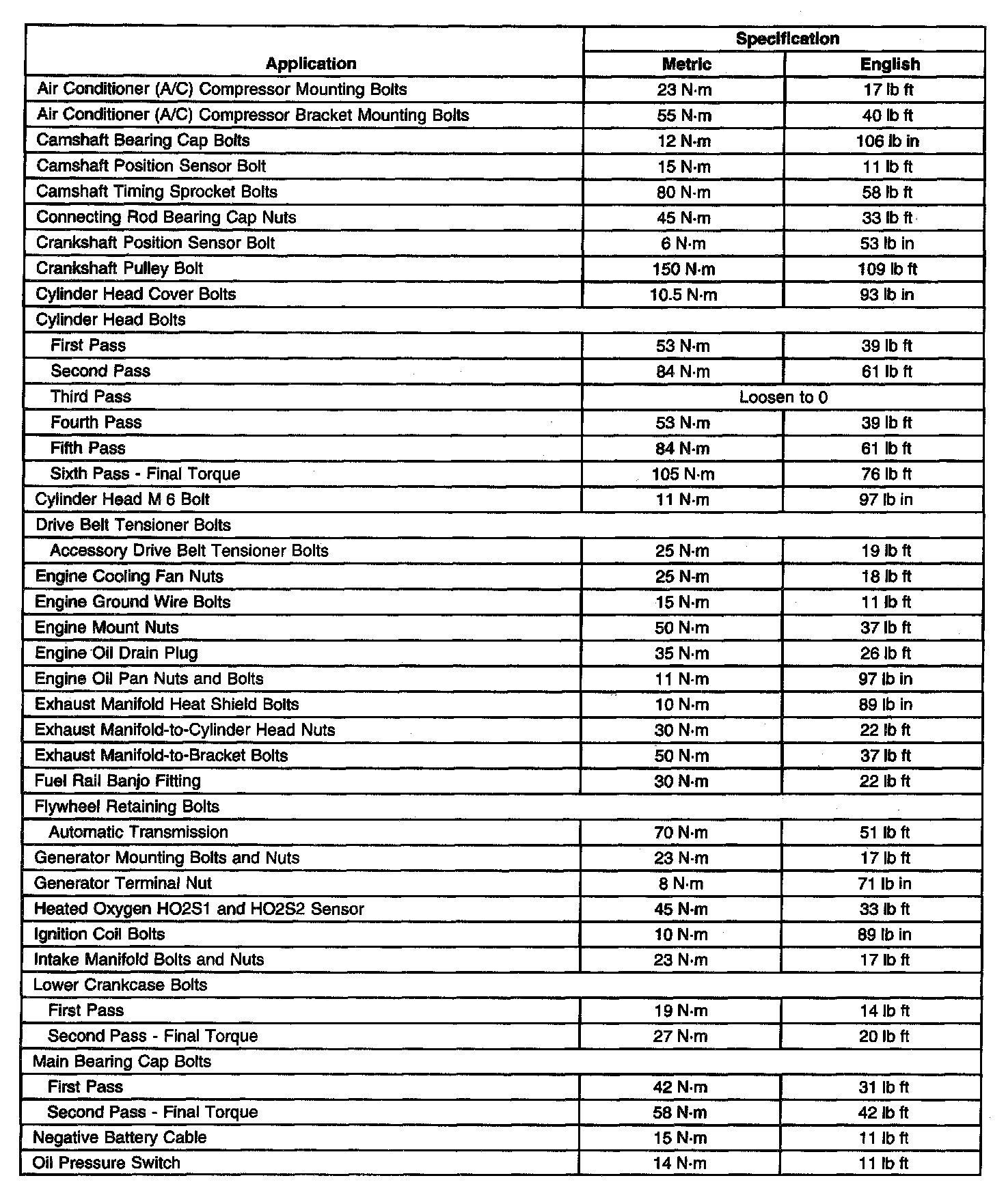

Fastener Tightening Specifications


Engine Mechanical - 2.5L (LE8) (Unit Repair)








Fastener Tightening Specifications

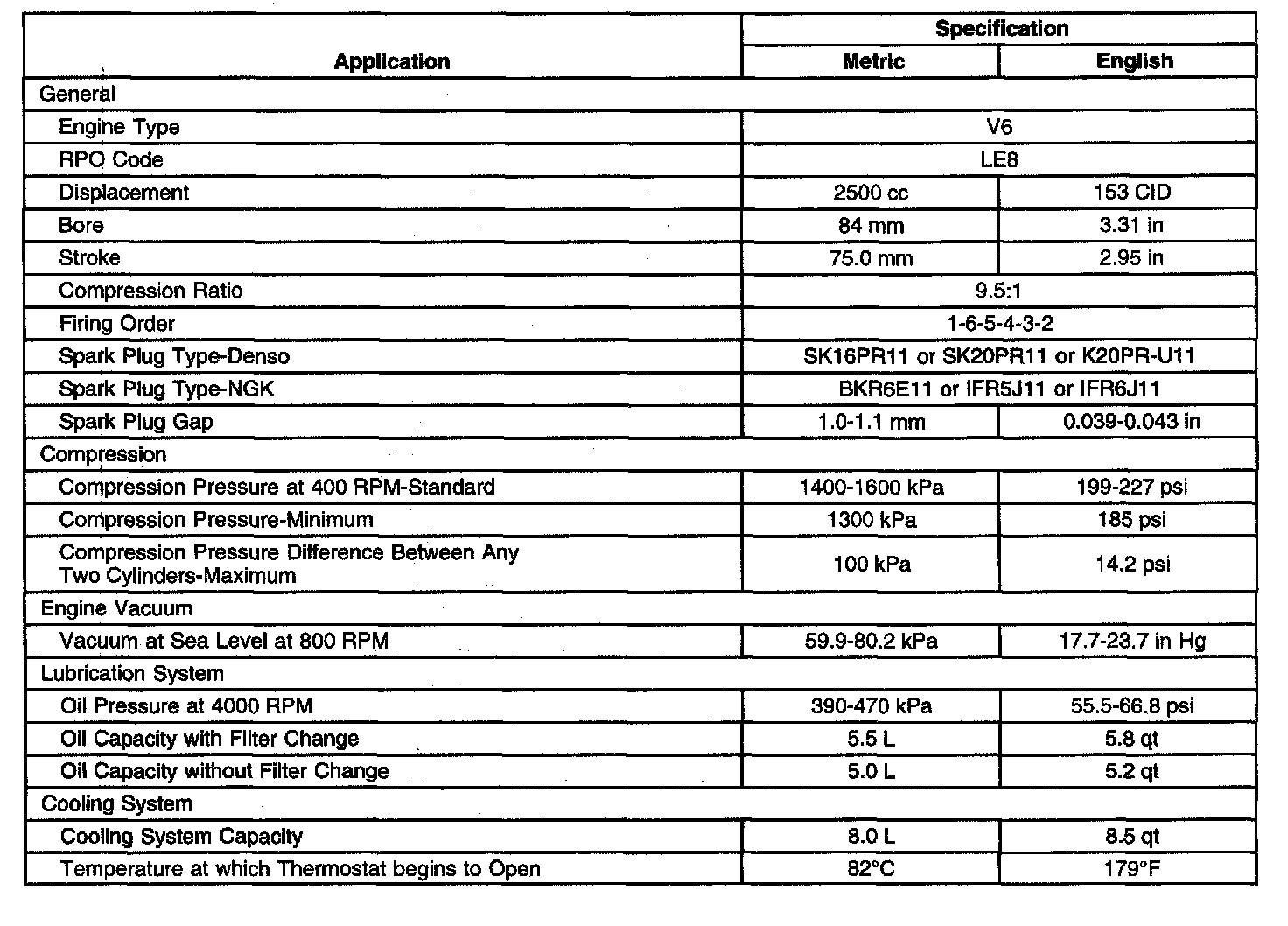

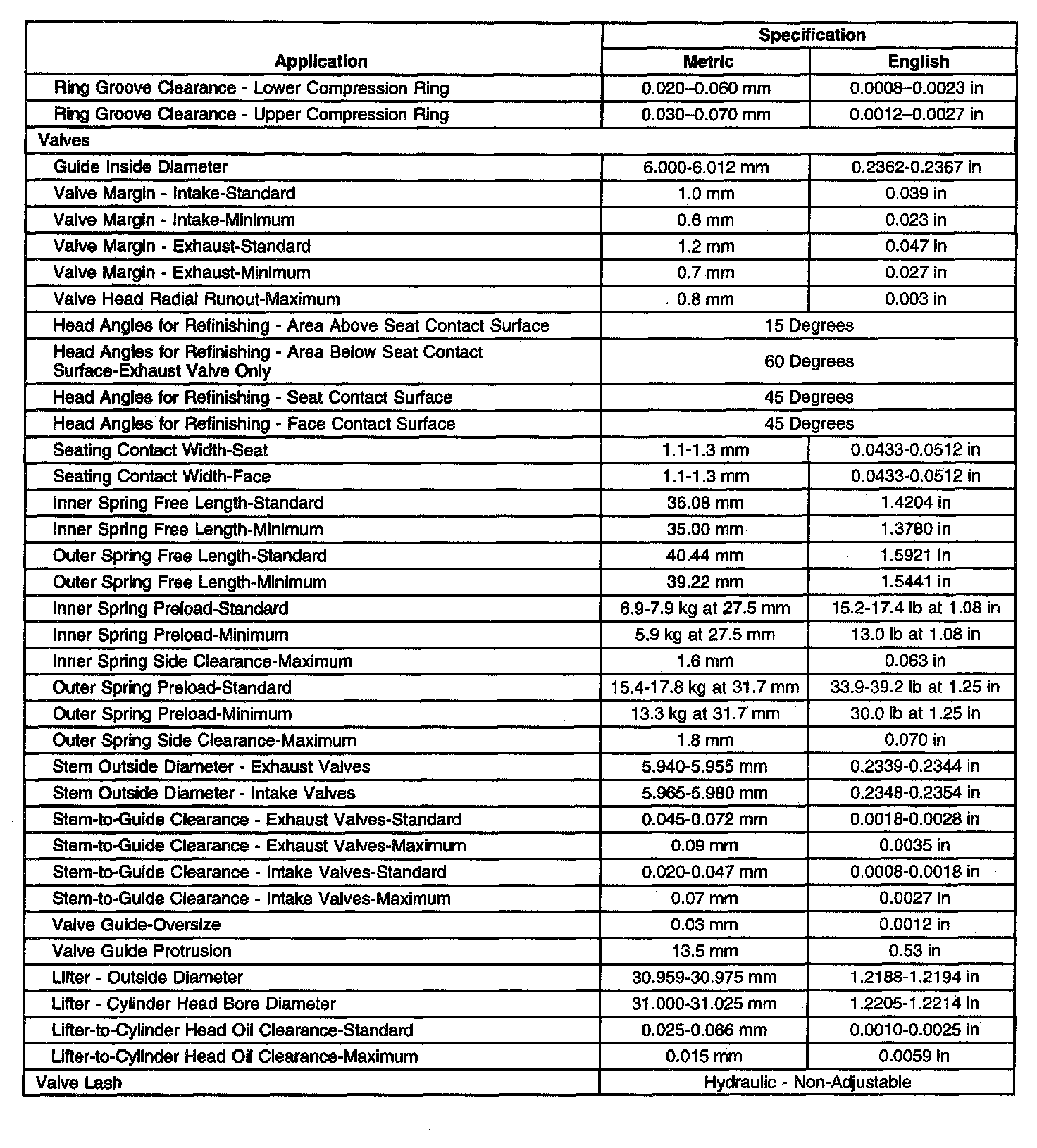

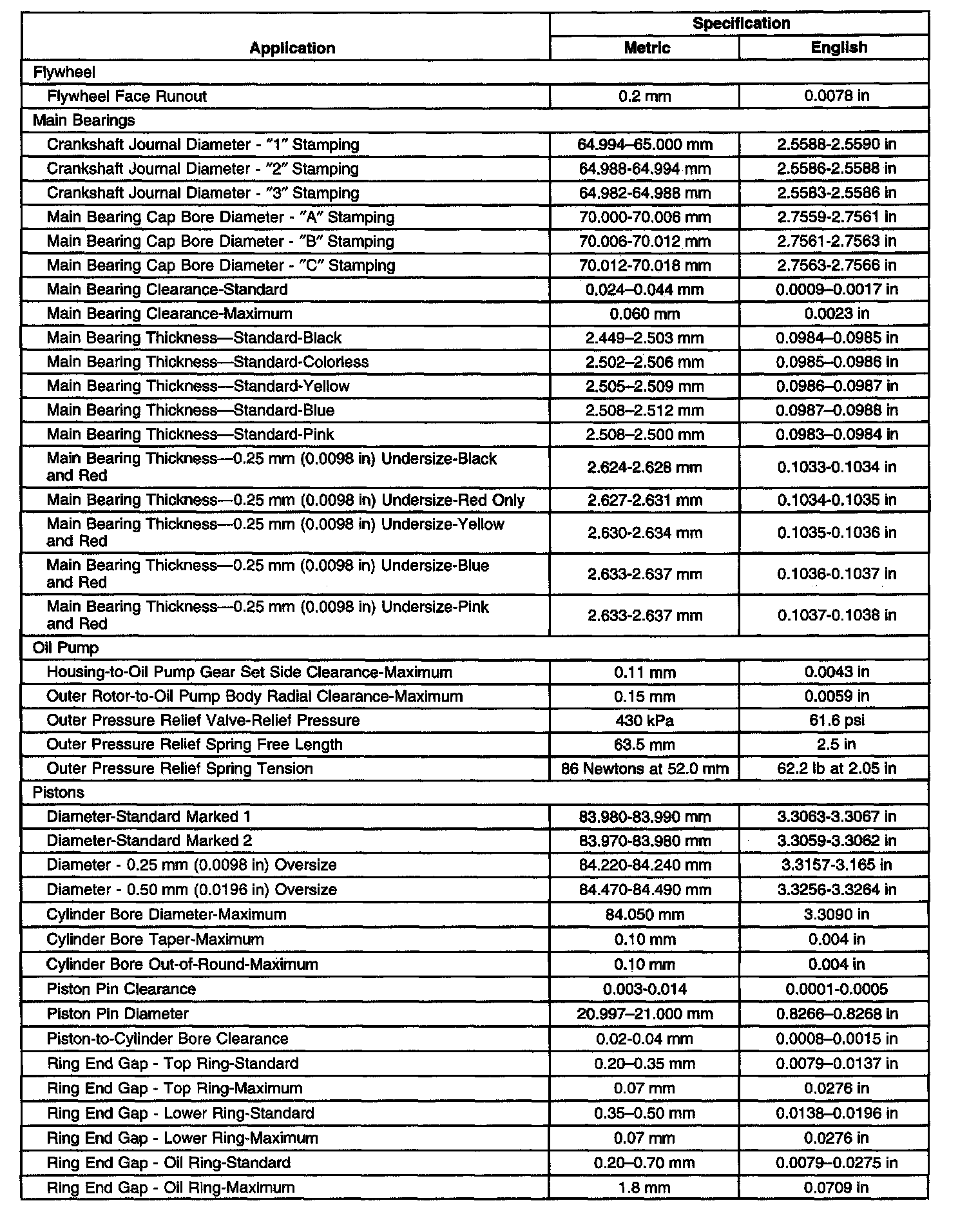

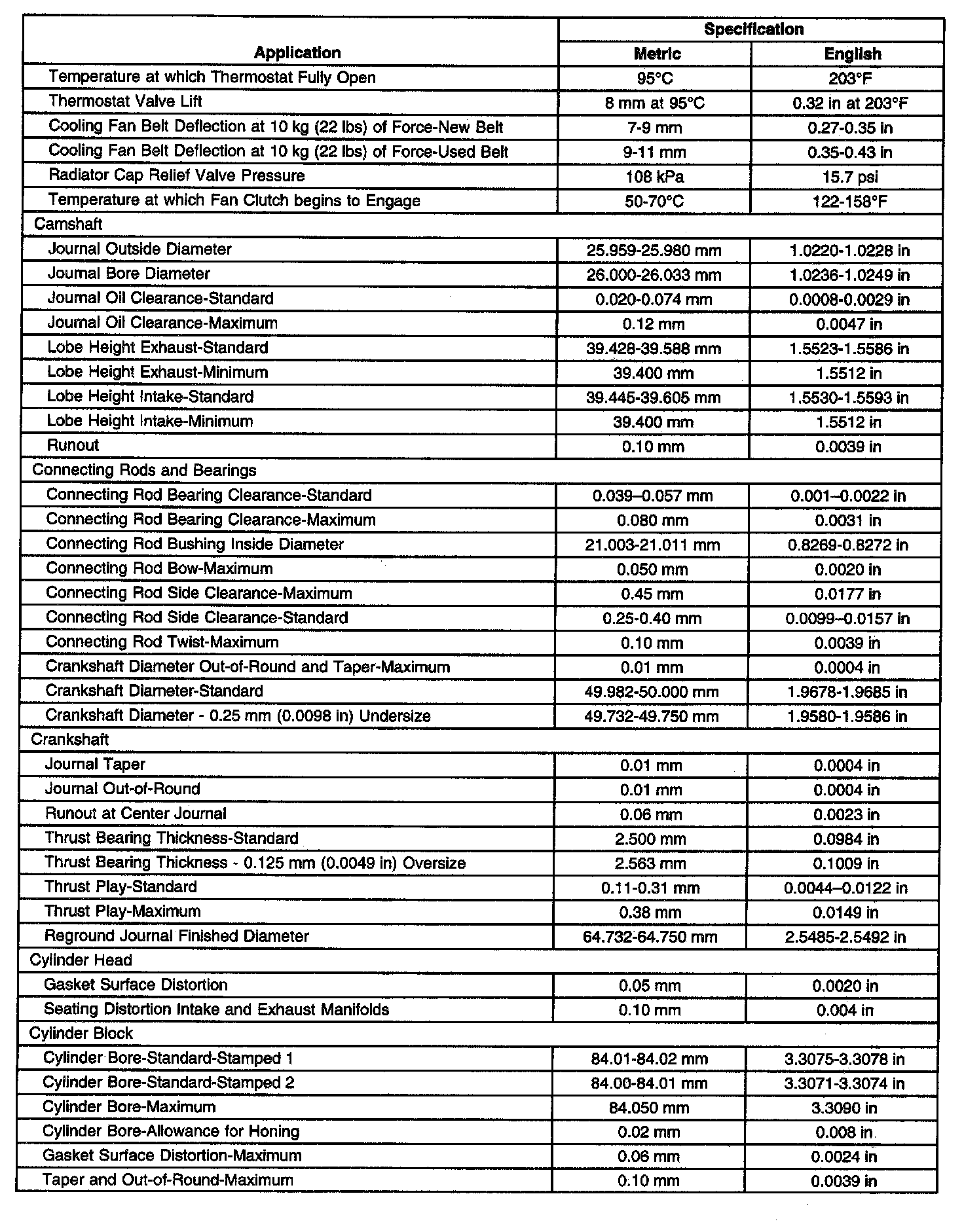

Engine Mechanical Specifications

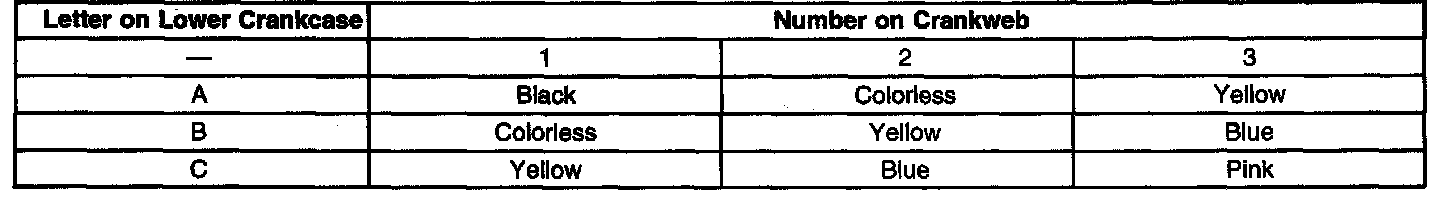

Standard Main Bearing Selection





Undersize Main Bearing Selection

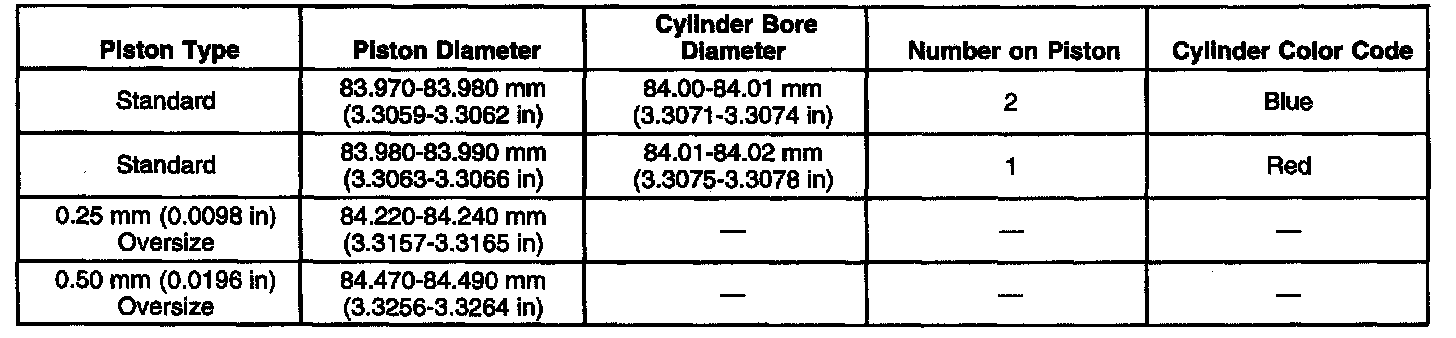

Piston Selection

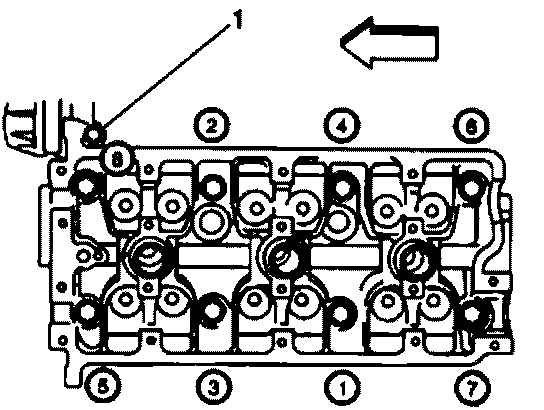

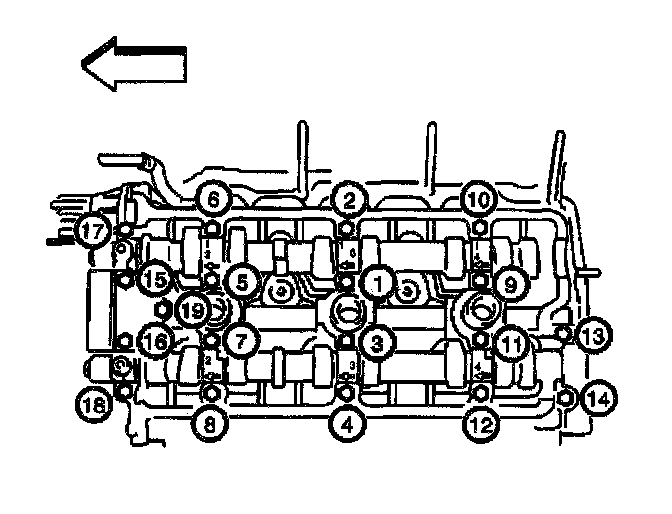

Cylinder Head Tightening Sequence - Left





Cylinder Head Tightening Sequence - Right

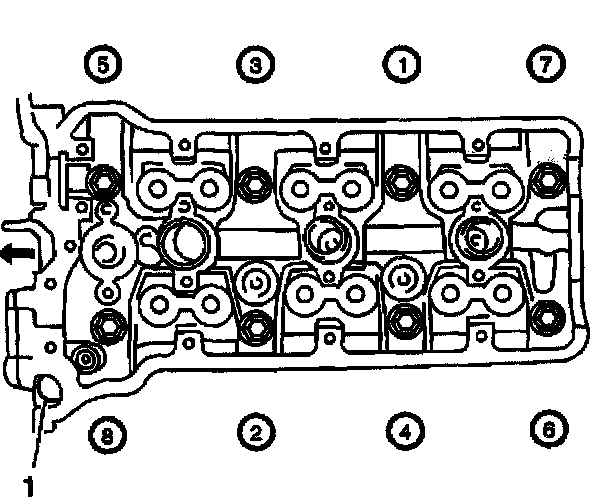

Camshaft Cap Tightening Sequence - Left
