Installation Procedure

  1. Position the wiper drive system module to the air inlet panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the wiper drive system module screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

  3. Install the wiper motor. Refer to Wiper Motor Replacement .
  4. Install the cruise control and bracket. Refer to CRUISE CONTROL MODULE REPLACEMENT .
  5. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  6. Install the wiper arms. Refer to Wiper Arm Replacement .
  7. Inspect the wipers for proper operation.

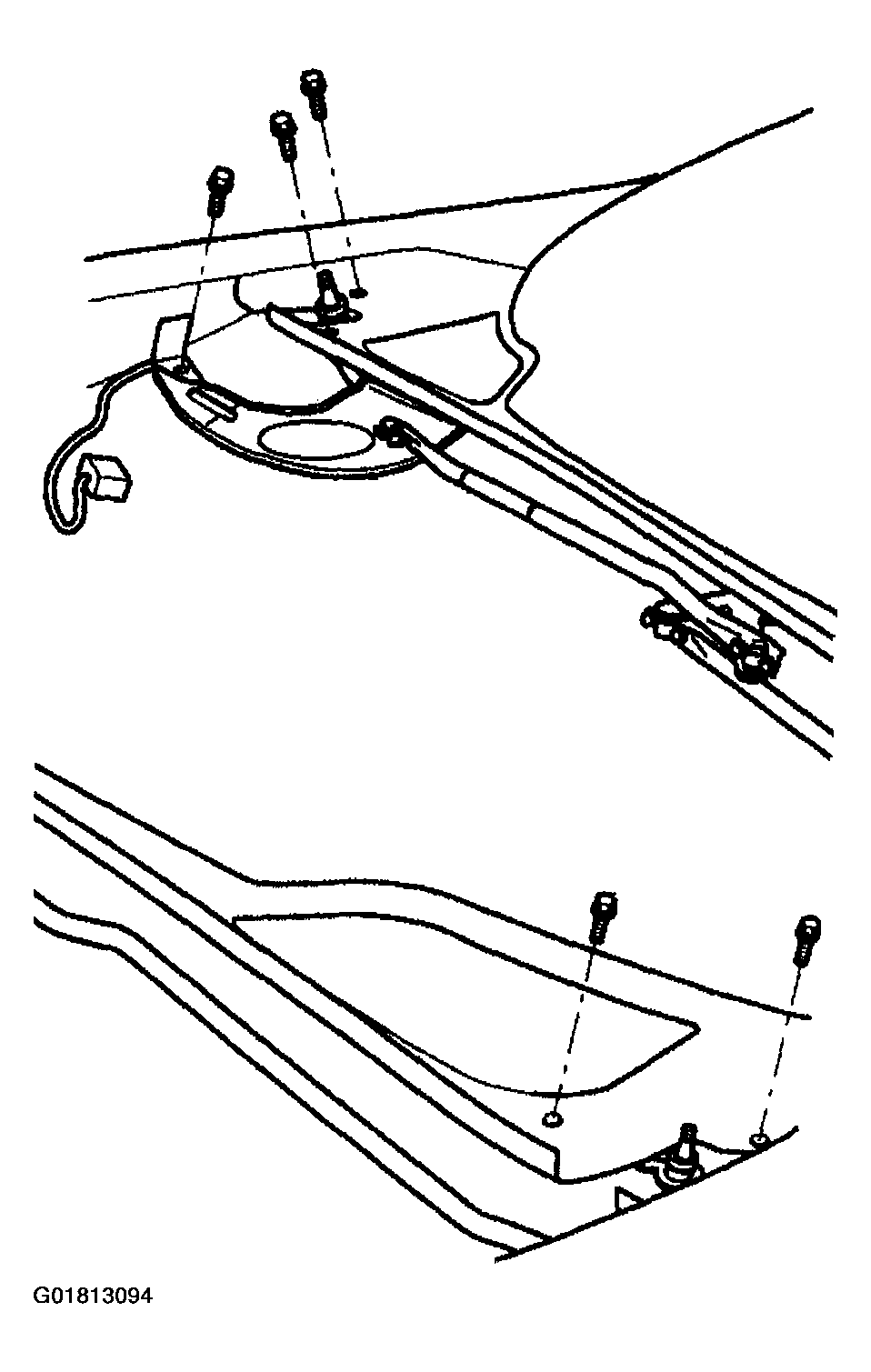

    Fig 1: Installing Wiper Drive System Module & Screws
    G01813094Courtesy of GENERAL MOTORS CORP.
