Inflatable Restraint Sensing And Diagnostic Module (SDM) Connector End View (1 Of 2)

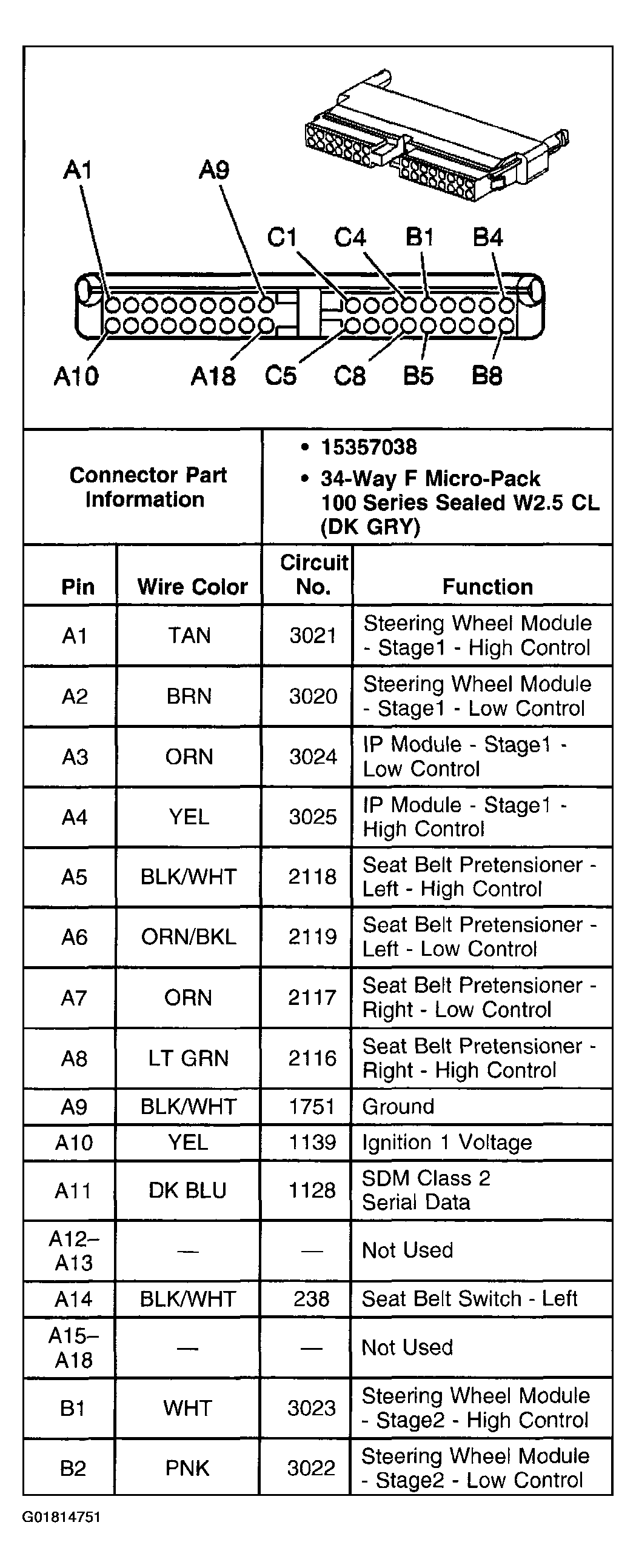

Fig 1: Inflatable Restraint Sensing And Diagnostic Module (SDM) (1 Of 2)
G01814751Courtesy of GENERAL MOTORS CORP.
