Interior Lamp & Multi-Function Switch Assembly Connector End View C1 - Interior Lights Override Switch

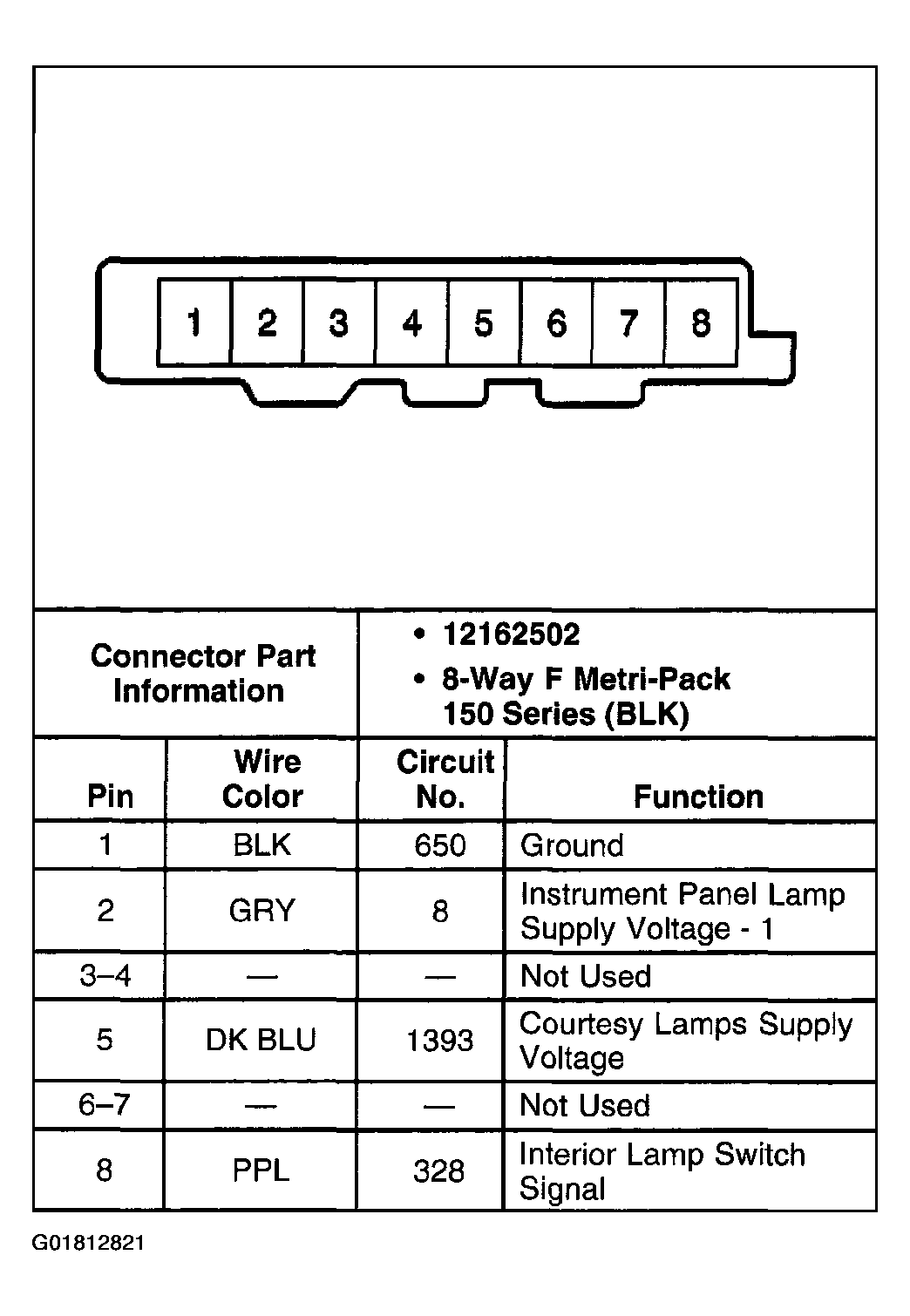

Fig 1: Interior Lamp & Multi-Function Switch Assembly C1 - Interior Lights Override Switch
G01812821Courtesy of GENERAL MOTORS CORP.
