Interior Lamp and Multi-function Switch Assembly Connector End View C3 - Power Sliding Door Open/Close Switch

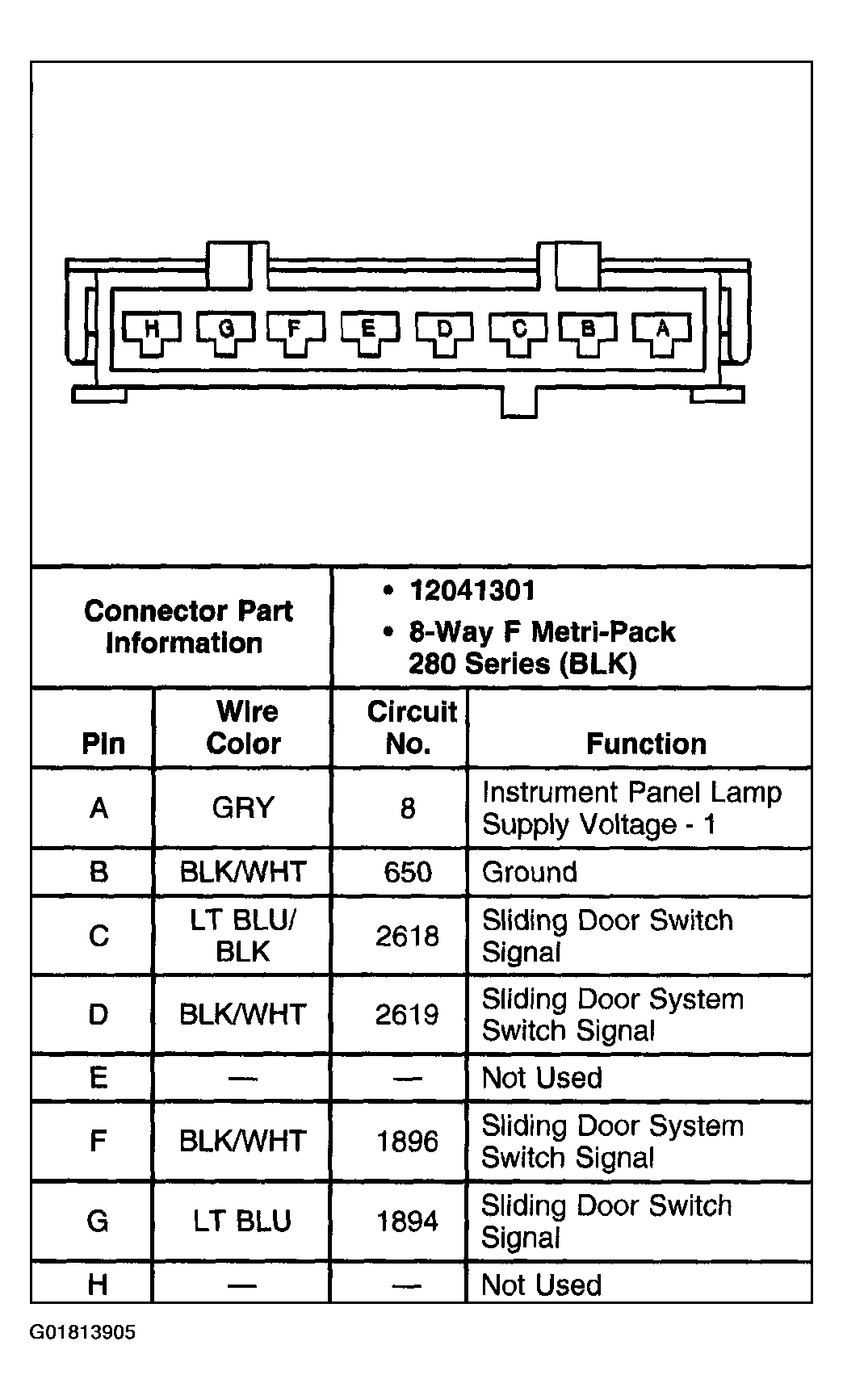

Fig 1: Interior Lamp and Multi-function Switch Assembly C3 - Power Sliding Door Open/Close Switch
G01813905Courtesy of GENERAL MOTORS CORP.
