Rear Video/Audio/HVAC Module Connector End View (C3)

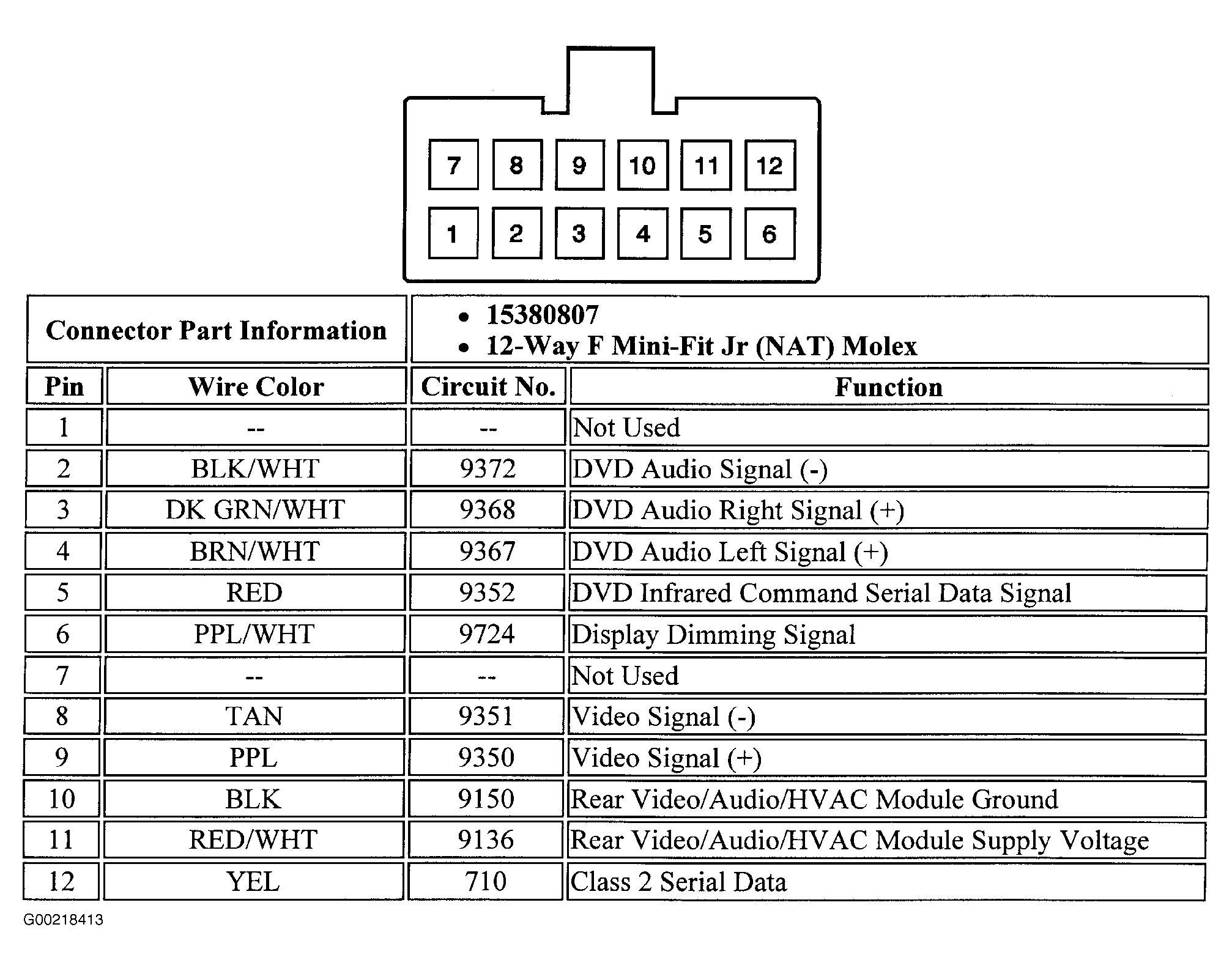

Fig 1: Rear Video/Audio/HVAC Module (C3)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
