Test Description

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. Determines if the malfunction is present.
  2. Determines if the malfunction was due to no map DVD in the navigation module DVD player.

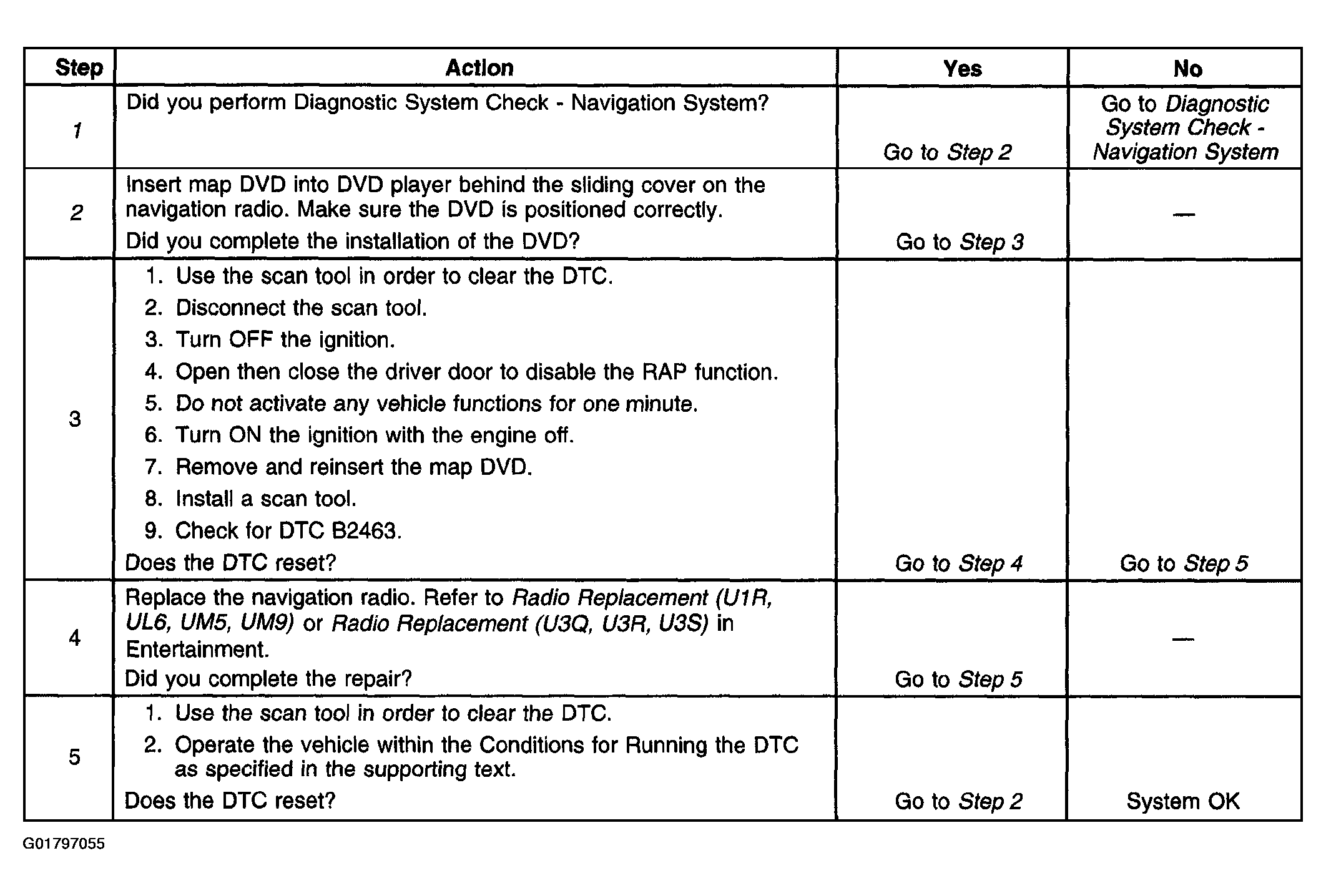

    Fig 1: DTC B2463
    G01797055Courtesy of GENERAL MOTORS CORP.
