Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Transfer the string to either end of the hood release cable.
  2. Route the string and the hood release cable (3) into the passenger compartment (2).
  3. Remove the string from the hood release cable.

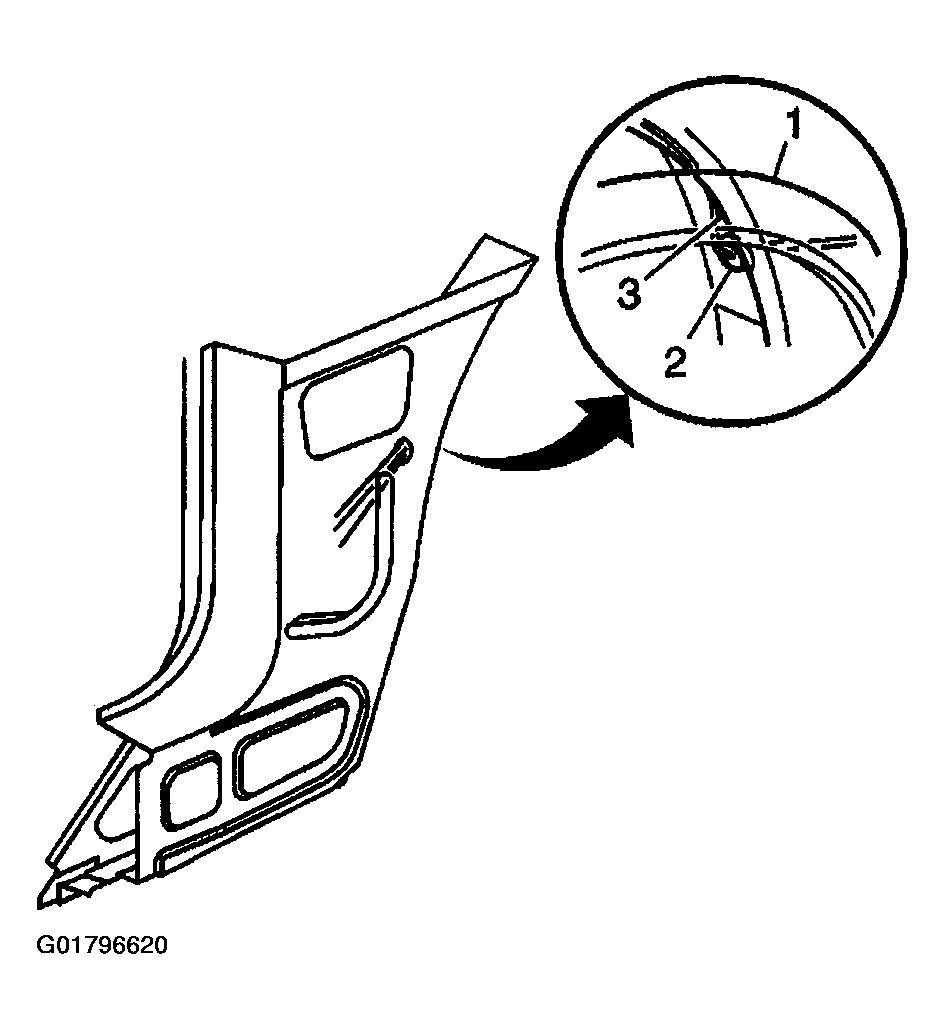

    Fig 1: Routing String & Hood Release Cable Into Passenger Compartment
    G01796620Courtesy of GENERAL MOTORS CORP.
  4. Connect the hood release cable to the hood release handle (1).

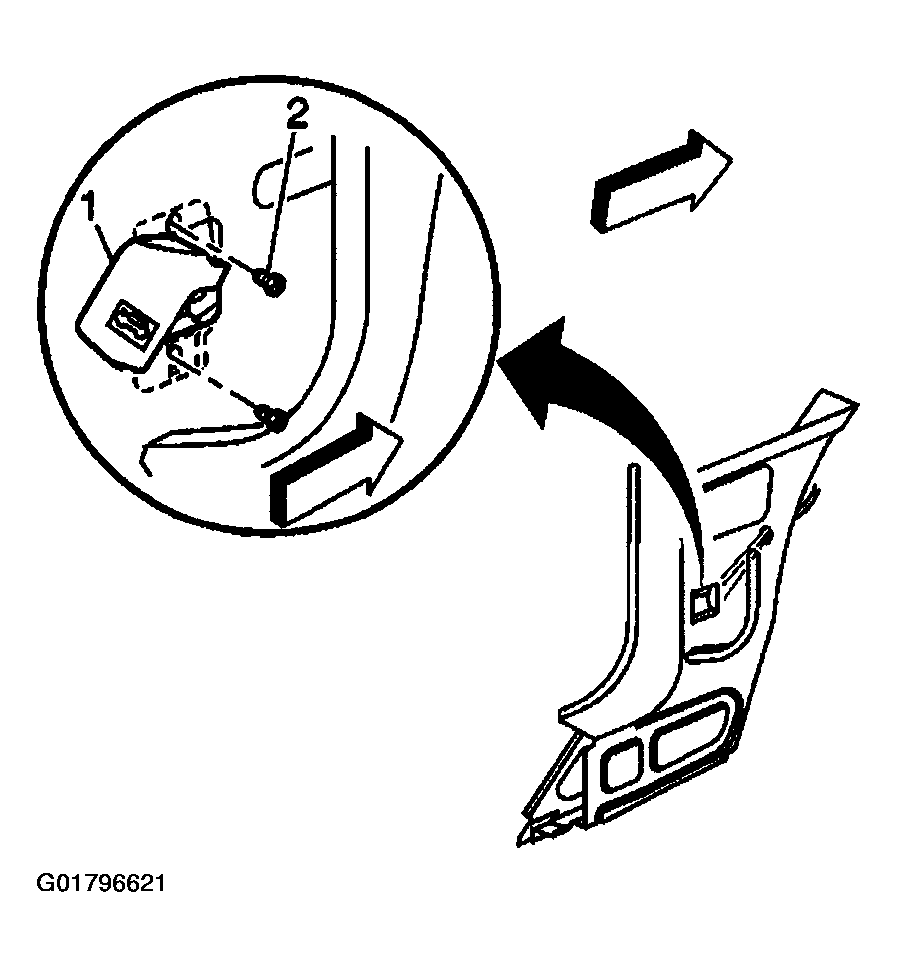

    Fig 2: Connecting Hood Release Cable To Hood Release Handle
    G01796621Courtesy of GENERAL MOTORS CORP.
  5. Install the fasteners (2) in order to secure the hood release handle (1) to the vehicle.
  6. Position and press the hood release cable grommet (2) into the wheel opening.
    Fig 3: Installing Hood Release Cable Grommet
    G01796622Courtesy of GENERAL MOTORS CORP.
  7. Pull the string and the hood release cable into the engine compartment.
  8. Remove the string from the hood release cable.
  9. Position the hood release cable (2) in the clips (3) and close the clips (3).

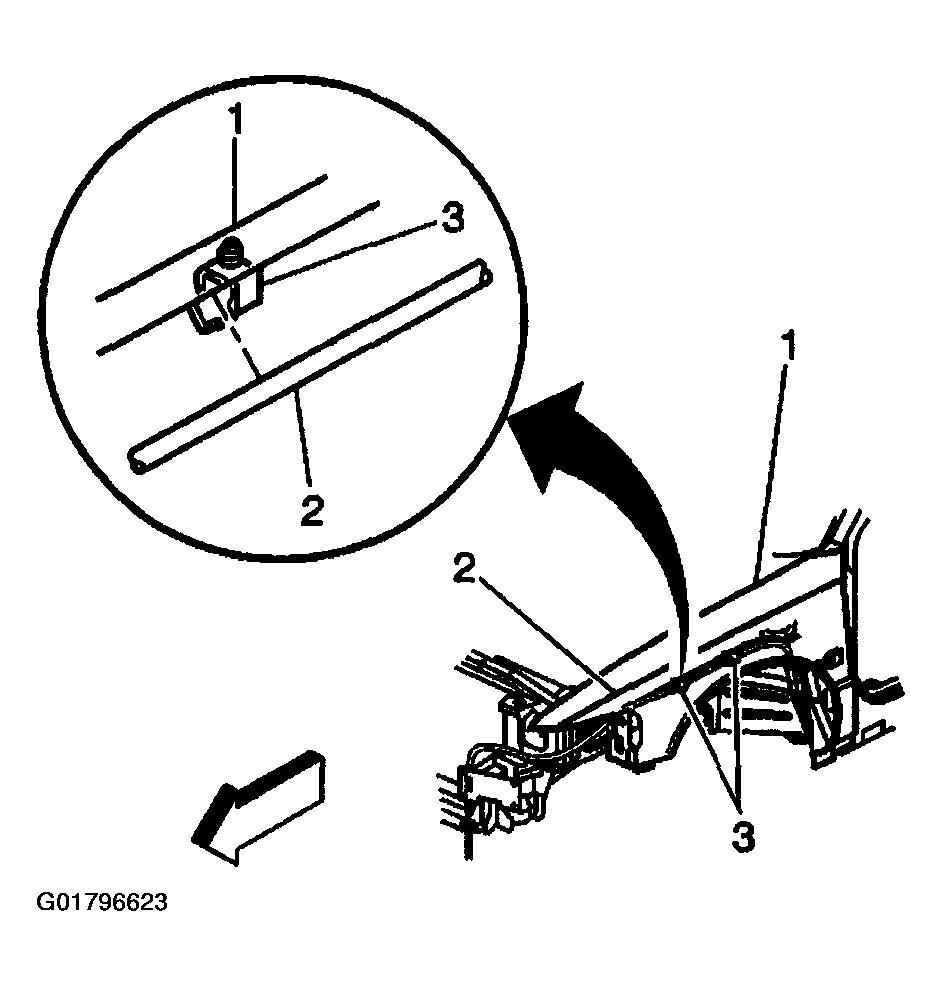

    Fig 4: Installing Hood Release Cable In Clips
    G01796623Courtesy of GENERAL MOTORS CORP.
  10. Install the front wheel panel. Refer to Wheelhouse Liner Replacement - Front .
  11. Install the hood latch. Refer to Hood Latch Replacement .
  12. Close the hood.
