Removal Procedure

  1. Remove the inflatable restraint steering wheel module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .

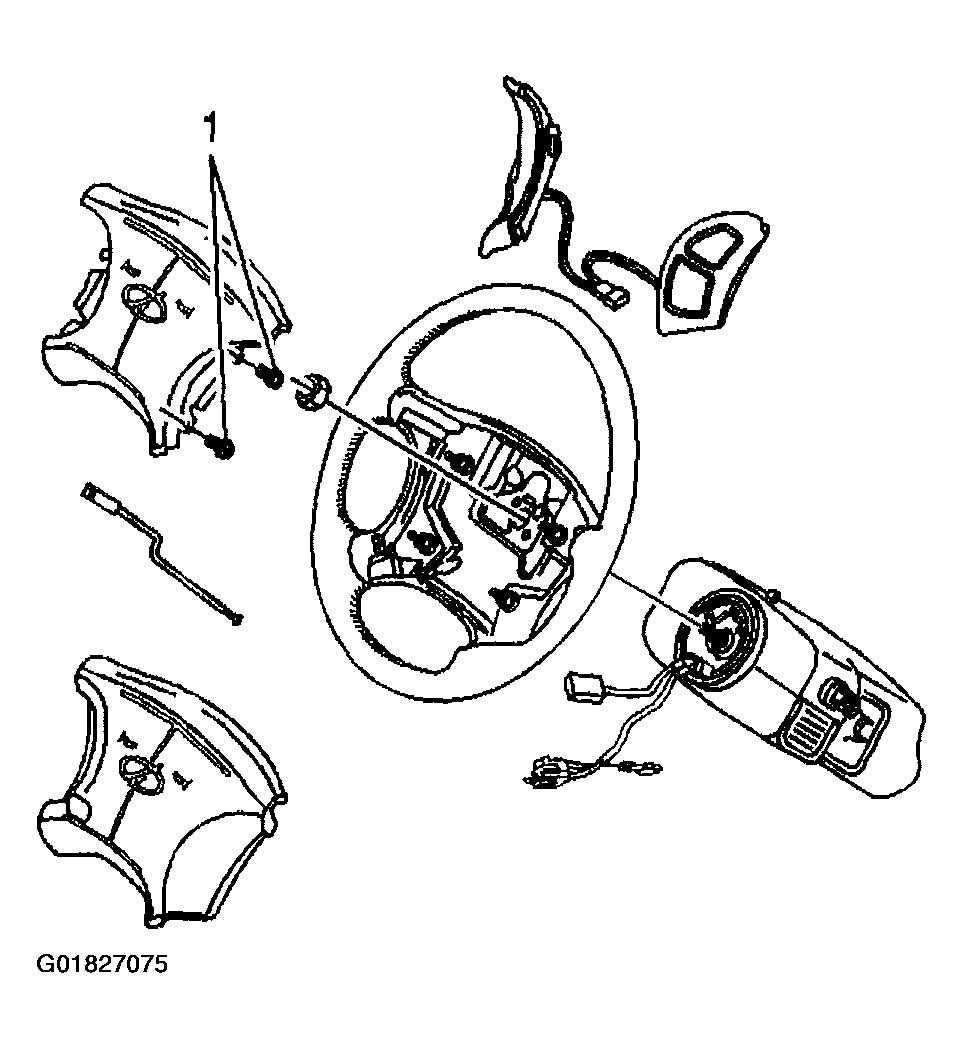

    2. Fig 1: Steering Wheel Control Switch Assembly (Oldsmobile)
    G01827075Courtesy of GENERAL MOTORS CORP.
  2. Remove the retaining screws (1) from the back of the inflatable restraint steering wheel module.
  3. As necessary, remove the horn switch ground wire connector from the grounding bracket to allow removal of the wire harness.
  4. Remove the wire harness connector from the retainer.
  5. Remove the switches and the harness from the inflatable restraint steering wheel module.
