Test Description
WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

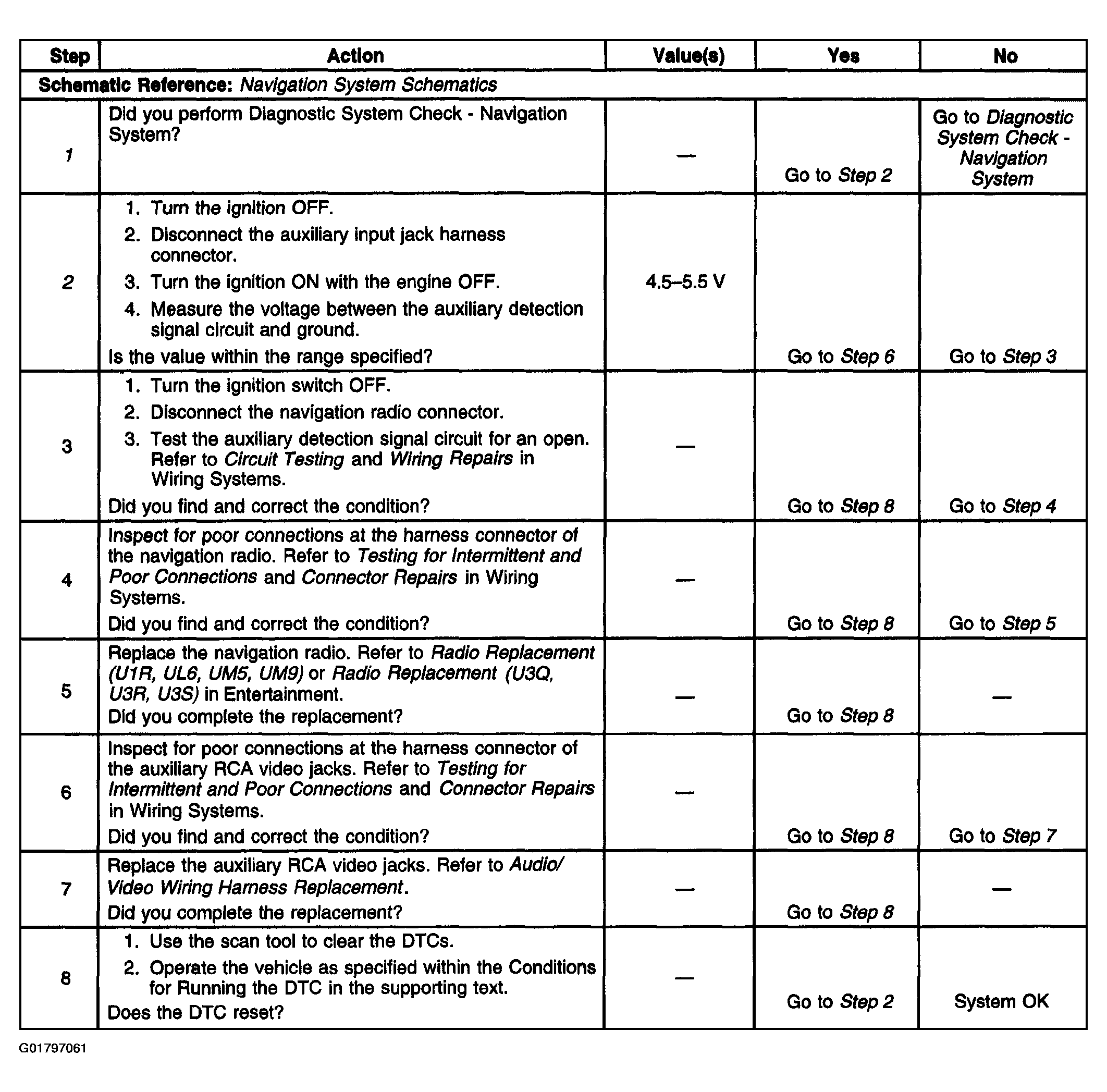

The numbers below refer to the step numbers on the diagnostic table.
- Determines if the malfunction is present.
- Tests the auxiliary detection signal for the correct voltage range.
Courtesy of GENERAL MOTORS CORP.
