Body Control Module Component Views

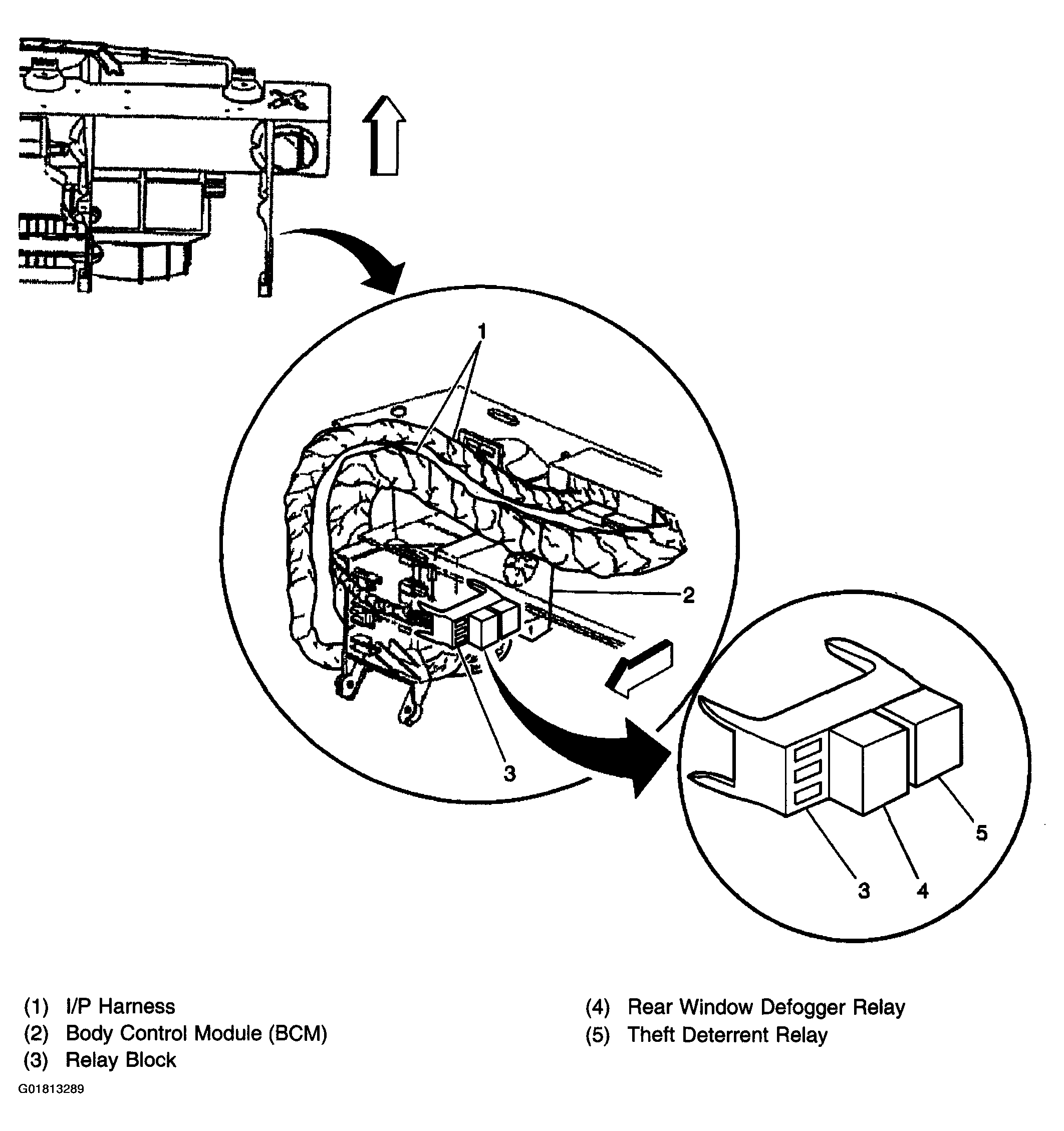

Fig 1: RH Side Of IP
G01813289Courtesy of GENERAL MOTORS CORP.

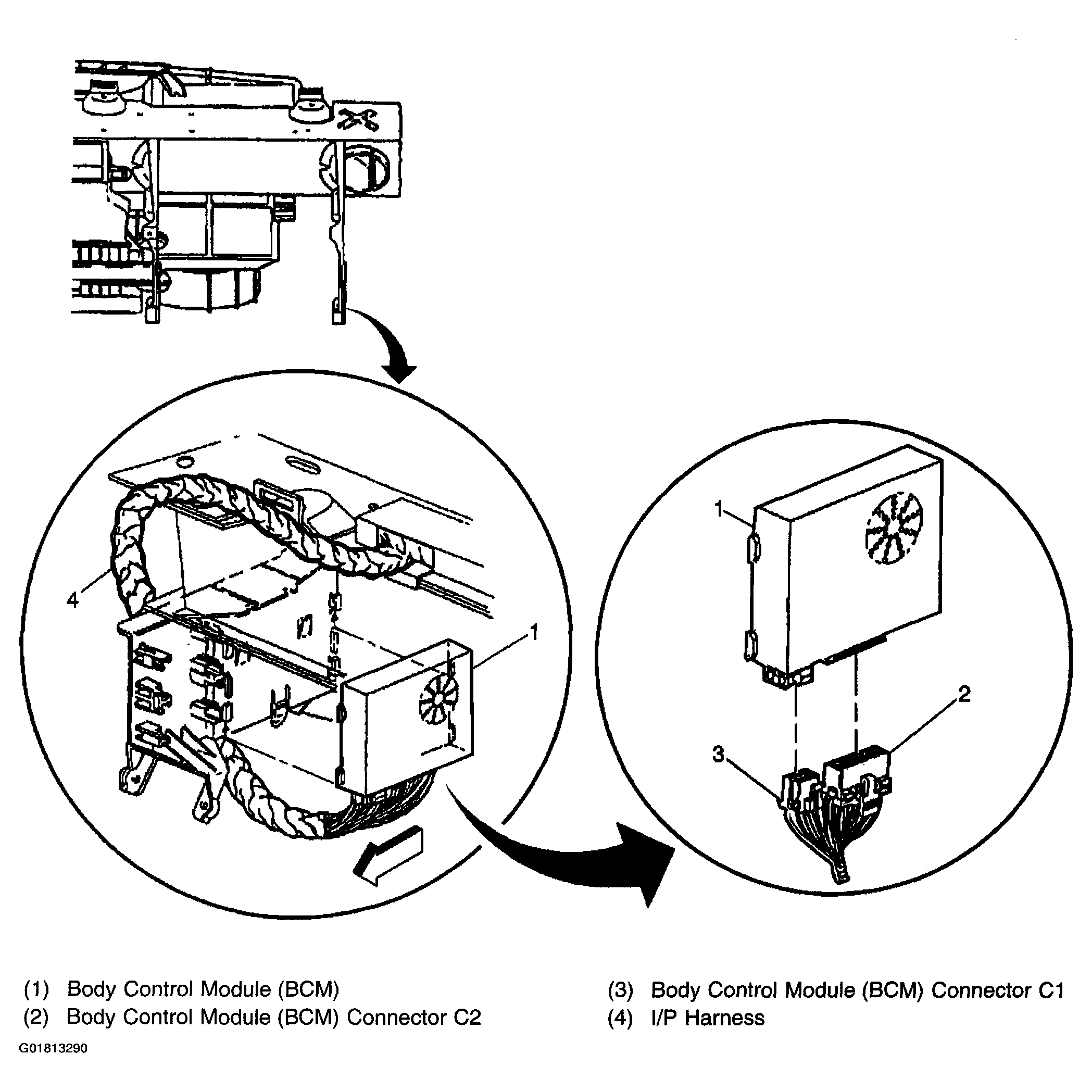

Fig 2: Below RH Side Of IP
G01813290Courtesy of GENERAL MOTORS CORP.
