Body Control Module Connector End Views

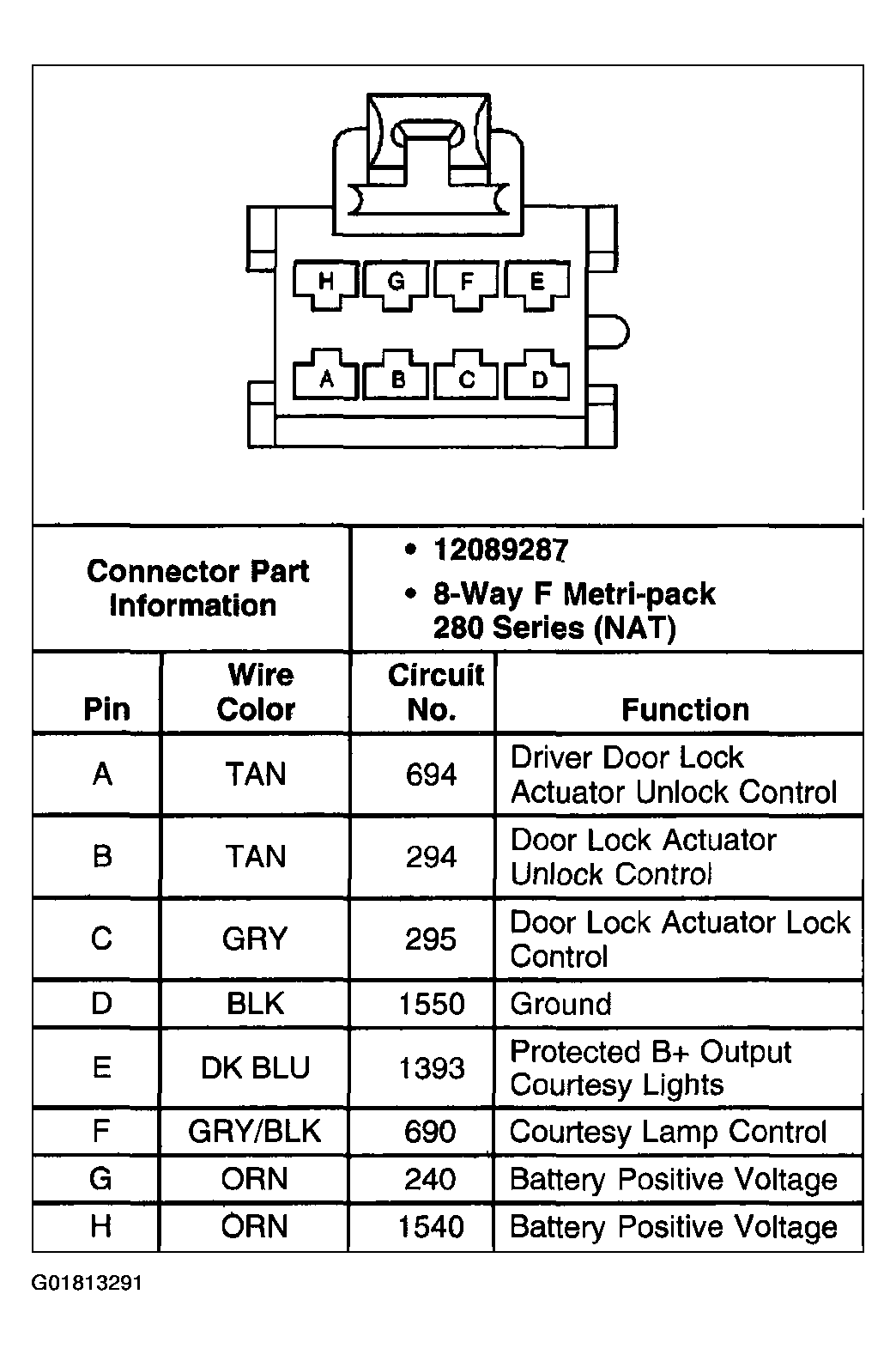

Fig 1: Body Control Module (BCM) C1
G01813291Courtesy of GENERAL MOTORS CORP.

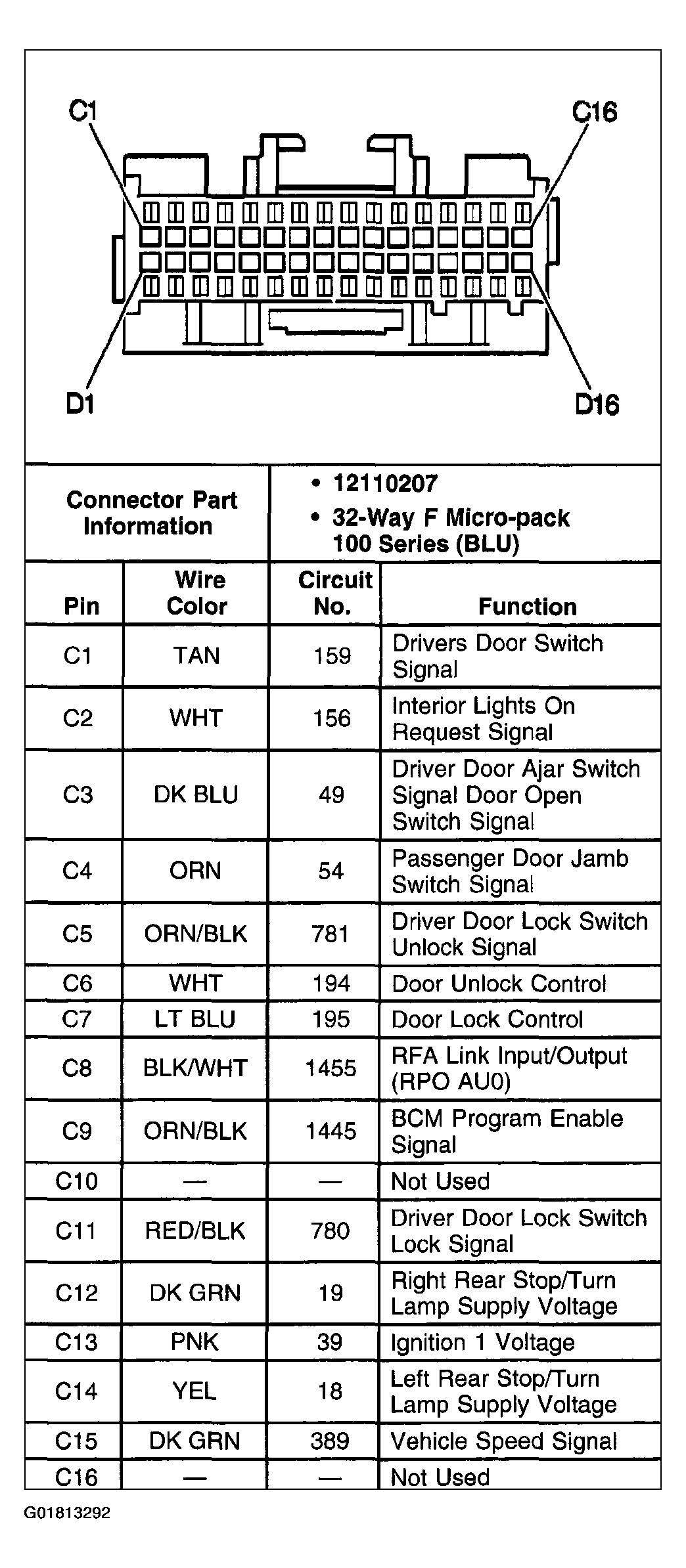

Fig 2: Body Control Module (BCM) C2 (1 Of 2)
G01813292Courtesy of GENERAL MOTORS CORP.

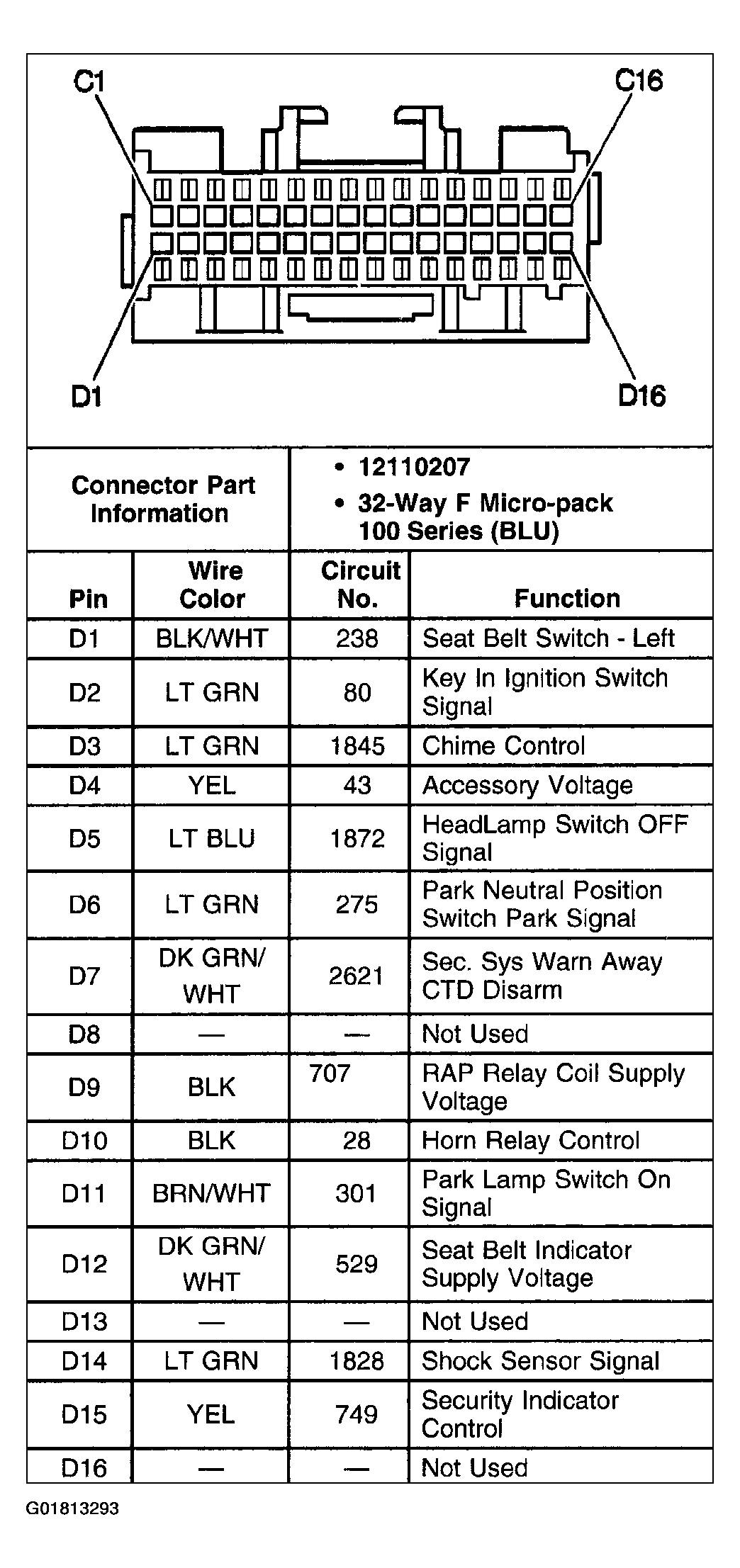

Fig 3: Body Control Module (BCM) C2 (2 Of 2)
G01813293Courtesy of GENERAL MOTORS CORP.
