Installation Procedure

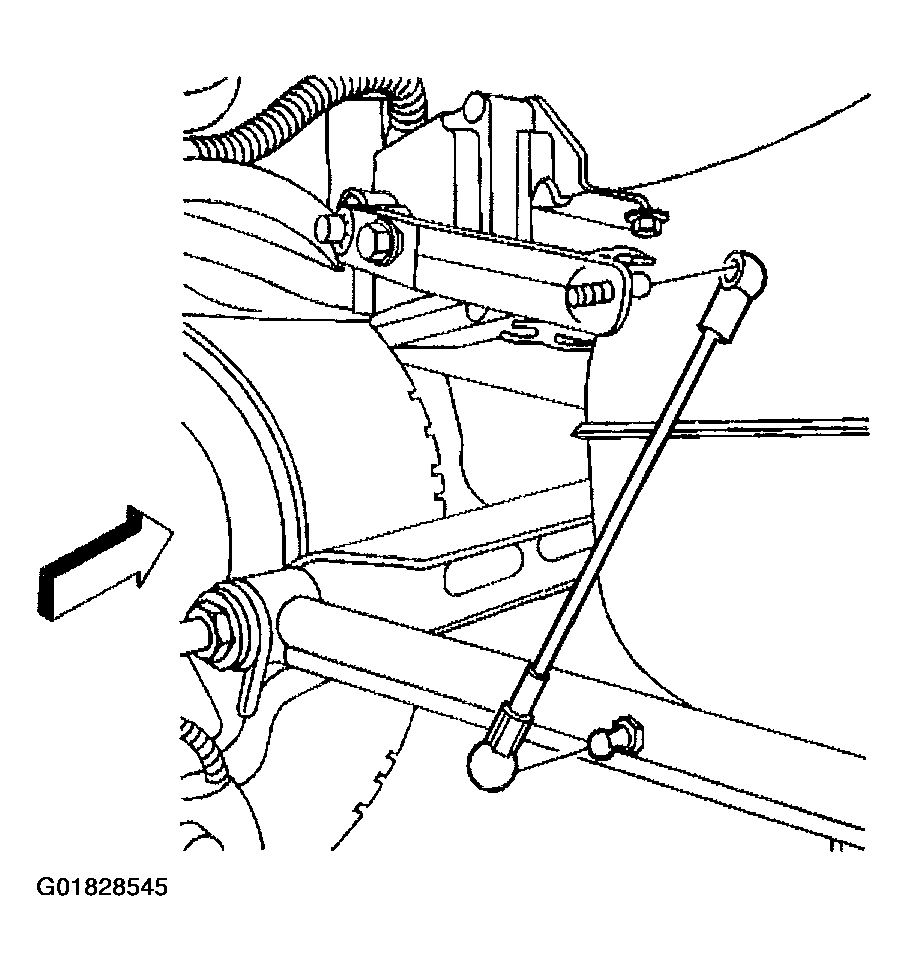

    Fig 1: Automatic Level Control Sensor Link
    G01828545Courtesy of GENERAL MOTORS CORP.
  1. Install the link to the tie rod and the sensor arm.
  2. Lower the vehicle.
