Installation Procedure

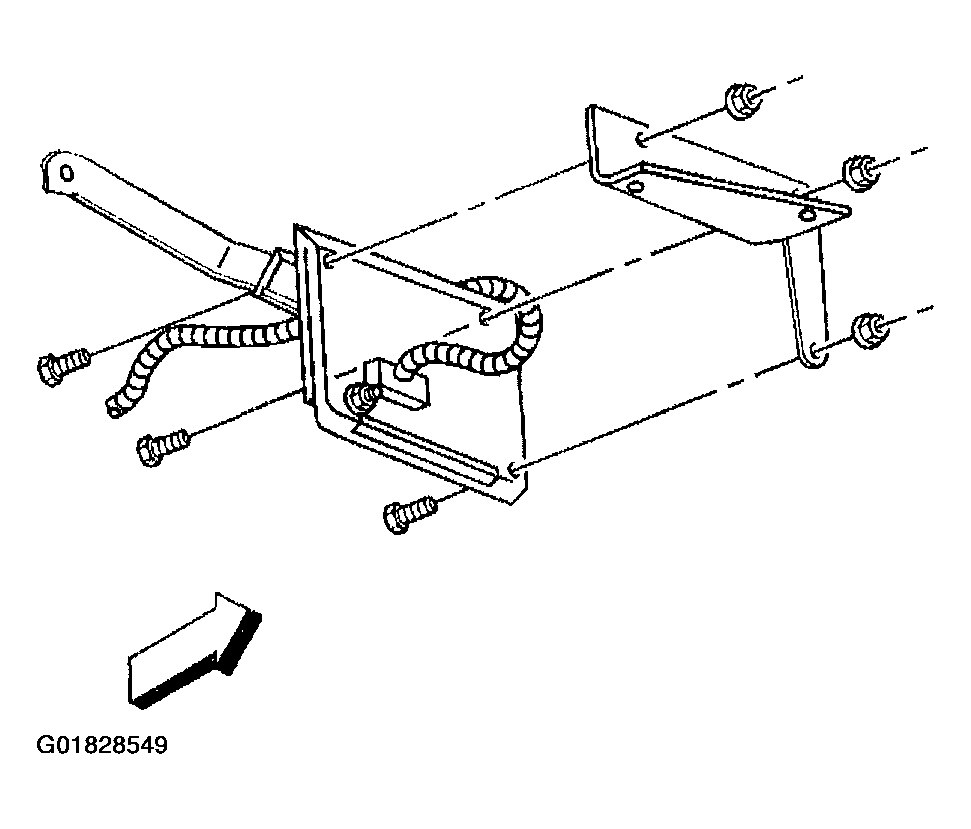

    Fig 1: Automatic Level Control Sensor
    G01828549Courtesy of GENERAL MOTORS CORP.
  1. Install the automatic level control sensor to the bracket.
    NOTE: Refer to FASTENER NOTICE .

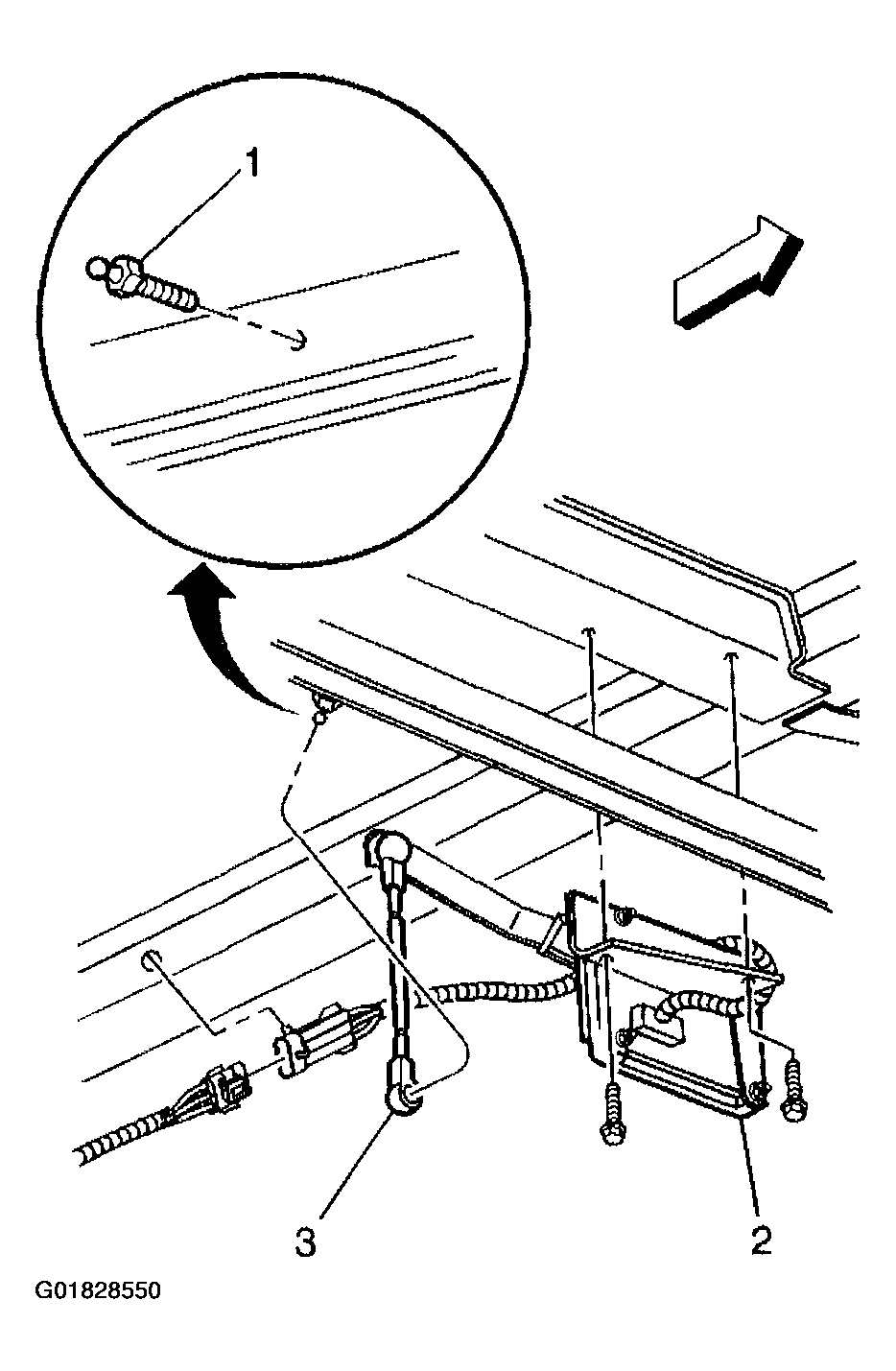

    2. Fig 2: Automatic Level Control Sensor Components
    G01828550Courtesy of GENERAL MOTORS CORP.
  2. Install the height sensor bolts/screws.

    Tighten

    Tighten the height sensor bolts/screws to 4 N.m (35 lb in).

  3. Install the automatic level control sensor with the bracket (2) to the vehicle.
  4. Install the height sensor bracket bolts/screws.

    Tighten

    Tighten the height sensor bracket bolts/screws to 10 N.m (89 lb in).

  5. Install the automatic level control sensor link to the tie rod ball stud. Refer to Automatic Level Control Sensor Link Replacement .

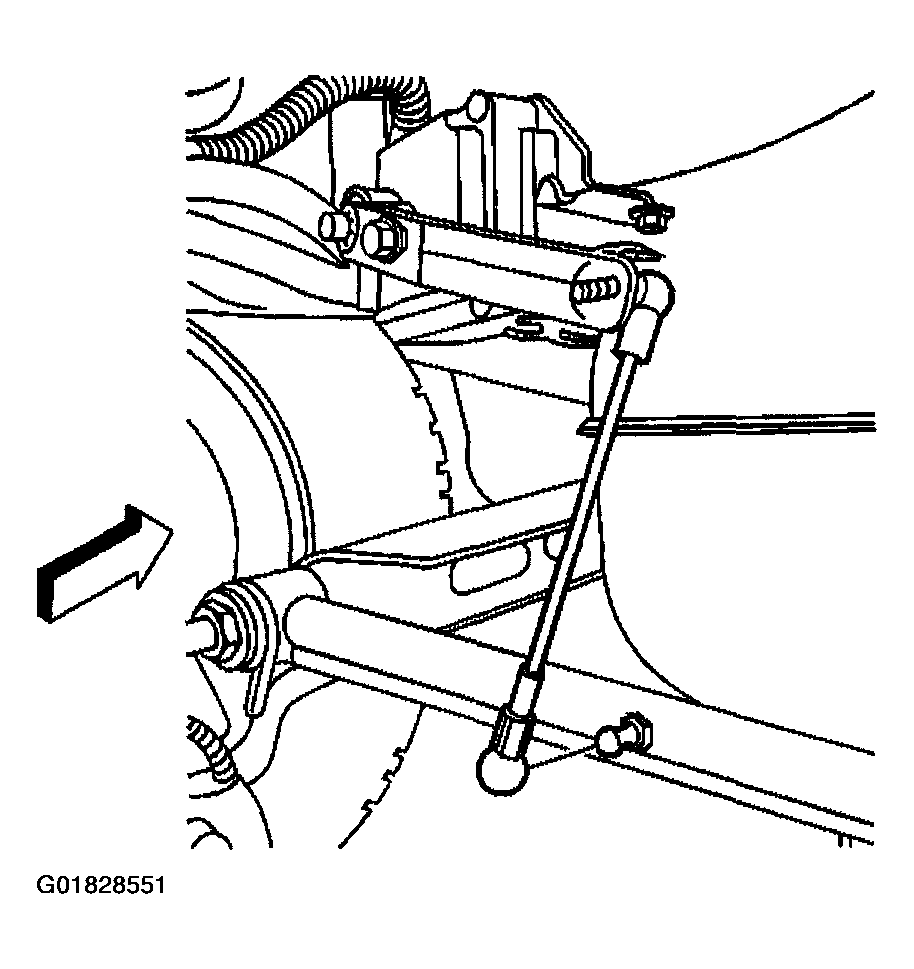

    6. Fig 3: Automatic Level Control Sensor Connector
    G01828551Courtesy of GENERAL MOTORS CORP.
  6. Install the automatic level control sensor connector to the underbody rail.
  7. Install the automatic level control sensor connector.
  8. Lower the vehicle.
  9. Install the ELC/TRAILER fuse.
