Rear Video/Audio/HVAC Module Connector End View (C2)

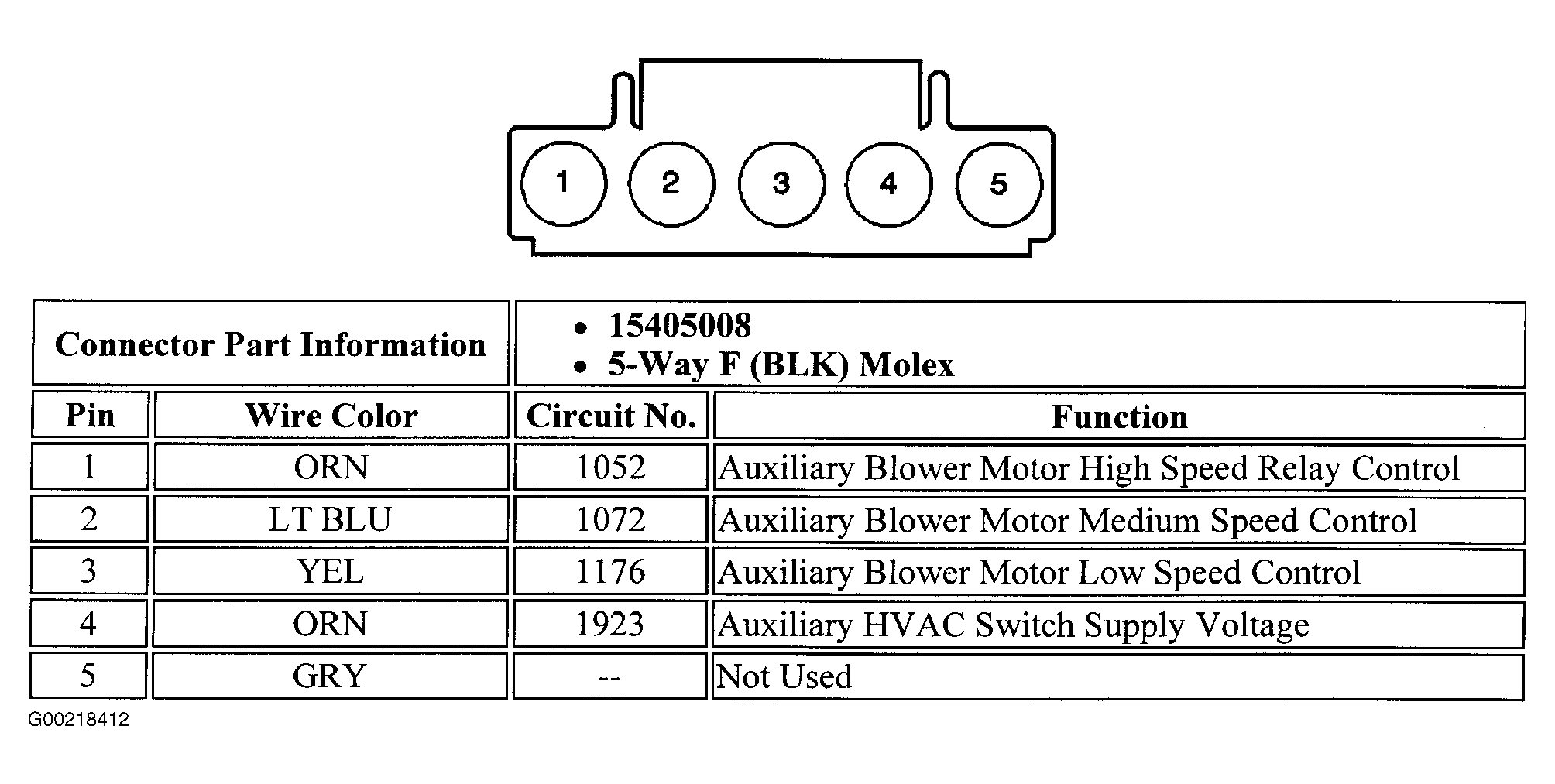

Fig 1: Rear Video/Audio/HVAC Module (C2)
G00218412Courtesy of GENERAL MOTORS CORP.
