Automatic Level Control Air Compressor Performance Test

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

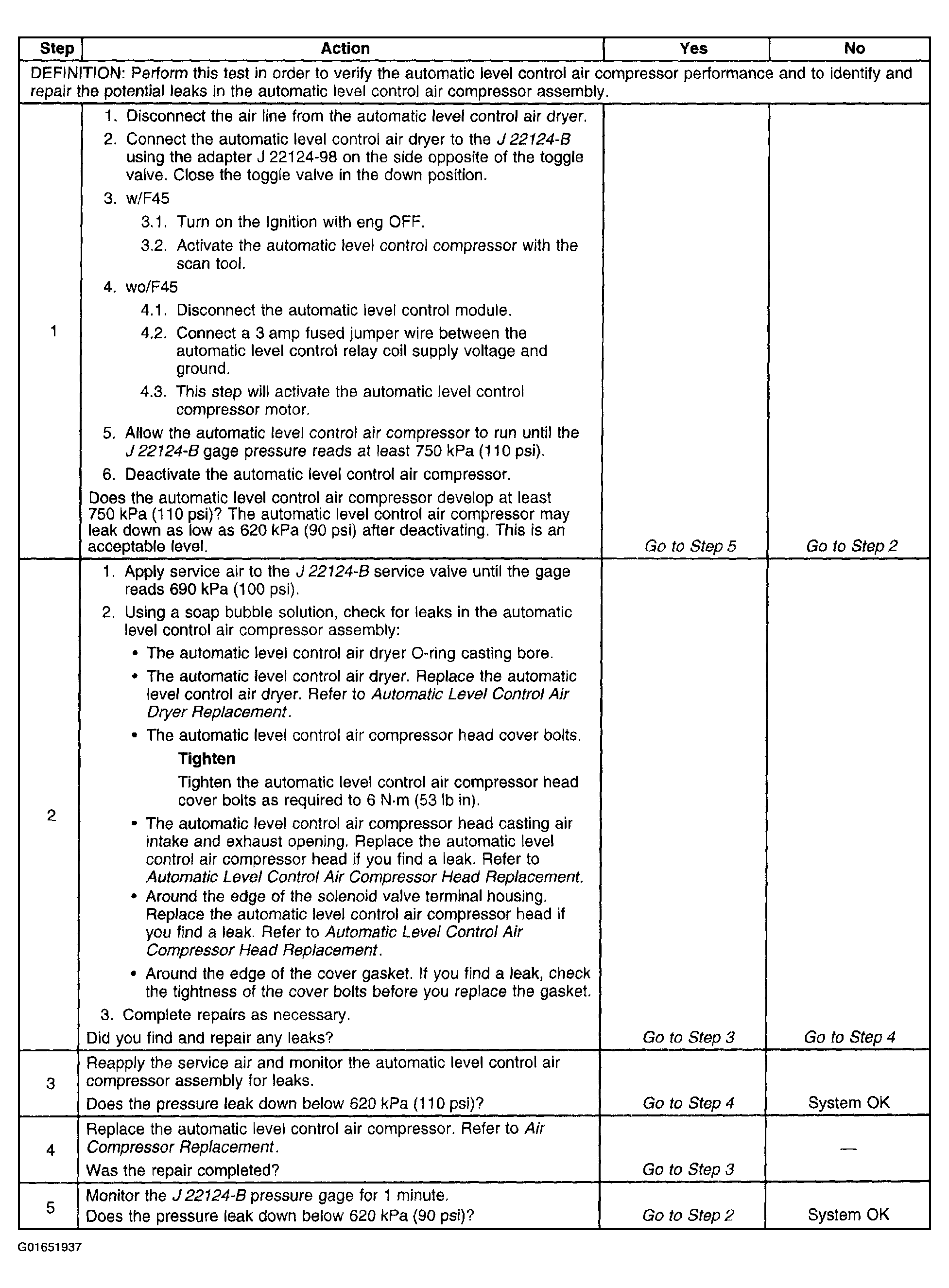

Fig 1: Automatic Level Control Air Compressor Performance Test
G01651937Courtesy of GENERAL MOTORS CORP.
