Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
- Install the following switch(s) to the switch plate:
- Memory function switch
- Power mirror switch
- Power window switch
- Press the switch(s) into the switch plate in order to engage the locking tabs.

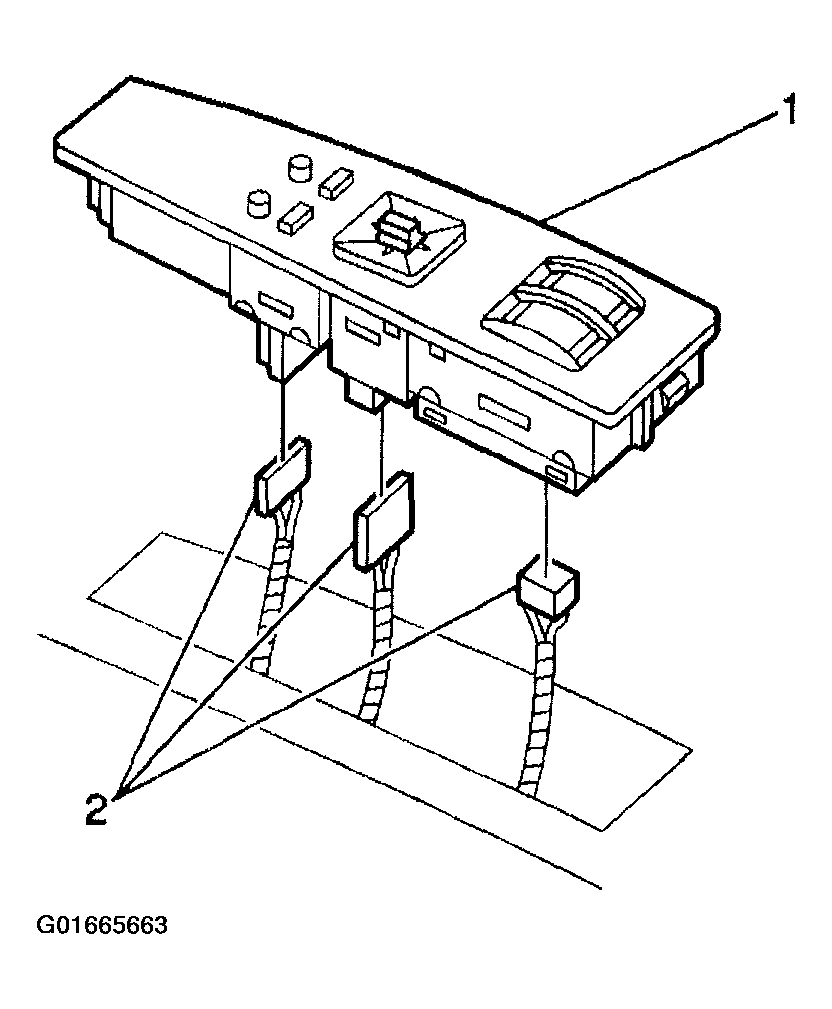

- Connect the electrical connectors (2).
- Install the switch plate (1) by evenly setting the plate into the armrest of the trim panel.
- Press the plate (1) downward in order to engage the retention clips on both ends of the switch plate.
