Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
  2. Remove the battery. Refer to BATTERY REPLACEMENT  .
  3. Remove the battery tray bolts.

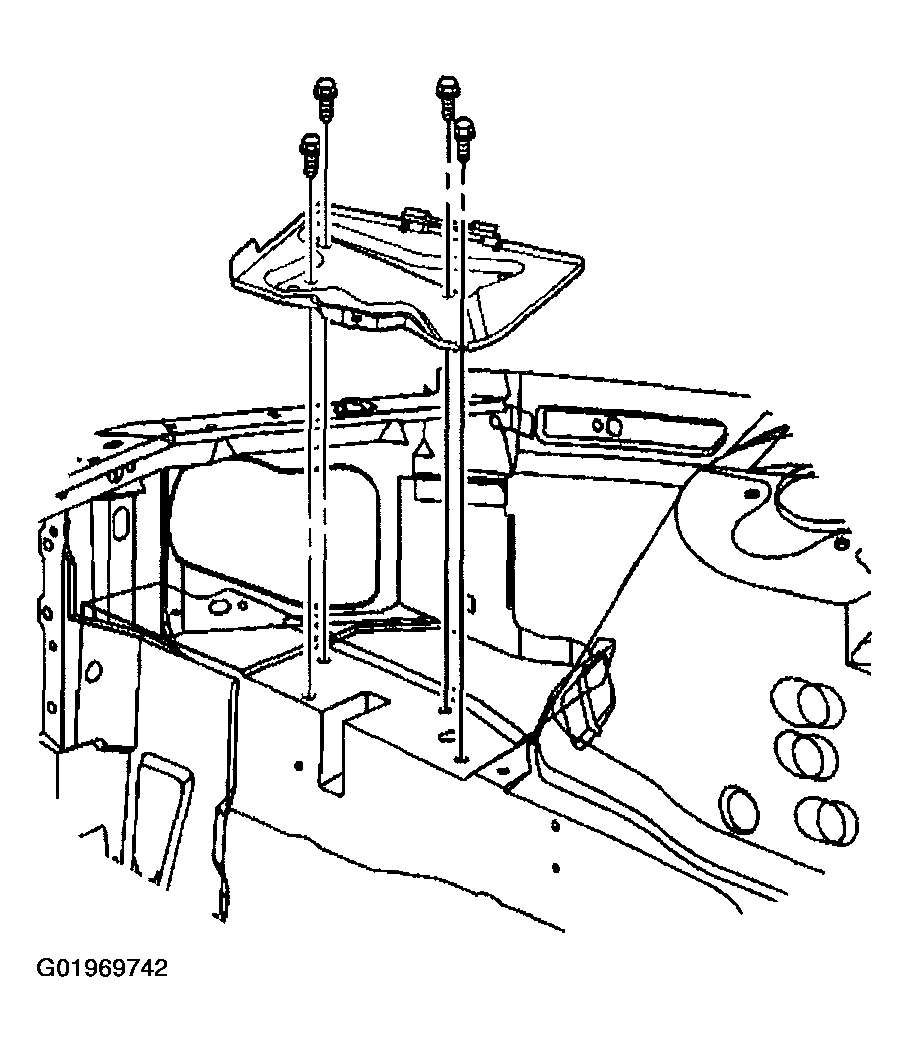

    Fig 1: Removing Battery Tray & Bolts
    G01969742Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery tray.
