Right Sliding Door Module

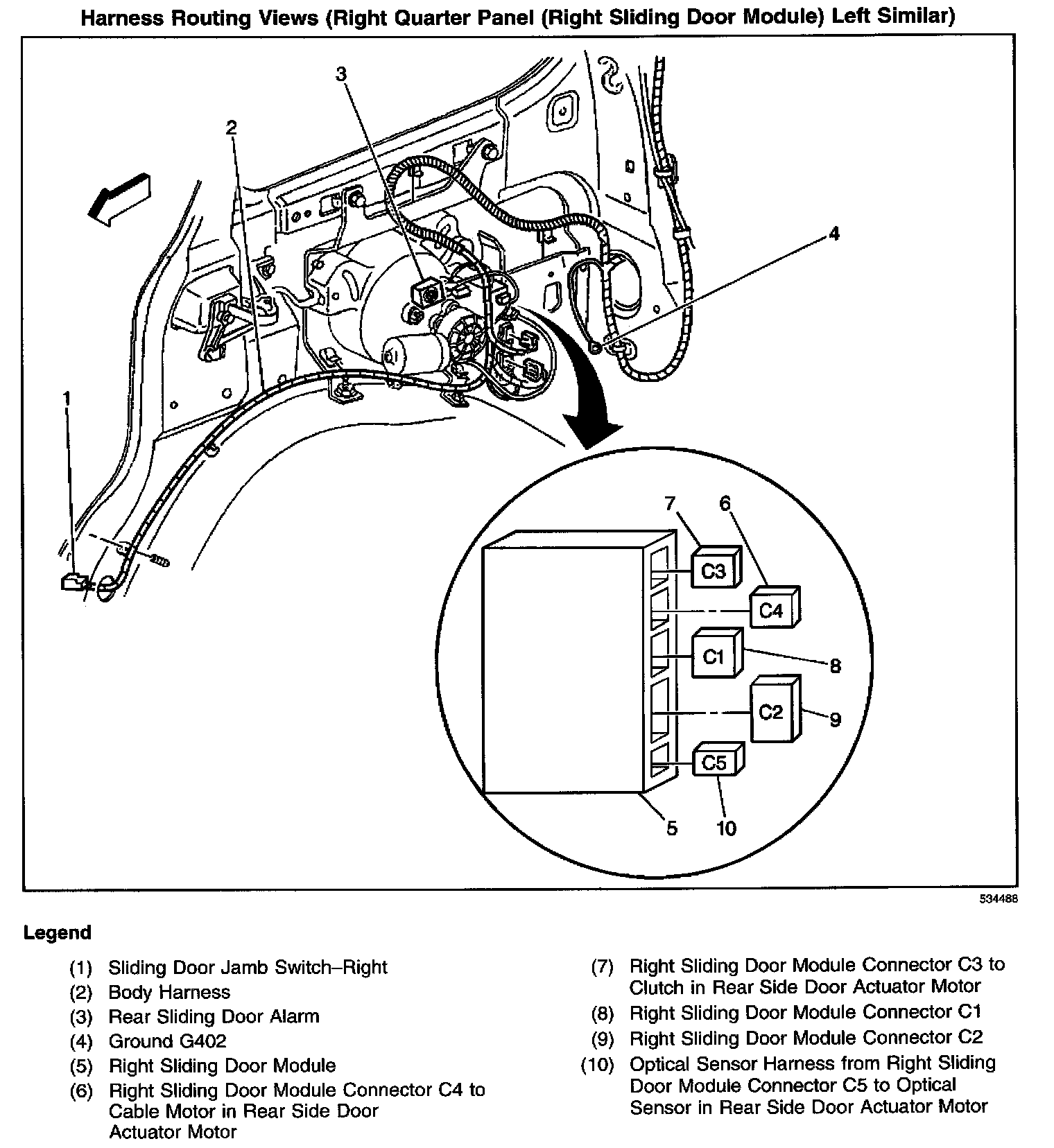

Harness Routing Views (Right Quarter Panel (Right Sliding Door Module) Left Similar):
