HVAC Control Module Replacement

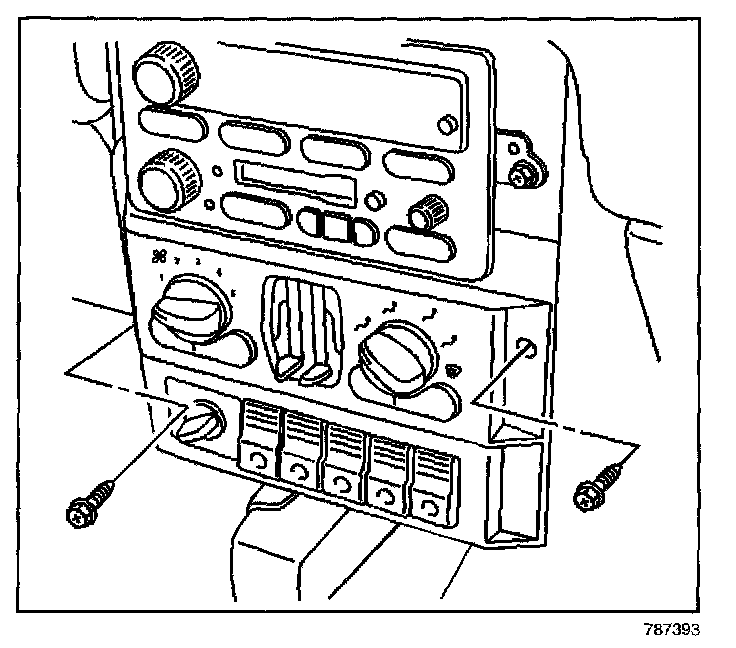

REMOVAL PROCEDURE




1. Remove the IP accessory trim plate.
2. Remove the HVAC control module retaining screws.
3. Pull the HVAC control module straight out from the instrument panel.
4. Disconnect the HVAC control module electrical connectors.
5. Remove the HVAC control module.

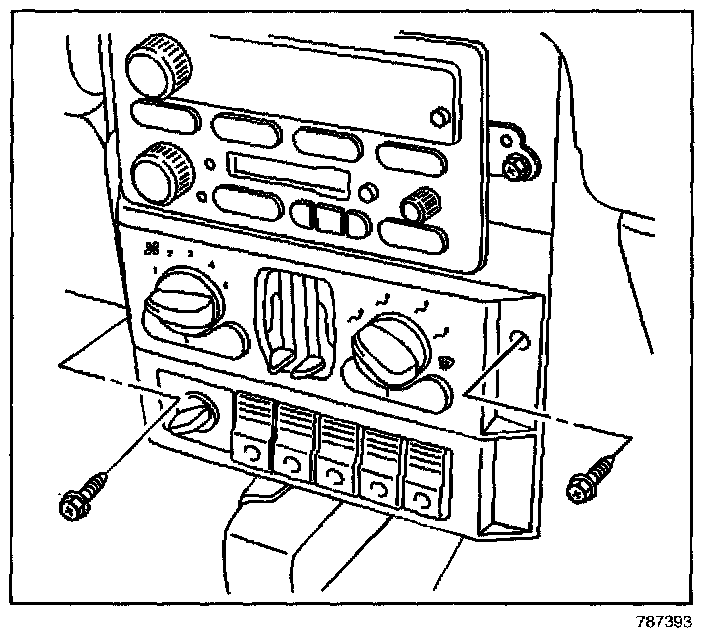

INSTALLATION PROCEDURE




1. Connect the HVAC control module electrical connectors.
2. Install the HVAC control module into instrument panel opening.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the HVAC control module retaining screws.

Tighten
Tighten the screws to 2.5 N.m (22 lb in).

4. Install the IP accessory trim plate.
