Main Relay (Computer/Fuel System): Locations

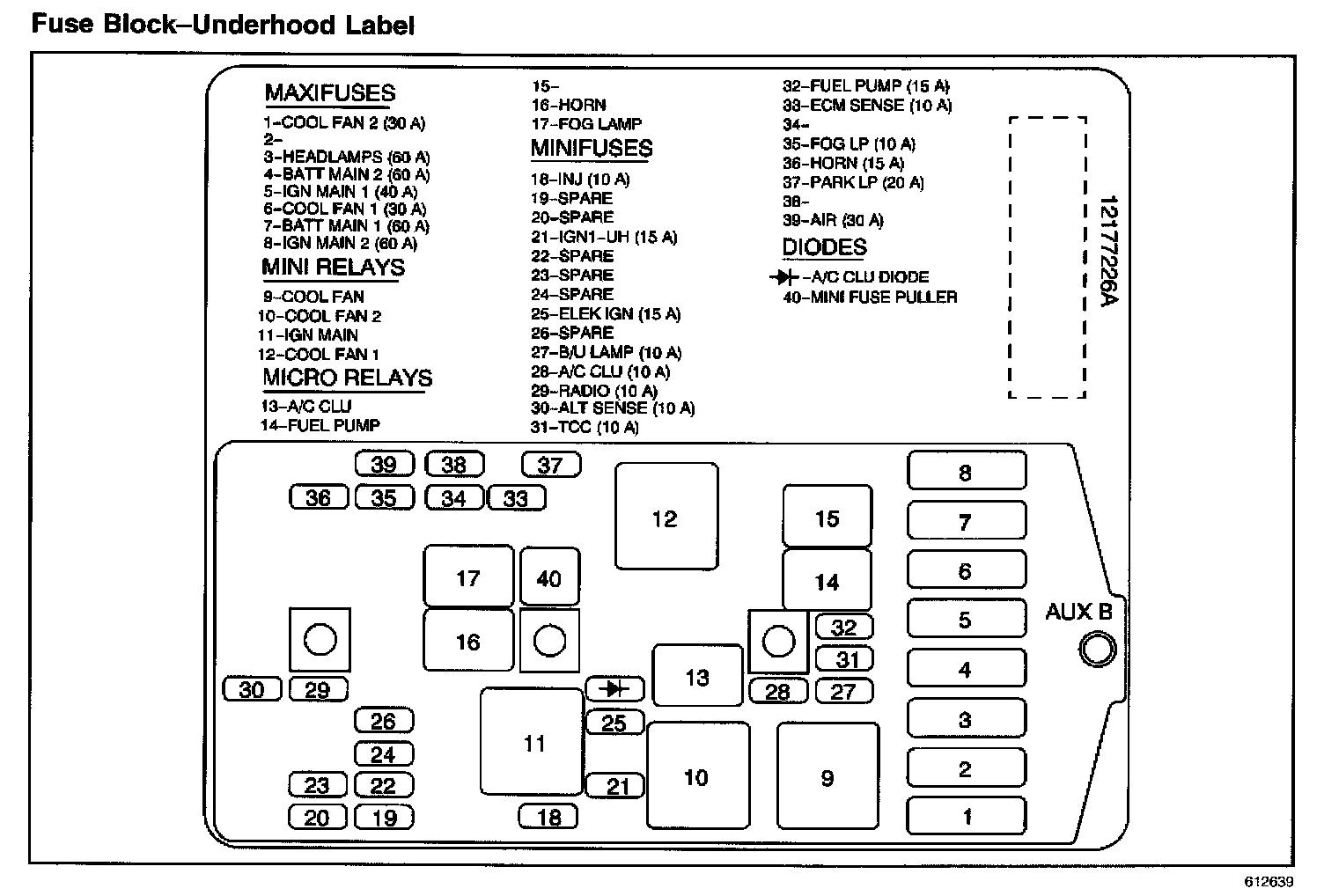

Fuse Block - Underhood Label:

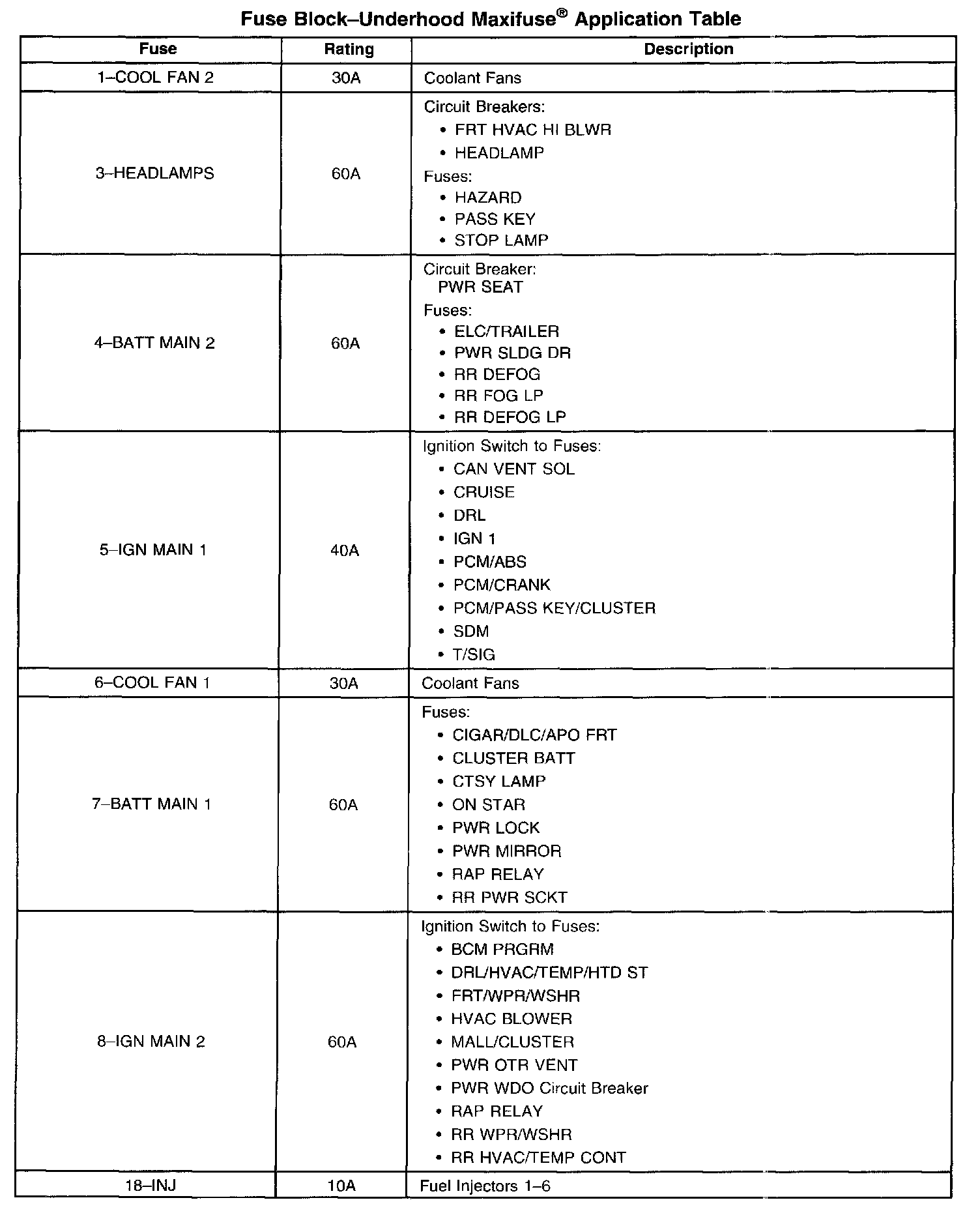

Fuse Block - Underhood Maxifuse(R) Application Table Part 1:

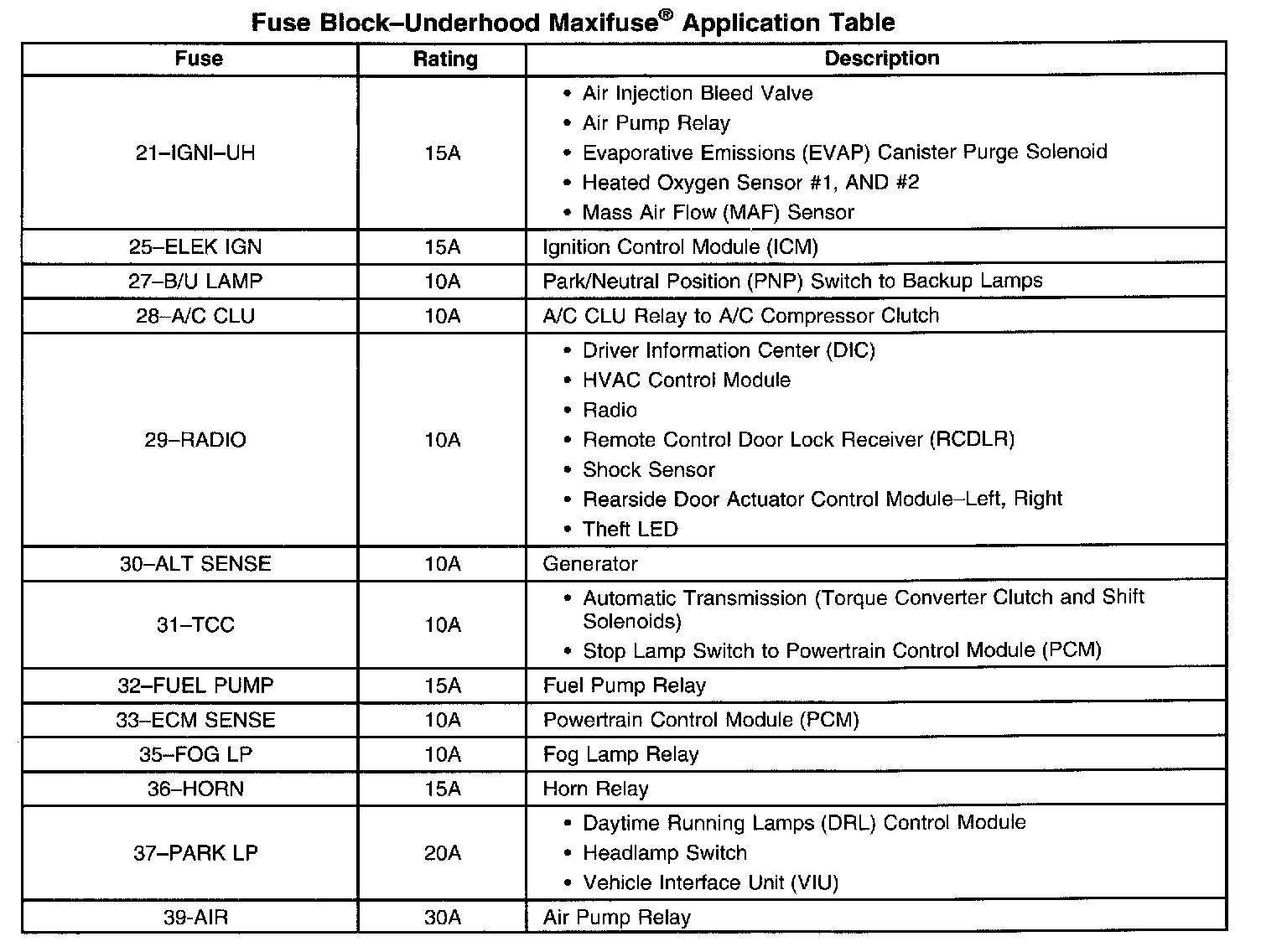

Fuse Block - Underhood Maxifuse(R) Application Table Part 2:
