Interior Lamp & Multi-Function Switch Assembly Connector End View C3 (Power Sliding Door Open/Close Switch)

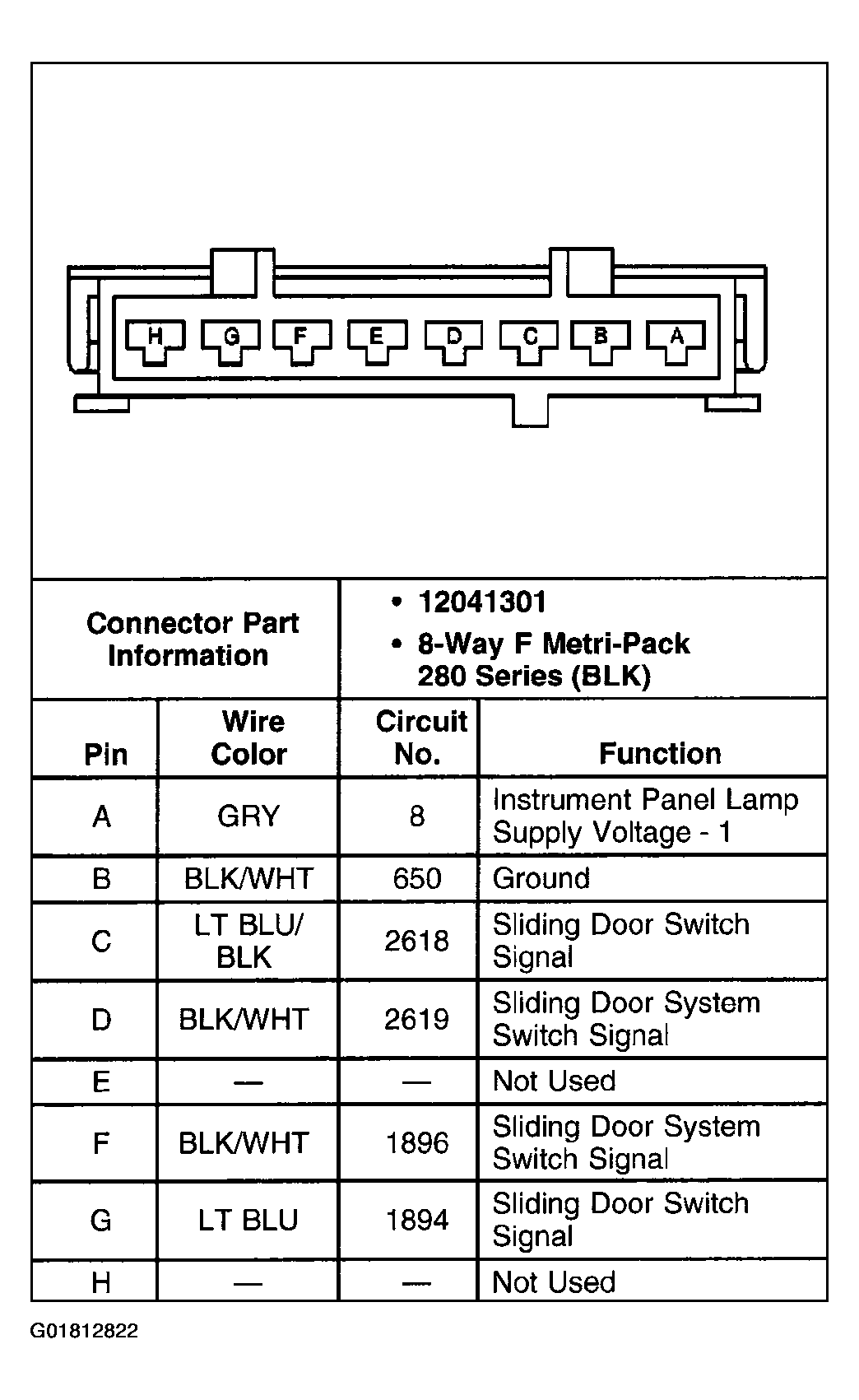

Fig 1: Interior Lamp & Multi-Function Switch Assembly C3 (Power Sliding Door Open/Close Switch)
G01812822Courtesy of GENERAL MOTORS CORP.
