Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the stop lamp switch (1) to the brake pedal bracket (2).
Connect the electrical connectors to the stop light switch.
Install the left side of the instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
Adjust the stop lamp switch. Refer to STOP LAMP SWITCH ADJUSTMENT .

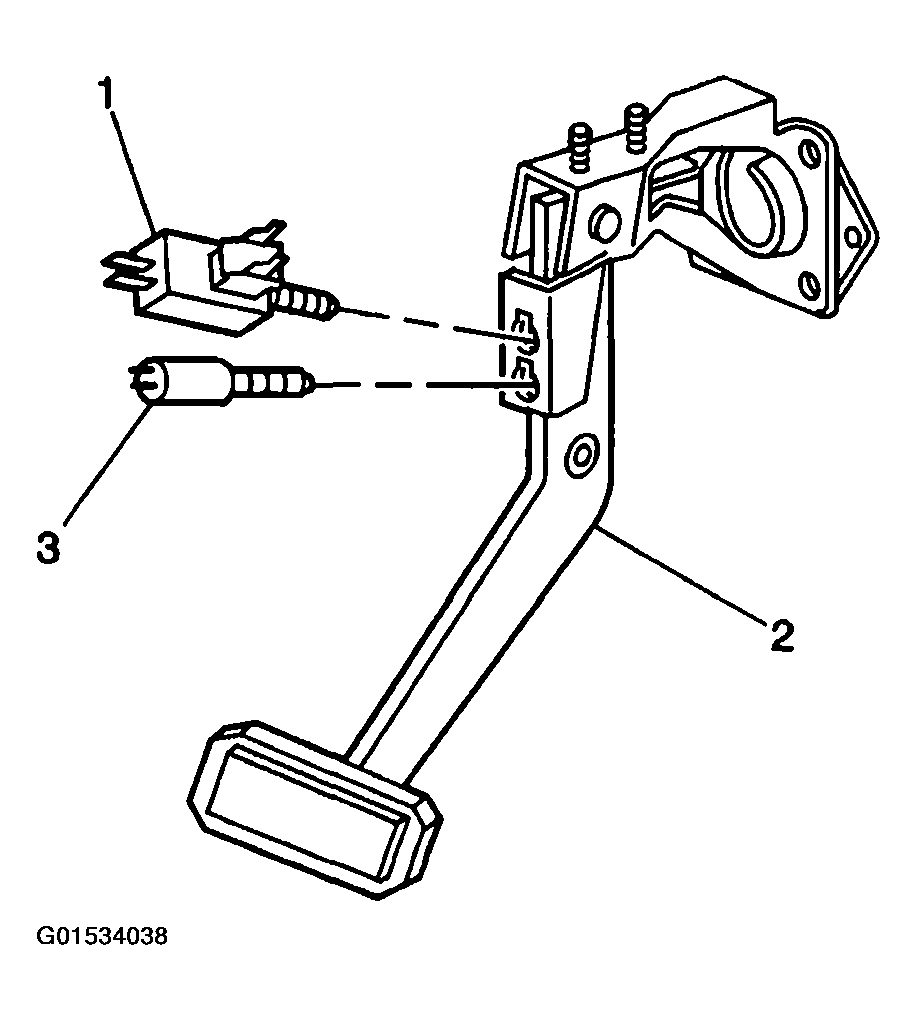

Fig 1: Installing Stop Lamp Switch And Cruise Control Switch Into Brake Pedal Bracket
Courtesy of GENERAL MOTORS CORP.
