Diagnostic Test

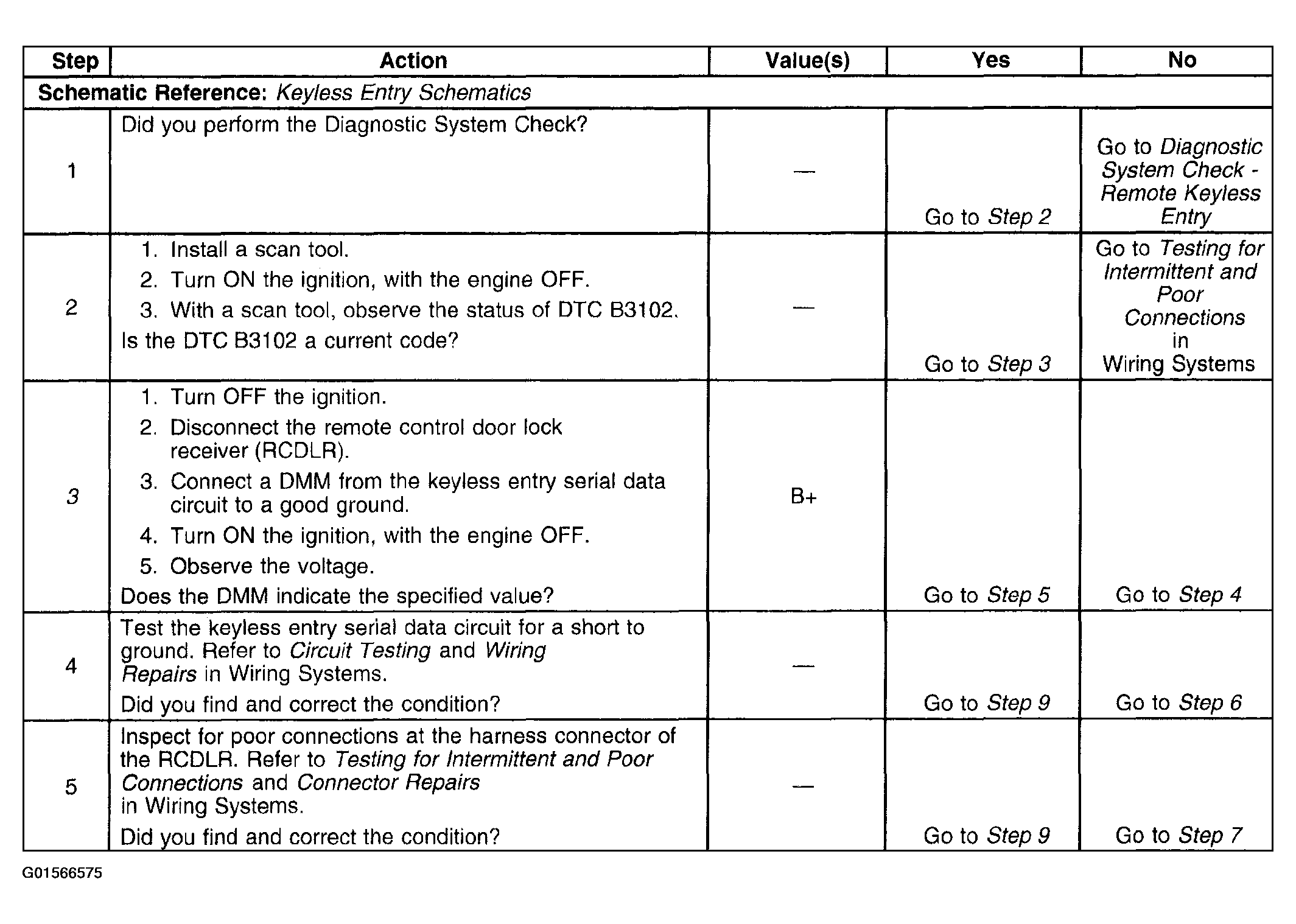

Fig 1: DTC B3102 Diagnostic Table (1 Of 2)
G01566575Courtesy of GENERAL MOTORS CORP.

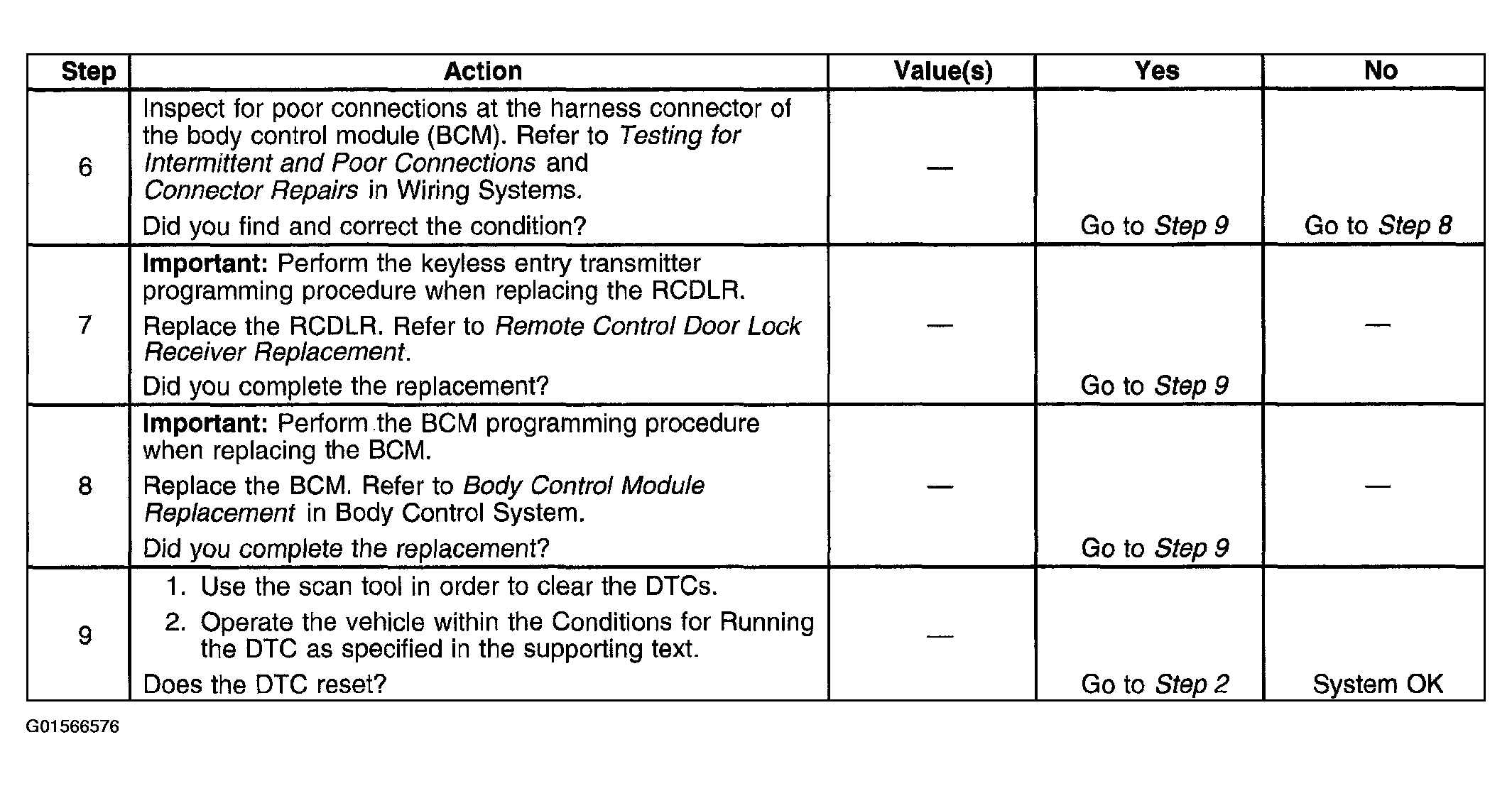

Fig 2: DTC B3102 Diagnostic Table (2 Of 2)
G01566576Courtesy of GENERAL MOTORS CORP.
