Wiper/Washer System Component Views

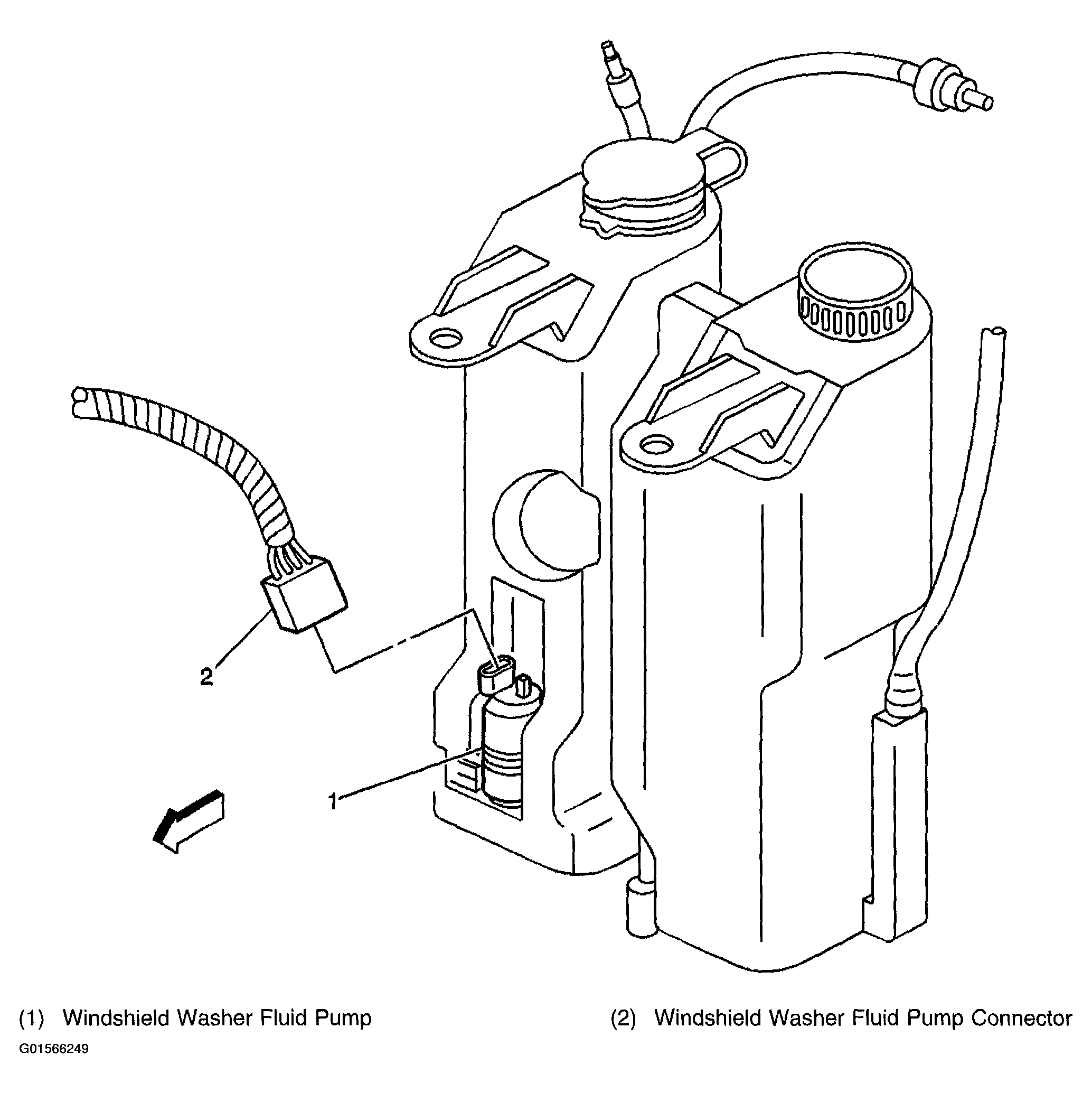

Fig 1: Windshield Coolant Recovery Reservoir View
G01566249Courtesy of GENERAL MOTORS CORP.

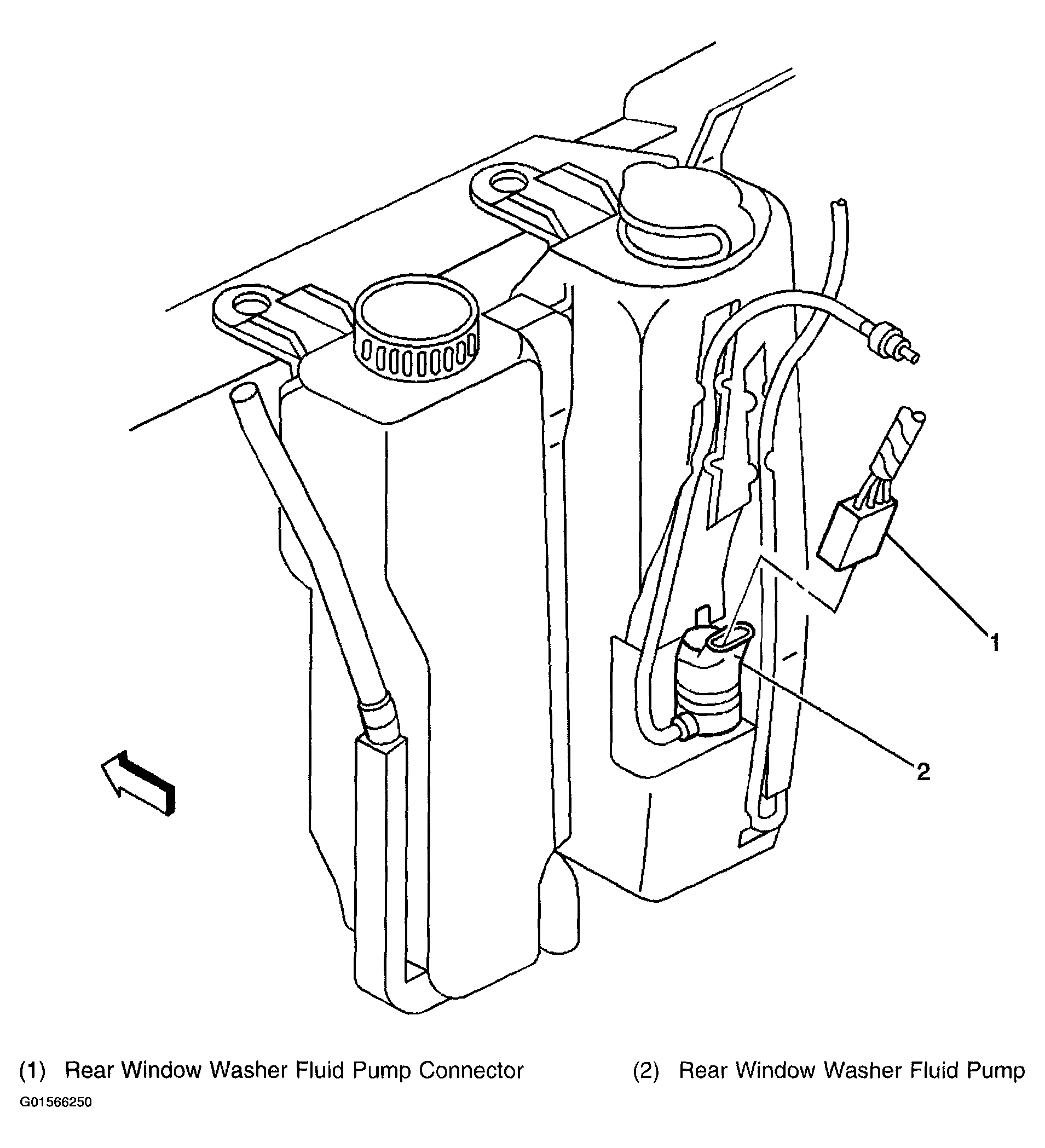

Fig 2: Rear Window Coolant Recovery Reservoir View
G01566250Courtesy of GENERAL MOTORS CORP.

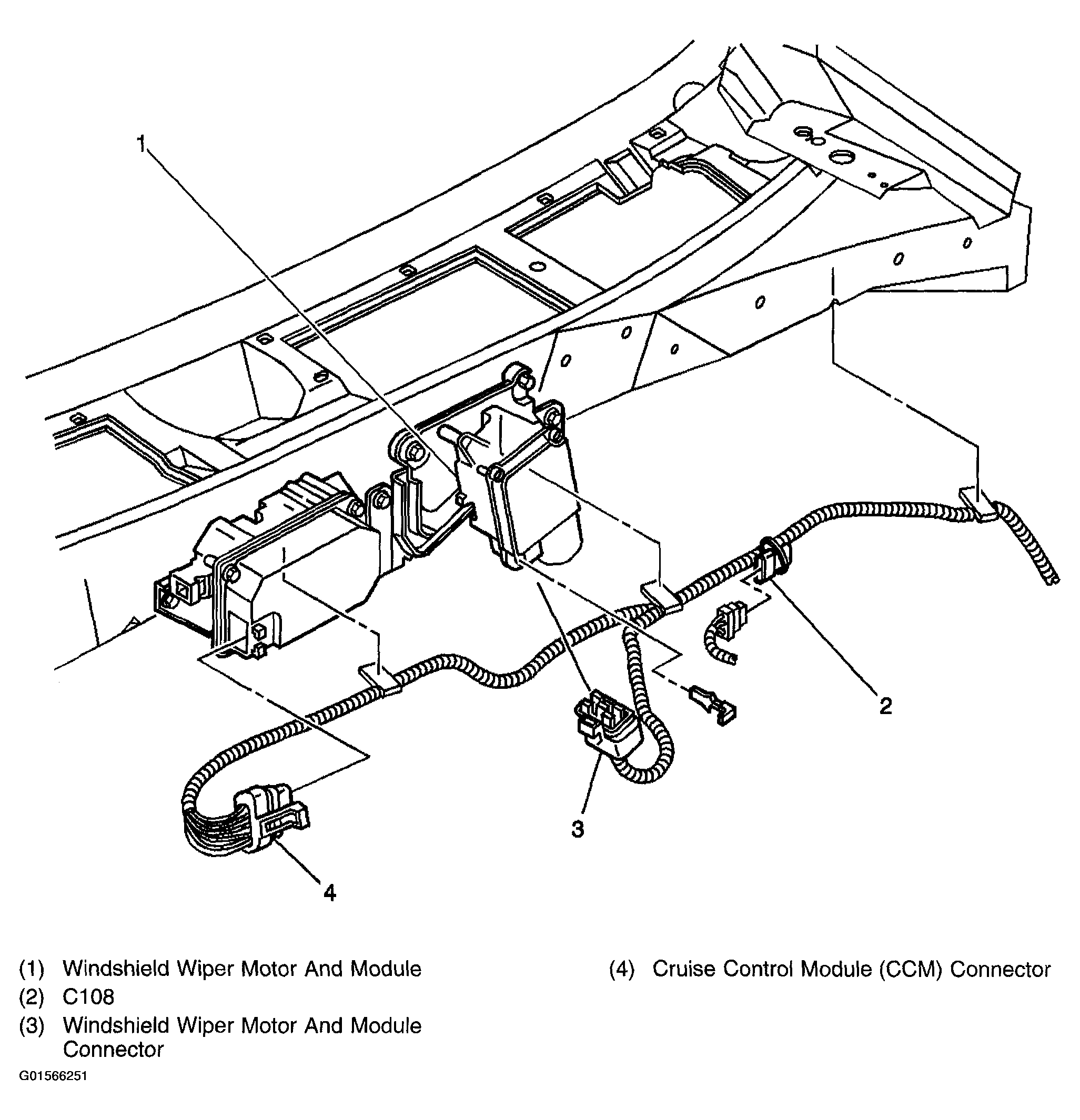

Fig 3: Cruise Control Module, And Wiper Motor View
G01566251Courtesy of GENERAL MOTORS CORP.

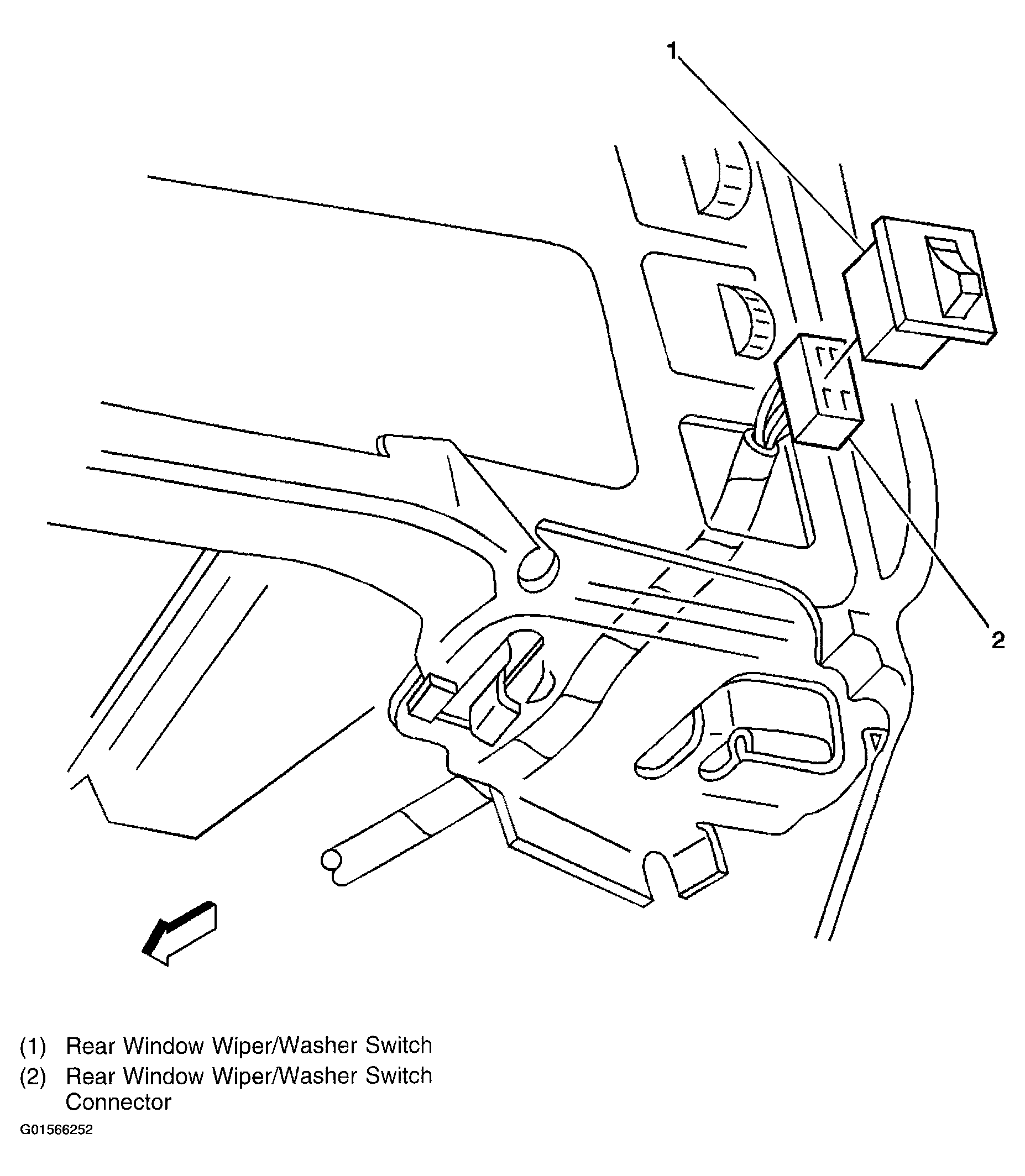

Fig 4: Rear Window Wiper/Washer Switch View
G01566252Courtesy of GENERAL MOTORS CORP.

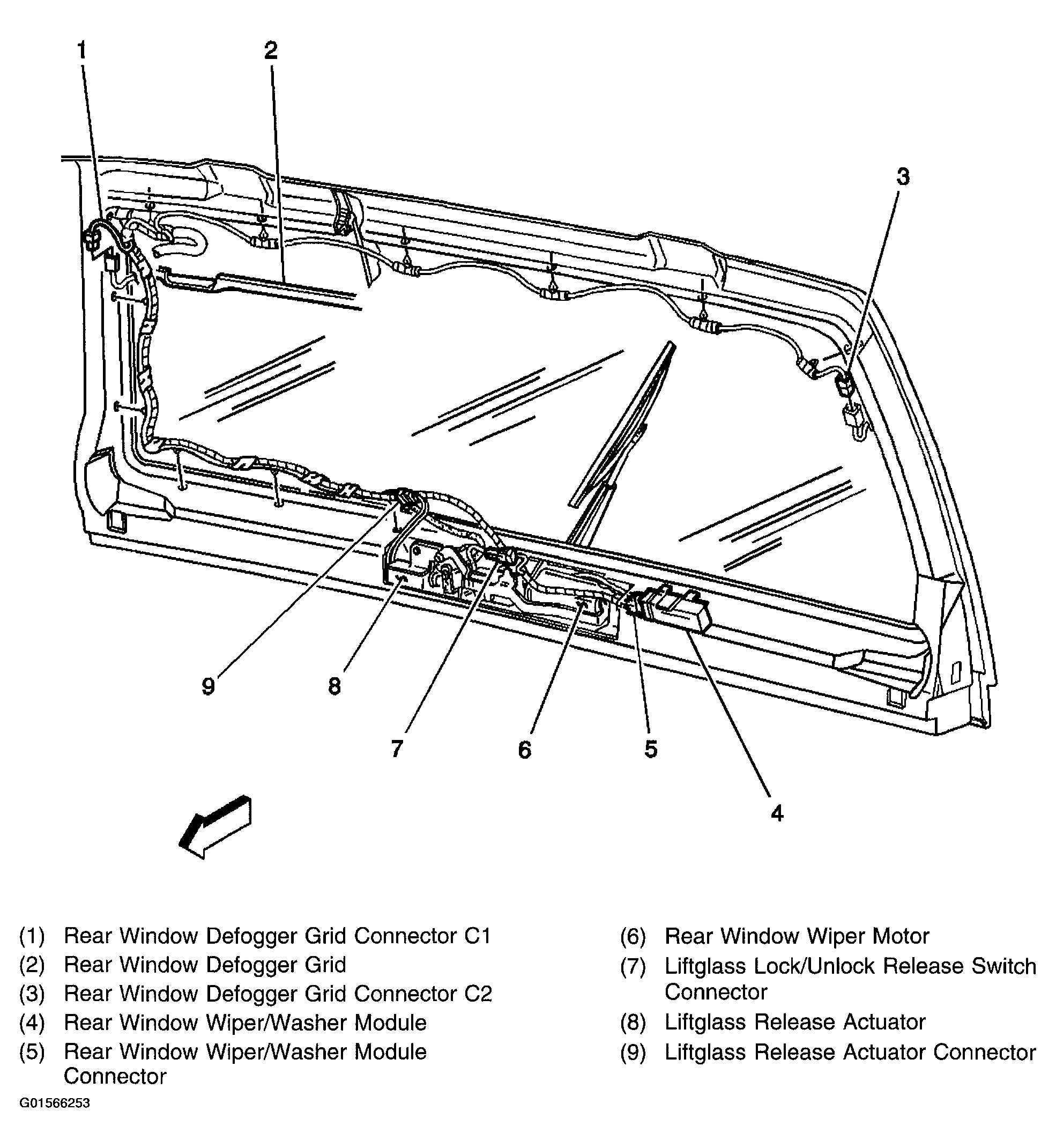

Fig 5: Liftgate Harness View
G01566253Courtesy of GENERAL MOTORS CORP.
